Mount-It! Pull Down Fireplace TV Mount for 42" to 65" TVs | MI-384
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
An articulating full motion TV wall mount for 42 to 65-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 55 lb with VESA 100×100 to 600×500 mm.
Swivels 60.0°, tilts +10.0°/−5.0°, and extends 5.7–22.4 inches. Aim the screen at any seat and reach the right depth.
Will this fit my TV
Status unknown
Enter your TV weight and VESA pattern to confirm fit
Will this fit my TV
Status unknownEnter your TV weight and select your TV VESA pattern to confirm fit.
Use the TV weight without the stand when possible.
If your pattern is not listed, choose Custom VESA.
Enter the VESA spacing in millimeters.
Pull Down Fireplace TV Mount - Black is backordered and will ship as soon as it is back in stock.
Features
Fits 42 to 65 inch flat screen TVs
Weight rated up to 55 lb
Swivels 30.0° left and right — aim the screen at any seat
Adjustable tilt +10.0° up / −5.0° down - reduce glare, improve your view

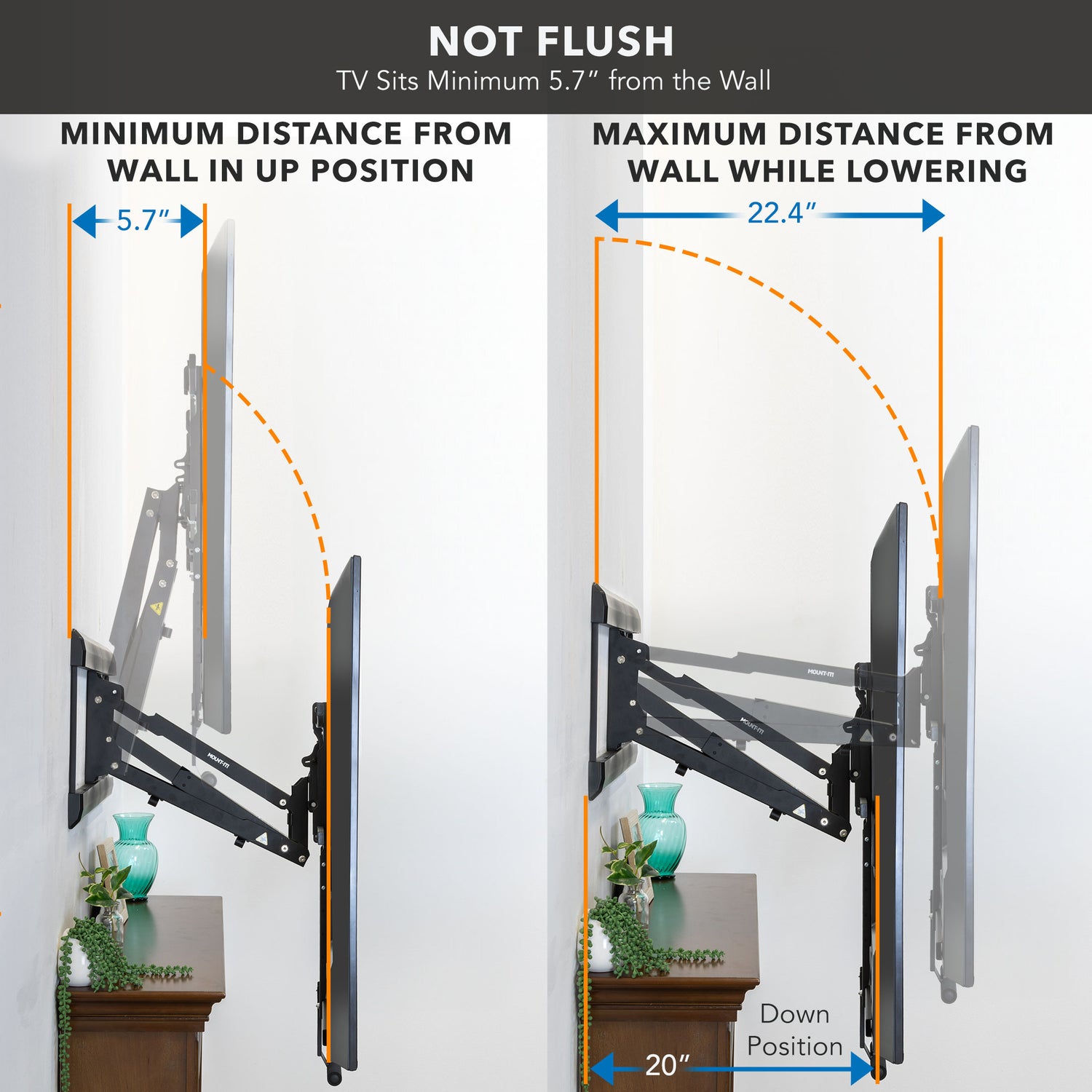

Extends 5.7–22.4 in from the wall for flexible positioning

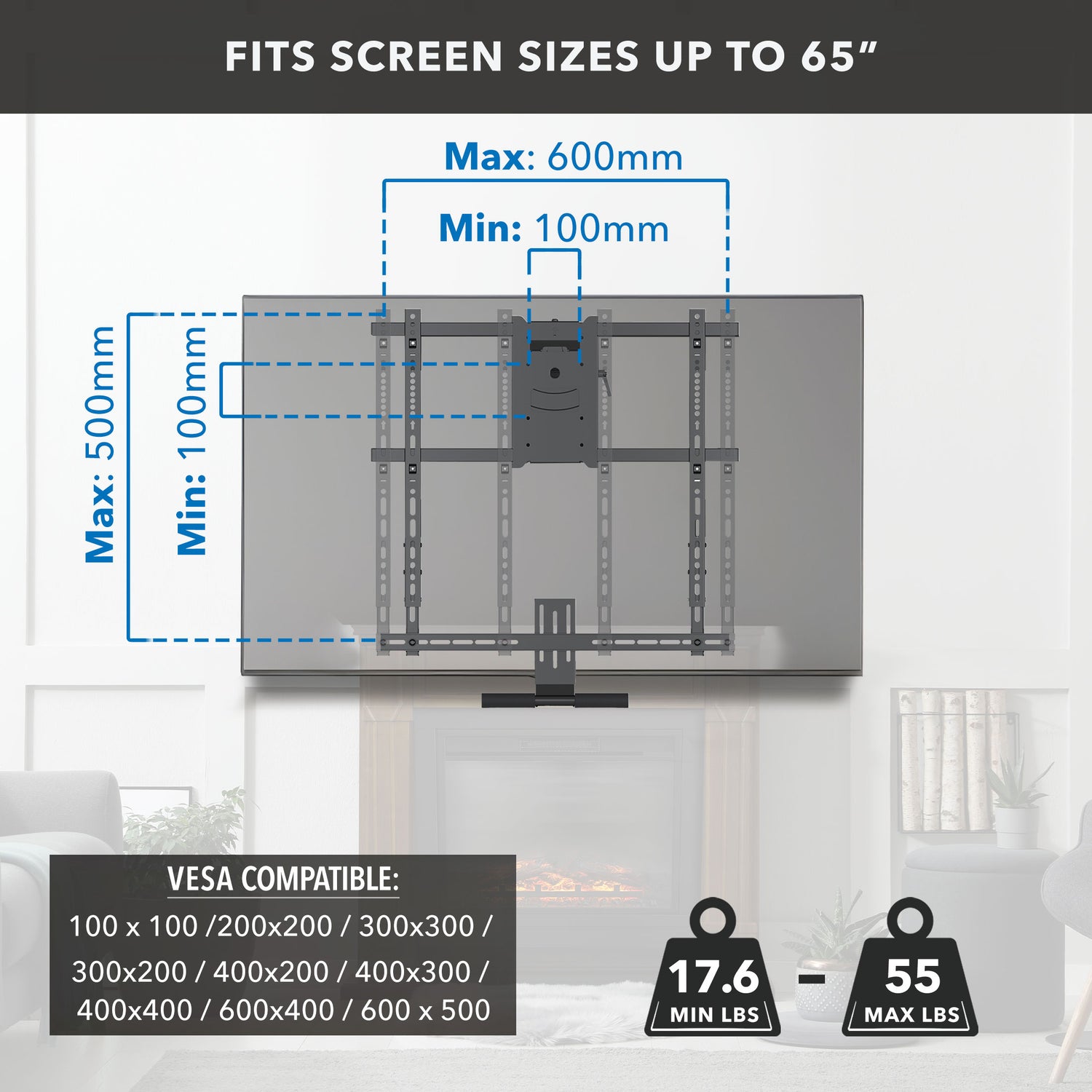

VESA 100×100 to 600×500 mm - fits most flat panel TV brands
Overview
The Pull Down Fireplace TV Mount is a full motion articulating TV wall mount for 42 to 65-inch televisions. Engineered for living rooms and entertainment spaces where seating comes from multiple directions and the screen needs to follow. Rated for TVs up to 55 lb.

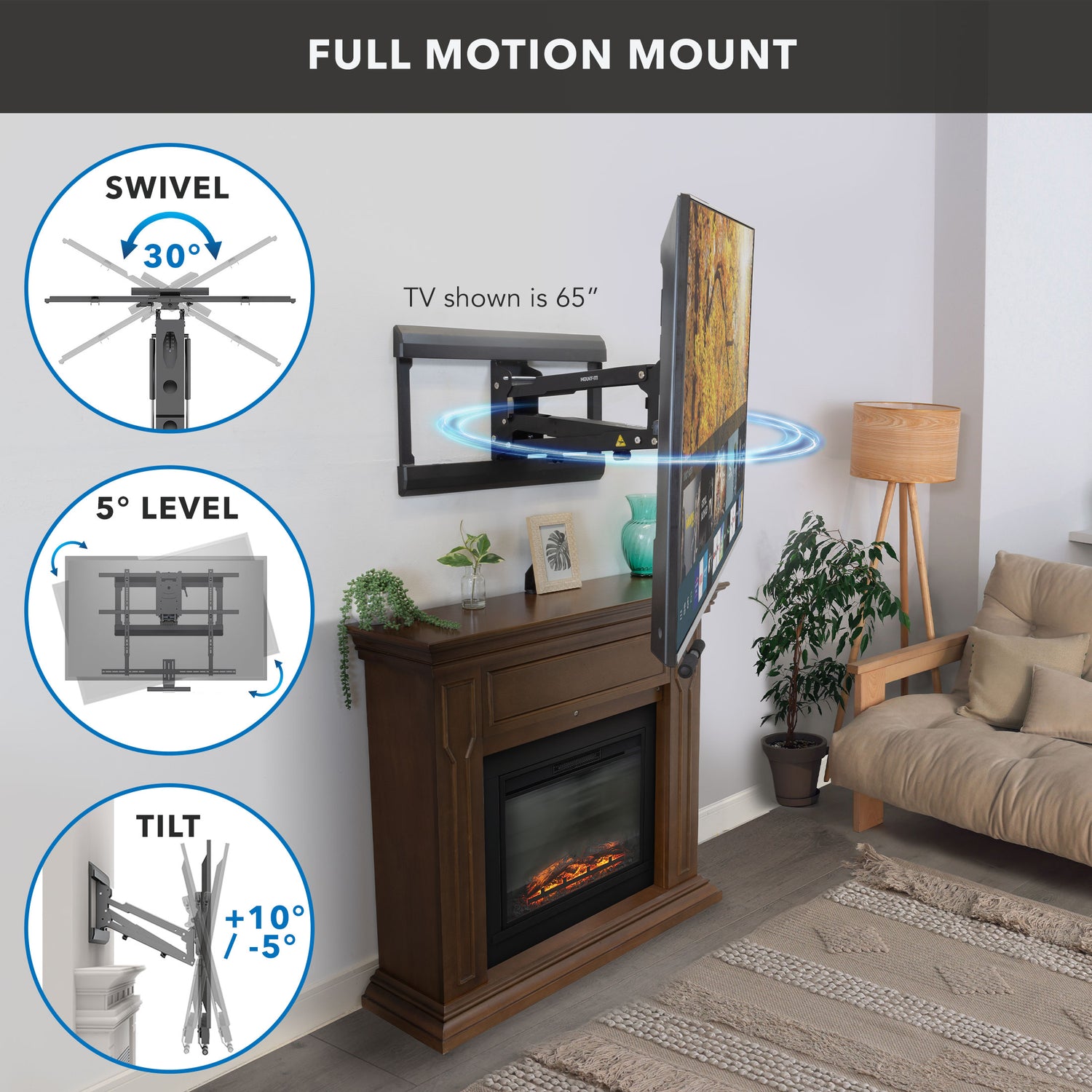

Swivel 30.0° in each direction, tilt +10.0°/−5.0° and extend 5.7 to 22.4 in from the wall. Every adjustment you need to get the perfect viewing position from any seat in the room.
Compatible with VESA mounting patterns from 100×100 to 600×500 mm. Note: requires a minimum TV weight of 18 lb for proper mount tension and stability.
Specifications
- Product type: TV mount
- Mount type: Full motion (articulating)
- Screen size range: 42 to 65 in
- Weight capacity: 55 lb
- Minimum weight required: 18 lb
- VESA range: 100×100 to 600×500 mm
- Swivel: up to 60.0°
- Tilt: +10°and−5°
- Extension depth: 5.7 to 22.4 in
- Corner compatible: No
- Stud installation type: dual-stud
- Stud spacing supported: 16, 24
- Supported surfaces: Tile over studs (tile on backer board over studs), Tile over masonry (tile on concrete or block), Plywood backing wall, Solid wood wall (planks, beams, timber), Brick veneer, Brick (solid brick), Concrete block (CMU/cinder block), Concrete (poured concrete), Metal studs (drywall over metal studs), Wood studs (drywall over studs)
Installation Resources
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)

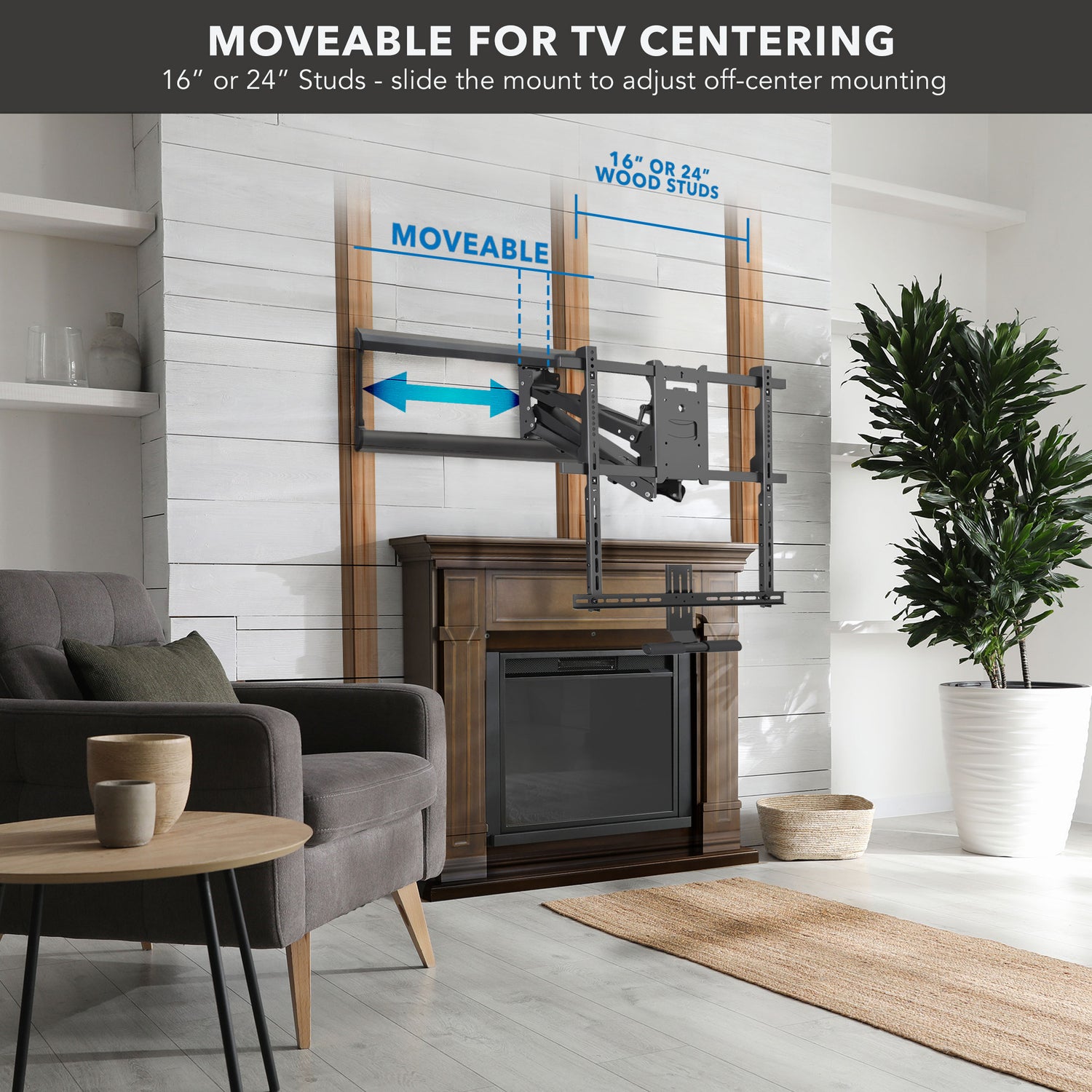

Stud setup: Dual stud,supports 16, 24 spacing.
Corner installs: Not recommended.
Tools you'll typically need:
- Thermometer
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonary bits for concrete and brick)
- Power drill
- Stud finder
