For a 75 inch TV, the VESA mounting pattern most commonly falls in the range of 400x400 mm to 600x400 mm, with some larger or premium models using 800x400 mm or 800x600 mm. The exact pattern depends on the TV manufacturer and model.

VESA pattern explained:
The VESA pattern is the horizontal-by-vertical distance, in millimeters, between the four mounting holes on the back of the TV. A 400x400 mm pattern means the holes are 400 mm apart horizontally and 400 mm apart vertically.

How to check the VESA pattern of your TV:

• Check the TV manufacturer's spec sheet. Search the model number plus VESA. Most major brands (Samsung, LG, Sony, TCL, Hisense, Vizio) publish the VESA pattern in the product specifications.
• Check the TV's user manual. The mounting pattern is typically listed in the installation or wall-mount section.
• Measure the back of the TV directly. With the TV face-down on a soft surface, measure center-to-center between the horizontal hole pair, then the vertical hole pair, in millimeters.
• Look for a label on the back of the TV. Some TVs print the pattern next to the mounting holes.

What to do once you know your VESA pattern:
Match the pattern to a TV mount that supports the same range. Mount-It! TV wall mounts list every supported VESA pattern on the product page. If a TV's pattern is non-standard, a VESA mount adapter plate can convert between patterns.

Also confirm:

• TV weight is within the mount's weight capacity.
• TV size (inches) is within the mount's supported size range.
• The wall (drywall with studs, concrete, or brick) is compatible with the mount's hardware.

The three main types of TV wall mounts differ in how the TV moves once installed. The right choice depends on viewing angle, room layout, and budget.

Fixed (low-profile) TV mounts:

• The TV sits flush against the wall and does not move.
• Lowest profile (often under 1.5 inches from the wall) and the lowest cost.
• Best for: rooms where seating is directly across from the TV at eye level, with no glare or reflection problems.
• Trade-off: no adjustment after install. If the viewing angle is wrong, the TV cannot be moved to fix it.

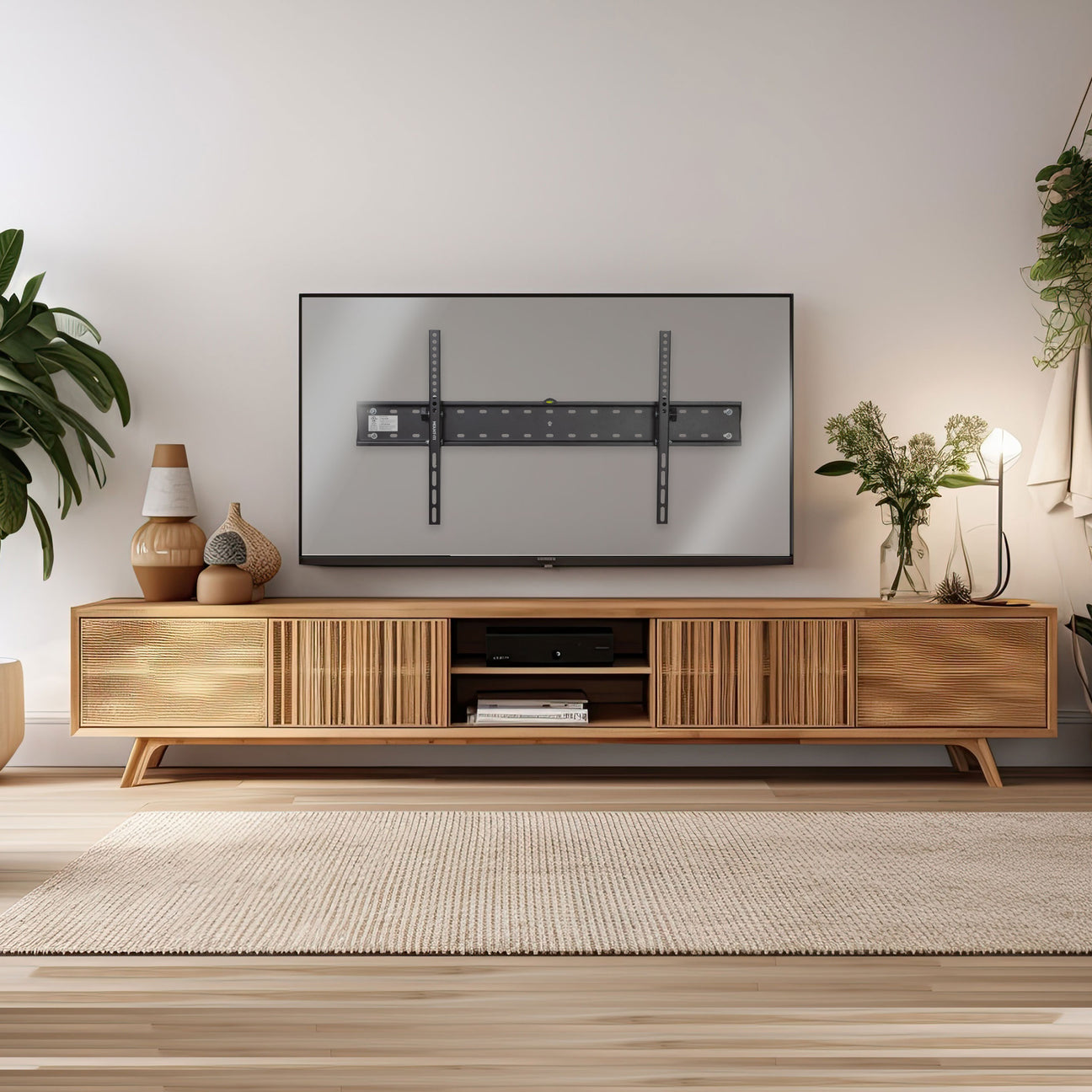

Tilting TV mounts:

• The TV pivots vertically, typically 5 to 15 degrees downward, while staying close to the wall.
• Slightly thicker profile than fixed (around 2 to 3 inches from the wall).
• Best for: TVs mounted higher than eye level (above a media console, in a bedroom viewed from bed, in a high-ceiling room) where a downward tilt reduces neck strain and screen glare.
• Trade-off: only vertical adjustment, no side-to-side swivel.

Full-motion (articulating) TV mounts:

• The TV extends out from the wall on an arm, swivels left and right (often up to 180 degrees), and tilts up and down.
• Largest profile when fully retracted (3 to 5 inches deep) but the most flexible.
• Best for: corner installations, off-axis seating, multi-purpose rooms, and situations where the TV needs to be repositioned for different viewers or activities.
• Trade-off: highest cost, more complex install (full-motion mounts must be anchored into wood studs or solid masonry, never into drywall alone), and a slightly larger footprint.

How to choose:

• Sitting directly in front of the TV with no glare? Fixed.
• TV mounted high or in a bright room? Tilting.
• Off-axis seating, corner install, or multi-room visibility? Full-motion.

Mount-It! manufactures fixed, tilting, and full-motion TV wall mounts across every common TV size and weight class, with the supported VESA pattern, weight capacity, and arm extension published on every product page.

A 55 inch Samsung TV with VESA 400x400 mm is compatible with most standard TV wall mounts that support the 400x400 mm pattern in their VESA range. The right specific mount depends on weight, viewing angle, and use case.

Weight check first: Most 55 inch Samsung TVs weigh 30 to 55 lbs without the stand. Confirm your model's weight in the spec sheet. The mount you choose must support that weight, with comfortable headroom.

Mount type by use case:

• Fixed (low-profile) mount: TV sits flush against the wall. Best when seating is directly across from the TV at eye level and there is no glare. Lowest cost, simplest install.
• Tilting mount: TV pivots vertically 5 to 15 degrees downward. Best when the TV is mounted higher than eye level.
• Full-motion (articulating) mount: TV extends out, swivels, and tilts. Best for off-axis seating, corner installs, or open-plan rooms.

Samsung-specific note: Many Samsung TVs require longer M8 mounting screws than standard mounts include, because Samsung backs are deeper or recessed. If the screws in your mount kit do not reach the threaded inserts in the TV, you need longer M8 bolts. Mount-It! offers an M8 screw kit (MI-M8KIT) for this.

Wall and hardware:

• Mount into wood studs or solid masonry. Drywall alone is not strong enough.
• Verify the mount's stud-spacing requirement matches your wall.

Mount-It! offers VESA 400x400-compatible TV wall mounts in fixed, tilting, and full-motion configurations.

It depends on your mount type:
Tilting Mount: These usually have two tension knobs or screws on the sides of the bracket behind the TV. To adjust the tilt, you may need to loosen the knobs slightly, set the desired angle (tilt up or down), then tighten them to lock it in place. Some tilting mounts are tool-free and just require you to tilt by hand with firm pressure (they use friction to hold position). You'll feel resistance which is normal, it's what keeps the TV from tilting by itself. Just support the TV's weight as you adjust.
Full-Motion (Swivel) Mount: Full-motion arms allow swivel (left-right pivot) and often tilt as well. Usually, you can swivel the TV by gently pulling/pushing on one side of the TV. Move it slowly, the arm should pivot at the joints. For tilt on these, there might be a tilt bolt behind the TV you loosen as above.
Rotation (Leveling): Some mounts even let you rotate the screen slightly (to fix leveling). This might be a screw on the wall plate or part of the bracket assembly. Only a few degrees usually.
After installation, you might need to experiment to find the best angle. Always hold the TV with two hands when making adjustments.

If your TV is drifting downward or the tilt joint seems loose (sagging tilt), try the following: Tighten the tilt mechanism. Most tilt mounts have adjustment screws or knobs. Locate them and tighten with a screwdriver or wrench. You want it tight enough to hold the TV's angle, but not so tight that you can't adjust when needed. Check weight capacity: if you've tightened fully and it still sags, the TV may be near the mount's weight limit. Even pressure: if your mount uses two knobs on either side, tighten them evenly. Internal mechanism: some tilting mounts have a spring or gear mechanism, make sure it's engaged correctly per the instructions. Most of the time, tightening the tilt locking screws resolves sag.

Glare issues are usually due to lights or windows reflecting on the screen. If your current mount is fixed (no tilt): Address lighting, the cheapest fix is to alter the environment. Use curtains or blinds to control sunlight. Adjust or turn off offending lights when watching. Anti-glare filters, there are anti-glare screen protectors/films you can apply to the TV. Upgrade to a tilting mount, for a long-term solution consider getting a tilting mount. They are not very expensive and can use the same mounting holes. A tilt of even 5-15 degrees downward can significantly reduce ceiling light glare. Mount-It! tilting mounts allow you to angle the TV downward to combat reflections. Reposition TV or seating, sometimes moving the TV to a different wall (not opposite a window) can avoid glare.

For comfortable viewing (no neck or eye strain), follow these ergonomic tips. Eye-Level Center: mount the TV so that your eyes land about 1/3 from the top of the screen or at the center when you're in your usual viewing position. Typically the center of the TV ~42 inches from the floor for living room seating. Viewing Distance: ensure your seating is at a good distance for the TV size. A general rule: distance (in inches) ~ 1.5 to 2.5 times the diagonal screen size. Tilt to reduce glare and neck angle: if the TV is higher than eye level, use a downward tilt. Center to seating: if your couch is off-center from the wall, consider a full-motion mount so you can swivel the TV toward you. Eye strain considerations: bias lighting (backlight behind TV) reduces eye strain in dark rooms. Comfortable posture: you want a neutral head position. The beauty of mounts is you can tweak tilt/swivel to dial in the sweet spot.
