Heavy Duty Tilting TV Wall Mount for 43" to 90" TVs
Tilting TV Mount
Low Profile · Adjustable Viewing Angle

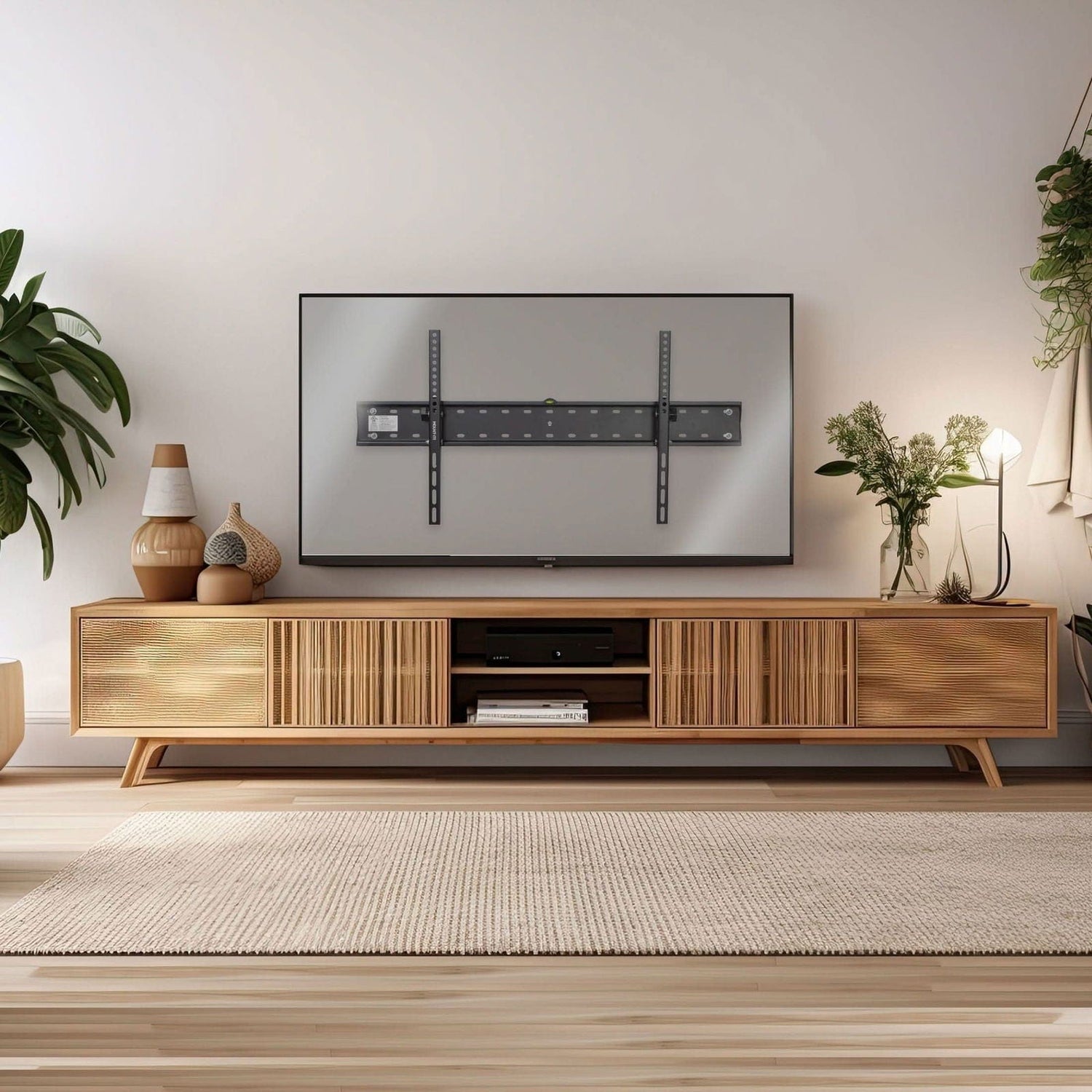

A low-profile tilting TV wall mount for 43 to 90-inch flat screen TVs, sits flush to the wall and lets you angle the screen, rated (up to 110 lb with VESA 200×200 to 800×400 mm).
Tilt +12.0°/−12.0° to eliminate glare and get the right viewing angle from your seat.

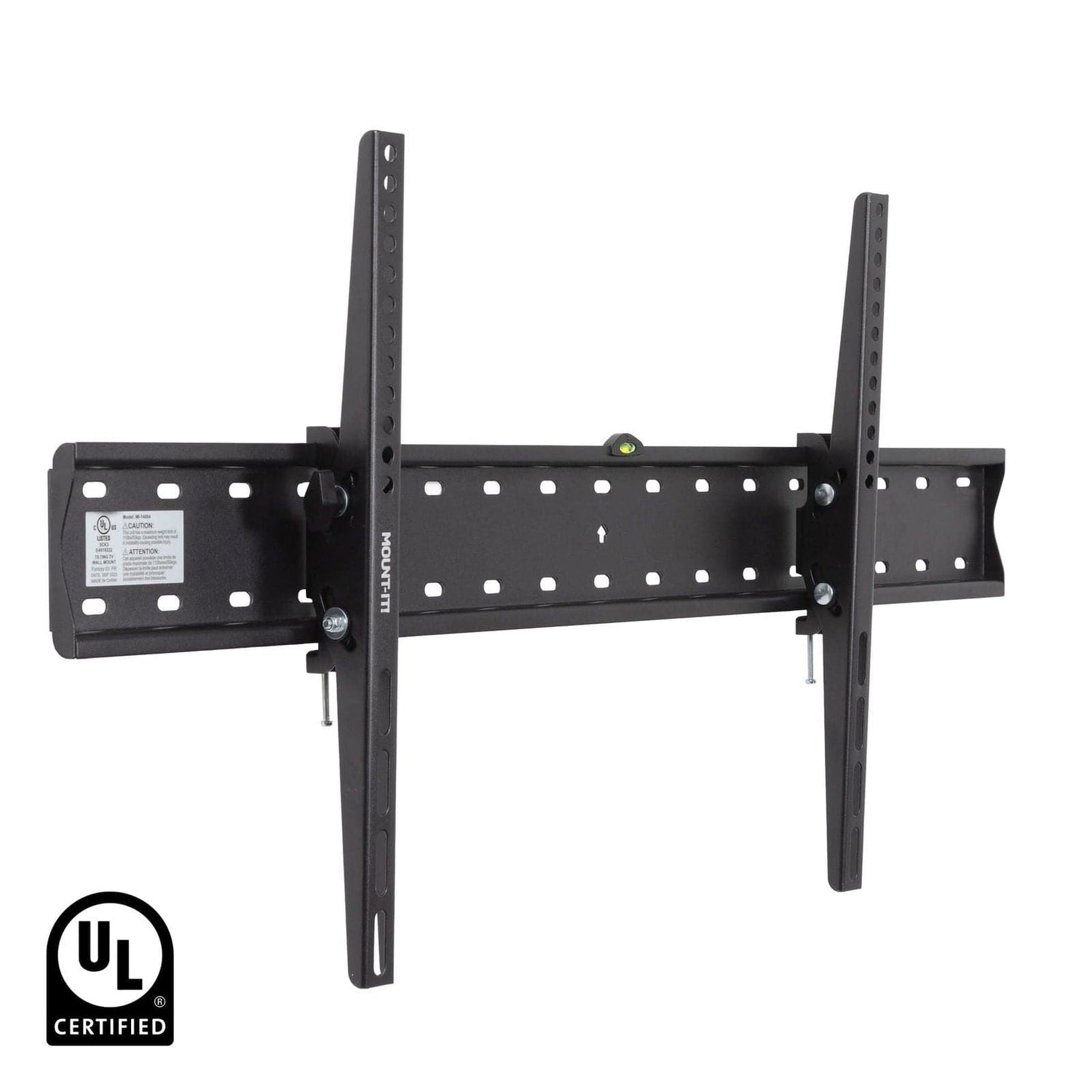

Heavy Duty Tilting TV Wall Mount
Features
Fits 43 to 90 inch flat screen TVs
Weight rated up to 110 lb

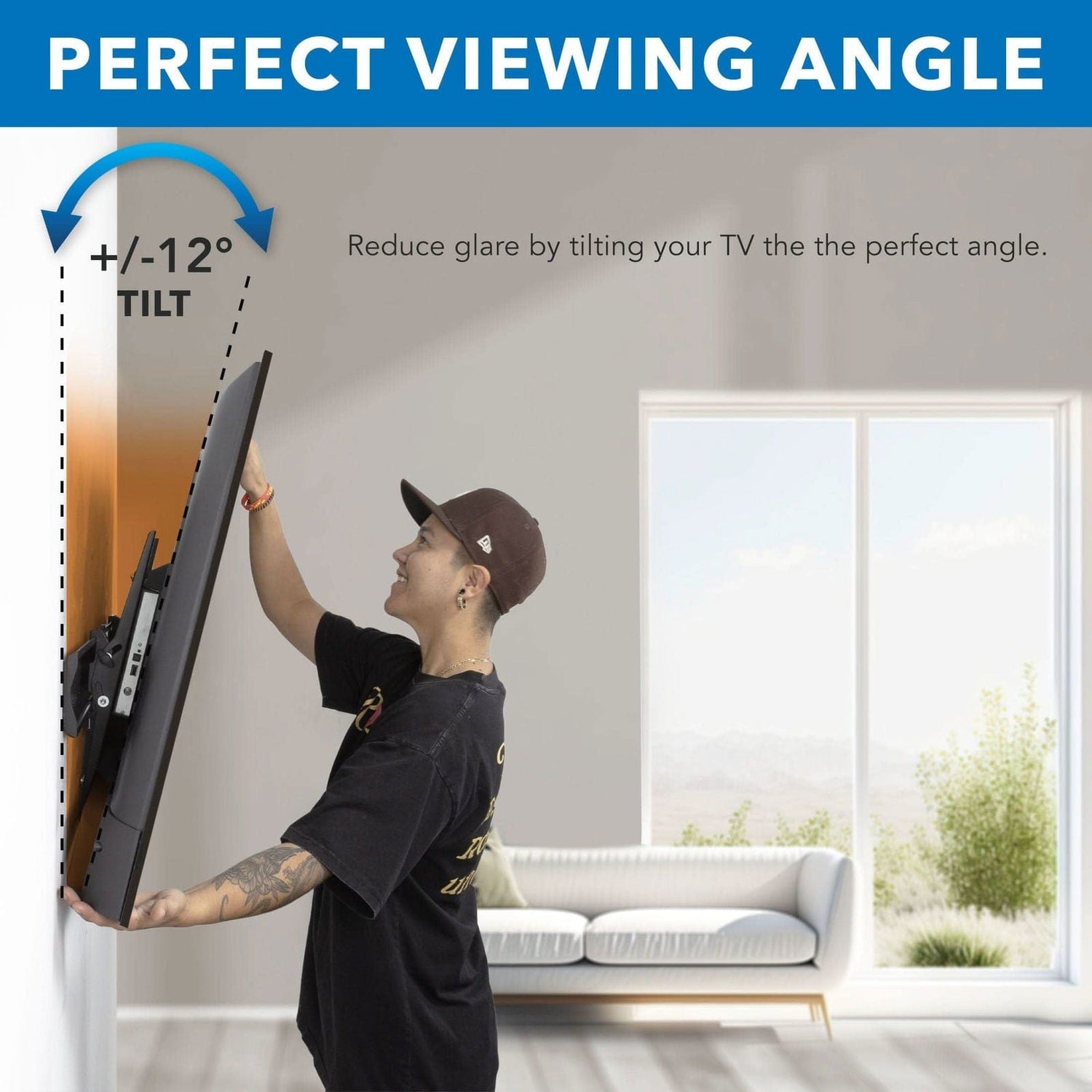

Adjustable tilt +12.0° up / −12.0° down - reduce glare, improve your view

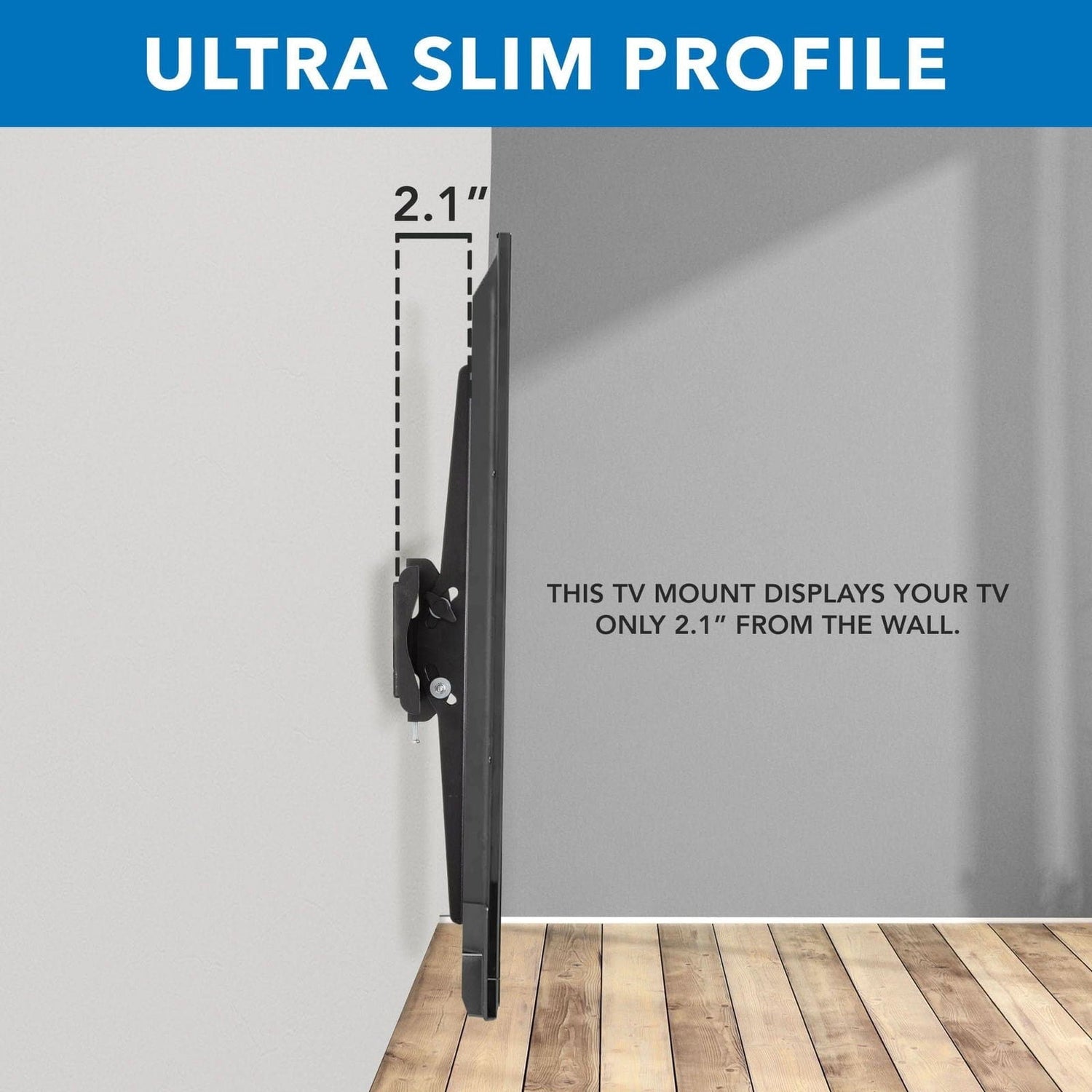

Low profile - mounts just 2.1 in from the wall

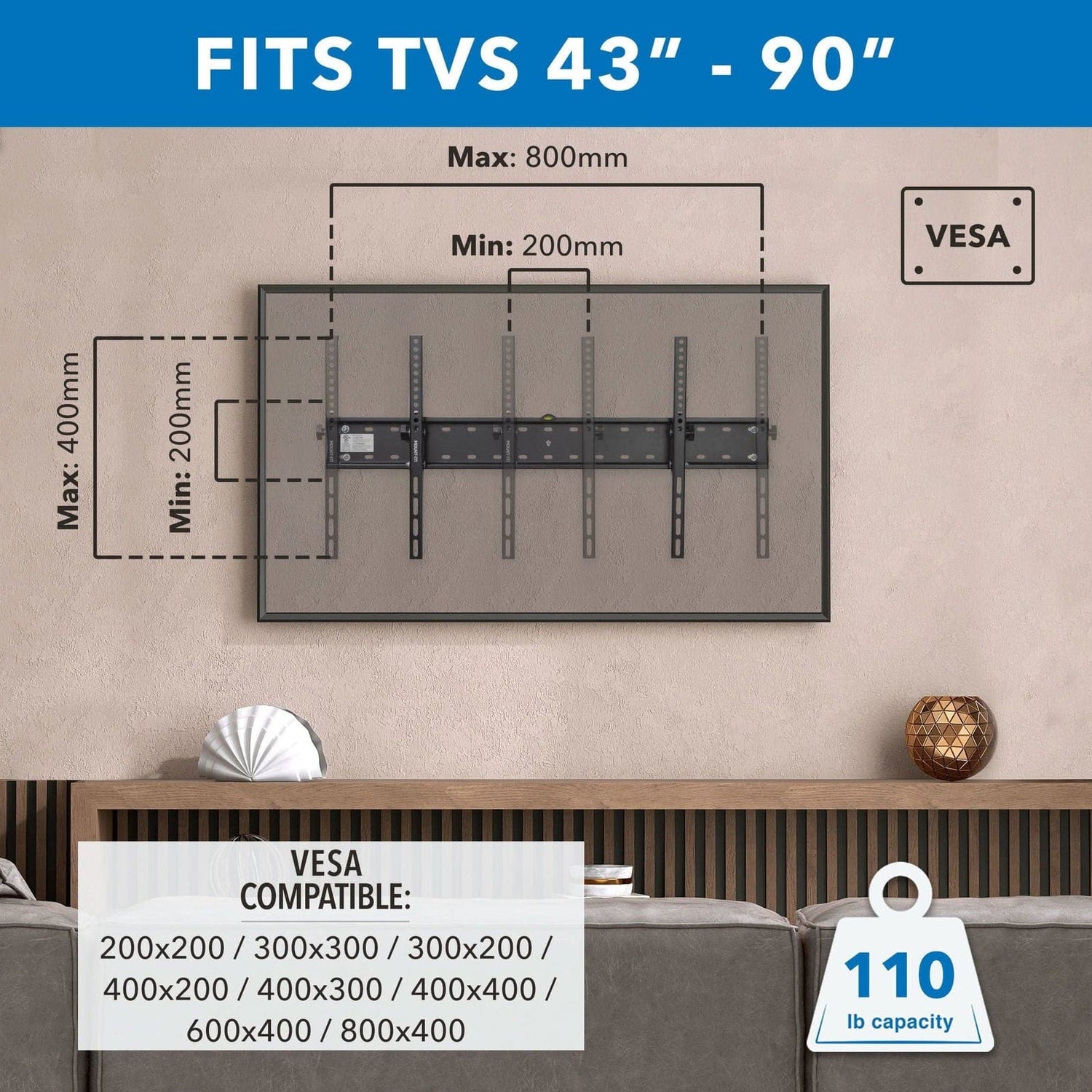

VESA 200×200 to 800×400 mm - fits most flat panel TV brands
Overview
The Heavy Duty Tilting TV Wall Mount is a low-profile tilting TV wall mount for 43 to 90-inch televisions that sits close to the wall for a clean, minimal installation while giving you the ability to angle the screen and eliminate glare. Rated for TVs up to 110 lb.
Adjustable tilt +12°/−12° to reduce reflections and find the right viewing angle from your seat. Profile depth 2.1 in. Sits close to the wall for a neat, minimal installation.
Compatible with VESA mounting patterns from 200×200 to 800×400 mm.
A practical choice for above-eye-level installs where glare is the primary problem to solve.
Specifications

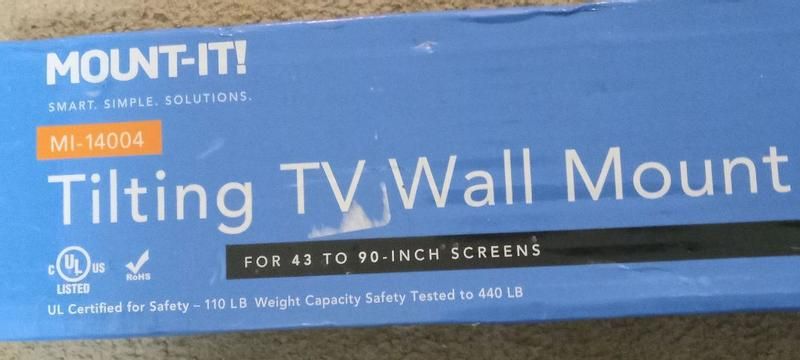

- SKU: MI-14004
- Product type: Wall TV Mount
- Mount type: Tilting
- Product weight: 5.2 lb

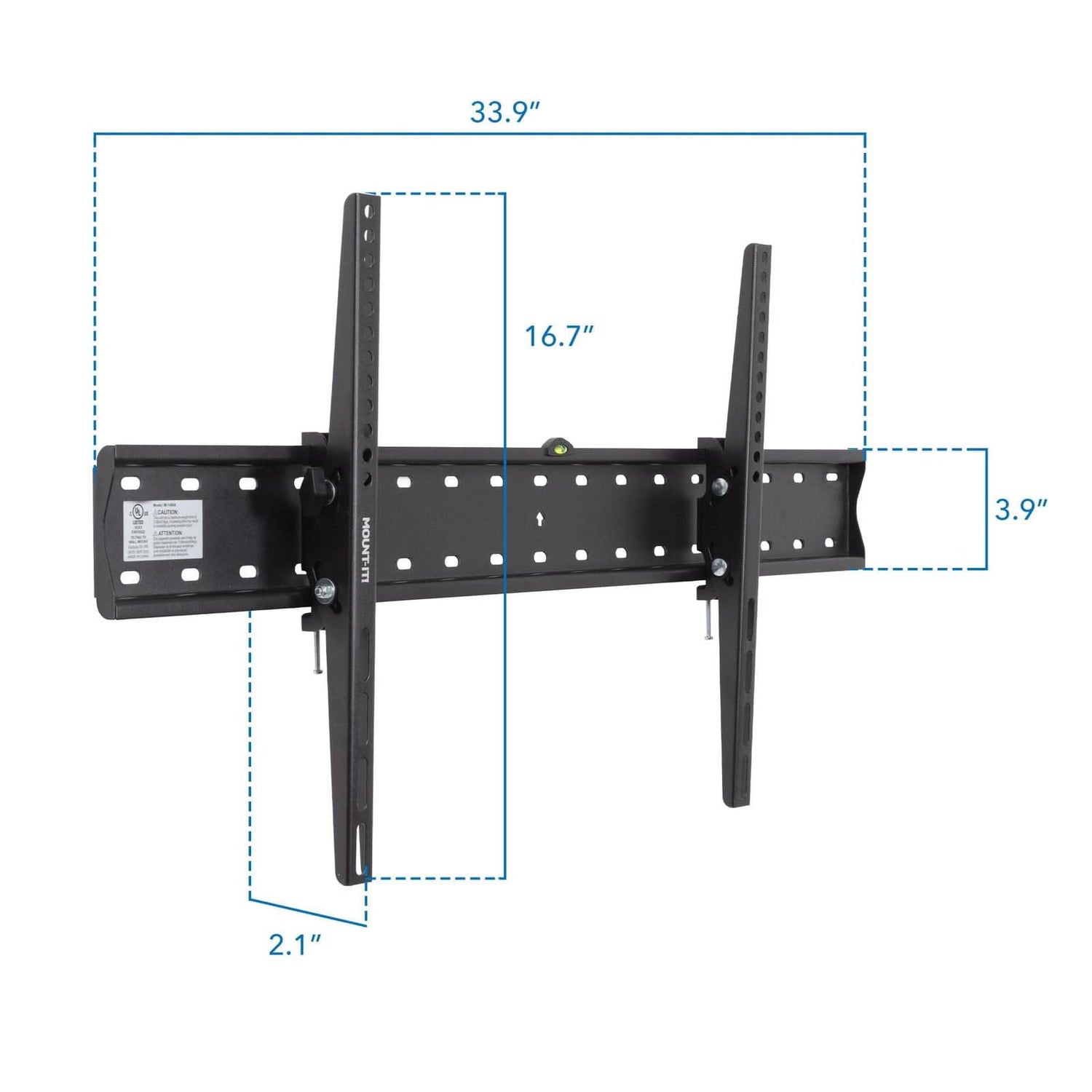

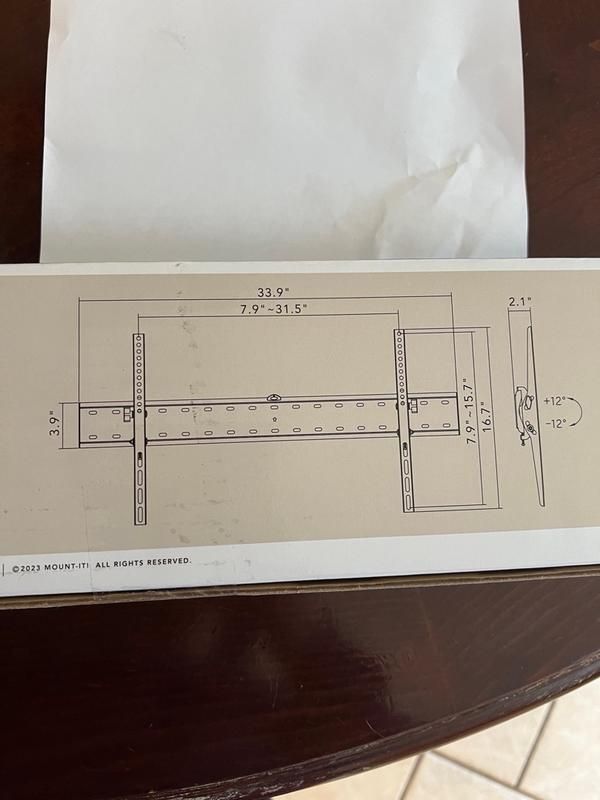

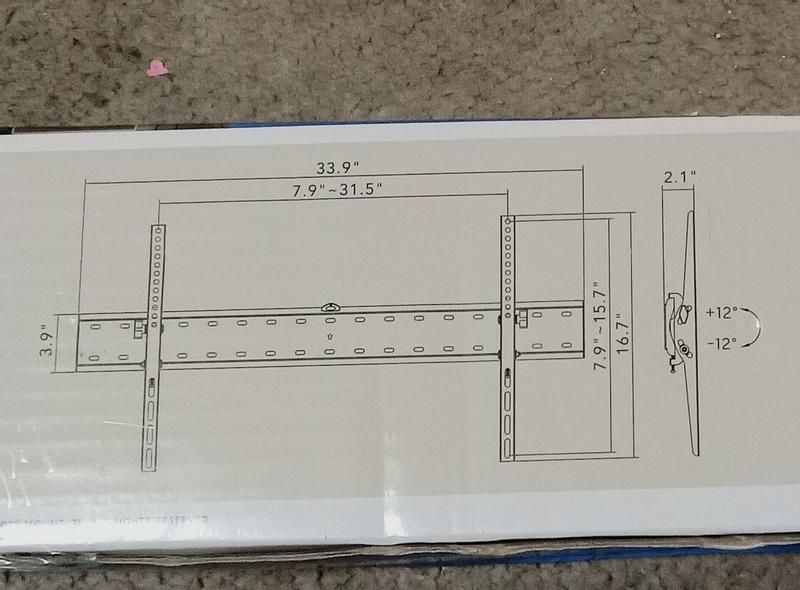

- Wall plate dimensions: 33.9×3.9 in
Holds screens
- Screen size range: 43 to 90 in
- VESA range: 200×200 to 800×400 mm

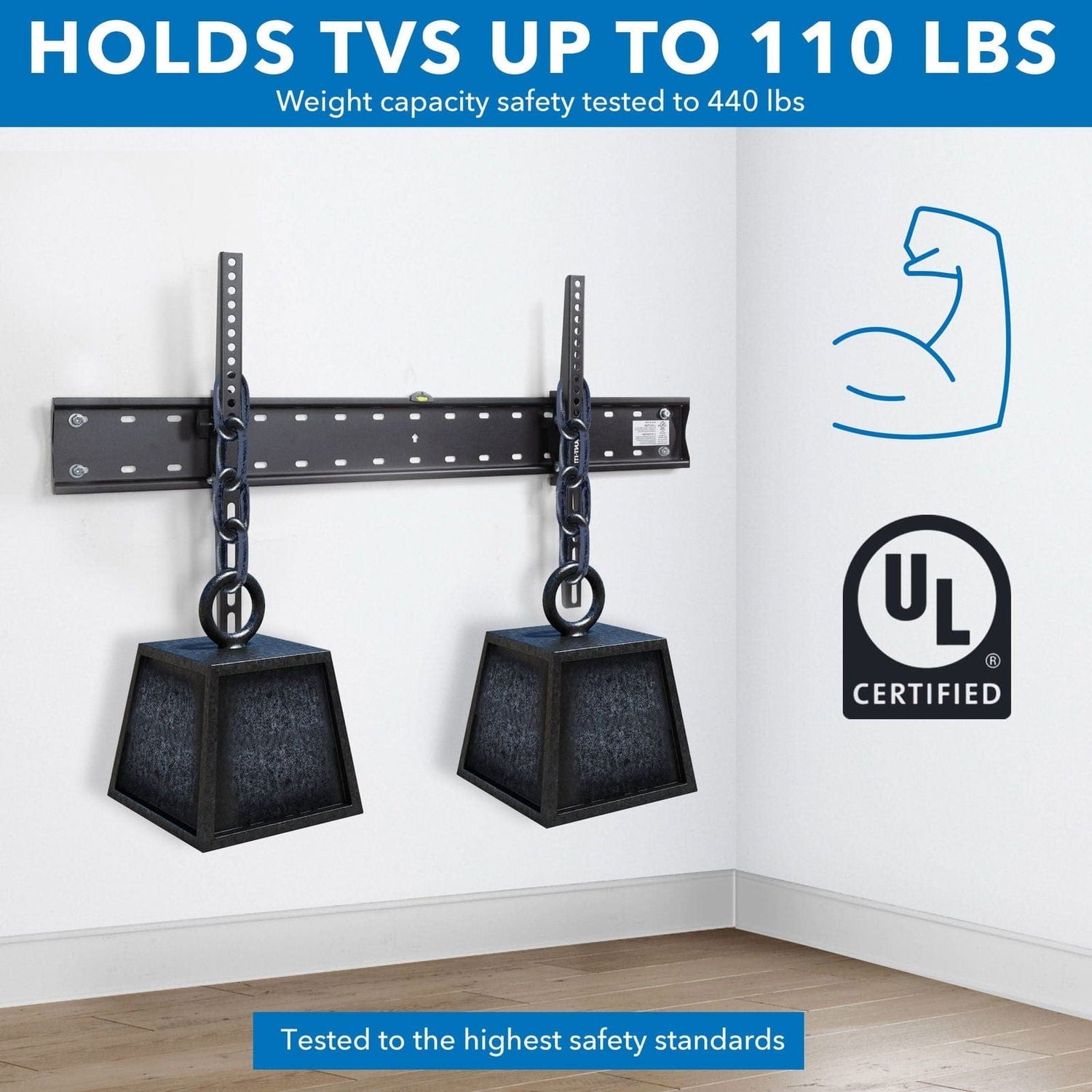

- Weight capacity: 110 lb
Movement
- Tilt:+12°and−12°
- Profile depth: 2.1 in
Installation
The Heavy Duty Tilting TV Wall Mount is designed for quick and frustration free installation.
Easy installation is typically done in about 30 minutes.
Estimated install time: 30 minutes

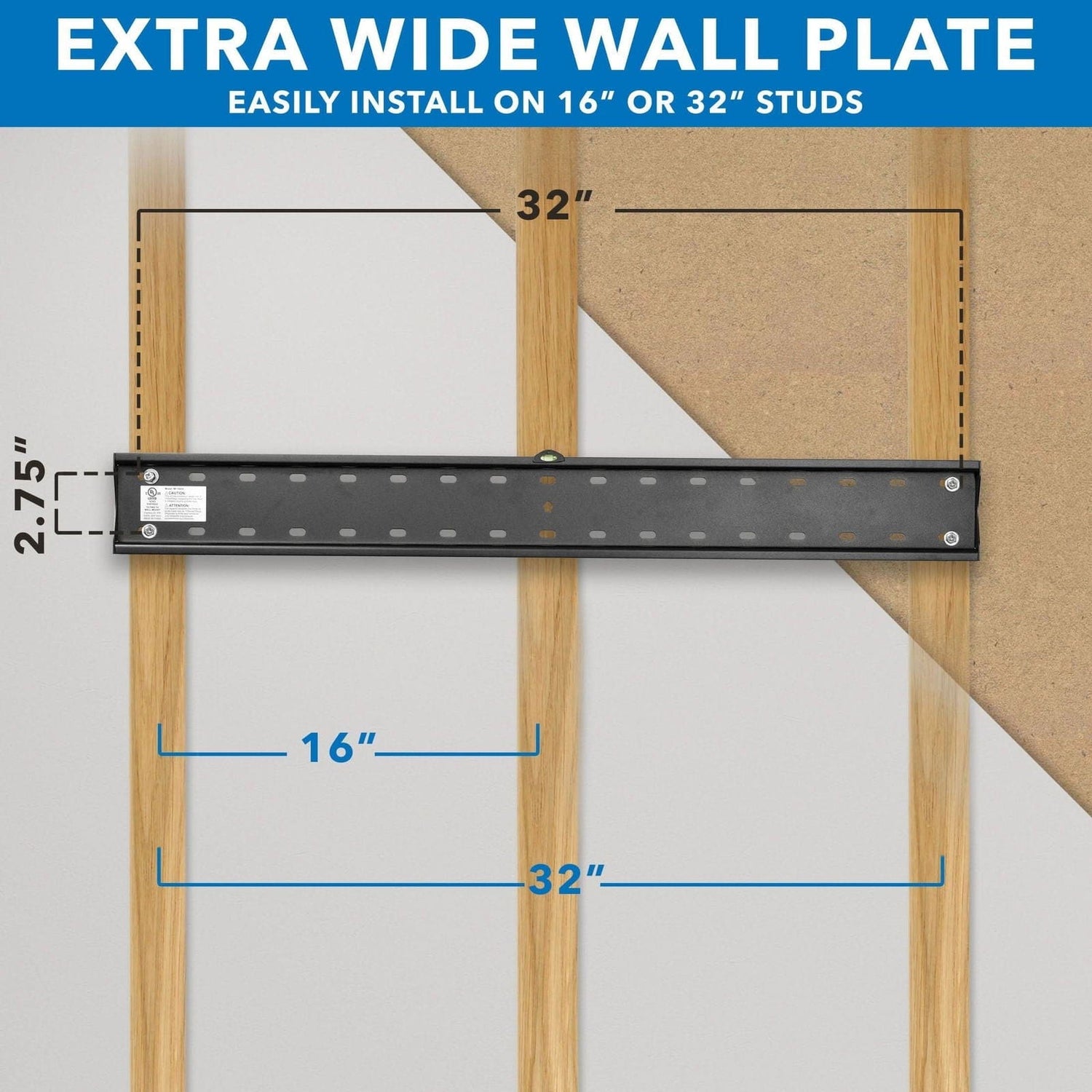

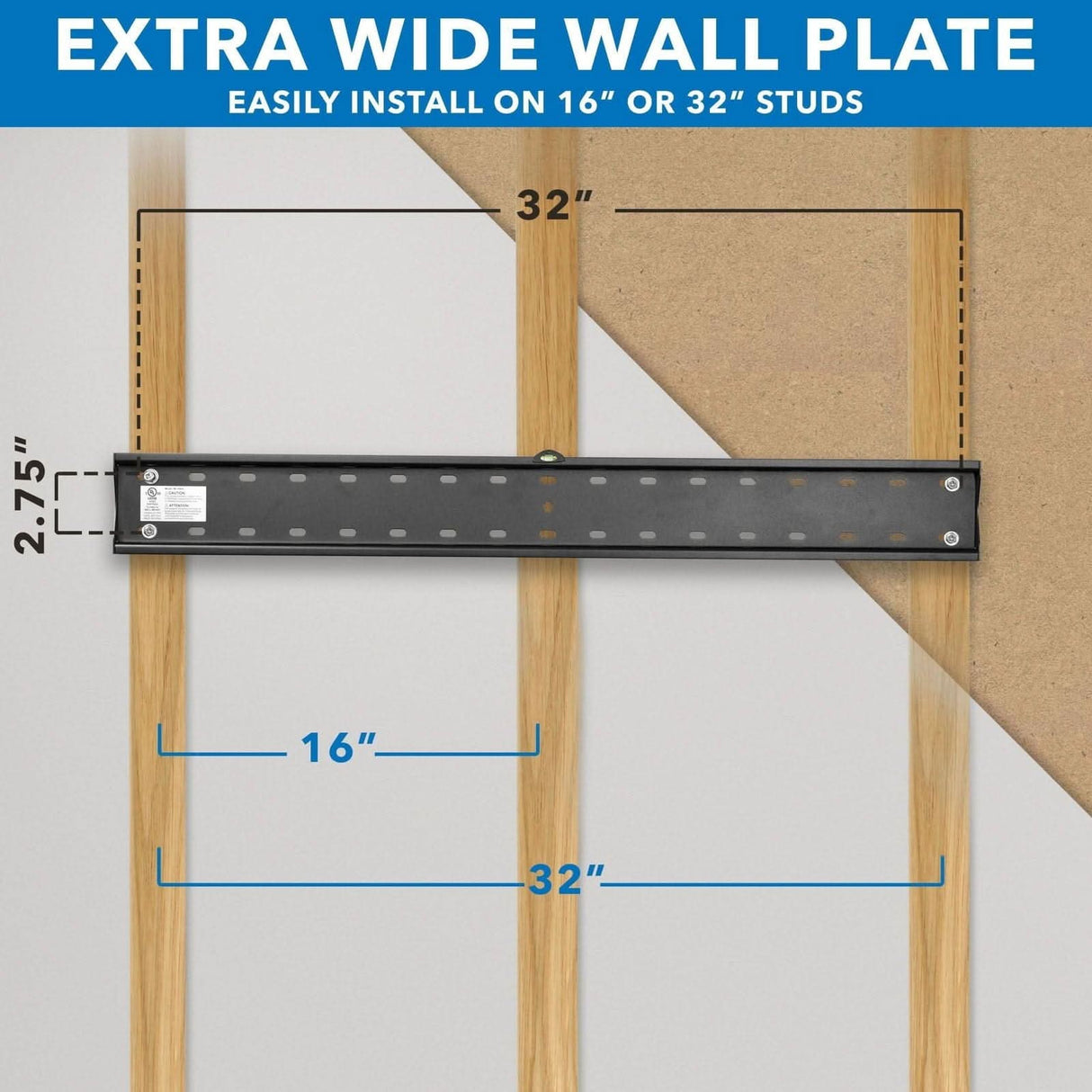

Stud installation type: Triple Stud
Stud spacing supported: 16 inch stud spacing
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
Customer reviews
6 verified reviews from people who bought this product.
Photos from customers 4
-
Sturdy and fairly easy to install
Excellent tv mount. Super sturdy and fairly easy to install. I recommend using a post/stud finder to drill into a post as opposed to just the dry wall.
-
-
Resourceful hardware
This Holds TV sizes from 43 to 90inchs. Easy installation with strong materials. Its Mobility is sturdy and moves smoothly. It’s exactly what I needed.
-
-
Just what I needed!

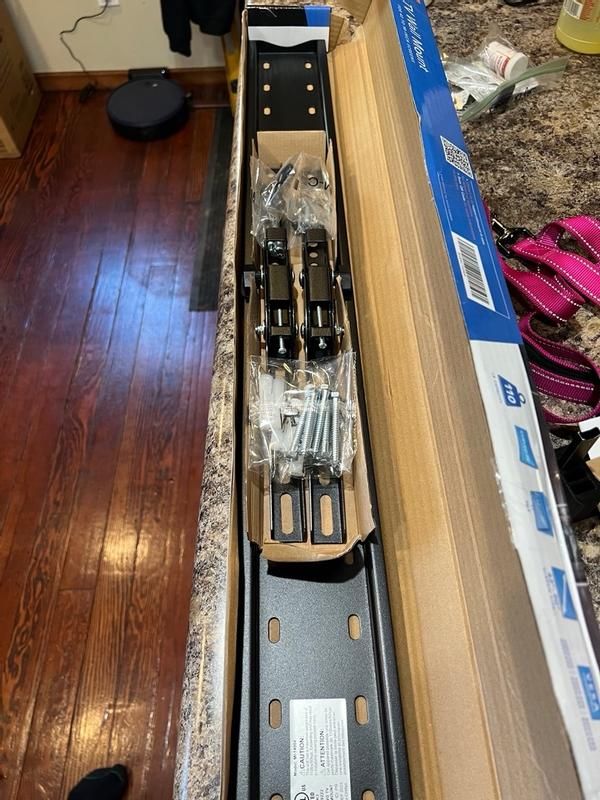

While I haven’t put up yet this is exactly what we needed to put up our tv in the living room. Opened the box and instantly saw how good it is made and that it’s of good quality.
-
Very heavy duty

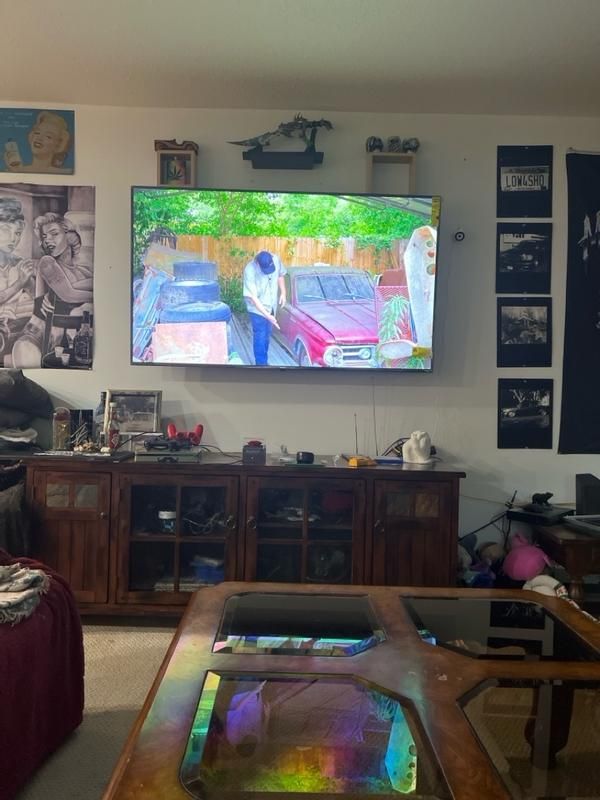

This tv mount is very heavy duty and will hold big tvs. I have it mounted to a 65in and no worries. The install is as easy. The only downside is the built in level is off I would use your own to make sure it’s level. Love how it tilts down for great viewing.
-
-
Tilting TV mount (reduces screen glare)

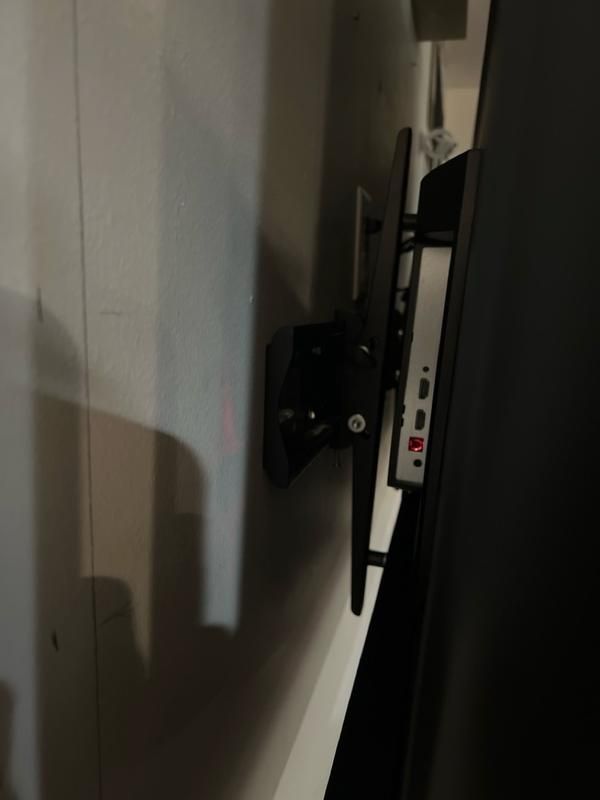

The instructions were very straightforward and easy to comprehend and use to put together and mount this TV wall mount. Seems very sturdy and it tilts up and down (forward/backwards) to help minimize glare on screen. It has the TV only sitting 2 inches away from the wall to help maximize space and stability.Just make sure you mount it to the wall studs and your good to go. Had it a few weeks now and I like it so far and features can be handy at times.It's overall look isn't bad eitherit has sleek black rails and other mounting parts and is not visiable looking towards the front of the TVand not very visible from sides.guesd it's worth the investment.
-
-
24" studs
You need other methods to secure because unable to hit more than one stud if 24" apart
