Under Cabinet and Ceiling TV Mount for 19" to 37" TVs
Full Motion Under-Cabinet TV Mount
Articulating · Swivel, Tilt & Drop

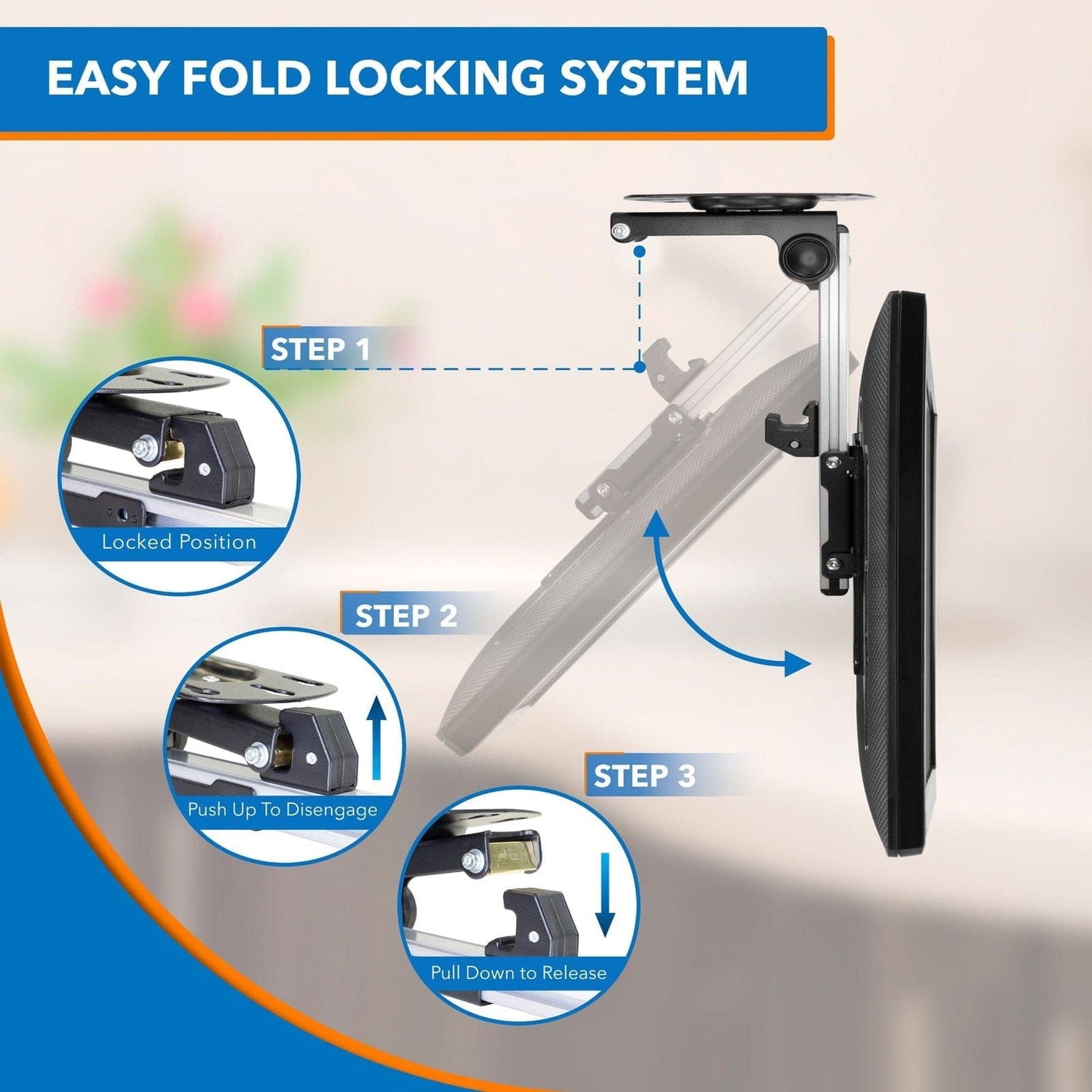

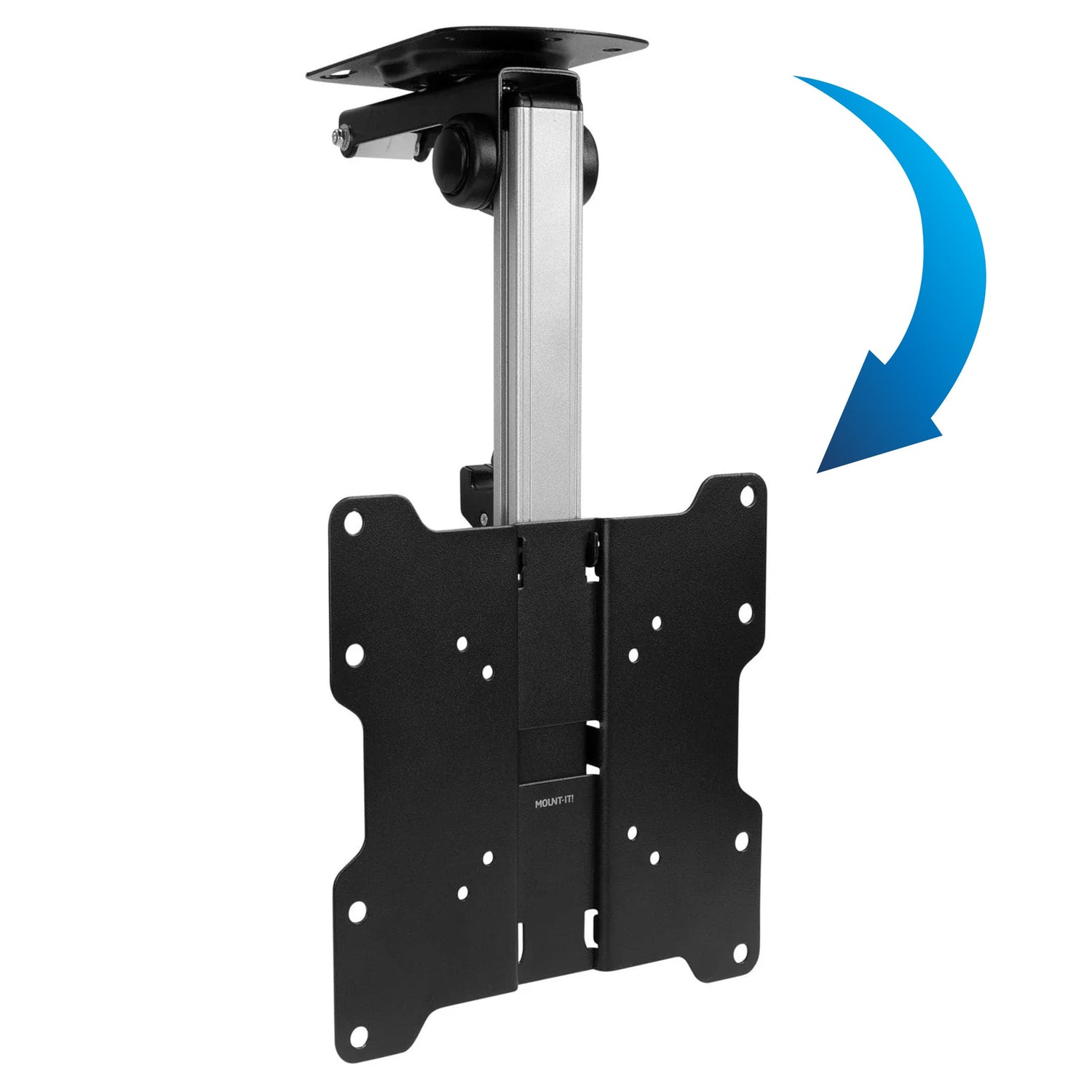

A fold-down full motion under-cabinet TV mount for 17 to 37-inch flat screen TVs that also installs on a ceiling. Swing the screen out to watch, fold it back up out of the way when you're done, rated up to 44 lb with VESA 75×75 to 200×200 mm.
Swivels 90.0° and tilts −90.0° to aim the screen at any seat and reduce glare.
Under Cabinet and Ceiling TV Mount
Features
Fits 17 to 37 inch flat screen TVs
Weight rated up to 44 lb

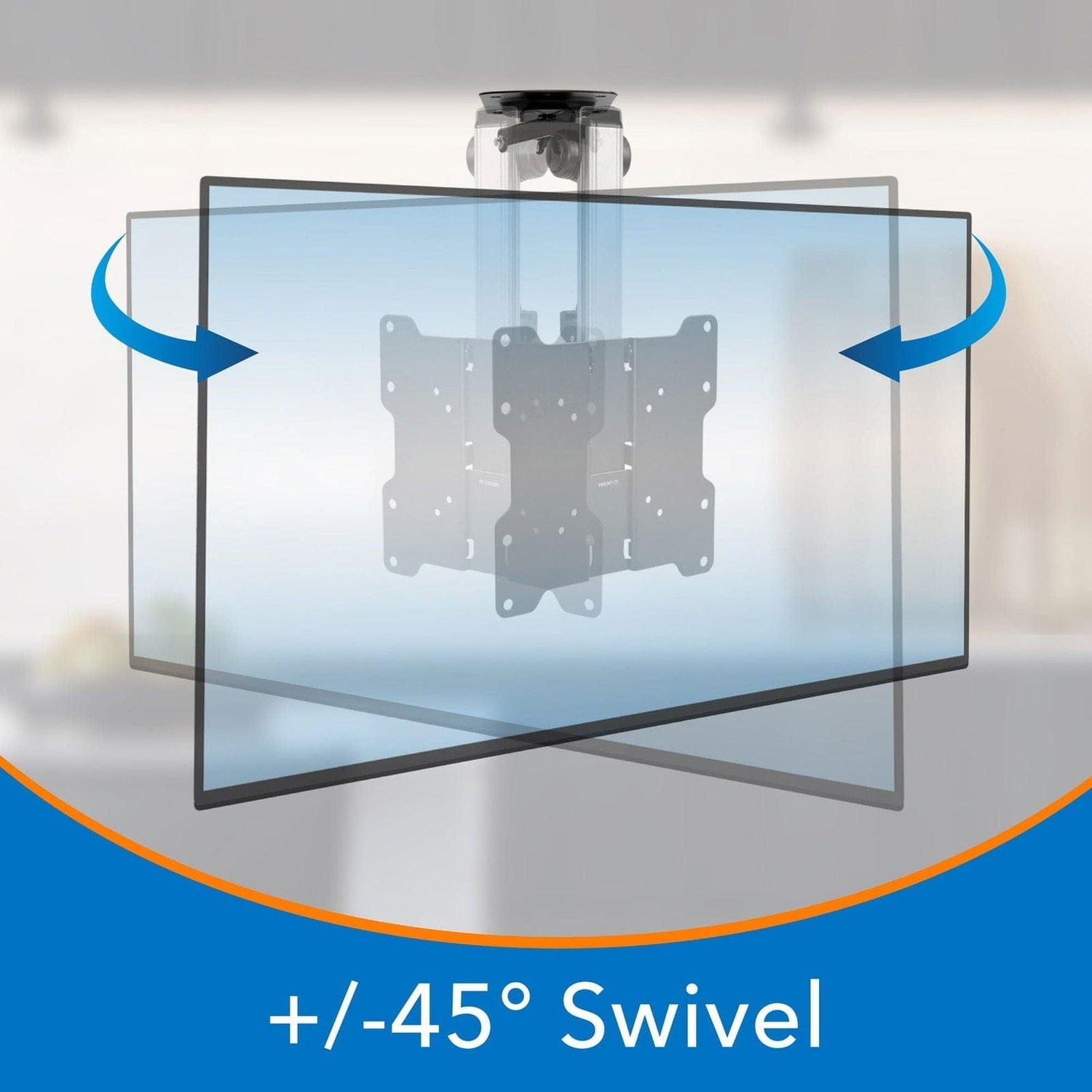

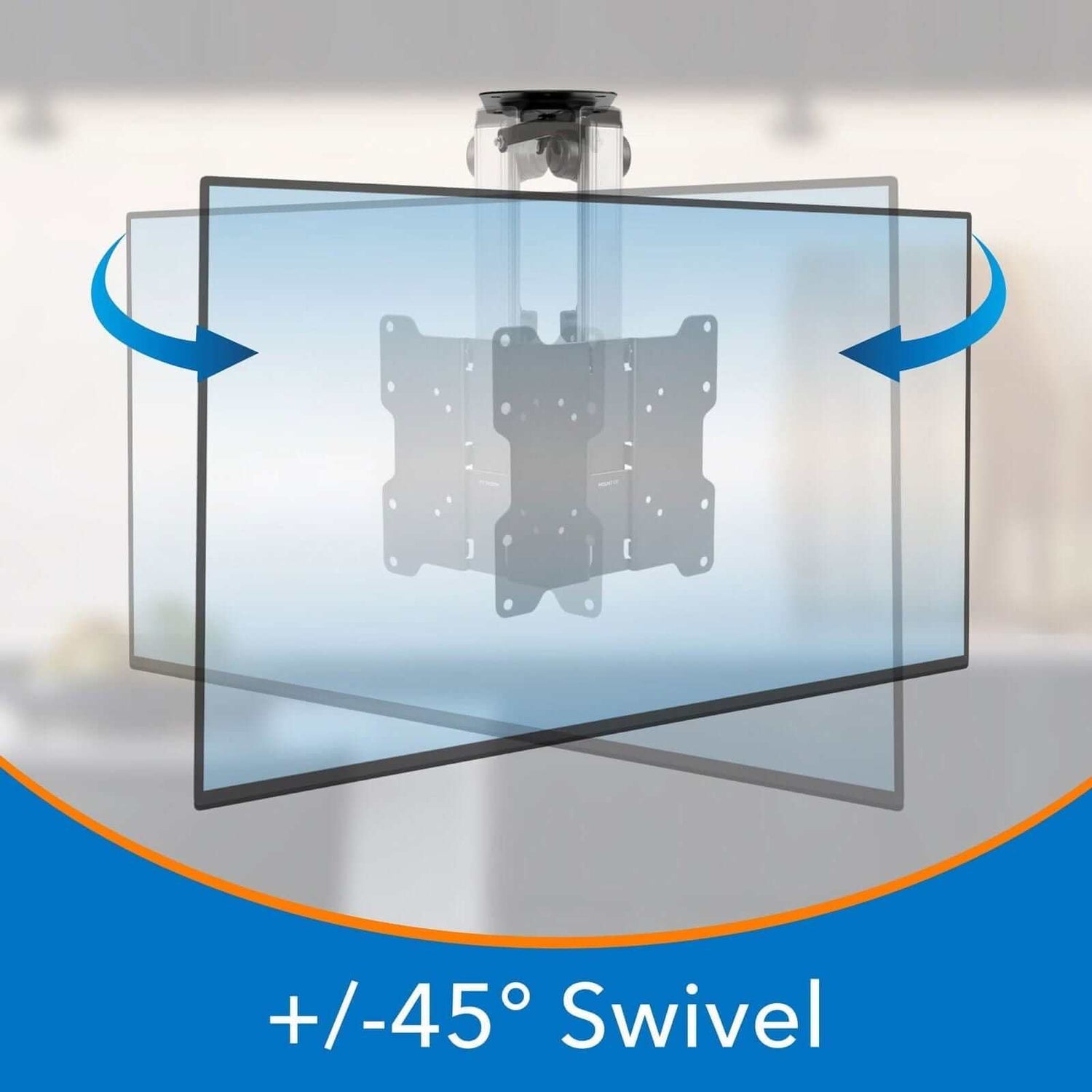

Swivels 90.0° (45.0° left and 45.0° right), aim the screen at any seat

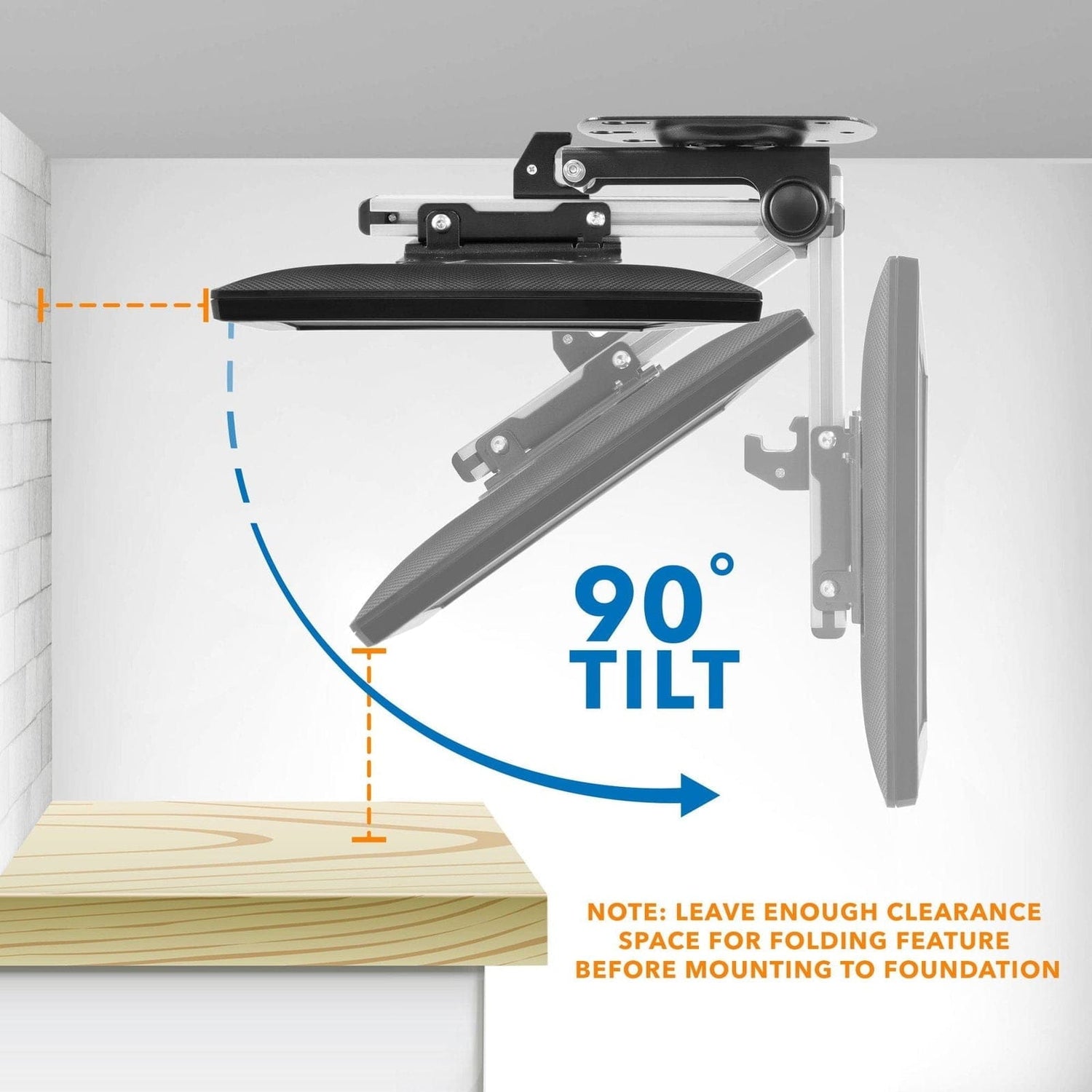

Adjustable tilt down to −90.0° - reduce glare from above

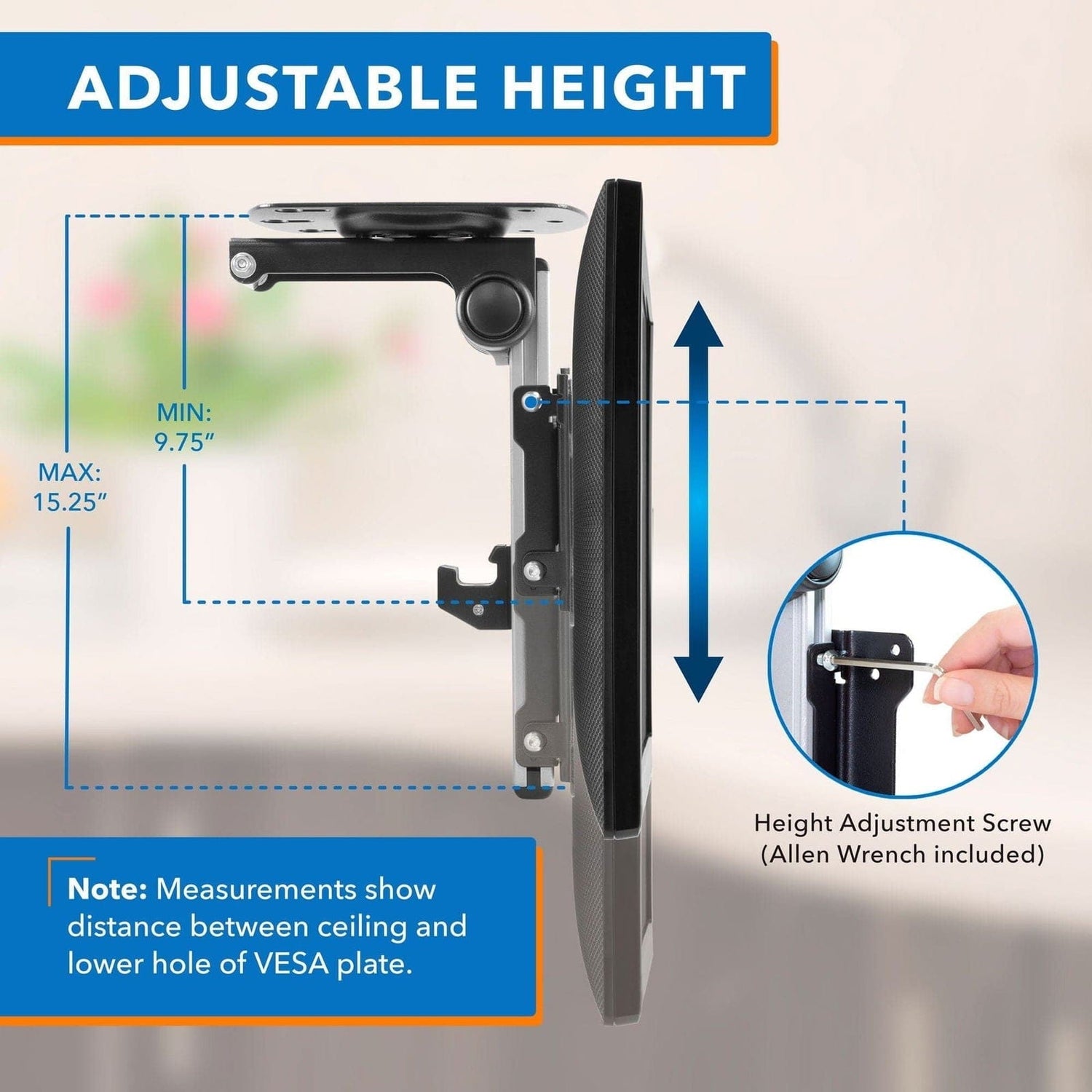

Drops 9.75 to 15.25 in below the cabinet for adjustable viewing height
VESA 75×75 to 200×200 mm - fits most flat panel TV brands
Overview

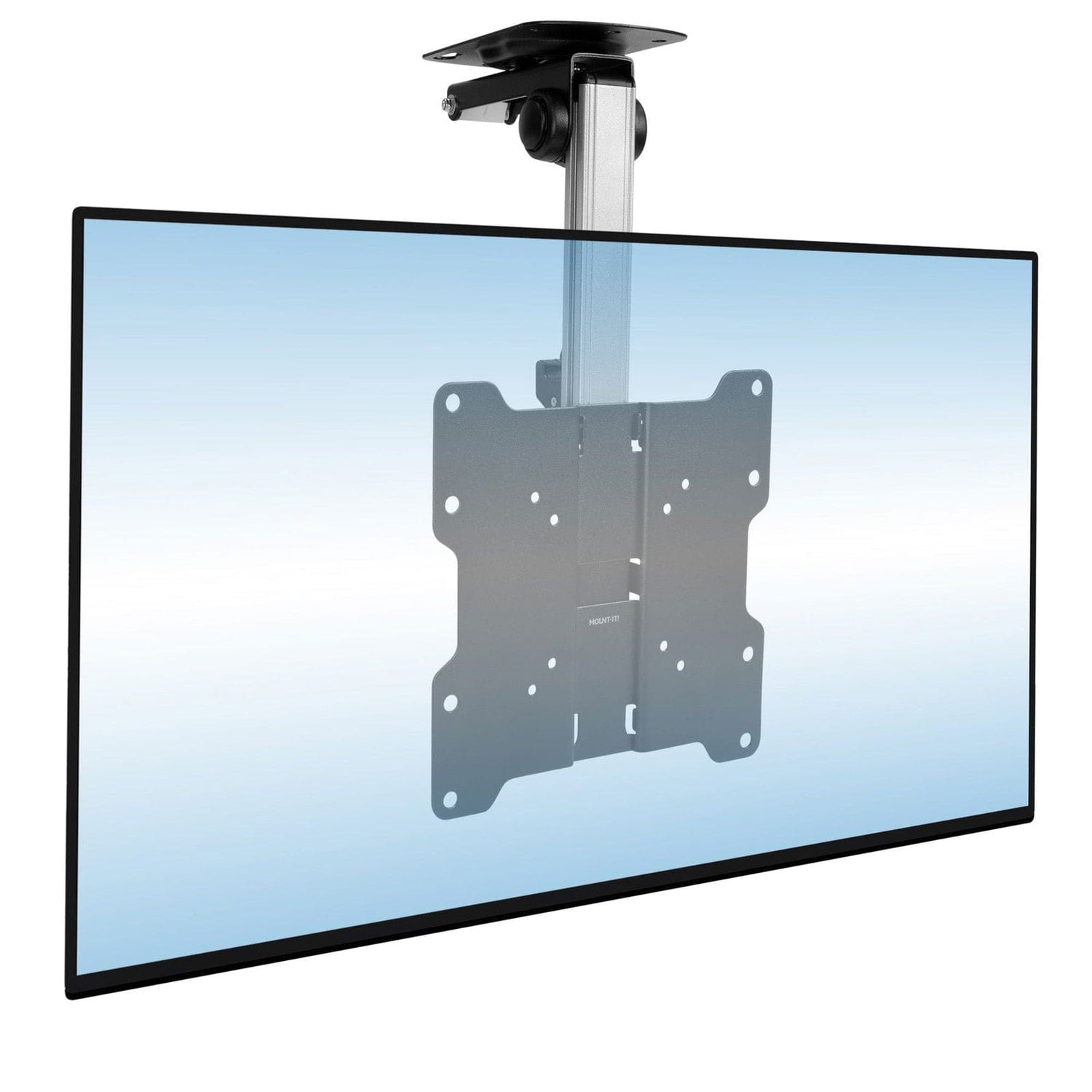

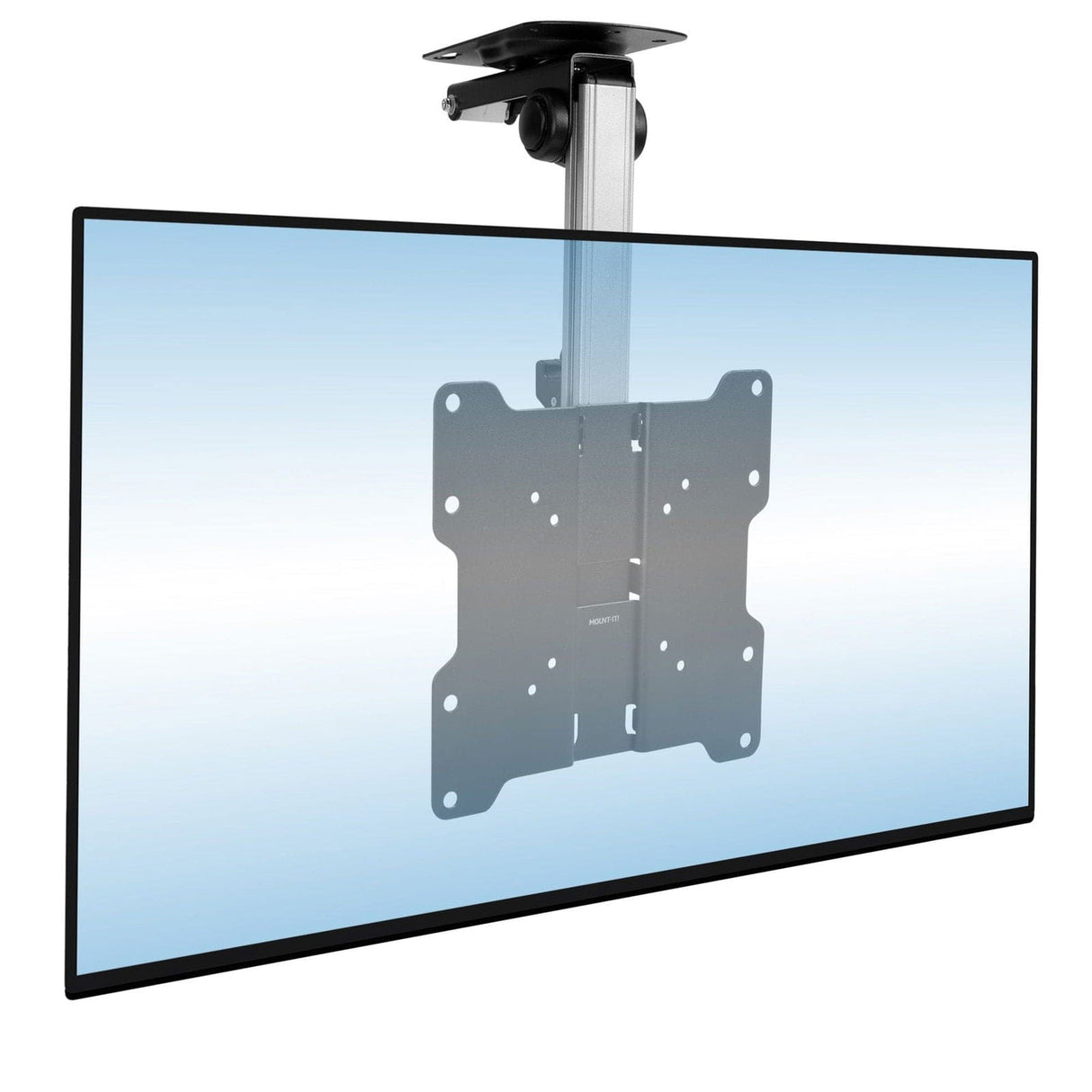

The Under Cabinet and Ceiling TV Mount is a fold-down full motion under-cabinet TV mount compatible with 17 to 37-inch televisions and rated to hold up to 44 lb. Installs under a cabinet, shelf, or directly on a ceiling. Swings the screen out to your viewing position and folds flat against the surface when you're done. Built for kitchens, RVs, workshops, and any space where counter or floor room is at a premium.
Swivels 90° (45° left and 45° right), tilt −90°, and drops 9.75 to 15.25 in below the cabinet. The drop arm lowers the screen far enough below the cabinet to reach your viewing position.

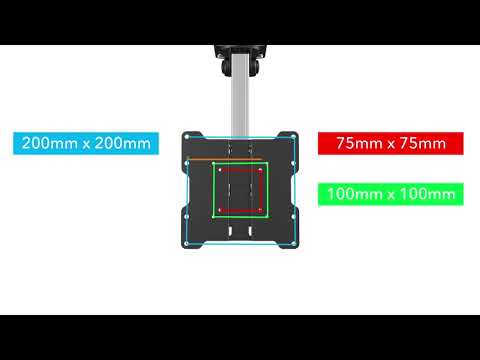

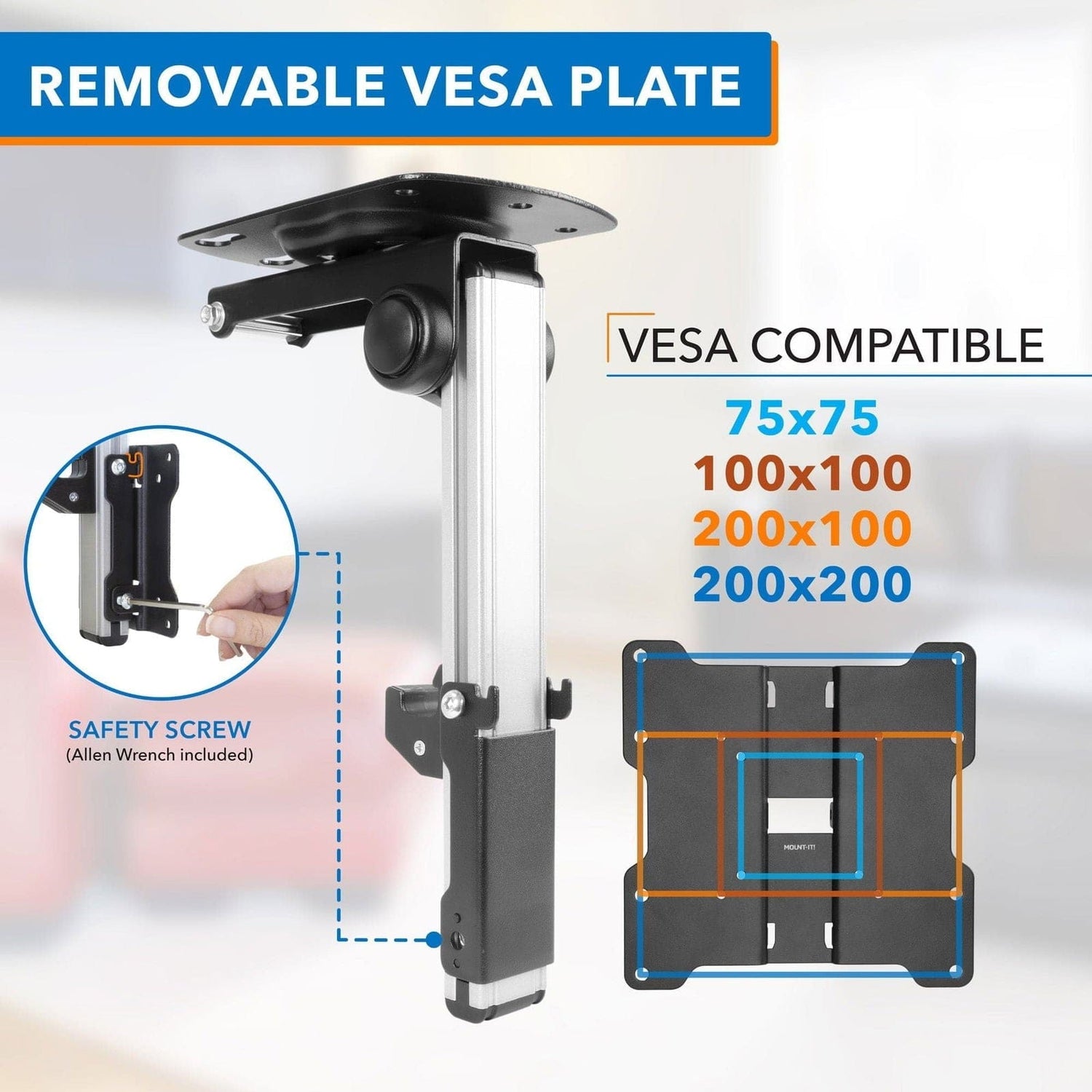

Compatible with VESA mounting patterns from 75×75 to 200×200 mm.

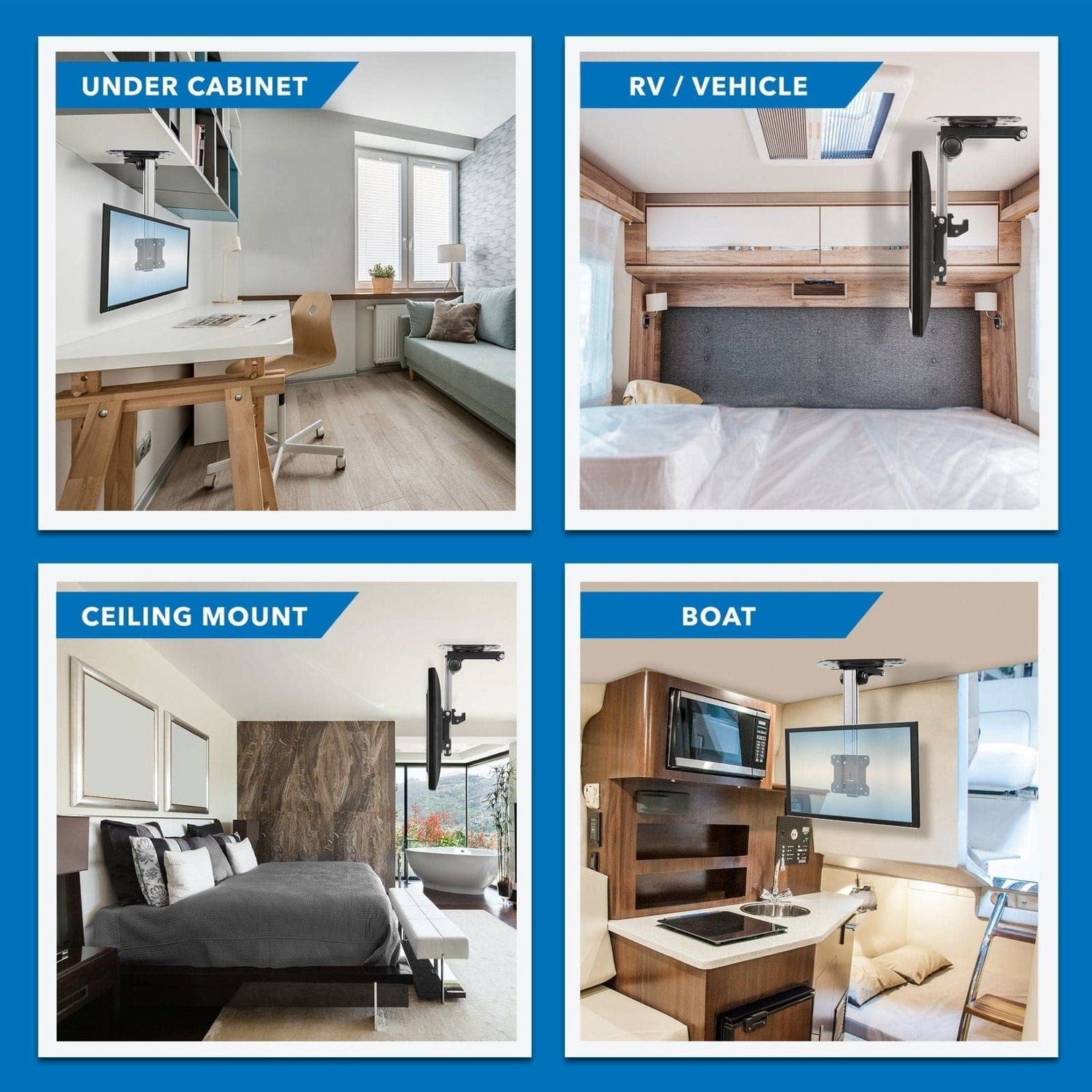

A practical choice for kitchens, RVs, workshops, garages, or any space where the mount needs to install overhead (under a cabinet, on a shelf bottom, or directly on a ceiling) and the screen needs to stay out of the way when not in use.
Specifications
- SKU: MI-4222
- Product type: Under-Cabinet TV Mount
- Mount type: Full motion (articulating)
- Product weight: 4.0 lb

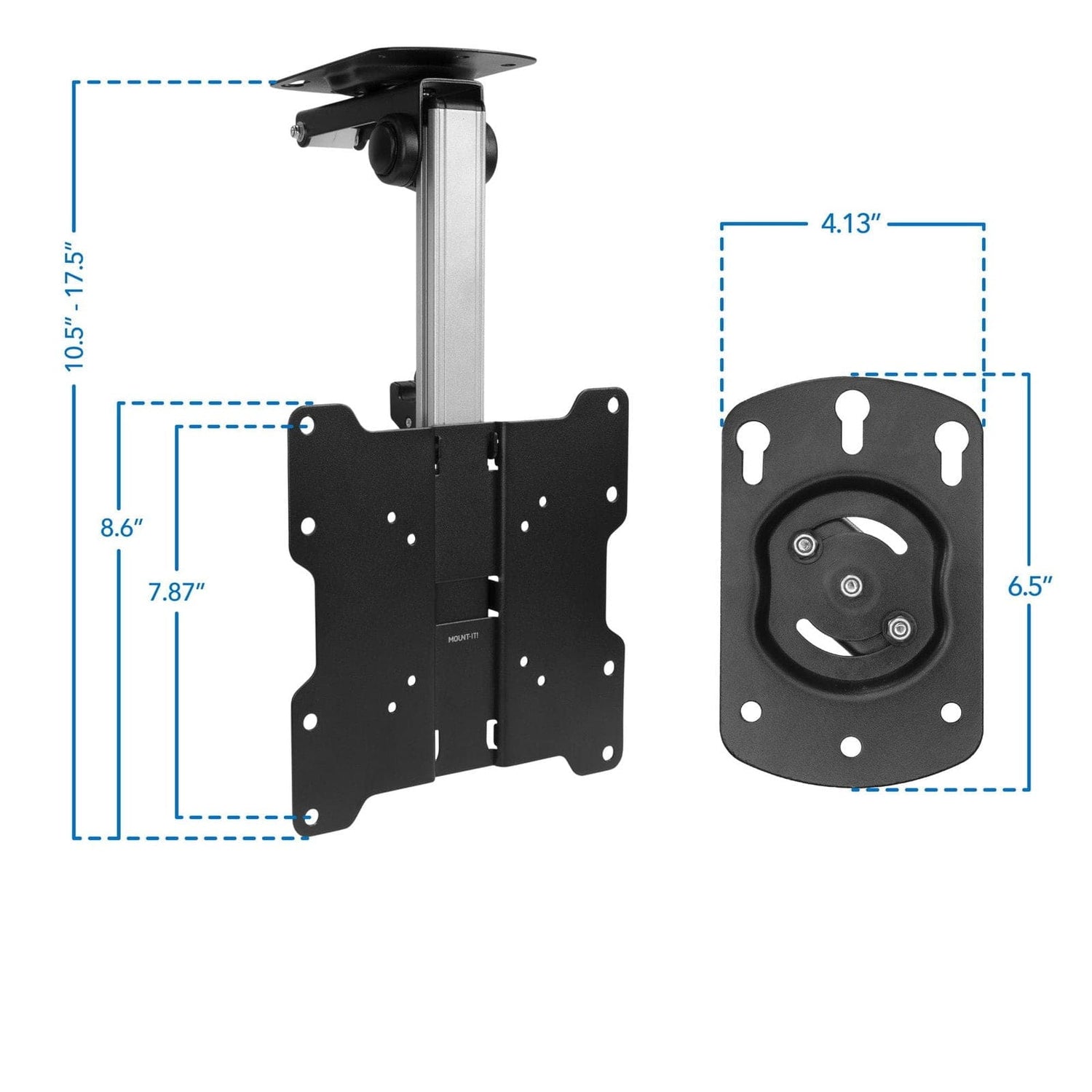

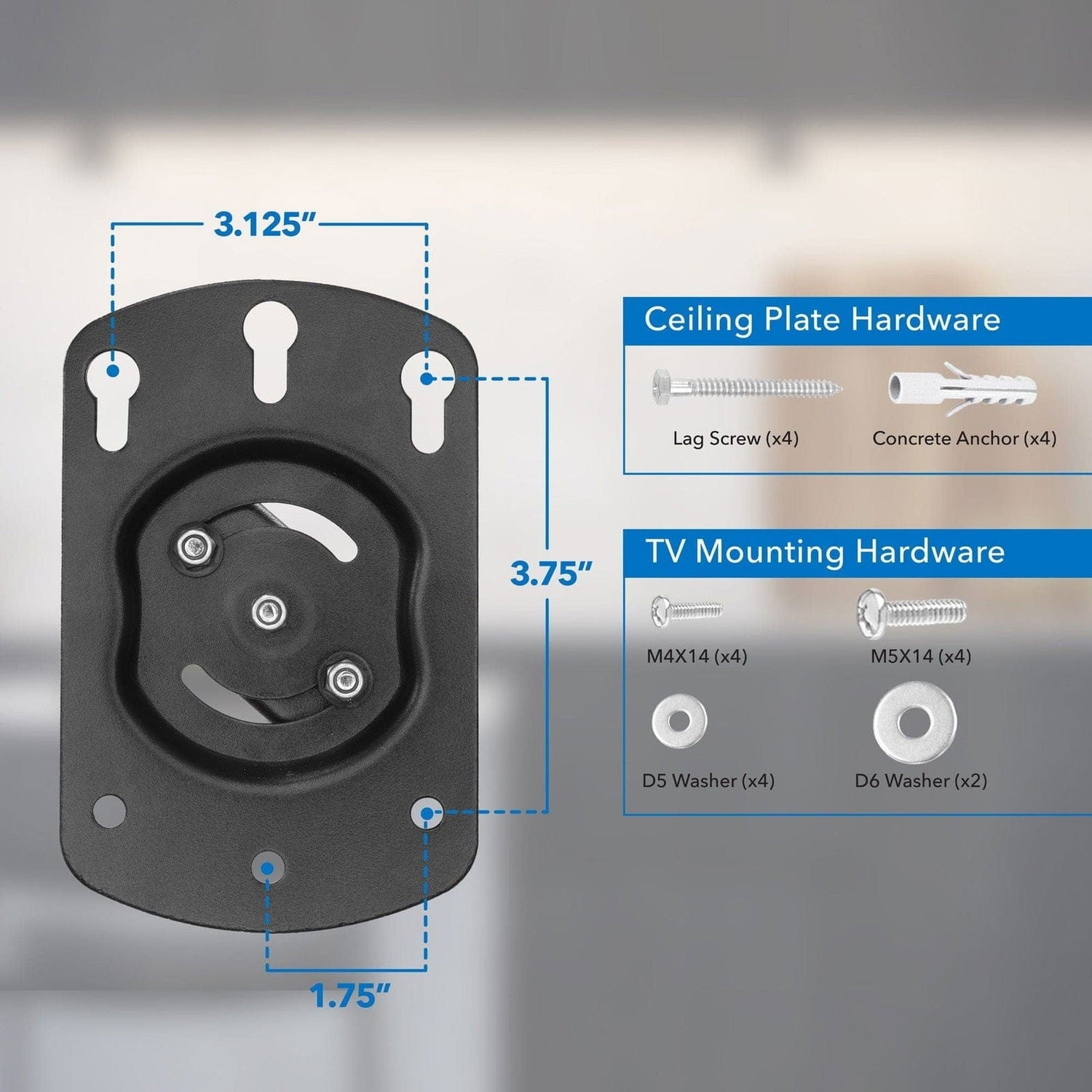

- Mounting plate dimensions: 4.13×6.5 in
Holds screens
- Screen size range: 17 to 37 in
- VESA range: 75×75 to 200×200 mm
- Weight capacity: 44 lb
Movement
- Swivel: 90° (45° left and 45° right)
- Tilt:−90°
- Drop range: 9.75 to 15.25 in
- Corner compatible: Yes
Installation
The Under Cabinet and Ceiling TV Mount is designed for quick and frustration free installation.
Easy installation is typically done in about 30 minutes.
Estimated install time: 30 minutes
Stud installation type: Single stud
Corner installations: Supported
Safely install on these types of surfaces:
- Truss
- Steel I-beam
- Exposed wood beam
- Drop ceiling (T-bar, requires structural anchor above)
- Concrete ceiling (poured slab)
- Metal/steel ceiling joist
- Wood ceiling joist
- Solid wood cabinet (oak, maple, hardwood)
- Plywood cabinet bottom (3/4" or thicker)
- Particle board cabinet bottom (requires longer screws and load distribution)
- MDF cabinet bottom
- Metal cabinet (commercial/industrial)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
