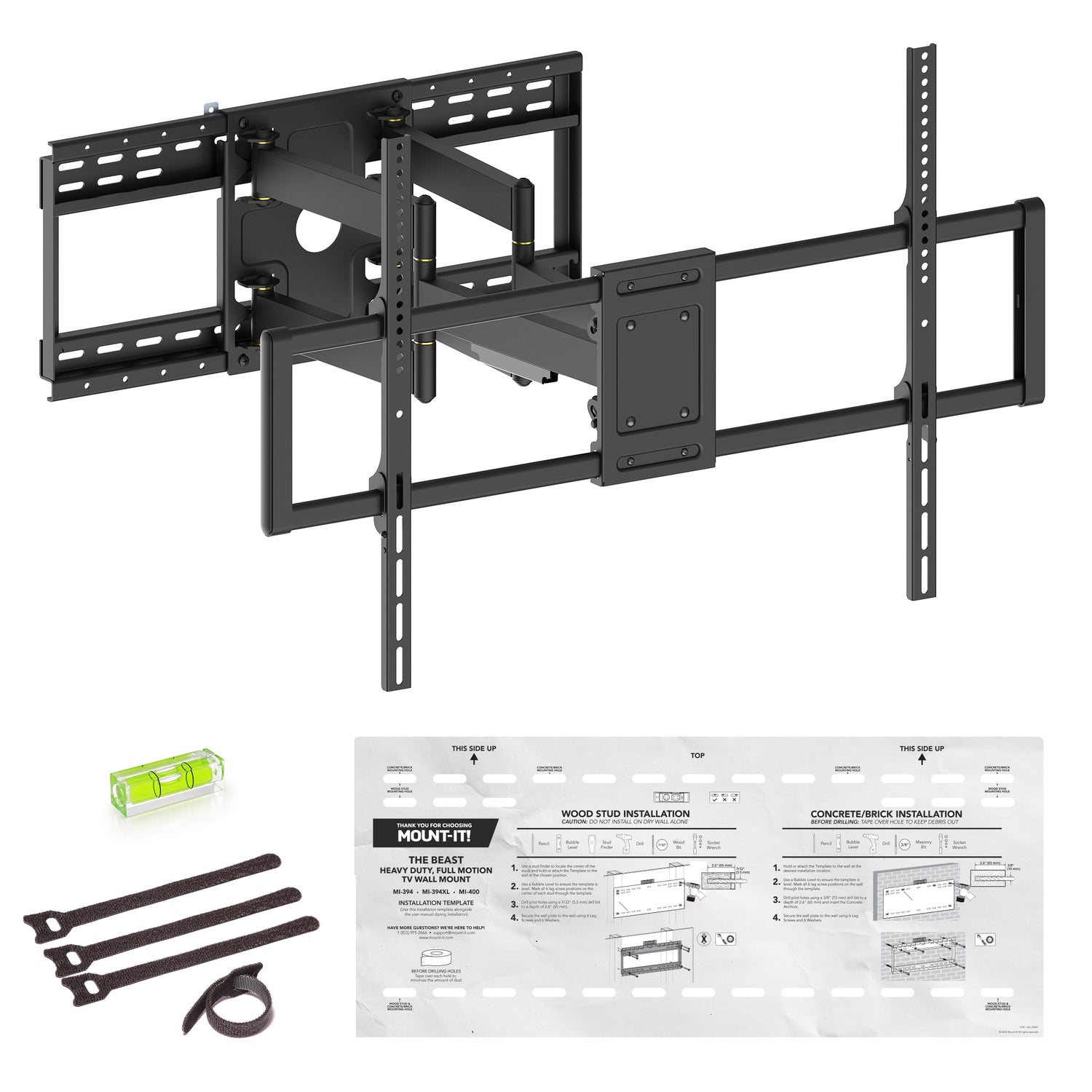

Full Motion TV Wall Mount for 60" to 120" TVs
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
An articulating full motion TV wall mount for 60 to 120-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 264 lb with VESA 200×200 to 900×600 mm.
Swivels 120.0°, tilts +5.0°/−15.0°, and extends 3.6 to 28.8 inches. Aim the screen at any seat and reach the right depth.
Full Motion TV Wall Mount
Features
Fits 60 to 120 inch flat screen TVs
Weight rated up to 264 lb
Swivels 120.0° (60.0° left and 60.0° right), aim the screen at any seat
Adjustable tilt +5.0° up / −15.0° down - reduce glare, improve your view

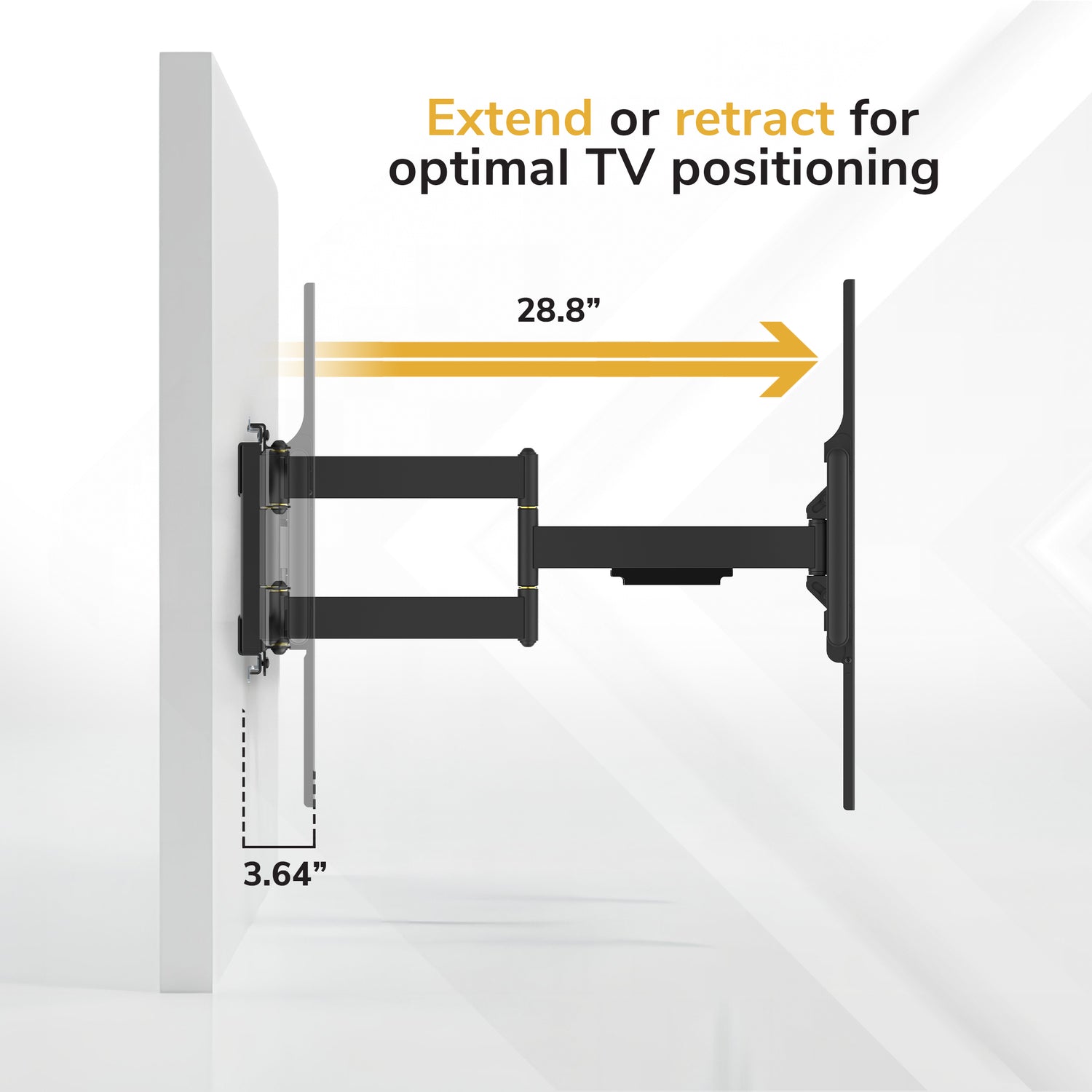

Extends 3.6 to 28.8 in from the wall for flexible positioning
VESA 200×200 to 900×600 mm - fits most flat panel TV brands
Supports corner wall installations
Overview
The Full Motion TV Wall Mount is a full motion (articulating) TV wall mount compatible with 60 to 120-inch televisions and rated to hold up to 264 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.
Swivels 120° (60° left and 60° right), tilt +5°/−15°, and extends 3.6 to 28.8 in from the wall. The long extension arm pulls the screen away from the wall far enough to clear furniture, fireplace surrounds, or room corners.
Compatible with VESA mounting patterns from 200×200 to 900×600 mm. Also supports corner wall installations for rooms where flat wall space is limited.
A practical choice for large living rooms, corner installs, or any setup where the screen needs to pull far from the wall to reach the optimal viewing angle.
Specifications
- SKU: MI-14013
- Product type: Wall TV Mount
- Mount type: Full motion (articulating)
- Product weight: 42.85 lb

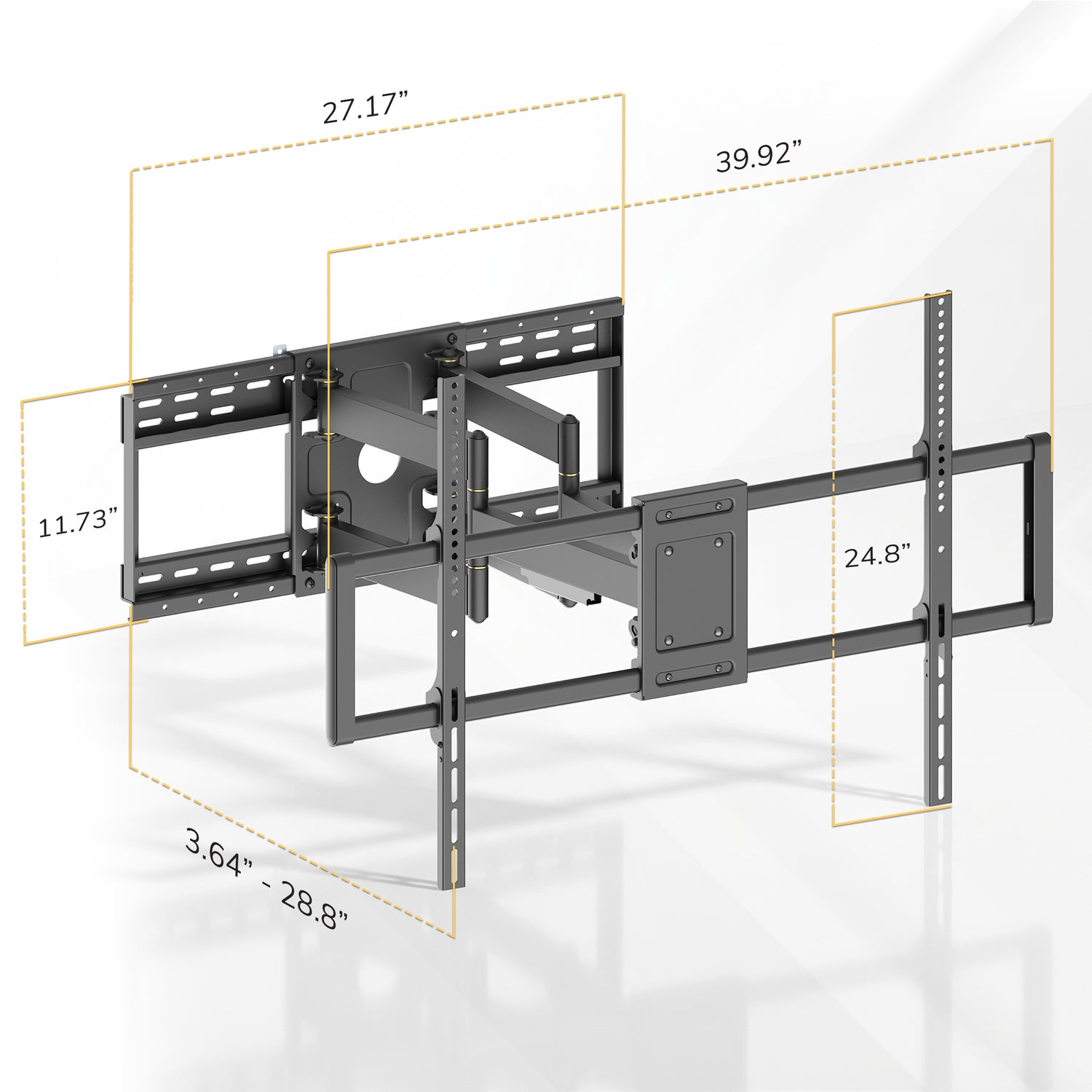

- Wall plate dimensions: 27.17×11.73 in
Holds screens
- Screen size range: 60 to 120 in
- VESA range: 200×200 to 900×600 mm
- Weight capacity: 264 lb
Movement

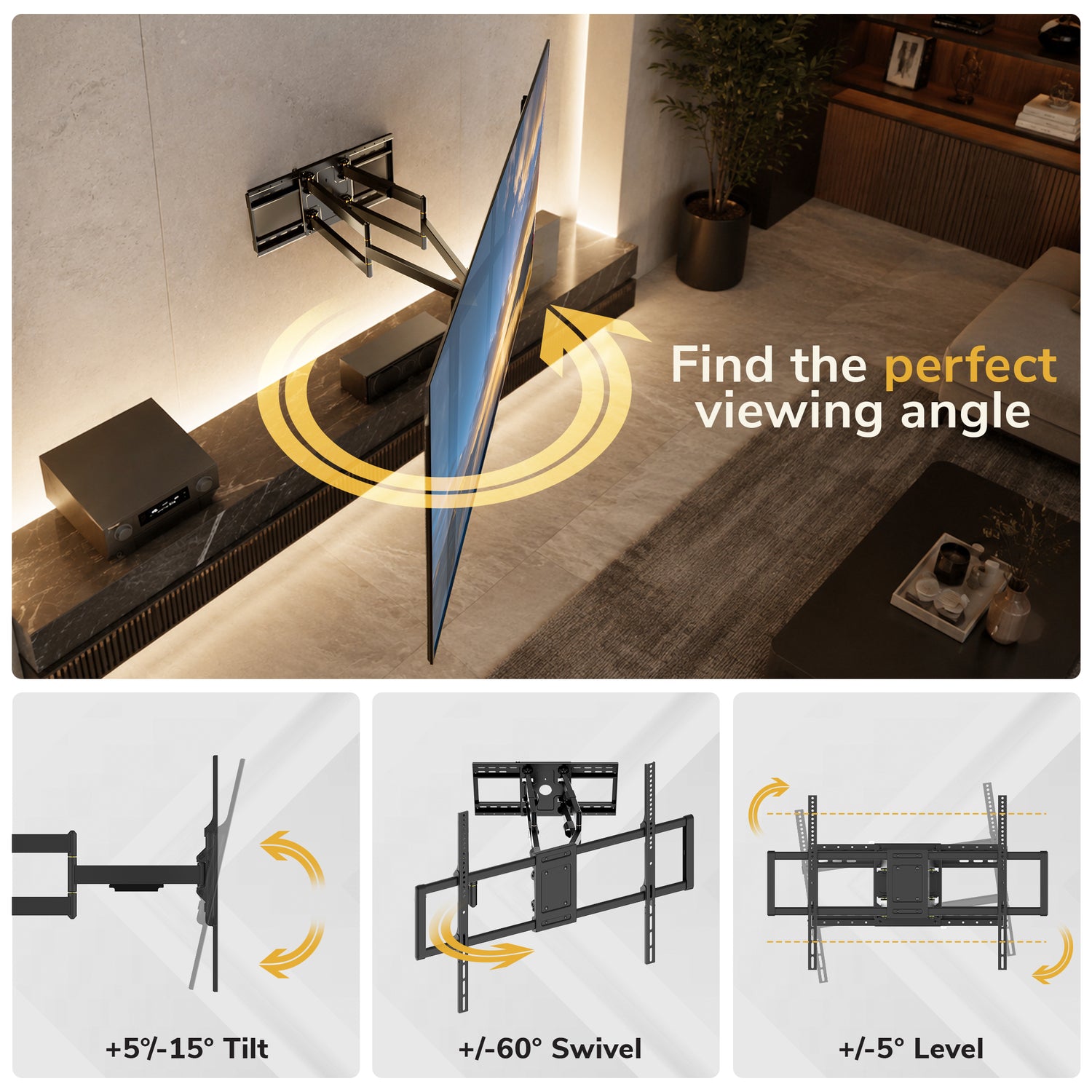

- Swivel: 120° (60° left and 60° right)
- Tilt:+5°and−15°
- Extension depth: 3.6 to 28.8 in
- Corner compatible: Yes
Installation
The Full Motion TV Wall Mount is designed for quick and frustration free installation.
Installation is typically completed in about 45 minutes.
Estimated install time: 45 minutes
Stud installation type: Dual stud
Stud spacing supported: 16, 24 inch stud spacing
Corner installations: Supported

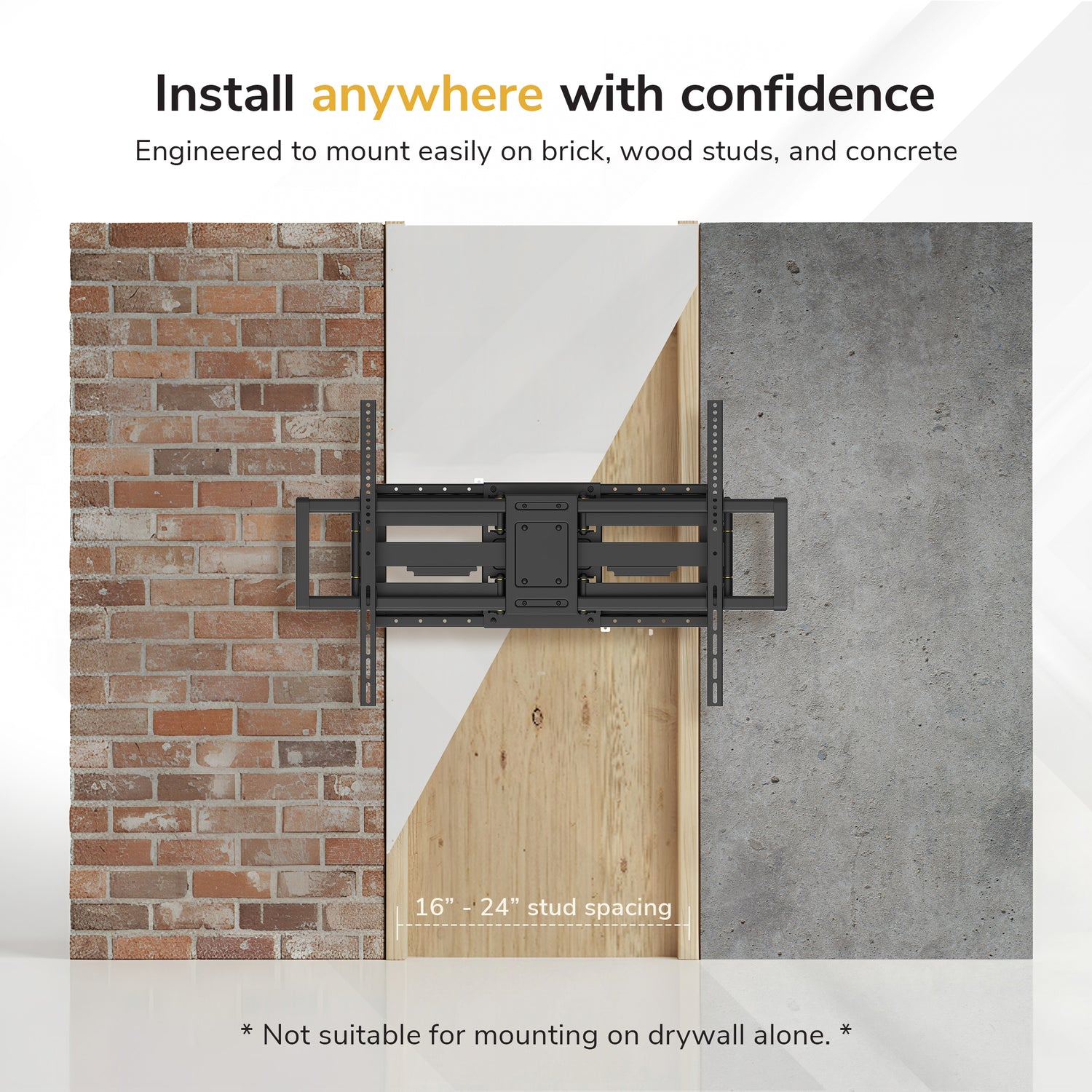

Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
