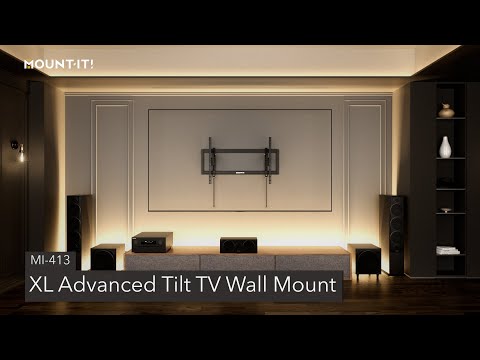

Mount-It! Heavy-Duty XL Advanced Tilt TV Wall Mount for 55" to 105" TVs | MI-413
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
An articulating full motion TV wall mount for 55 to 105-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 176 lb with VESA 200×200 to 1000×600 mm.
Swivels 20.0°, tilts +10.0°/−15.0°, and extends 2.1–6.8 inches. Aim the screen at any seat and reach the right depth.
Will this fit my TV
Add your TV Details
Enter your TV weight and VESA pattern to confirm fit
Will this fit my TV
Add your TV DetailsEnter your TV weight and select your TV VESA pattern to confirm fit.
Use the TV weight without the stand when possible.
If your pattern is not listed, choose Custom VESA.
Enter the VESA spacing in millimeters.

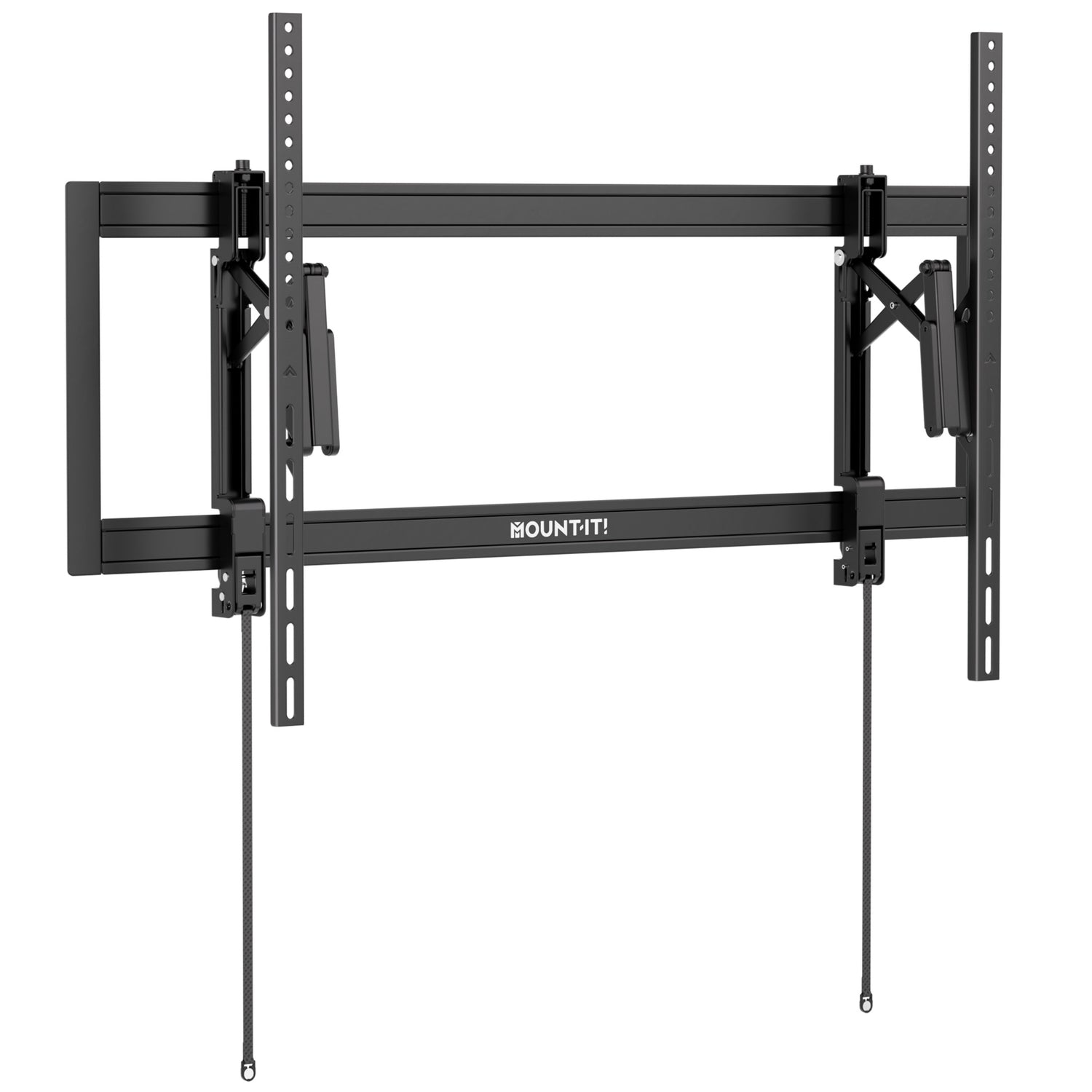

Heavy-Duty XL Advanced Tilt TV Wall Mount
Features
Fits 55 to 105 inch flat screen TVs
Weight rated up to 176 lb
Swivels 10.0° left and right — aim the screen at any seat

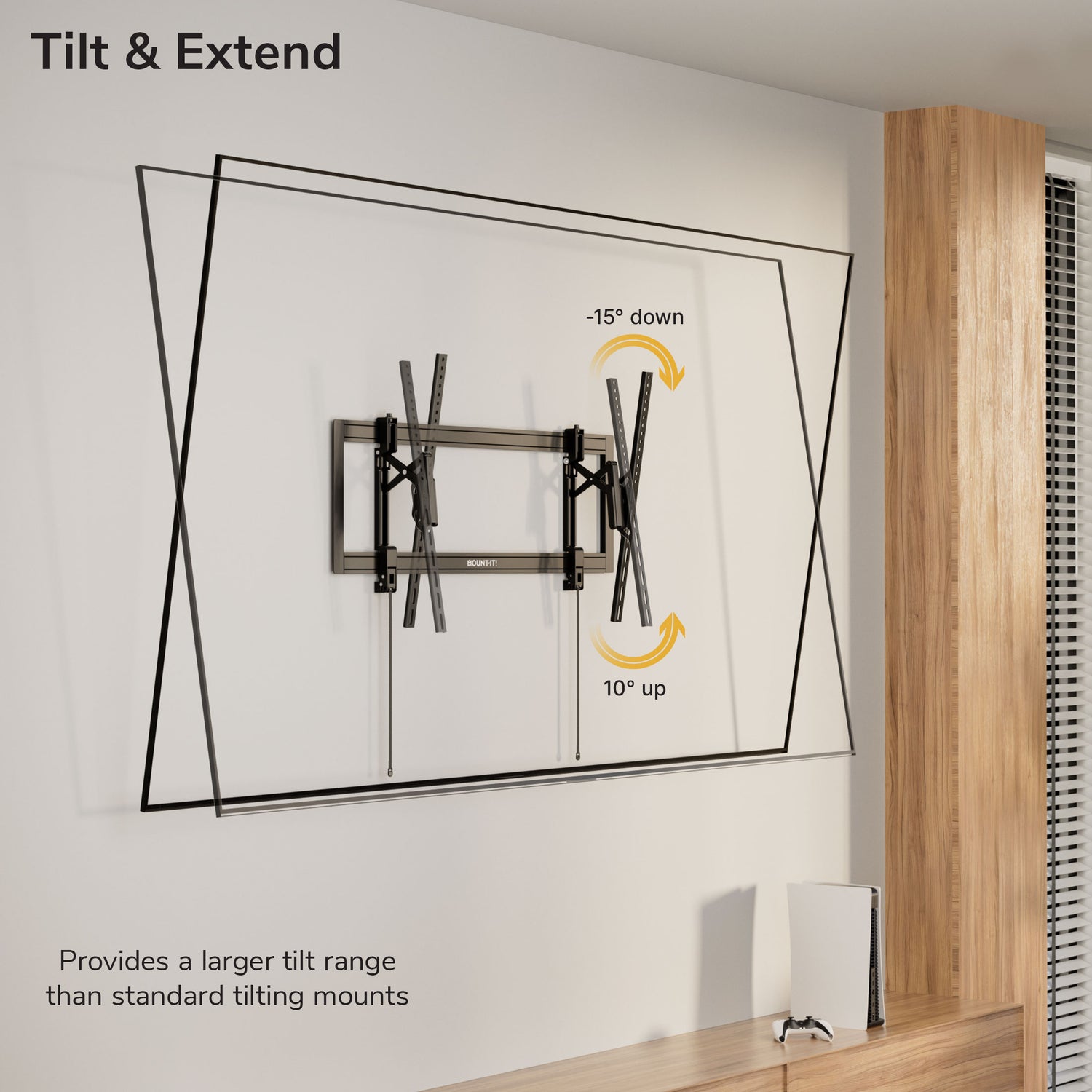

Adjustable tilt +10.0° up / −15.0° down - reduce glare, improve your view
Extends 2.1–6.8 in from the wall for flexible positioning

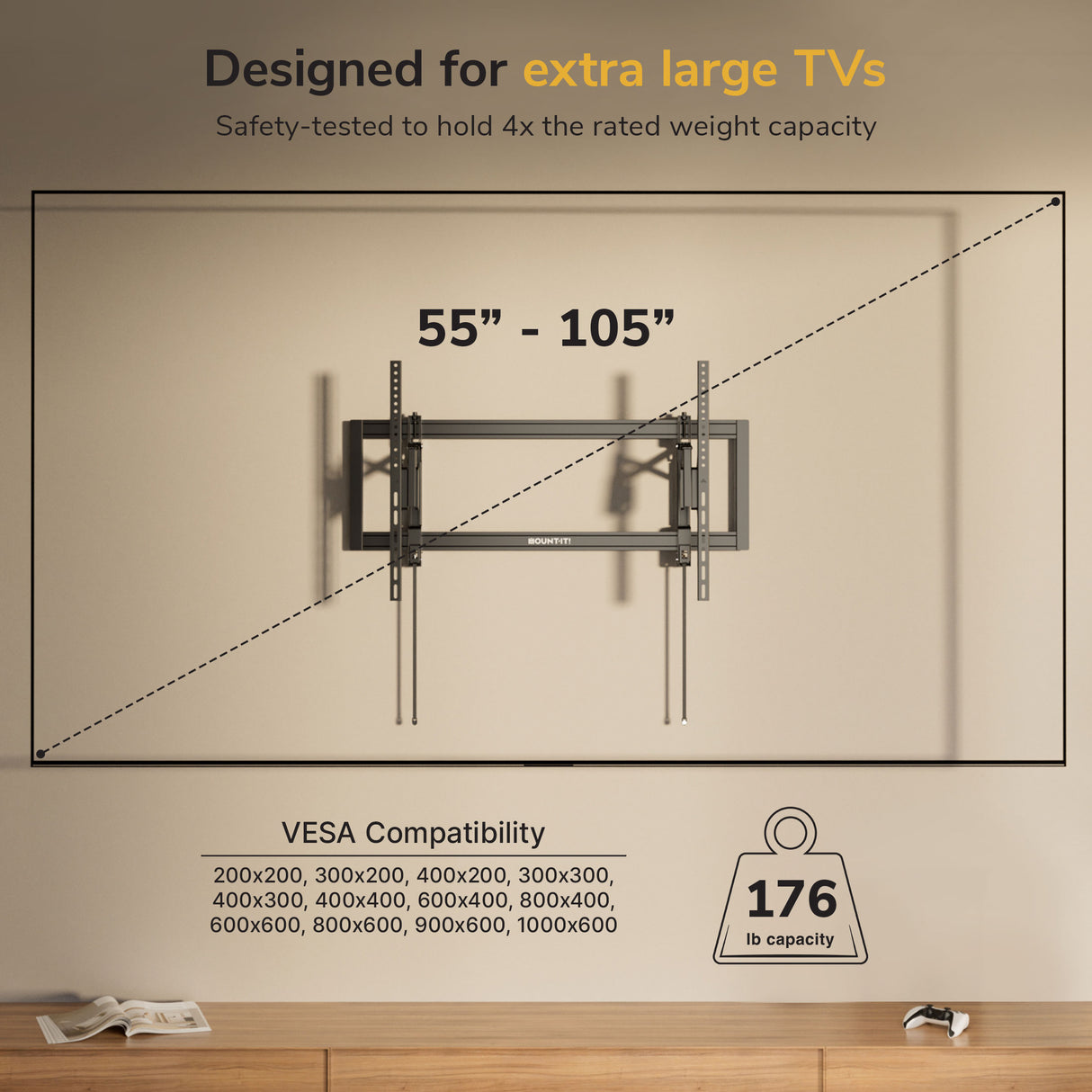

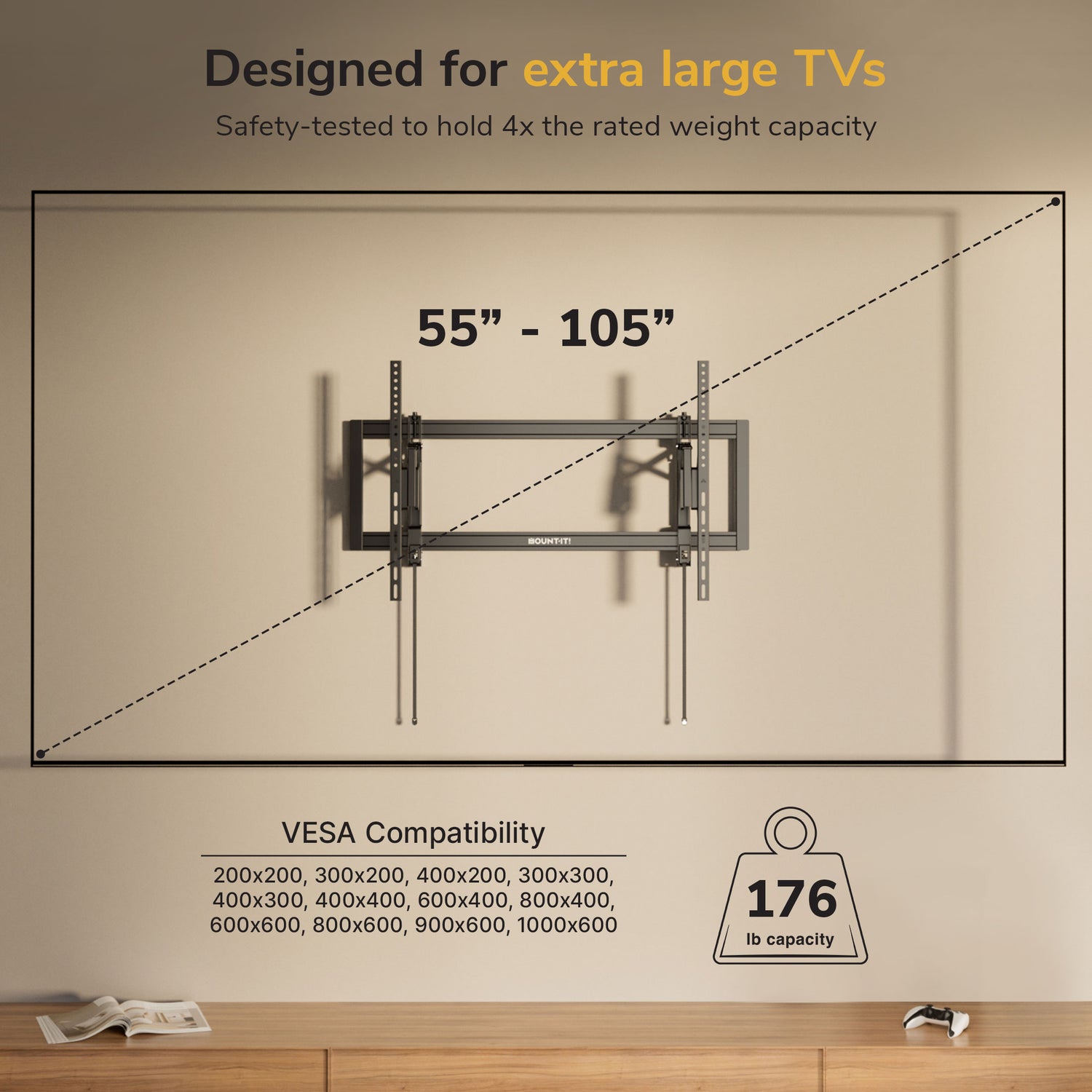

VESA 200×200 to 1000×600 mm - fits most flat panel TV brands
Overview
The Heavy-Duty XL Advanced Tilt TV Wall Mount is a full motion (articulating) TV wall mount compatible with 55 to 105-inch televisions and rated to hold up to 176 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.

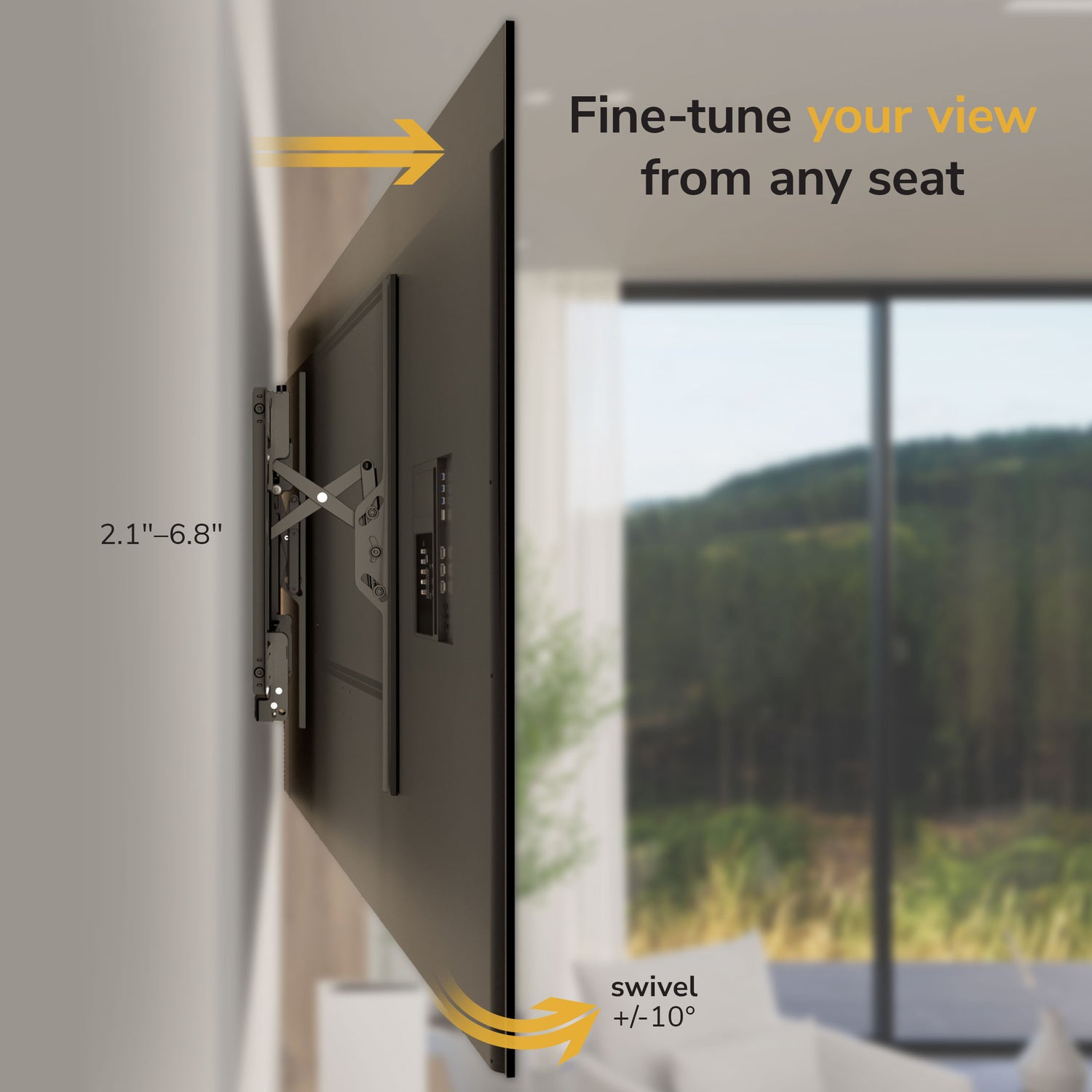

Swivels 10° left and right, tilt +10°/−15°, and extends 2.1 to 6.8 in from the wall. The long extension arm pulls the screen far enough from the wall to swing past furniture, fireplace surrounds, or room corners without obstruction.
Compatible with VESA mounting patterns from 200×200 to 1000×600 mm.

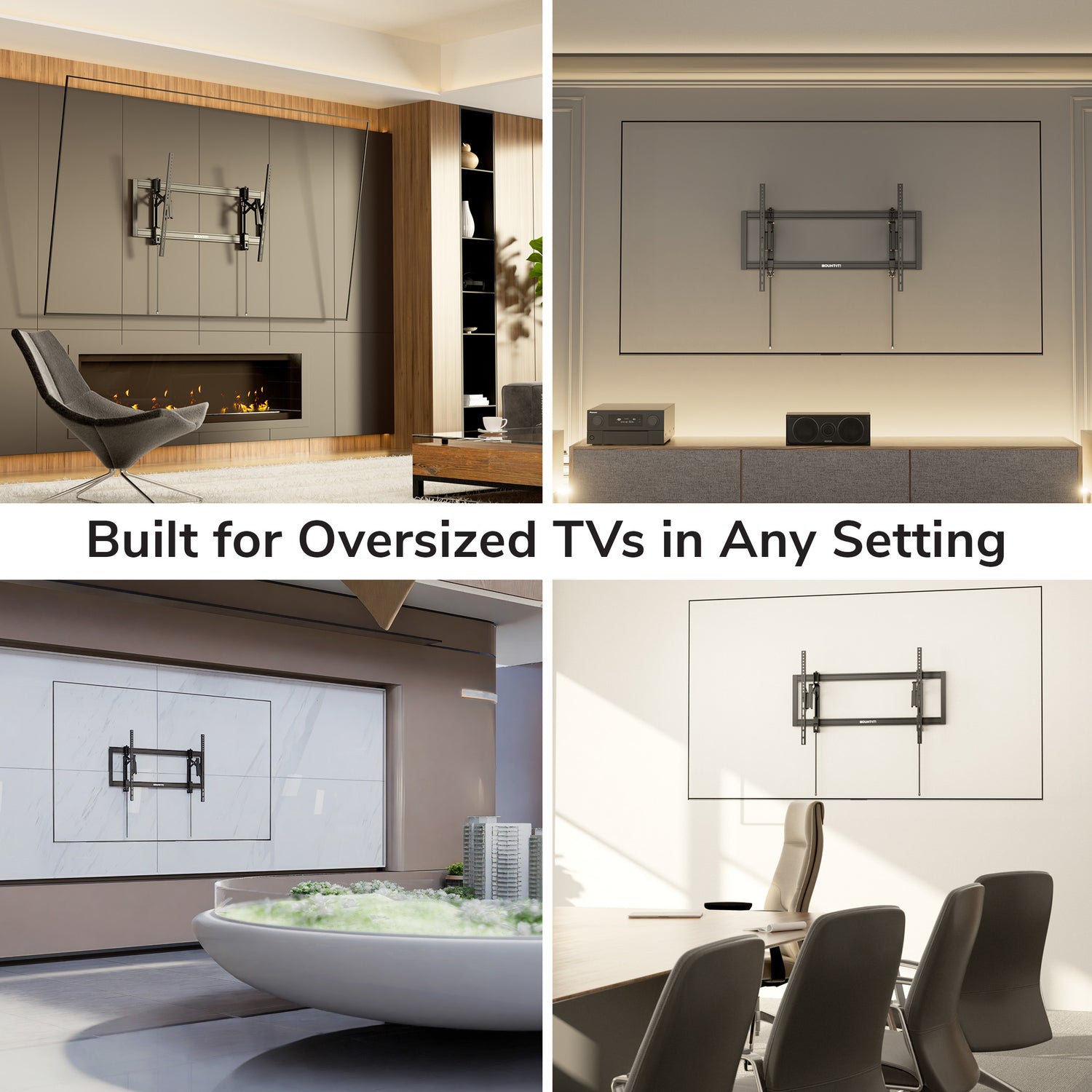

A practical choice for large living rooms or any setup where the optimal viewing position isn't directly in front of the wall.
Specifications
- Product type: TV mount
- Mount type:Full motion (articulating)
- Product weight: 14.75 lb

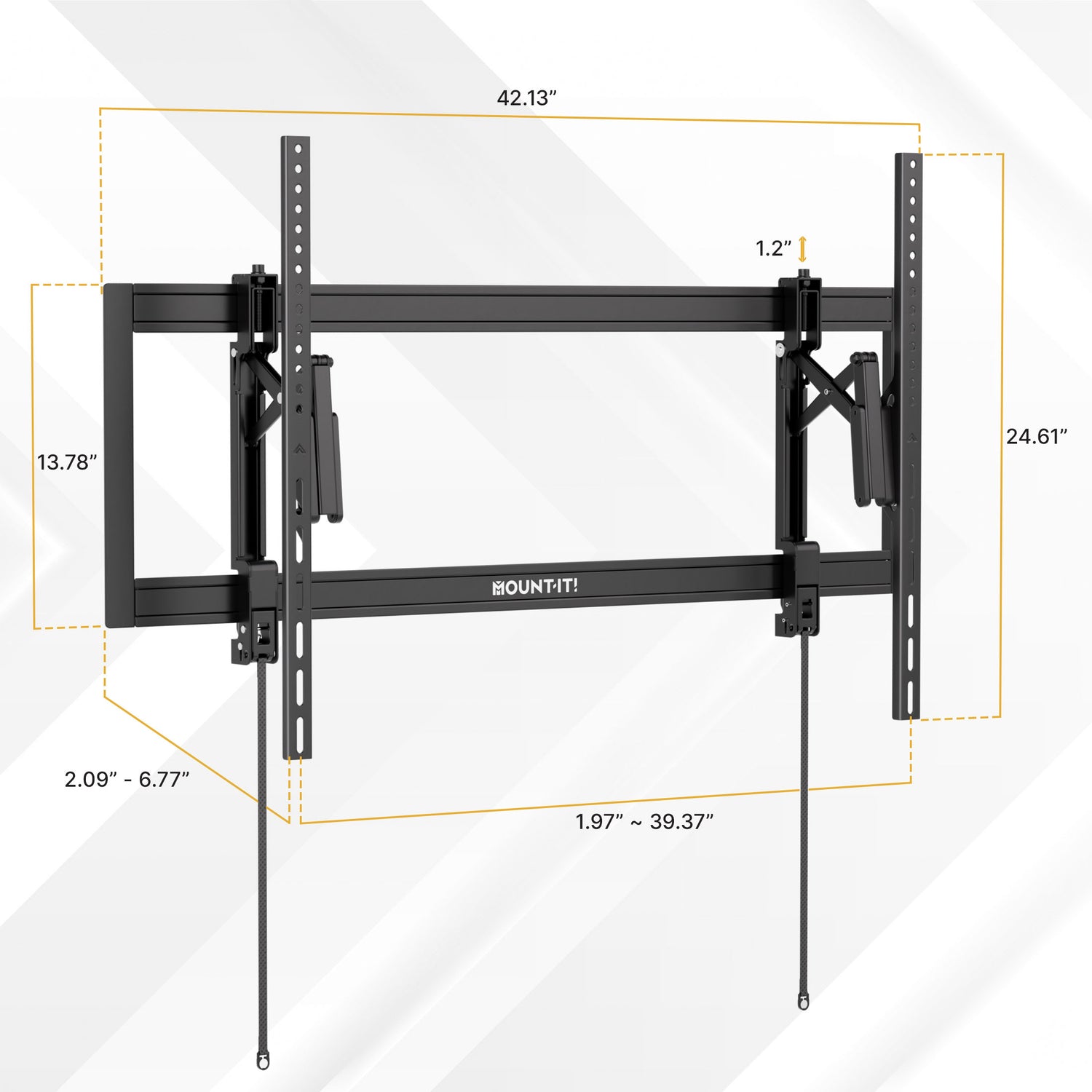

- Wall plate dimensions: 42.13×13.78 in
Holds screens
- Screen size range: 55 to 105 in
- VESA range: 200×200 to 1000×600 mm
- Weight capacity: 176 lb
Movement
- Swivel: up to 20°
- Tilt:+10°and−15°
- Extension depth: 2.1 to 6.8 in

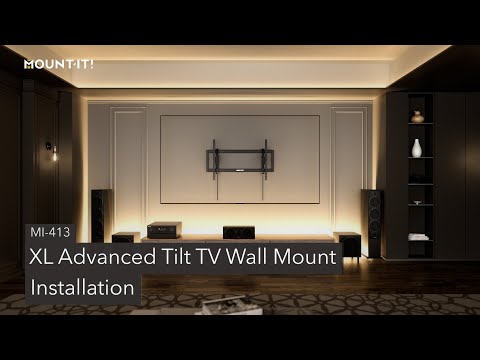

Installation
The Heavy-Duty XL Advanced Tilt TV Wall Mount is designed for quick and frustration free installation.
Easy installation is typically done in about 30 minutes.
Estimated install time: 30 minutes
Stud installation type: Dual stud
Stud spacing supported: 16 inch stud spacing

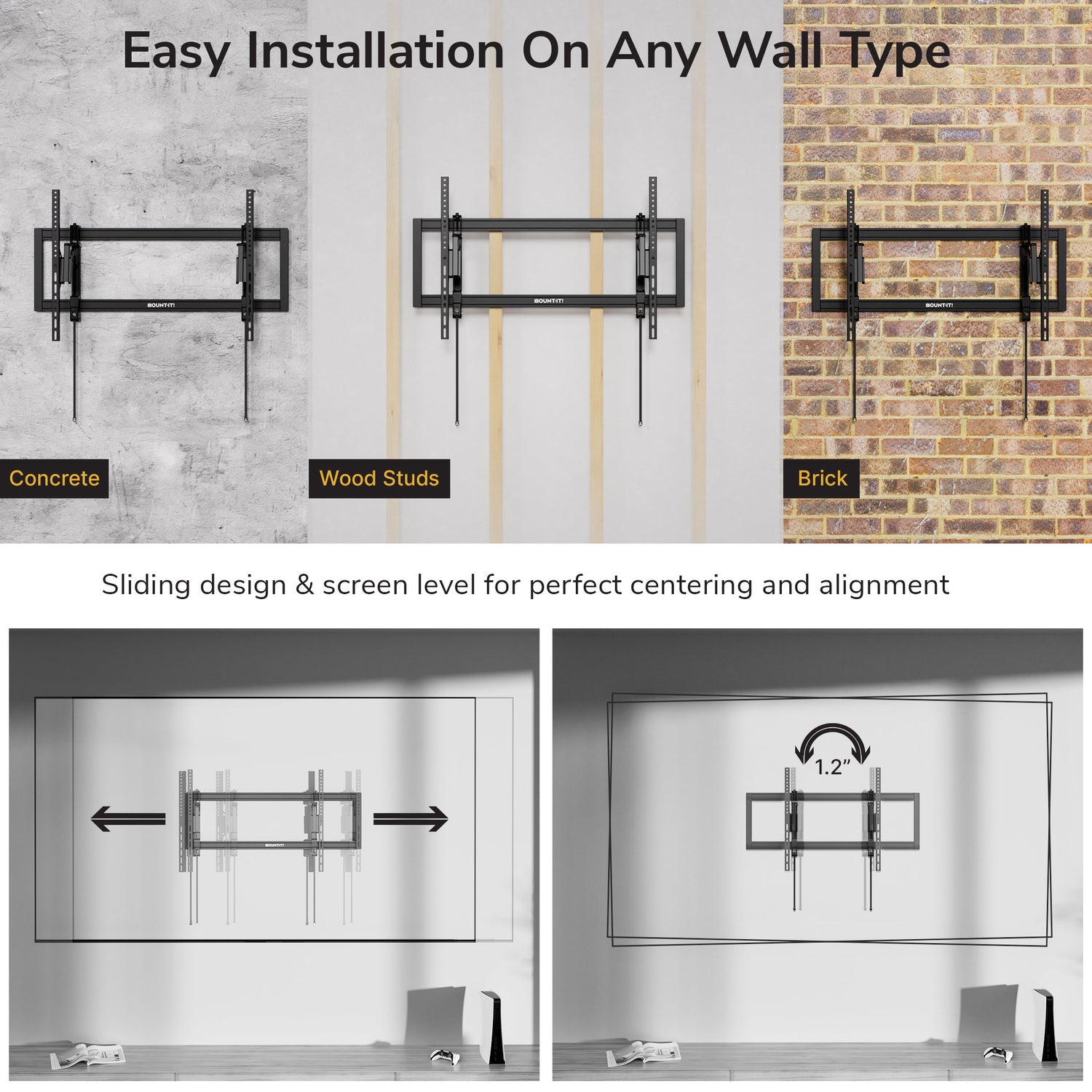

Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)

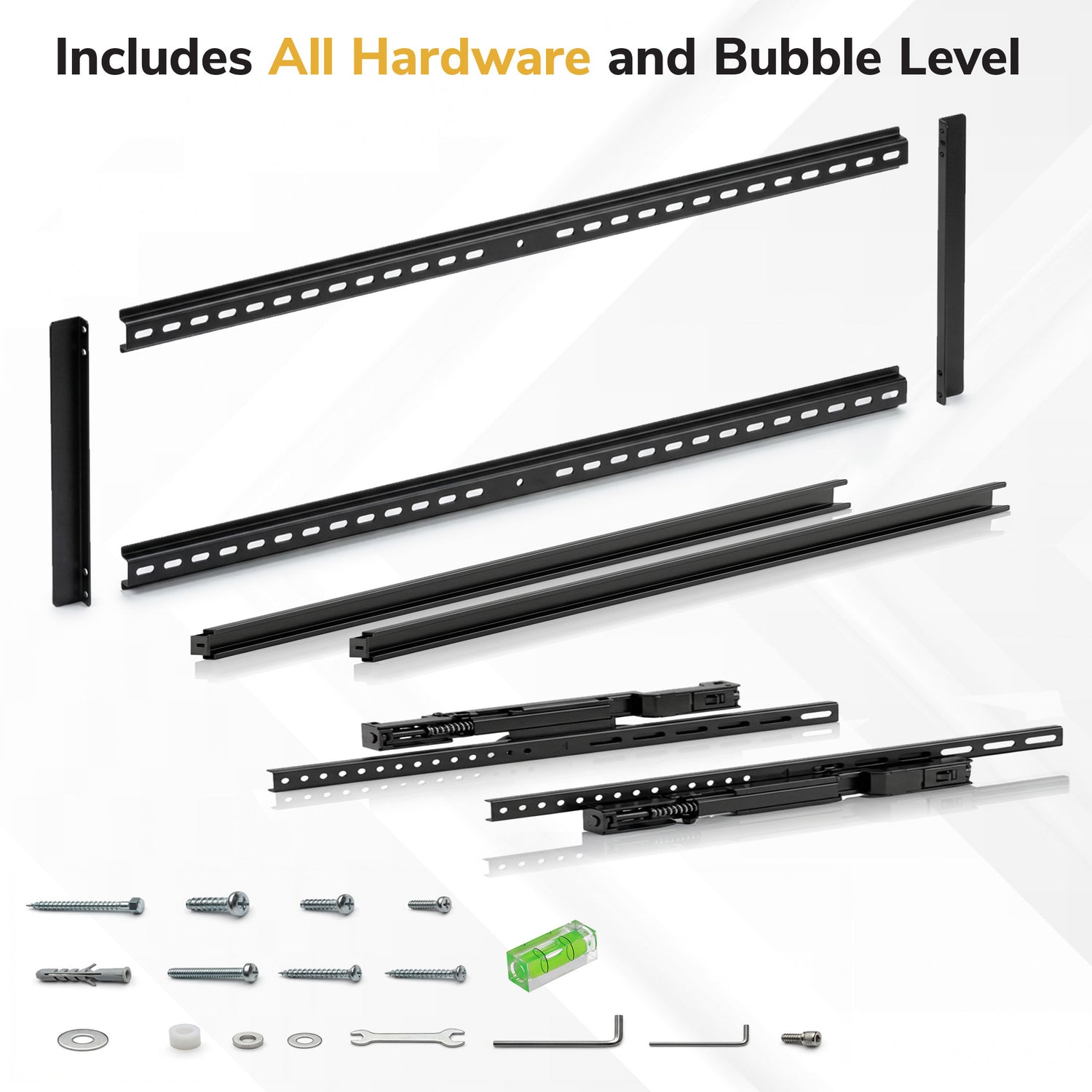

Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonary bits for concrete and brick)
- Power drill
- Stud finder
