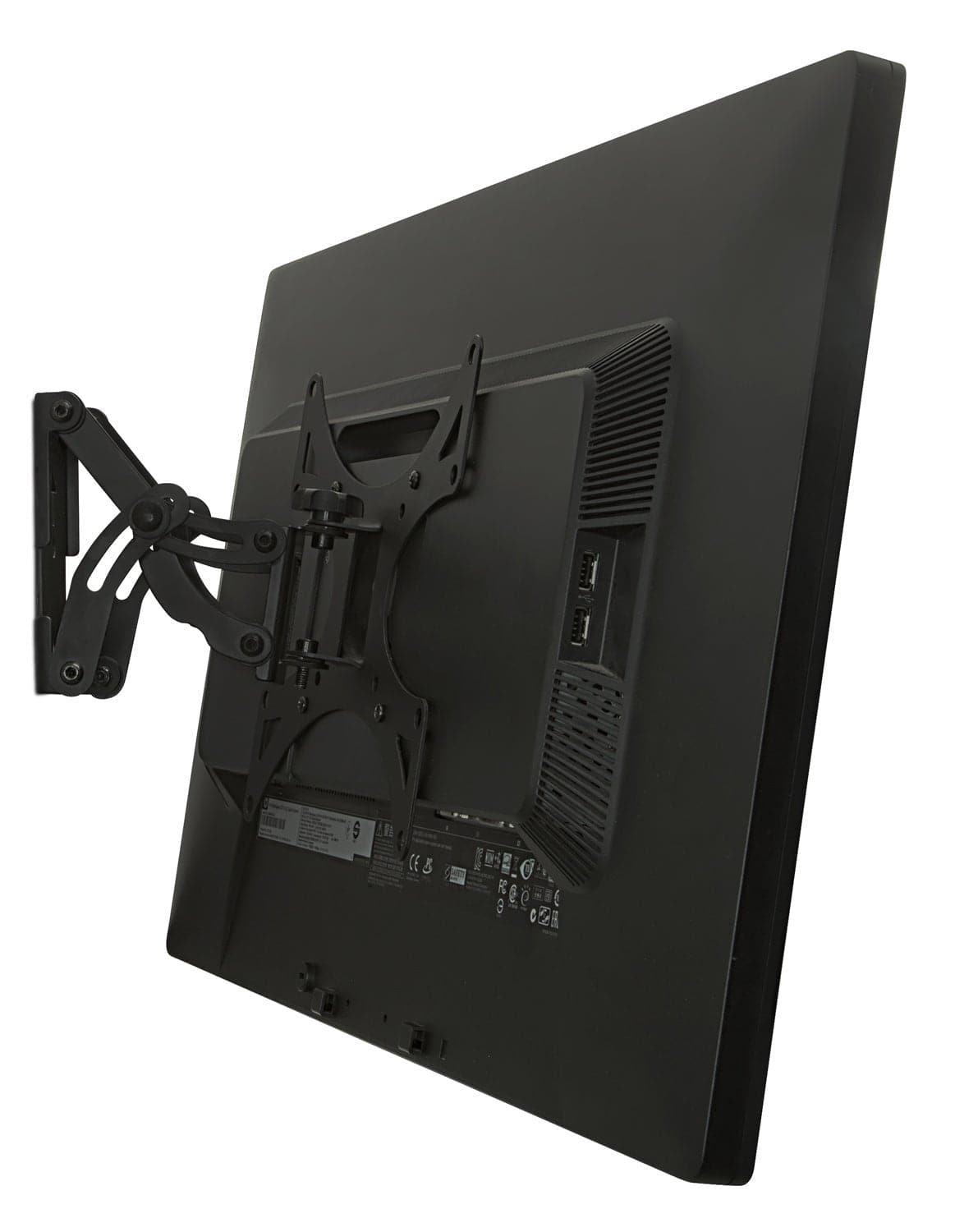

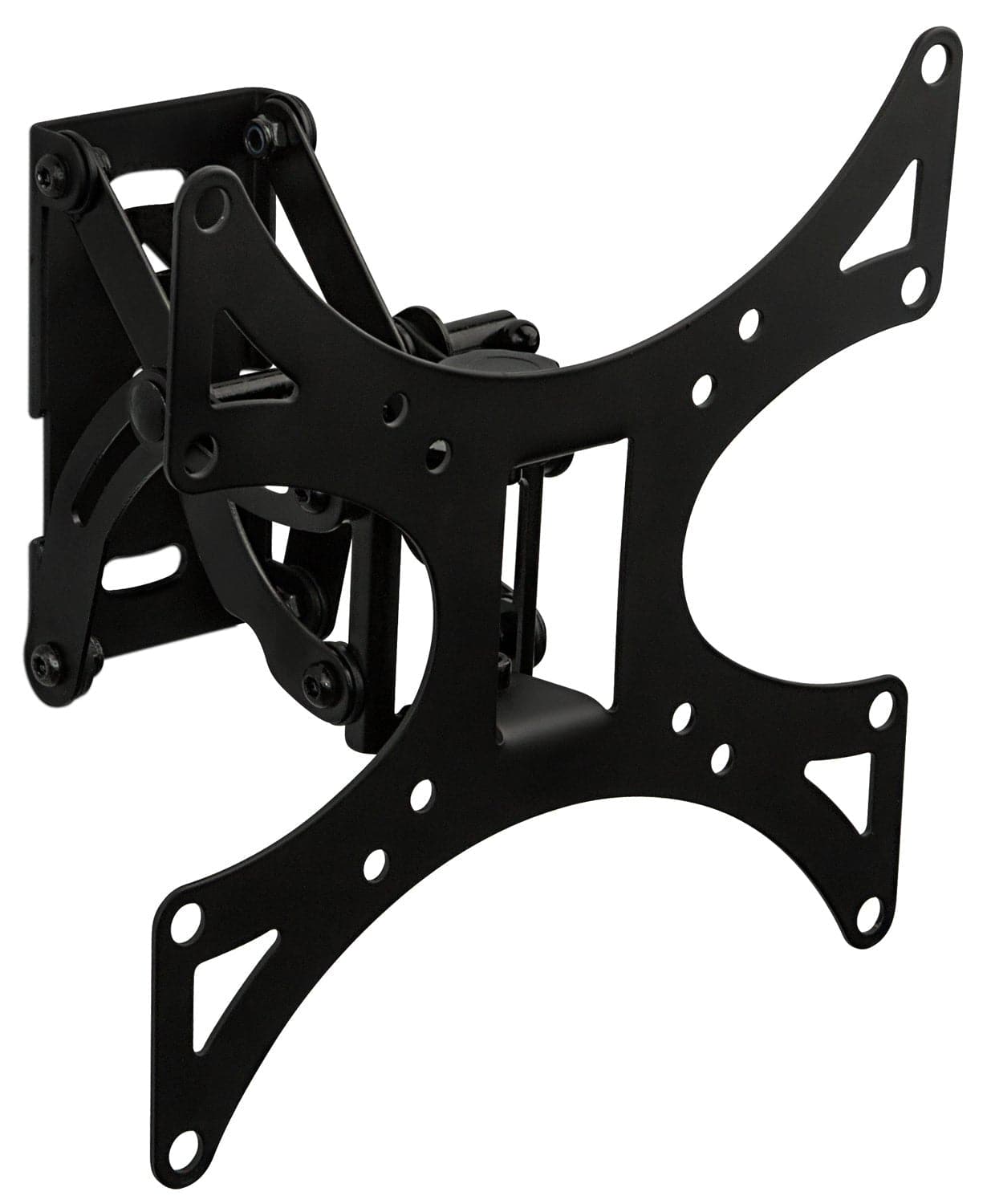

Full Motion TV Wall Mount w/ Extension for 19" to 42" TVs
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
An articulating full motion TV wall mount for 19 to 42-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 66 lb with VESA 75×75 to 200×200 mm.
Swivels 30.0°, tilts +15.0°/−15.0°, and extends 3.25–6.0 inches. Aim the screen at any seat and reach the right depth.
Full Motion TV Wall Mount w/ Extension
Features

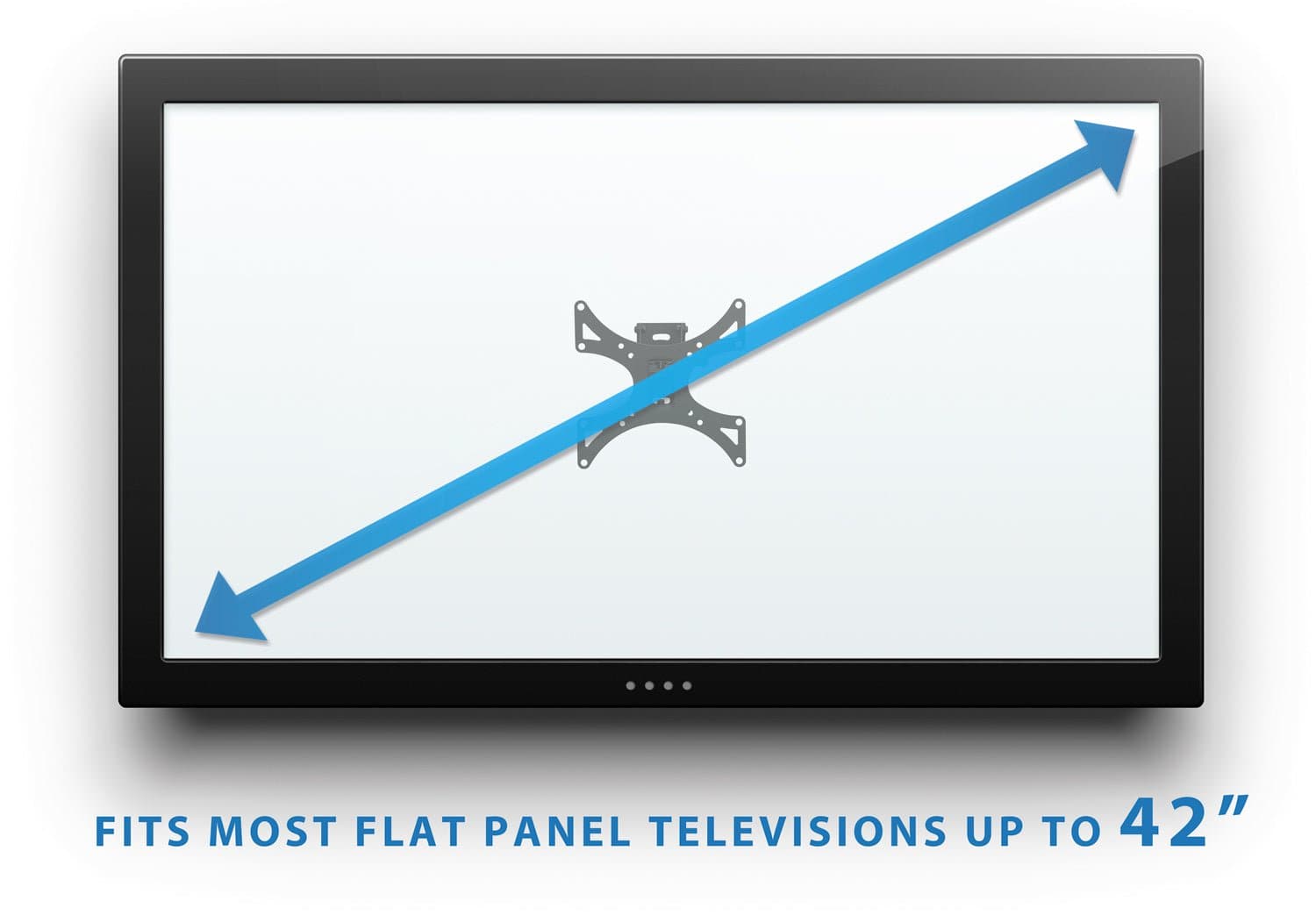

Fits 19 to 42 inch flat screen TVs
Weight rated up to 66 lb
Swivels 15.0° left and right — aim the screen at any seat

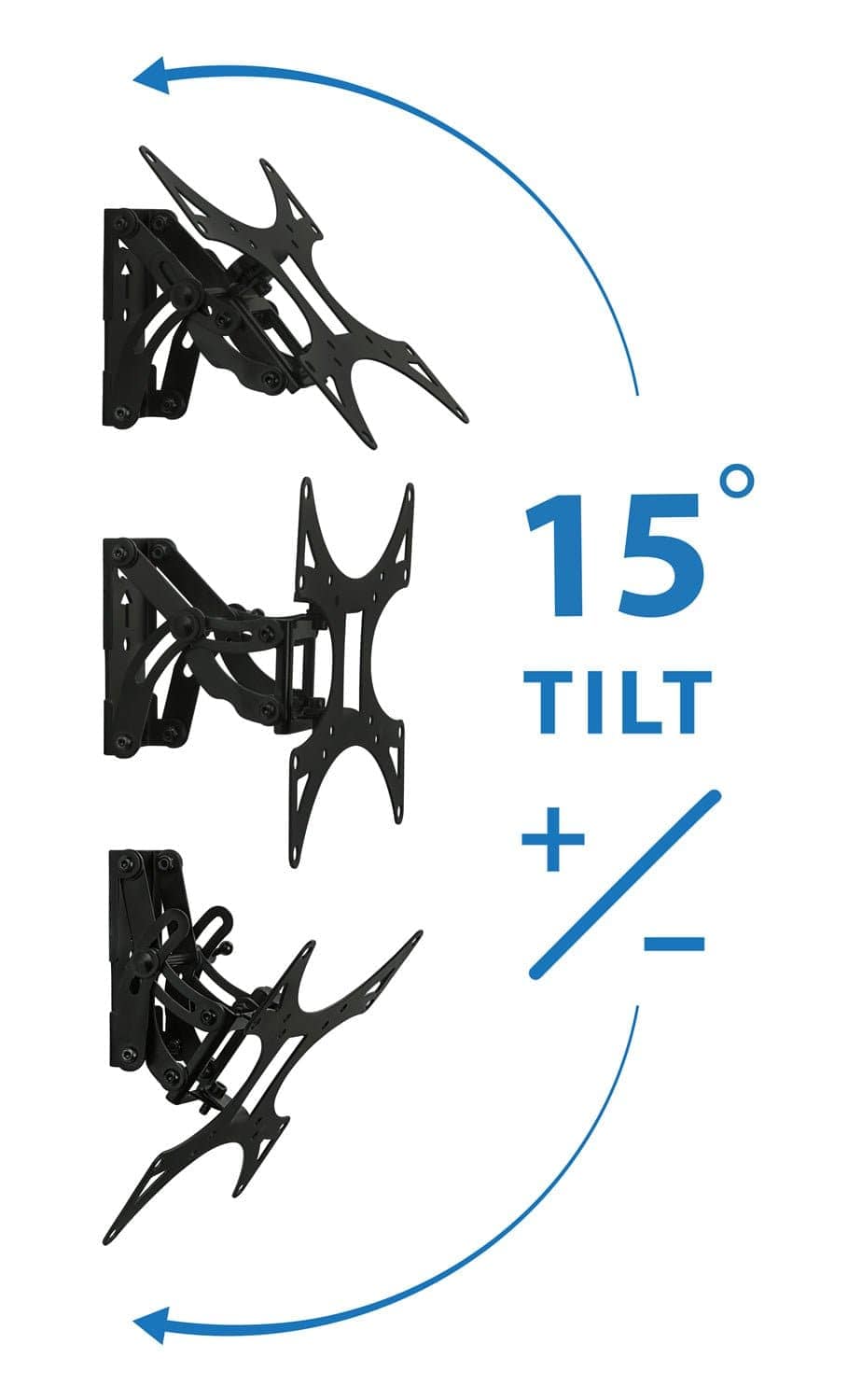

Adjustable tilt +15.0° up / −15.0° down - reduce glare, improve your view

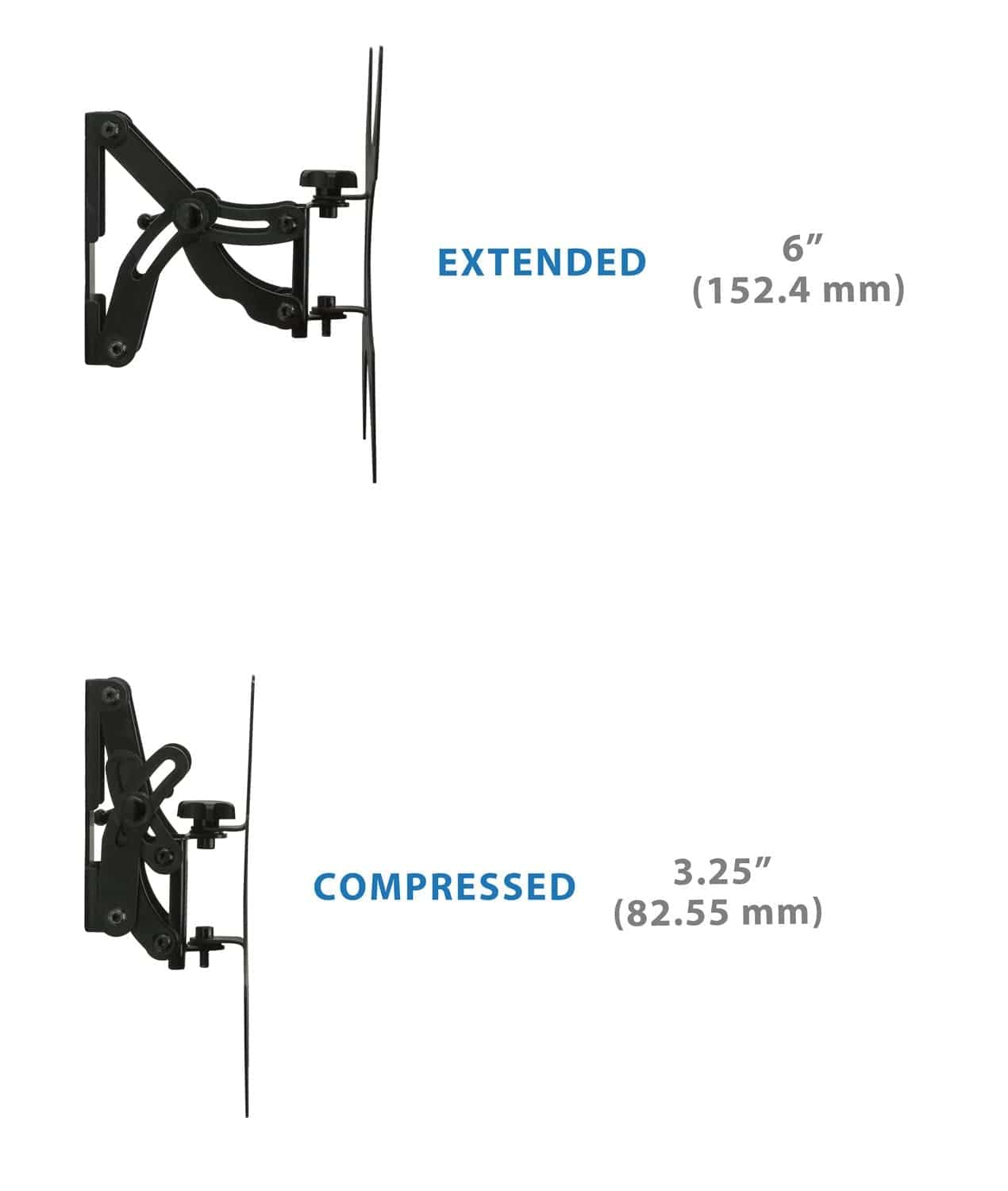

Extends 3.25–6.0 in from the wall for flexible positioning

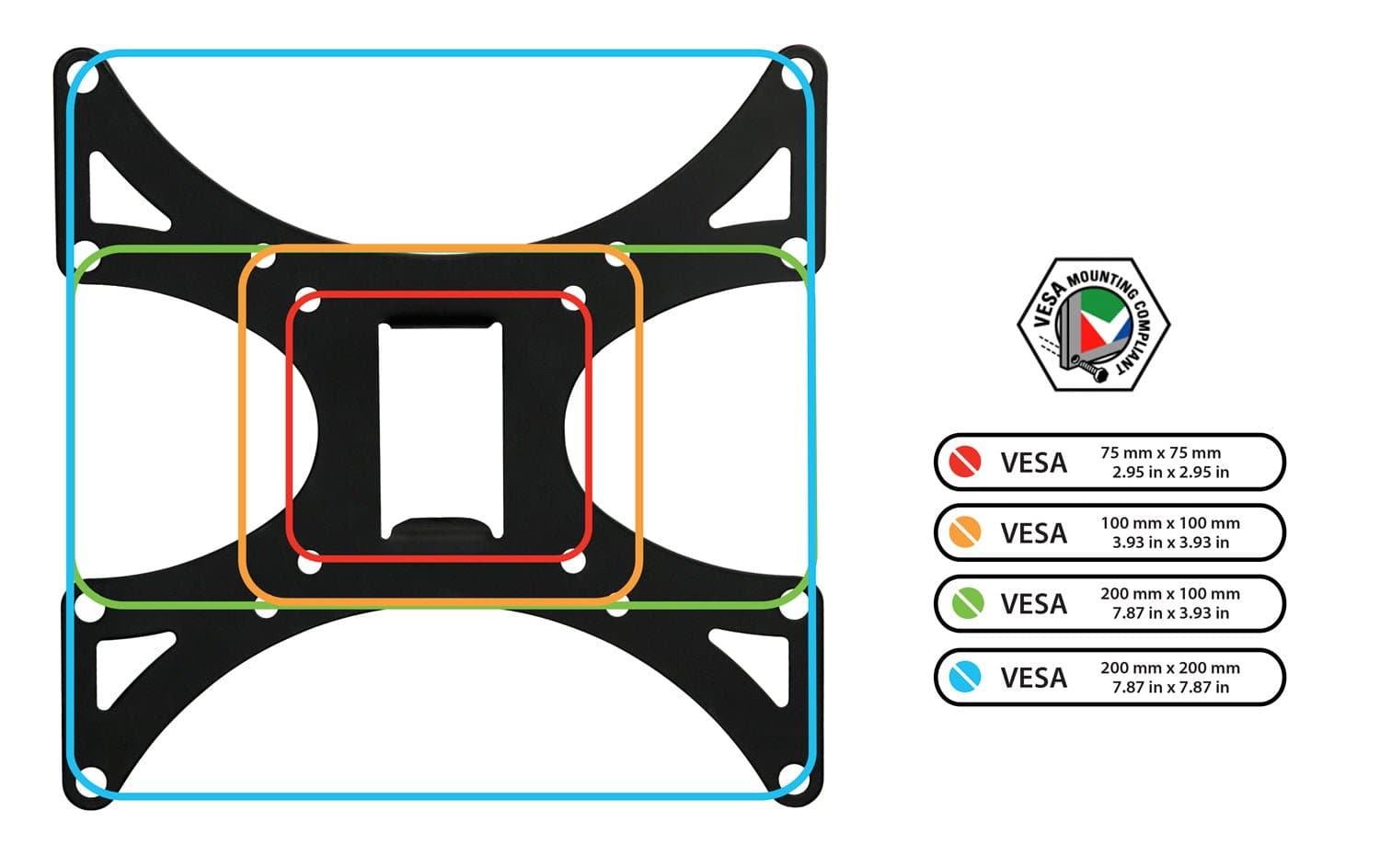

VESA 75×75 to 200×200 mm - fits most flat panel TV brands
Overview
The Full Motion TV Wall Mount w/ Extension is a full motion (articulating) TV wall mount compatible with 19 to 42-inch televisions and rated to hold up to 66 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.
Swivels 15° left and right, tilt +15°/−15°, and extends 3.25 to 6.0 in from the wall. The long extension arm pulls the screen far enough from the wall to swing past furniture, fireplace surrounds, or room corners without obstruction.
Compatible with VESA mounting patterns from 75×75 to 200×200 mm.
A practical choice for bedrooms and smaller spaces where seating spans multiple directions and a fixed screen position won't cover everyone.
Specifications
- Product type: TV mount
- Mount type:Full motion (articulating)
- Product weight: 22.02 lb

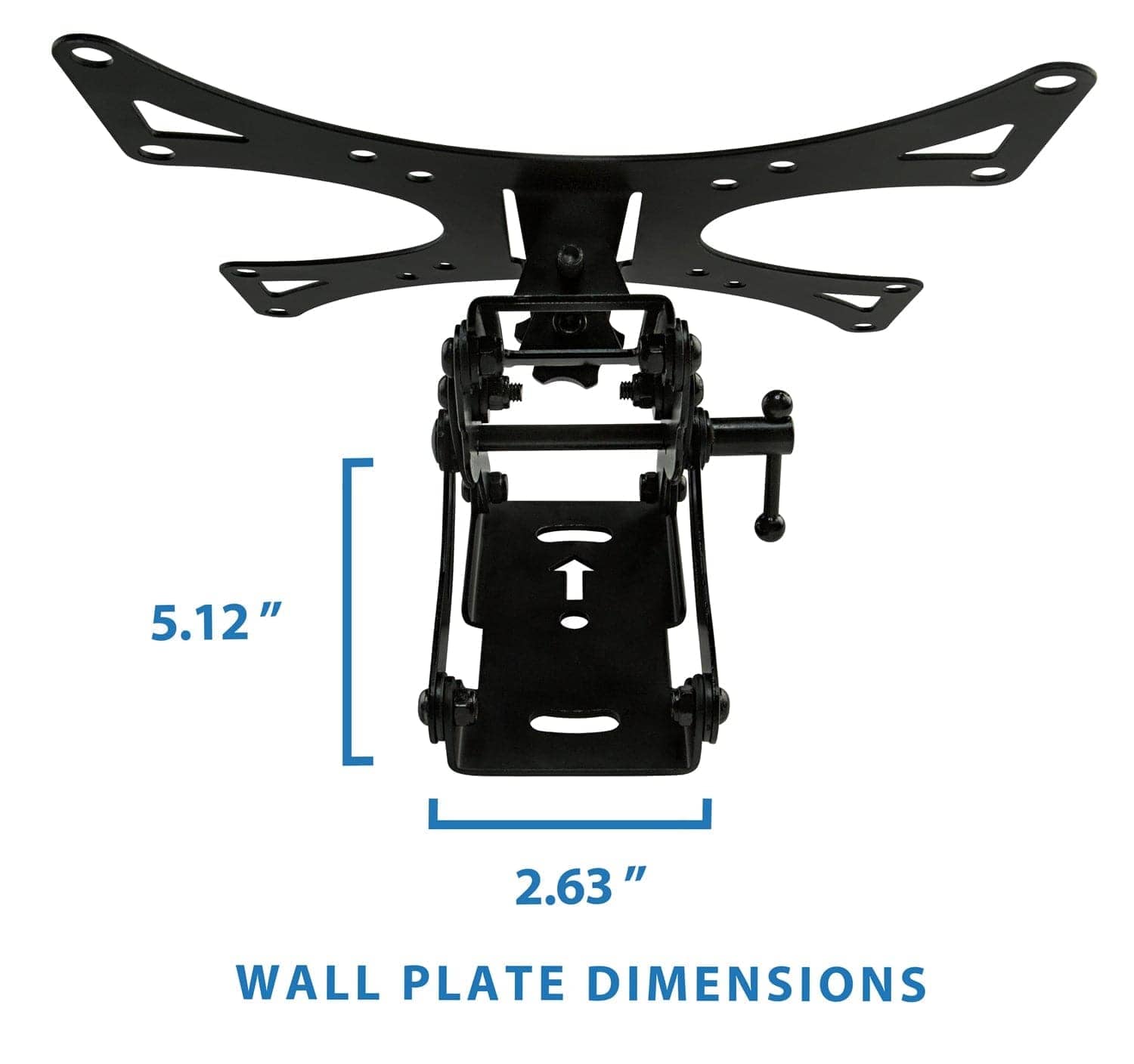

- Wall plate dimensions: 2.63×5.12 in
Holds screens
- Screen size range: 19 to 42 in
- VESA range: 75×75 to 200×200 mm
- Weight capacity: 66 lb
Movement
- Swivel: up to 30°
- Tilt:+15°and−15°
- Extension depth: 3.25 to 6.0 in
Installation
The Full Motion TV Wall Mount w/ Extension is designed for quick and frustration free installation.
Easy installation is typically done in about 30 minutes.
Estimated install time: 30 minutes

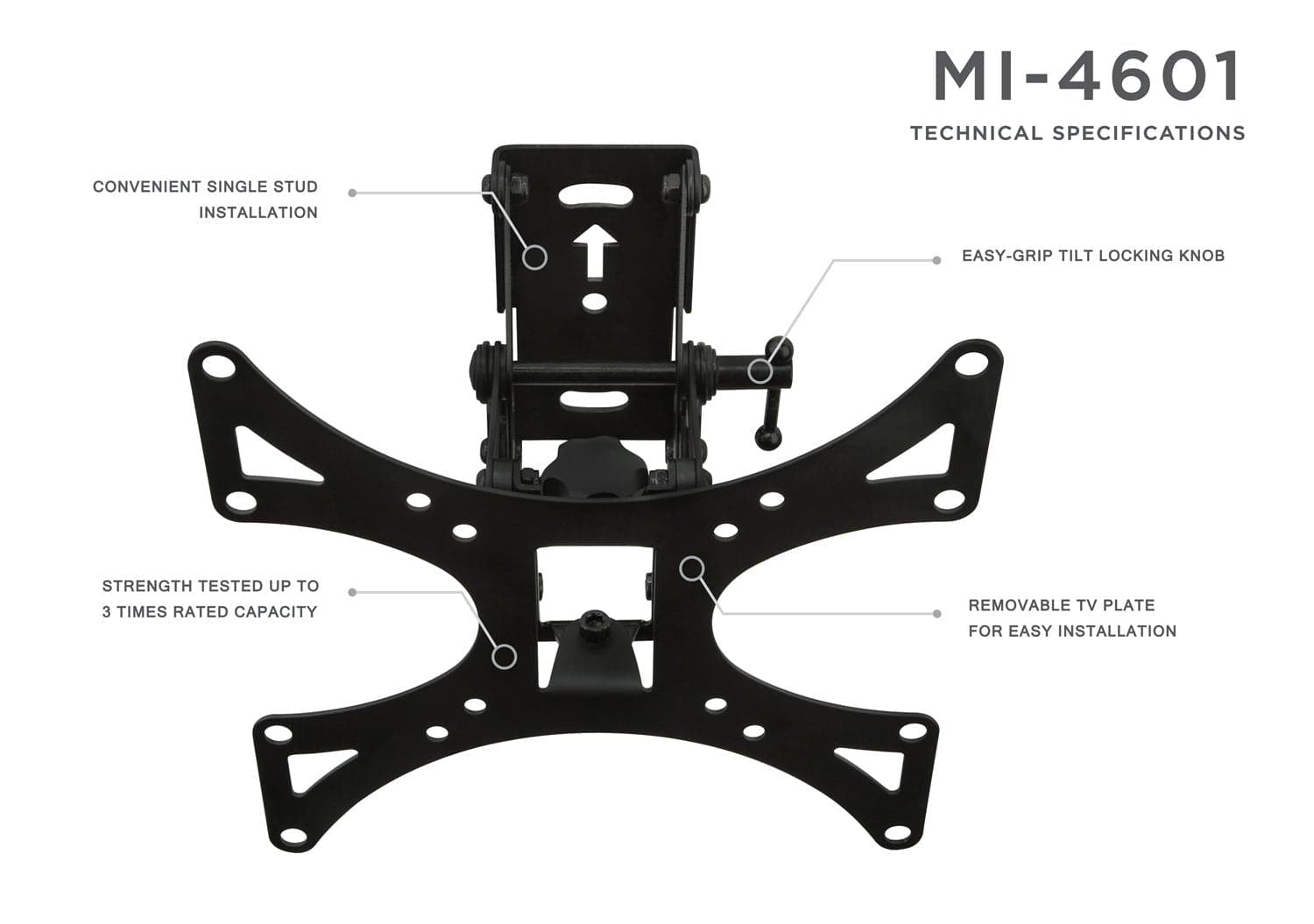

Stud installation type: Single stud
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonary bits for concrete and brick)
- Power drill
- Stud finder
