Mount-It! Full Motion TV Wall Mount with Articulating Arm for 32" to 55" TVs | MI-3991XL
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend

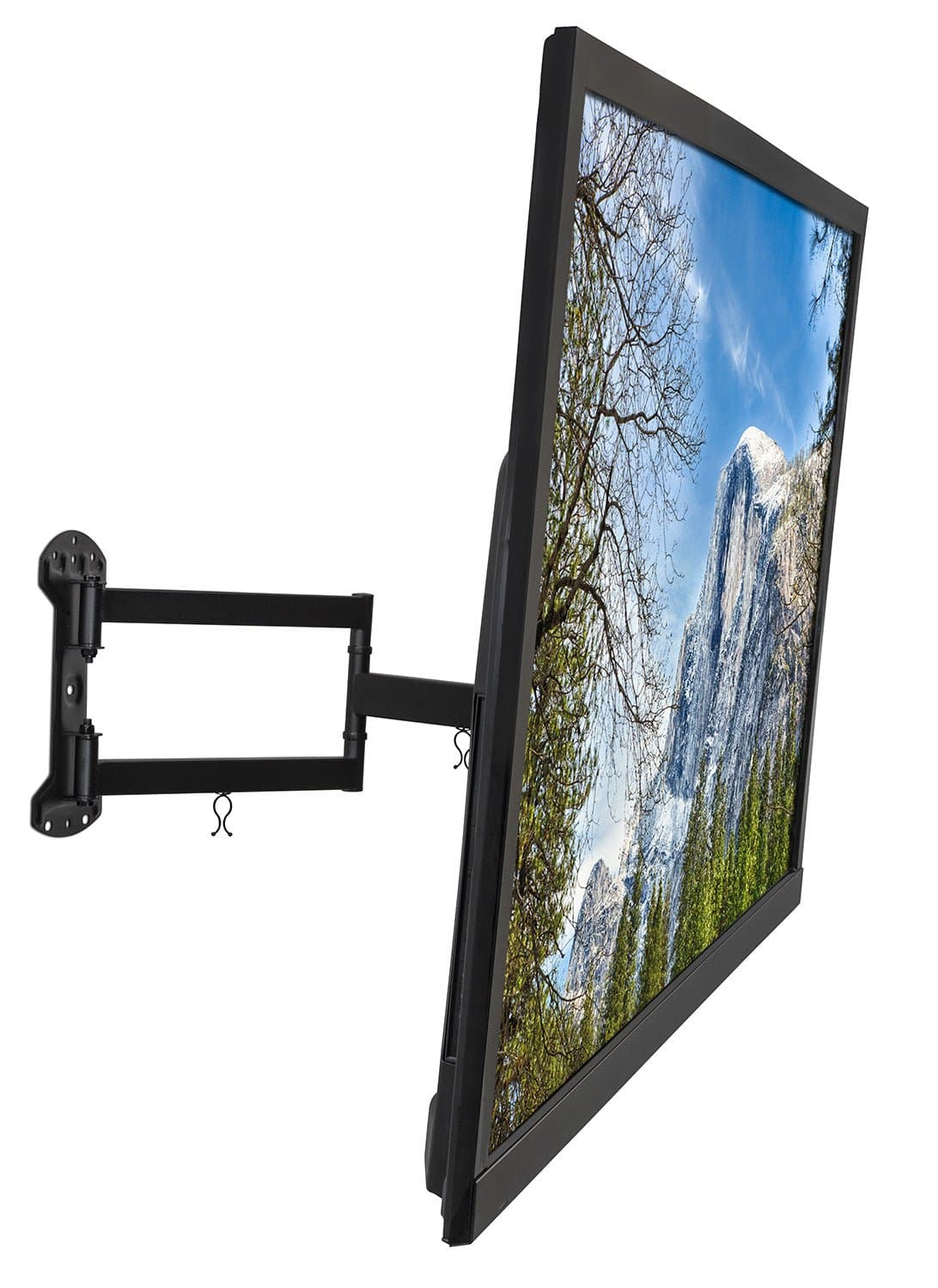

An articulating full motion TV wall mount for 32 to 55-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 77 lb with VESA 75×75 to 400×400 mm.
Swivels 180.0°, tilts +10.0°/−15.0°, and extends 2.75–24.25 inches. Aim the screen at any seat and reach the right depth.
Will this fit my TV
Status unknown
Enter your TV weight and VESA pattern to confirm fit
Will this fit my TV
Status unknownEnter your TV weight and select your TV VESA pattern to confirm fit.
Use the TV weight without the stand when possible.
If your pattern is not listed, choose Custom VESA.
Enter the VESA spacing in millimeters.
Full Motion TV Wall Mount with Articulating Arm is backordered and will ship as soon as it is back in stock.

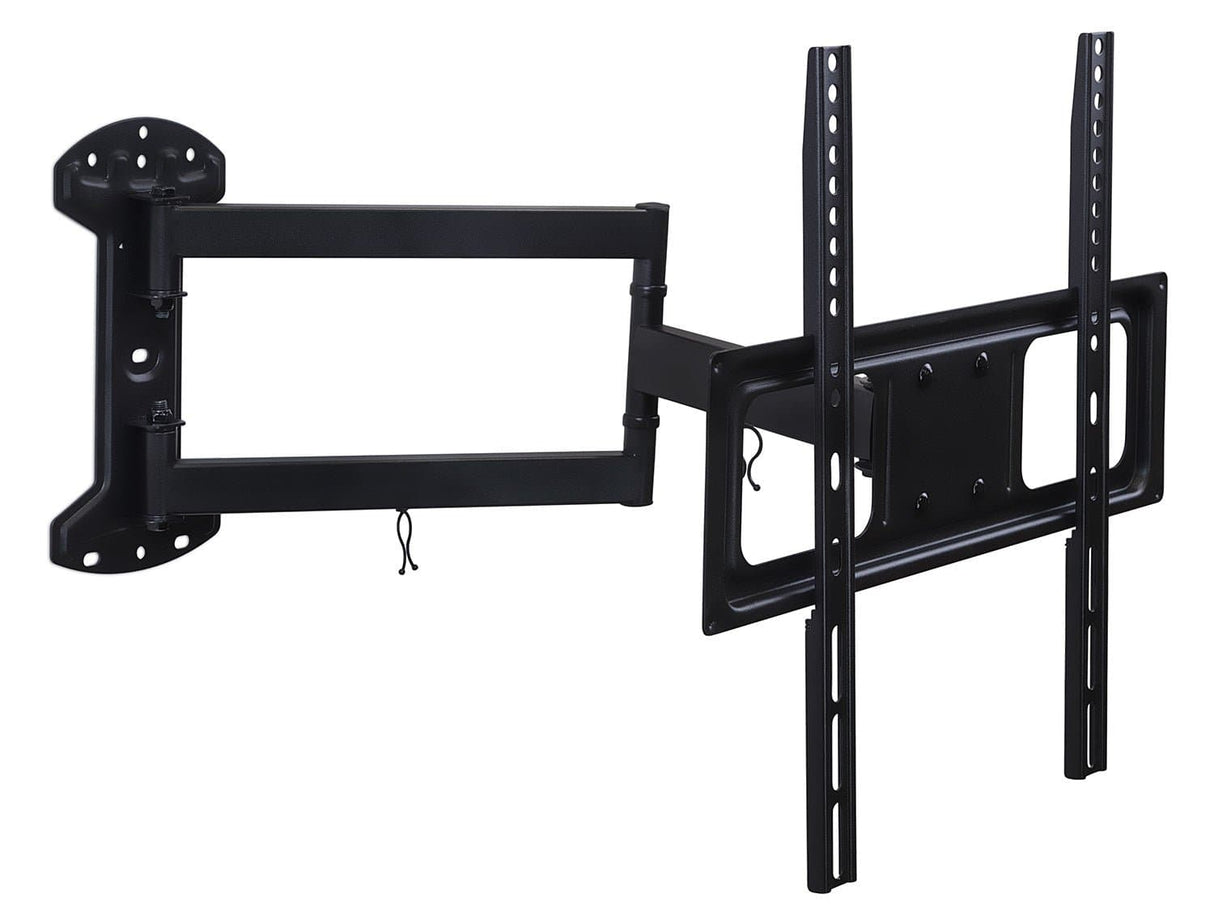

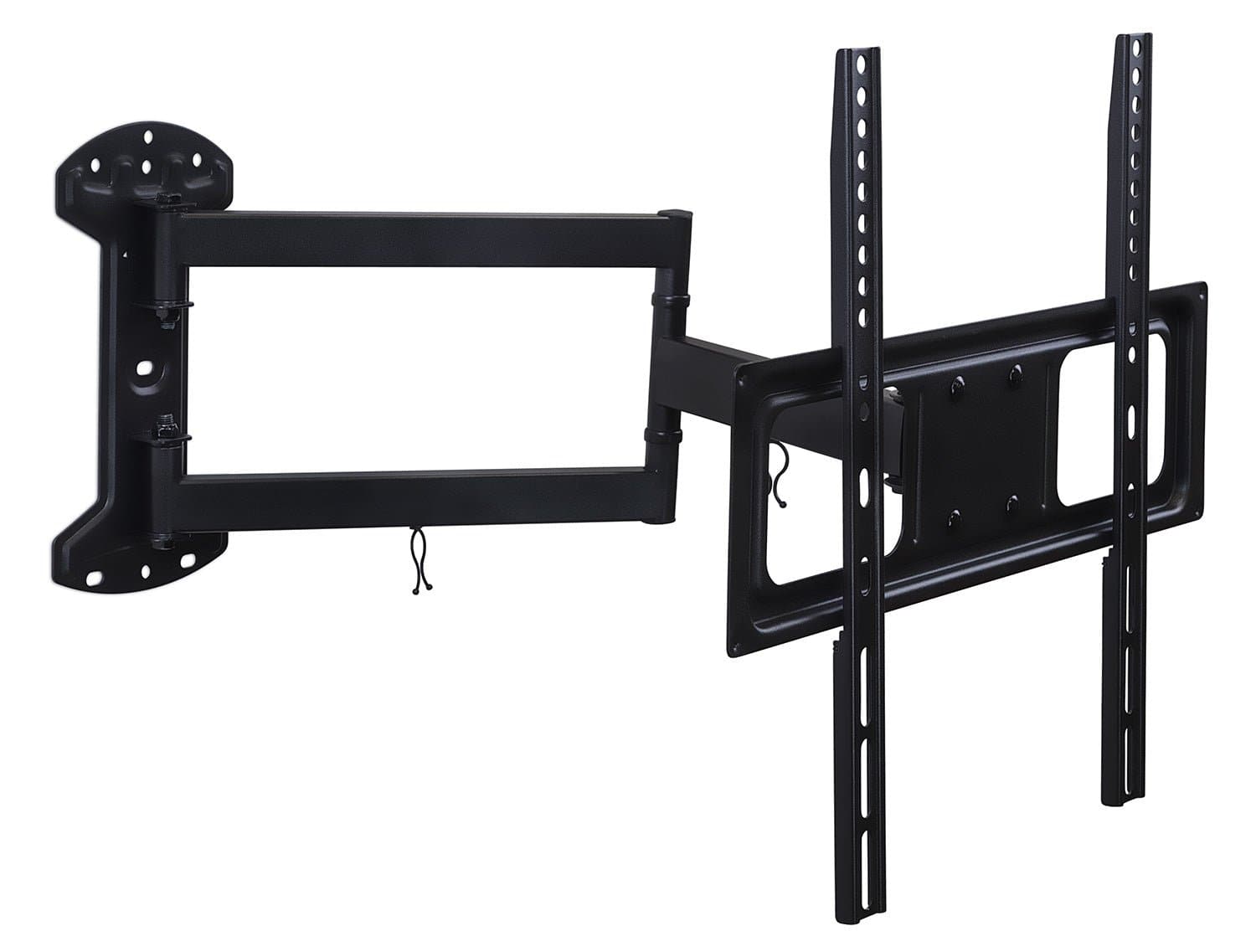

Full Motion TV Wall Mount with Articulating Arm
Features

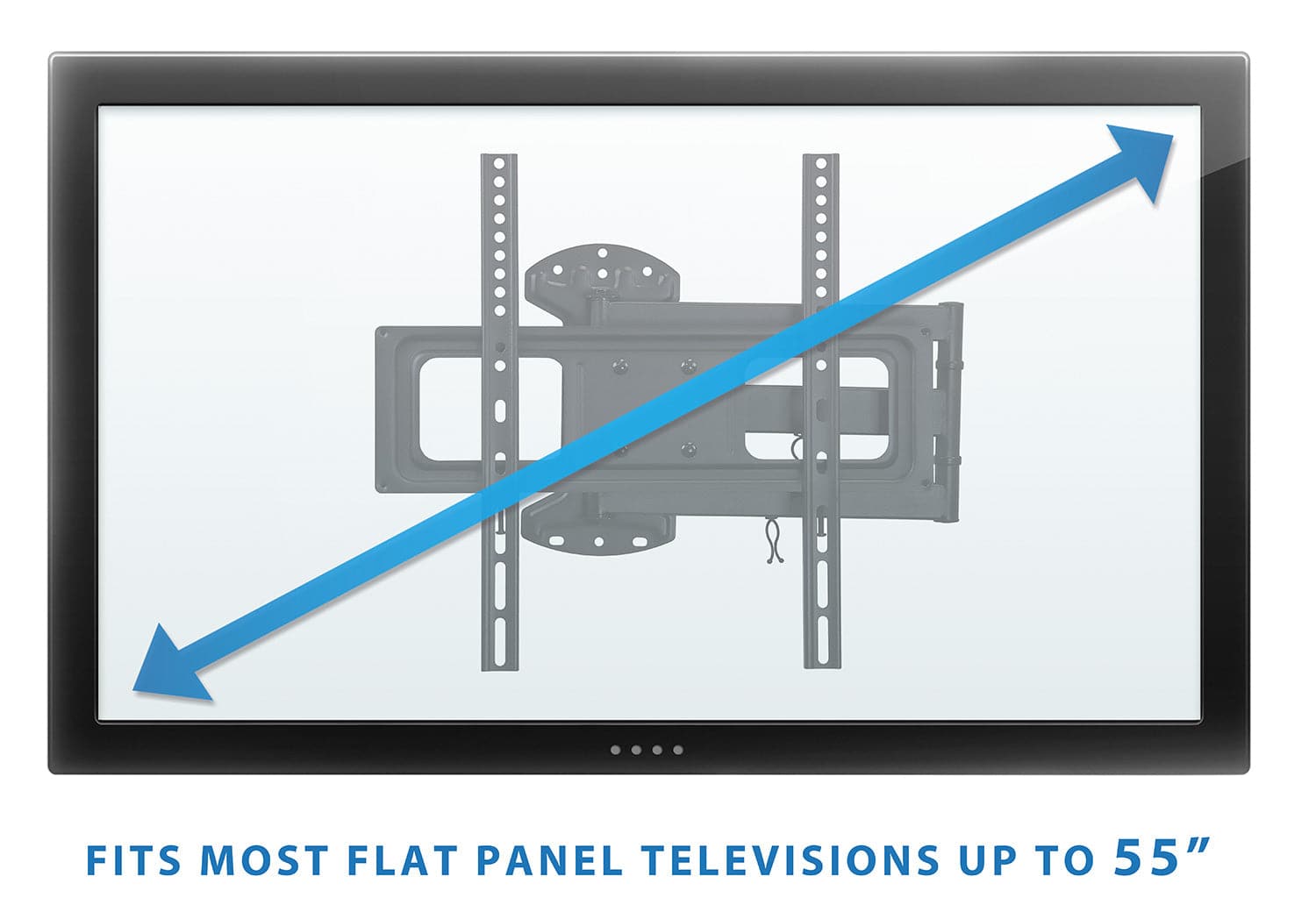

Fits 32 to 55 inch flat screen TVs
Weight rated up to 77 lb
Swivels 90.0° left and right — aim the screen at any seat
Adjustable tilt +10.0° up / −15.0° down - reduce glare, improve your view

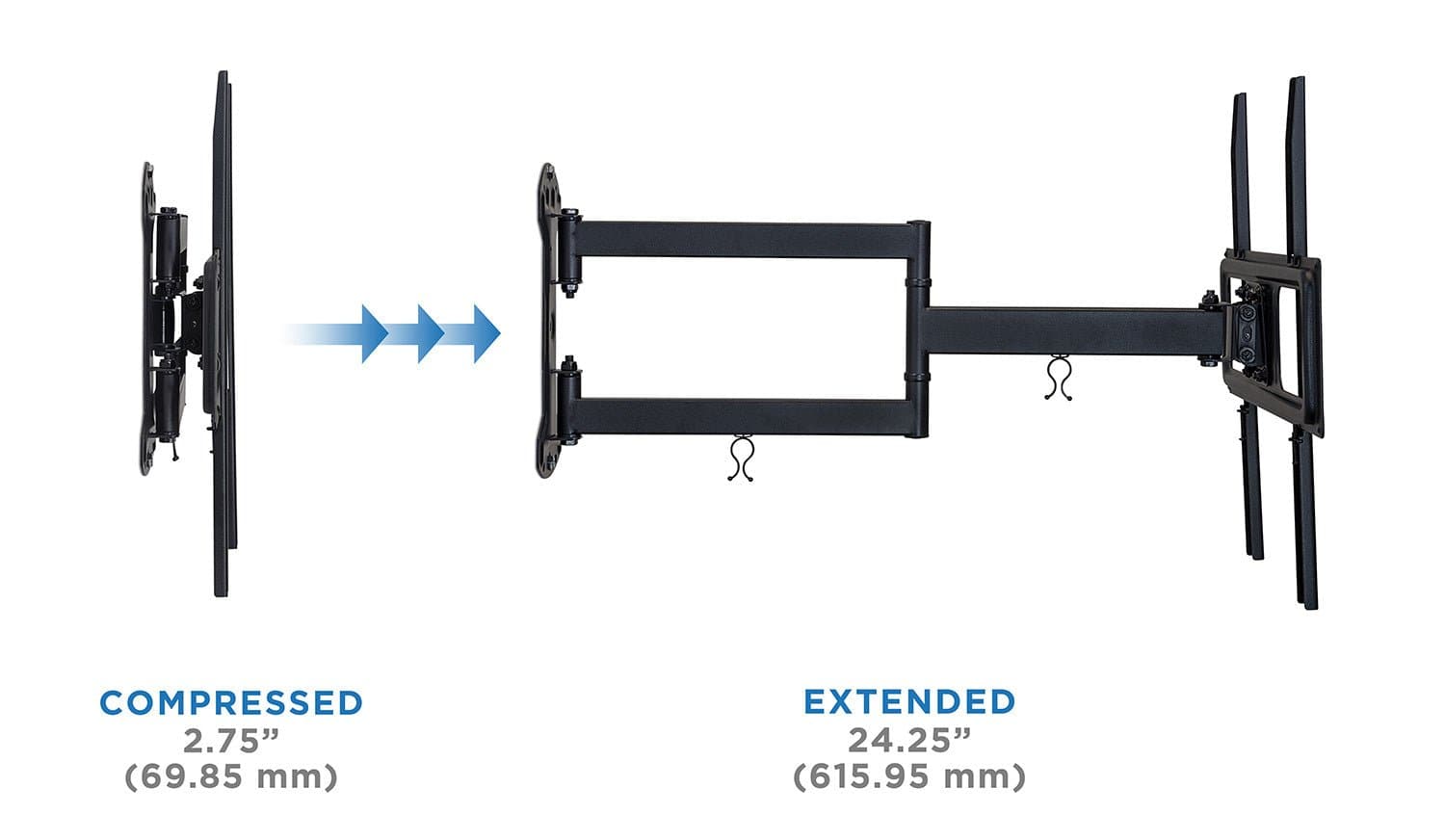

Extends 2.75–24.25 in from the wall for flexible positioning

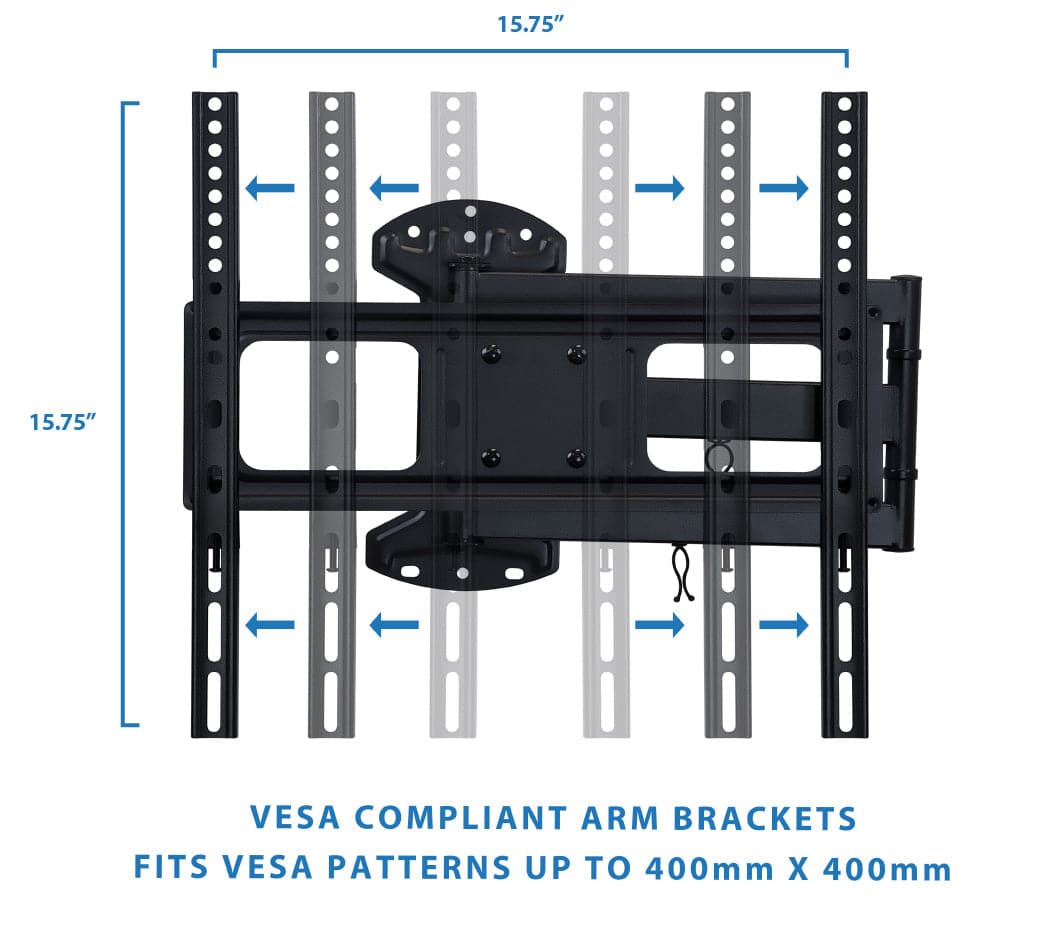

VESA 75×75 to 400×400 mm - fits most flat panel TV brands
Supports corner wall installations
Overview

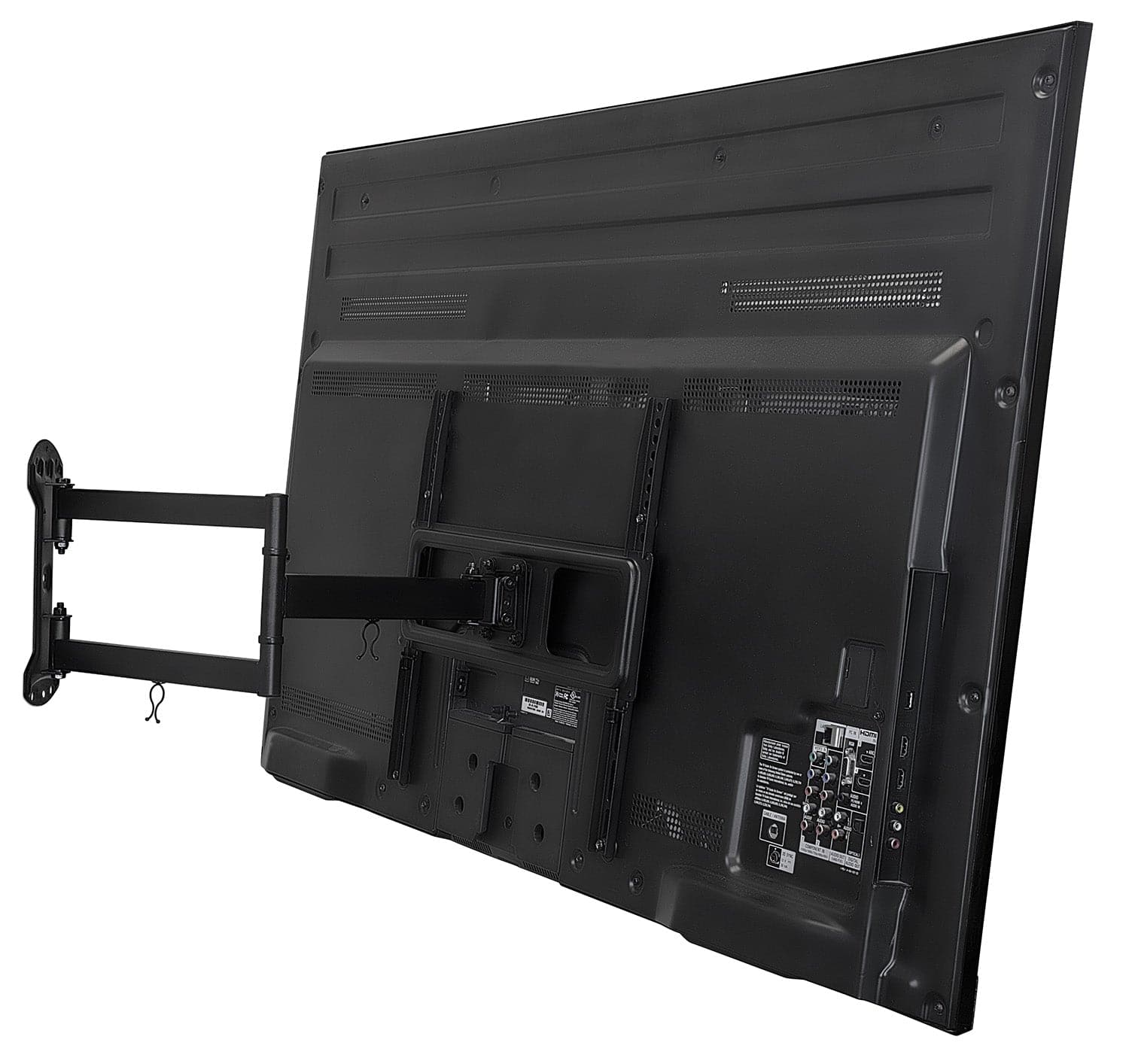

The Full Motion TV Wall Mount with Articulating Arm is a full motion (articulating) TV wall mount compatible with 32 to 55-inch televisions and rated to hold up to 77 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.
Swivels 90° left and right, tilt +10°/−15°, and extends 2.75 to 24.25 in from the wall. The long extension arm pulls the screen far enough from the wall to swing past furniture, fireplace surrounds, or room corners without obstruction.

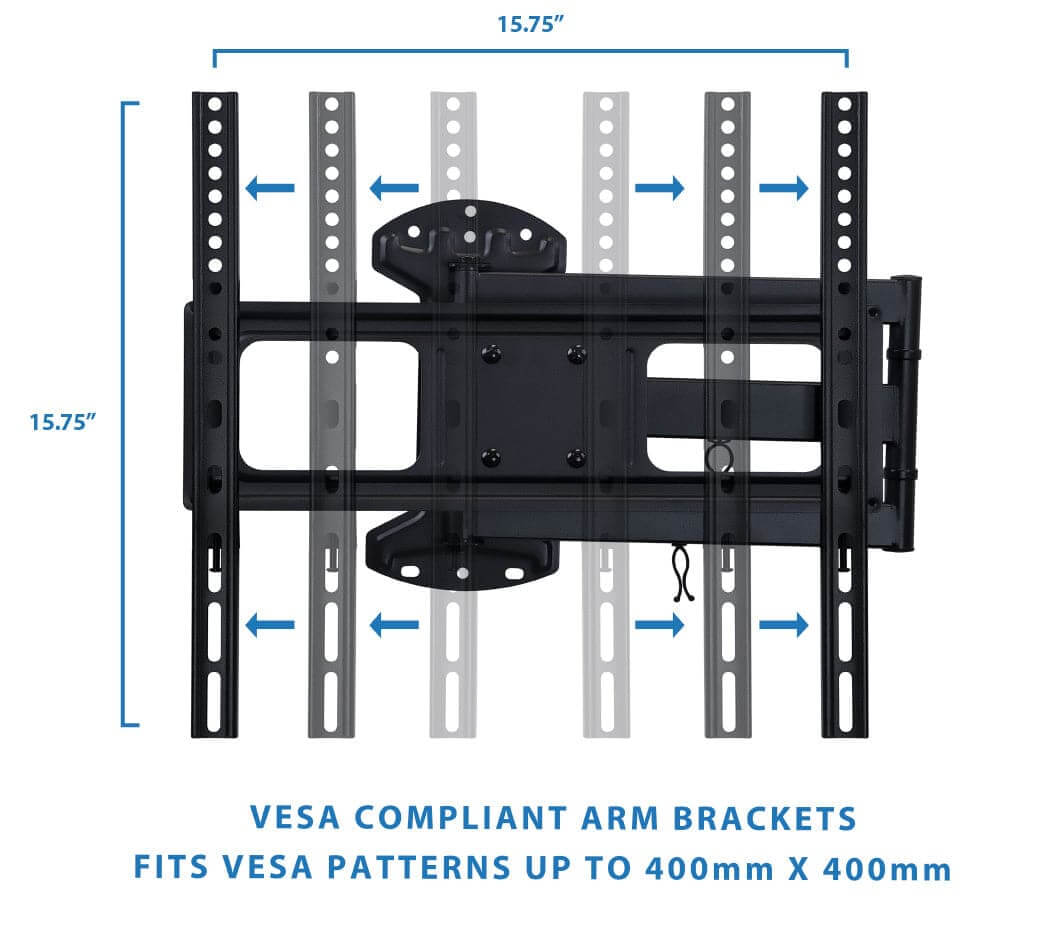

Compatible with VESA mounting patterns from 75×75 to 400×400 mm. Also supports corner wall installations for rooms where flat wall space is limited.
A practical choice for large living rooms, corner installs, or any setup where the screen needs to pull far from the wall to reach the optimal viewing angle.

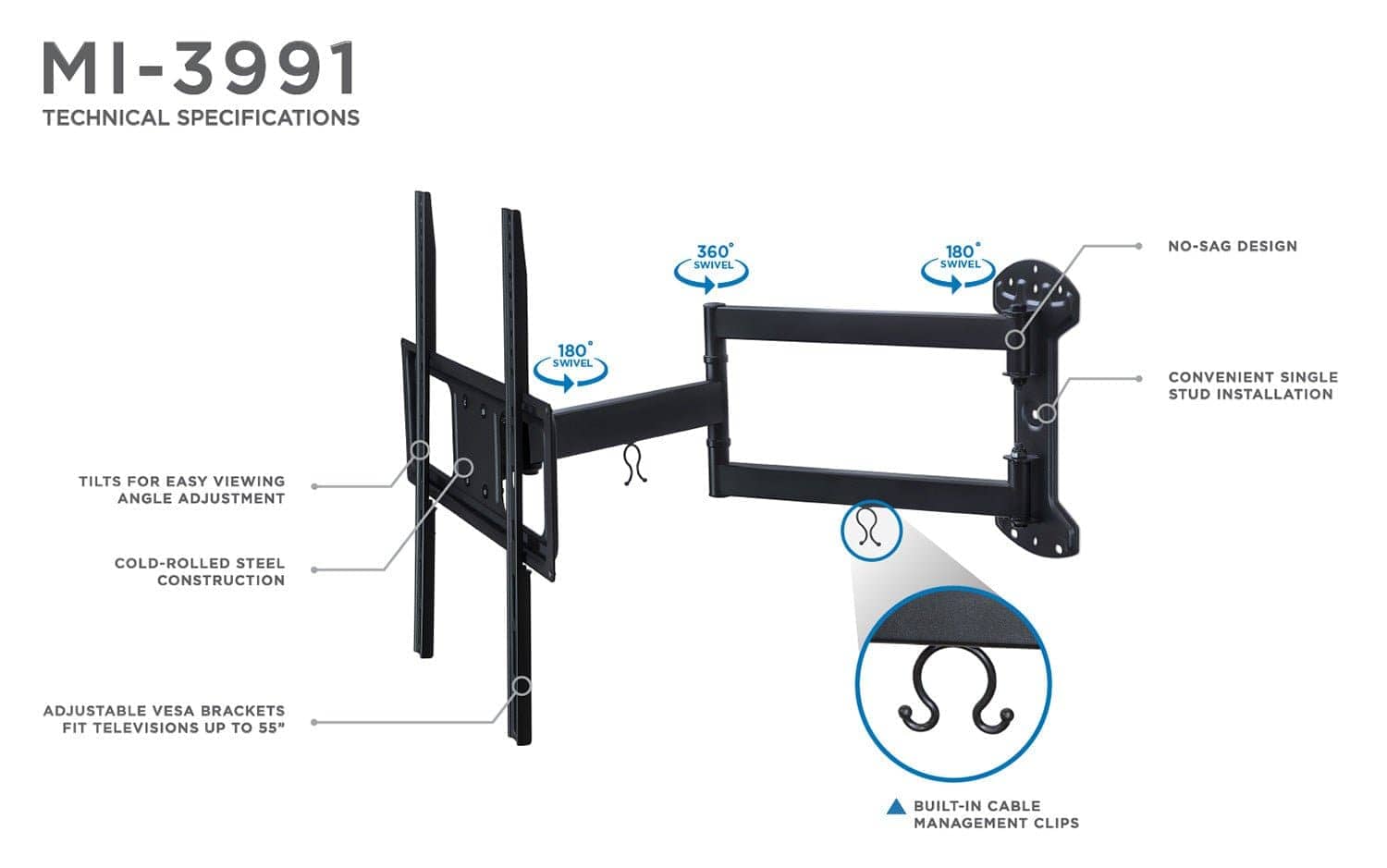

Specifications
- Product type: TV mount
- Mount type:Full motion (articulating)
- Product weight: 8.21 lb

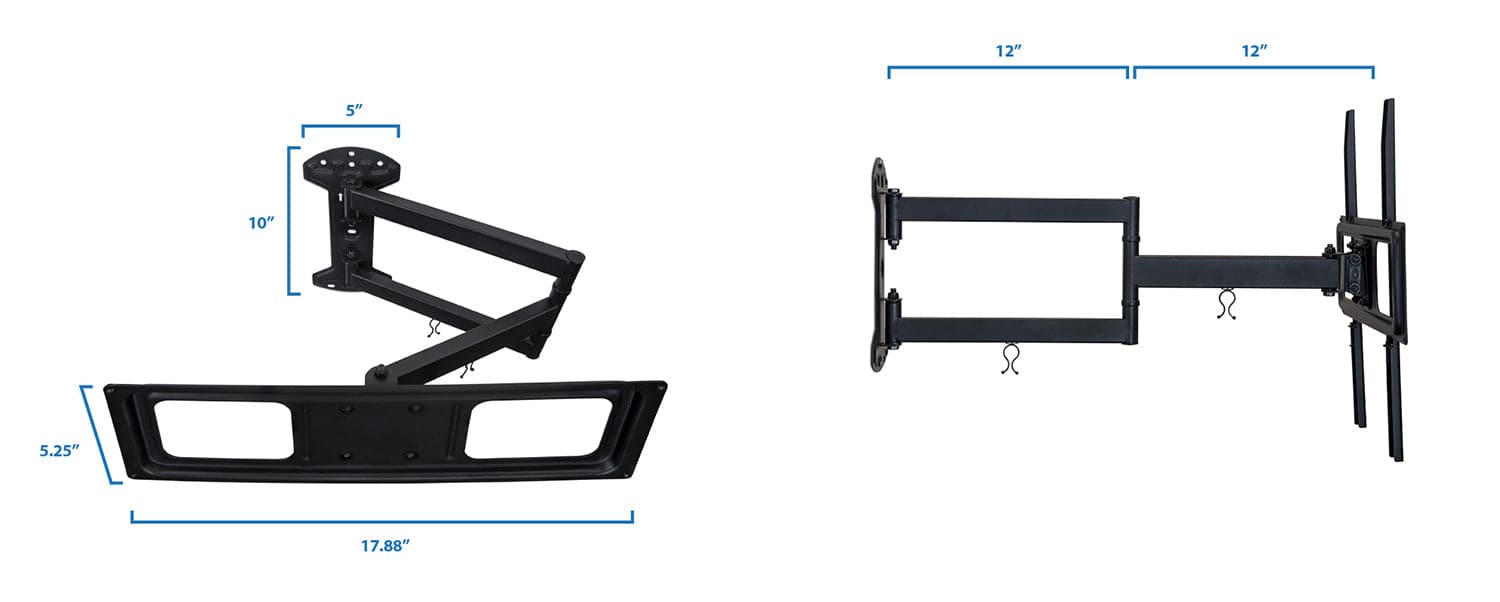

- Wall plate dimensions: 5.0×10.0 in
Holds screens
- Screen size range: 32 to 55 in
- VESA range: 75×75 to 400×400 mm
- Weight capacity: 77 lb
Movement
- Swivel: up to 180°
- Tilt:+10°and−15°
- Extension depth: 2.75 to 24.25 in
- Corner compatible: Yes
Installation
The Full Motion TV Wall Mount with Articulating Arm is designed for quick and frustration free installation.
Easy installation is typically done in about 30 minutes.
Estimated install time: 30 minutes
Stud installation type: Single stud
Corner installations: Supported
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonary bits for concrete and brick)
- Power drill
- Stud finder
