Mount-It! Heavy-Duty Tilt TV Wall Mount with Slim Profile for 43" to 90" TVs | MI-318L
Tilting TV Mount
Low Profile · Adjustable Viewing Angle
A low-profile tilting TV wall mount for 43 to 90-inch flat screen TVs, sits flush to the wall and lets you angle the screen, rated (up to 220 lb with VESA 100×100 to 800×600 mm).
Tilt −8.0° to eliminate glare and get the right viewing angle from your seat.
Will this fit my TV
Status unknown
Enter your TV weight and VESA pattern to confirm fit
Will this fit my TV
Status unknownEnter your TV weight and select your TV VESA pattern to confirm fit.
Use the TV weight without the stand when possible.
If your pattern is not listed, choose Custom VESA.
Enter the VESA spacing in millimeters.
Heavy-Duty Tilt TV Wall Mount with Slim Profile is backordered and will ship as soon as it is back in stock.
Heavy-Duty Tilt TV Wall Mount with Slim Profile
Features
Fits 43 to 90 inch flat screen TVs
Weight rated up to 220 lb

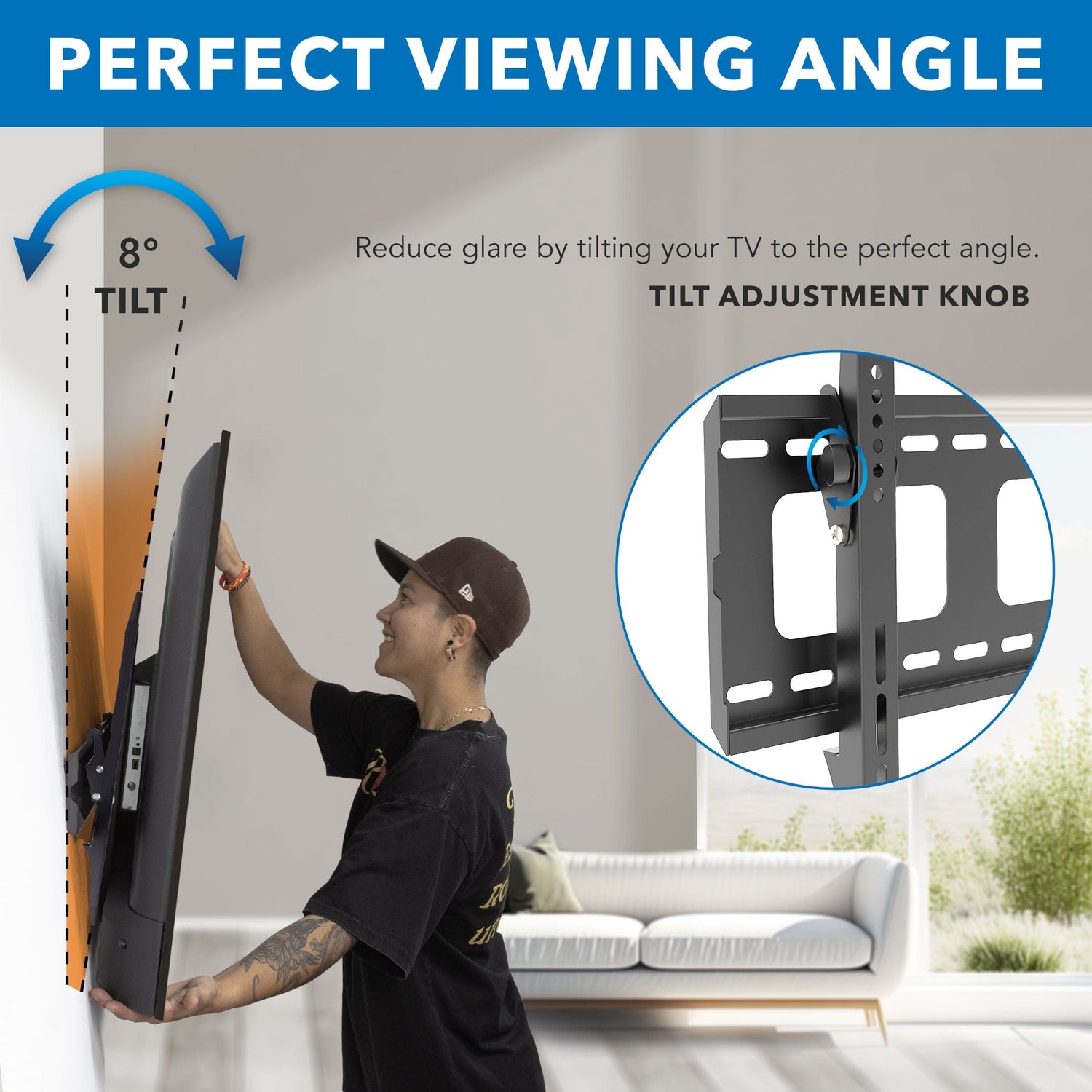

Adjustable tilt down to −8.0° - reduce glare from above
Low profile - mounts just 1.5 in from the wall

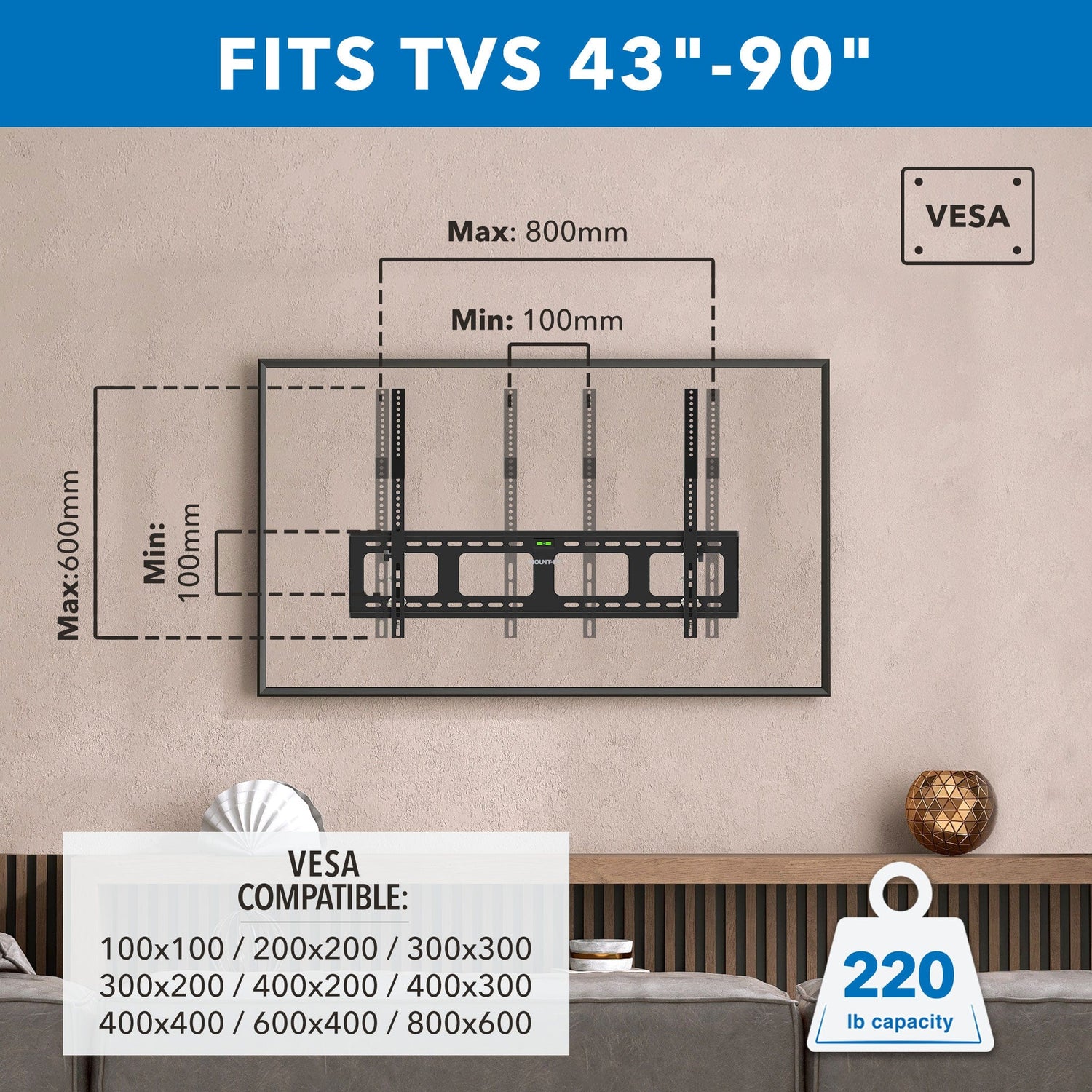

VESA 100×100 to 800×600 mm - fits most flat panel TV brands
Overview
The Heavy-Duty Tilt TV Wall Mount with Slim Profile is a low-profile tilting TV wall mount for 43 to 90-inch televisions that sits close to the wall for a clean, minimal installation while giving you the ability to angle the screen and eliminate glare. Rated for TVs up to 220 lb.
Adjustable tilt −8° to reduce reflections and find the right viewing angle from your seat. Profile depth 1.5 in — sits close to the wall for a neat, minimal installation.
Compatible with VESA mounting patterns from 100×100 to 800×600 mm.
A practical choice for above-eye-level installs where glare is the primary problem to solve.
Specifications
- Product type: TV mount
- Mount type:Tilting
- Product weight: 9.41 lb

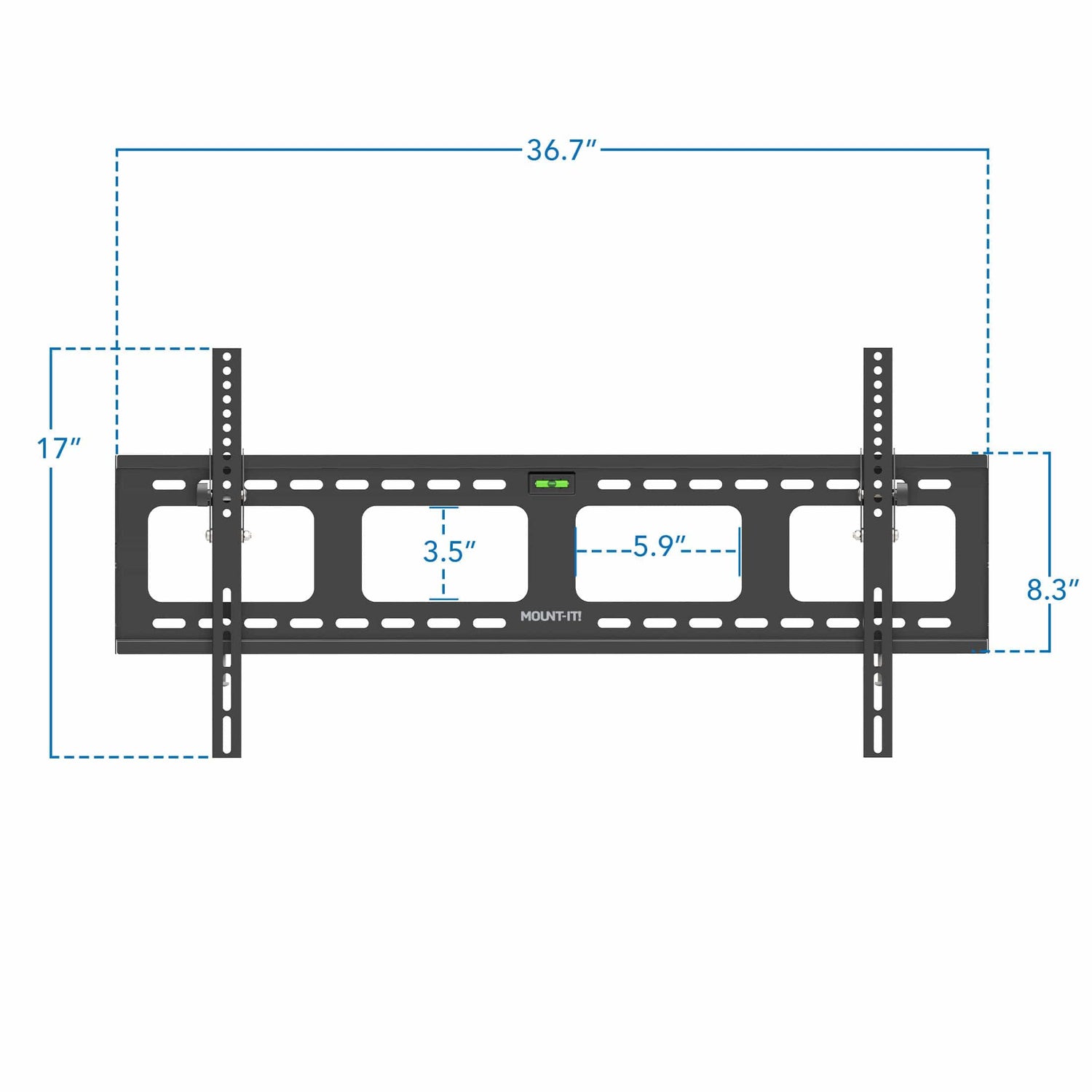

- Wall plate dimensions: 36.7×8.3 in
Holds screens
- Screen size range: 43 to 90 in
- VESA range: 100×100 to 800×600 mm
- Weight capacity: 220 lb
Movement
- Tilt:−8°
- Profile depth: 1.5 in
Installation
The Heavy-Duty Tilt TV Wall Mount with Slim Profile is designed for quick and frustration free installation.
Easy installation is typically done in about 30 minutes.
Estimated install time: 30 minutes
Stud installation type: Dual stud

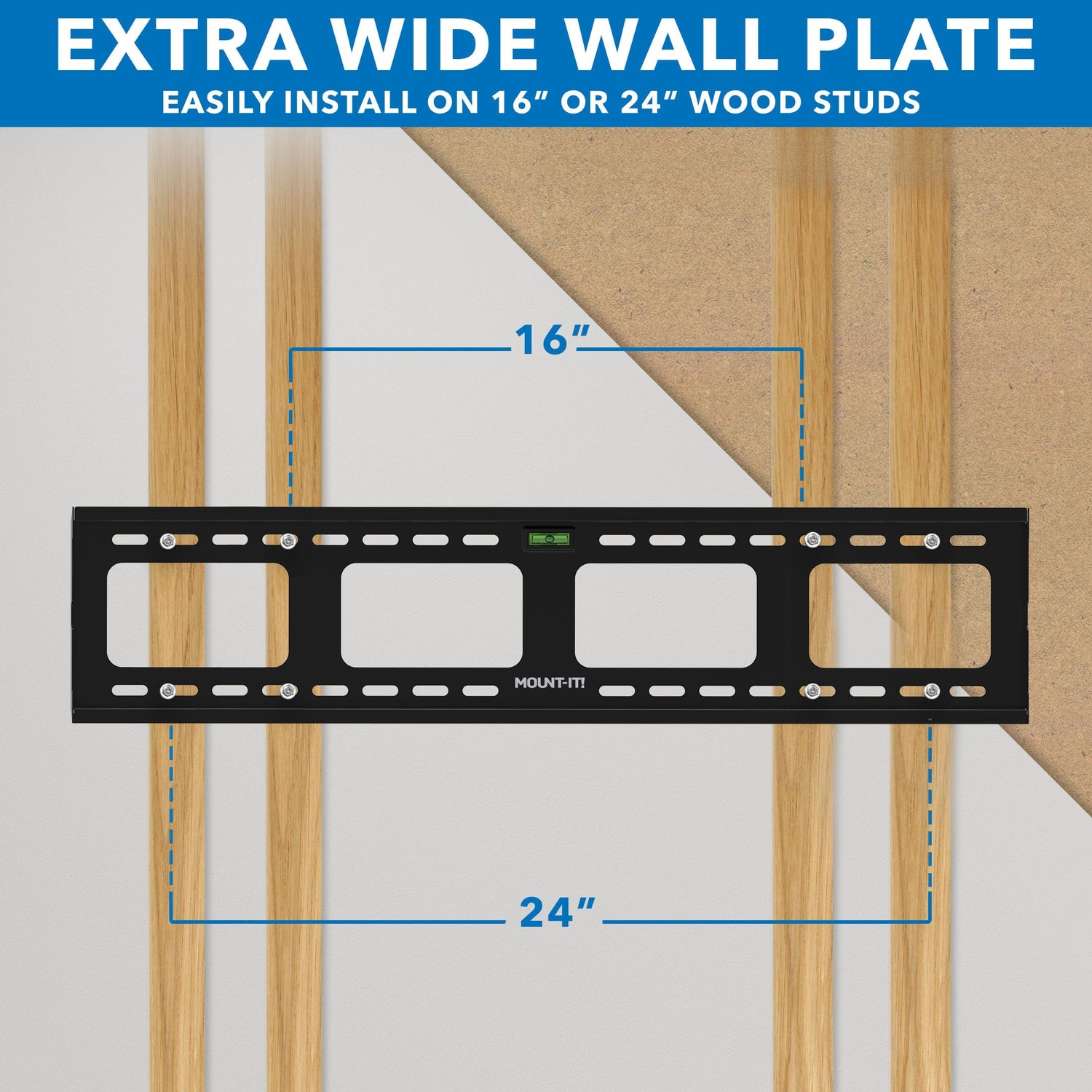

Stud spacing supported: 16, 24 inch stud spacing
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonary bits for concrete and brick)
- Power drill
- Stud finder
