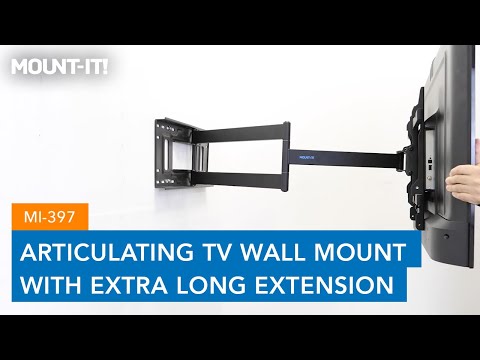

Full Motion TV Wall Mount with Extra Long Extension for 40" to 80" TVs
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
15% OFF with code DAD26
?
Code not valid for B2B accounts and cannot be used with B2B pricing or POs or combined with other codes and is not valid on sale items. Quantities are limited and subject to change.An articulating full motion corner TV wall mount for 40 to 80-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 121 lb with VESA 200×200 to 600×400 mm.
Swivels 180.0°, tilts +5.0°/−10.0°, and extends 3.14 to 38.77 inches. Aim the screen at any seat and reach the right depth.
Full Motion TV Wall Mount with Extra Long Extension
Features
Fits 40 to 80 inch flat screen TVs
Weight rated up to 121 lb

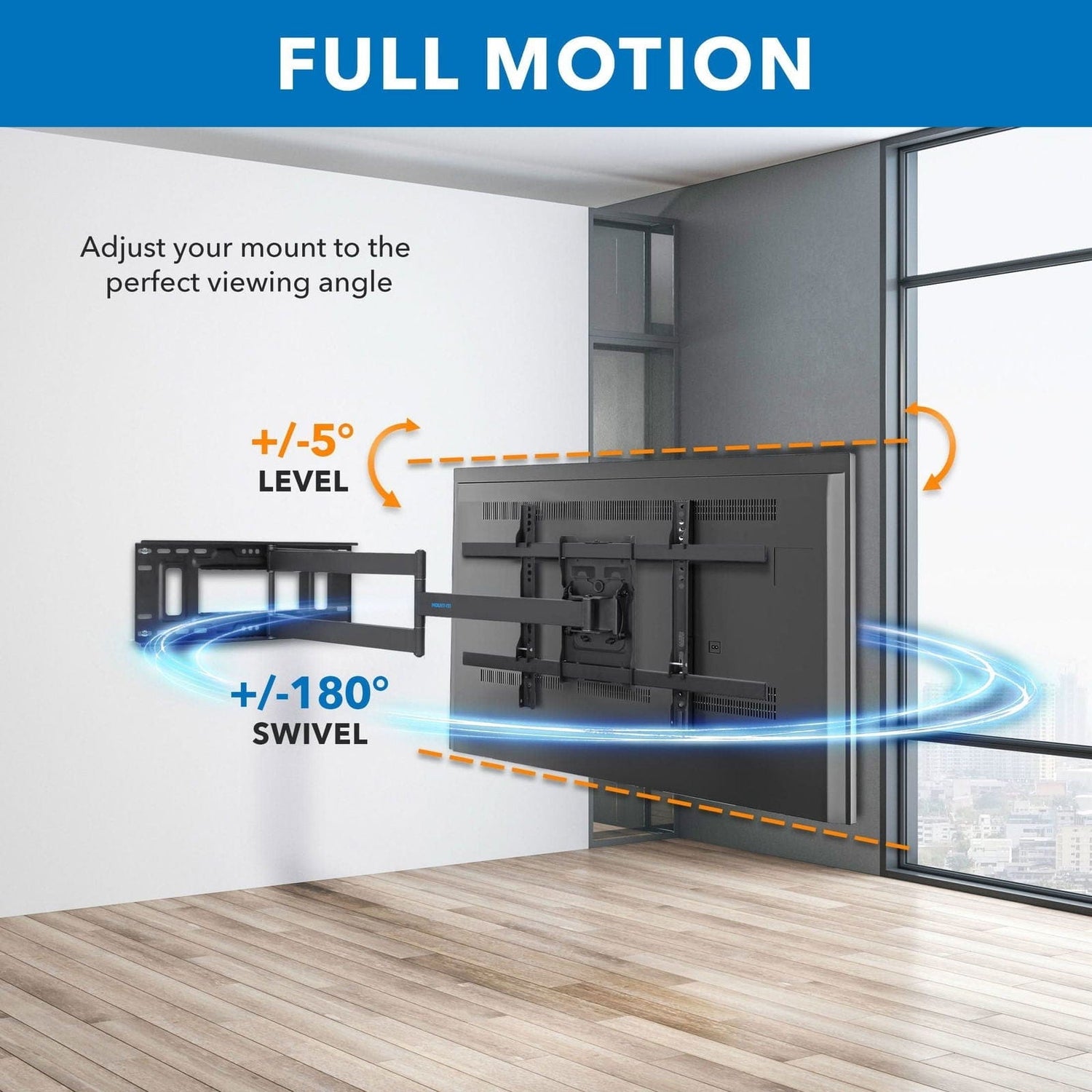

Swivels 180.0° (90.0° left and 90.0° right), aim the screen at any seat
Adjustable tilt +5.0° up / −10.0° down - reduce glare, improve your view

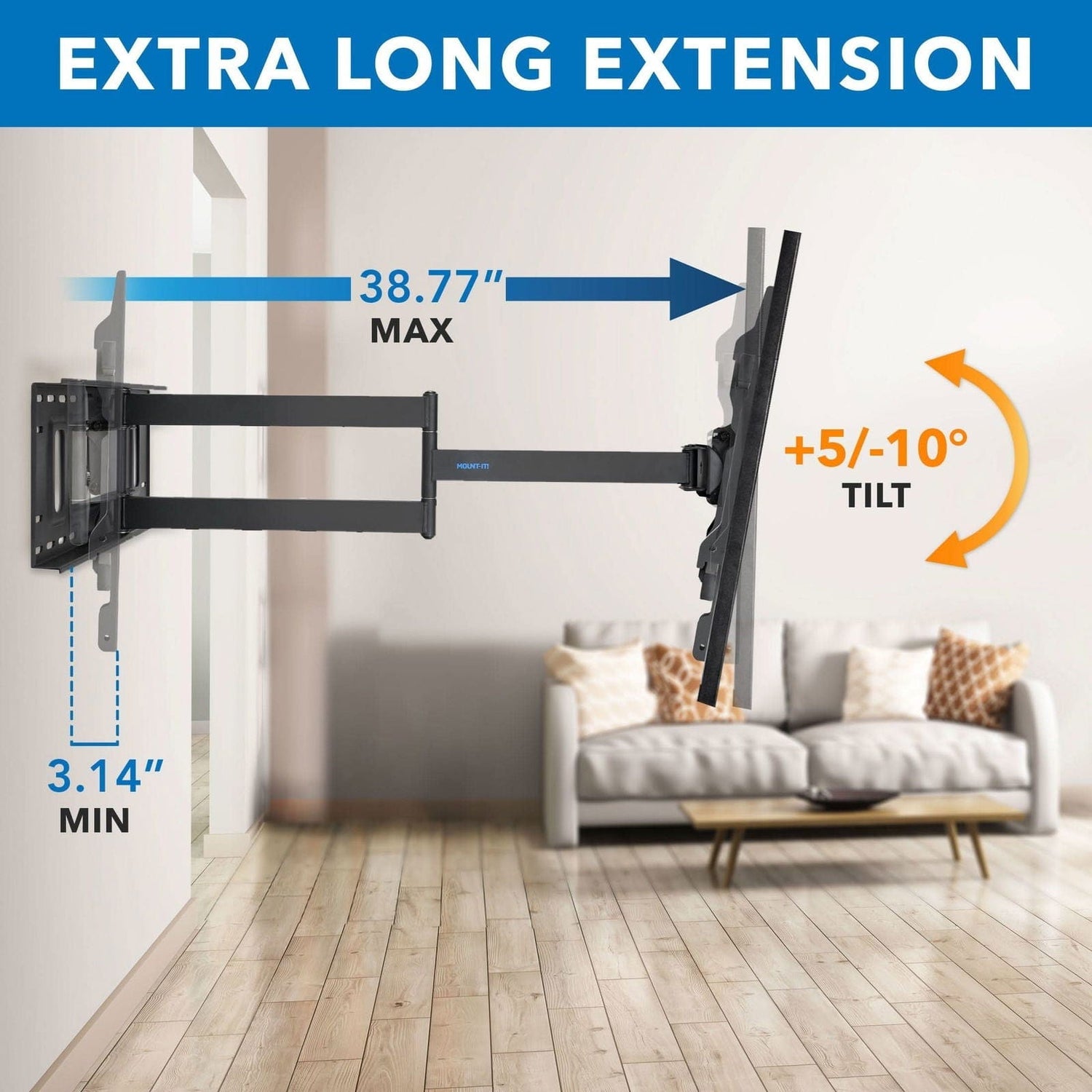

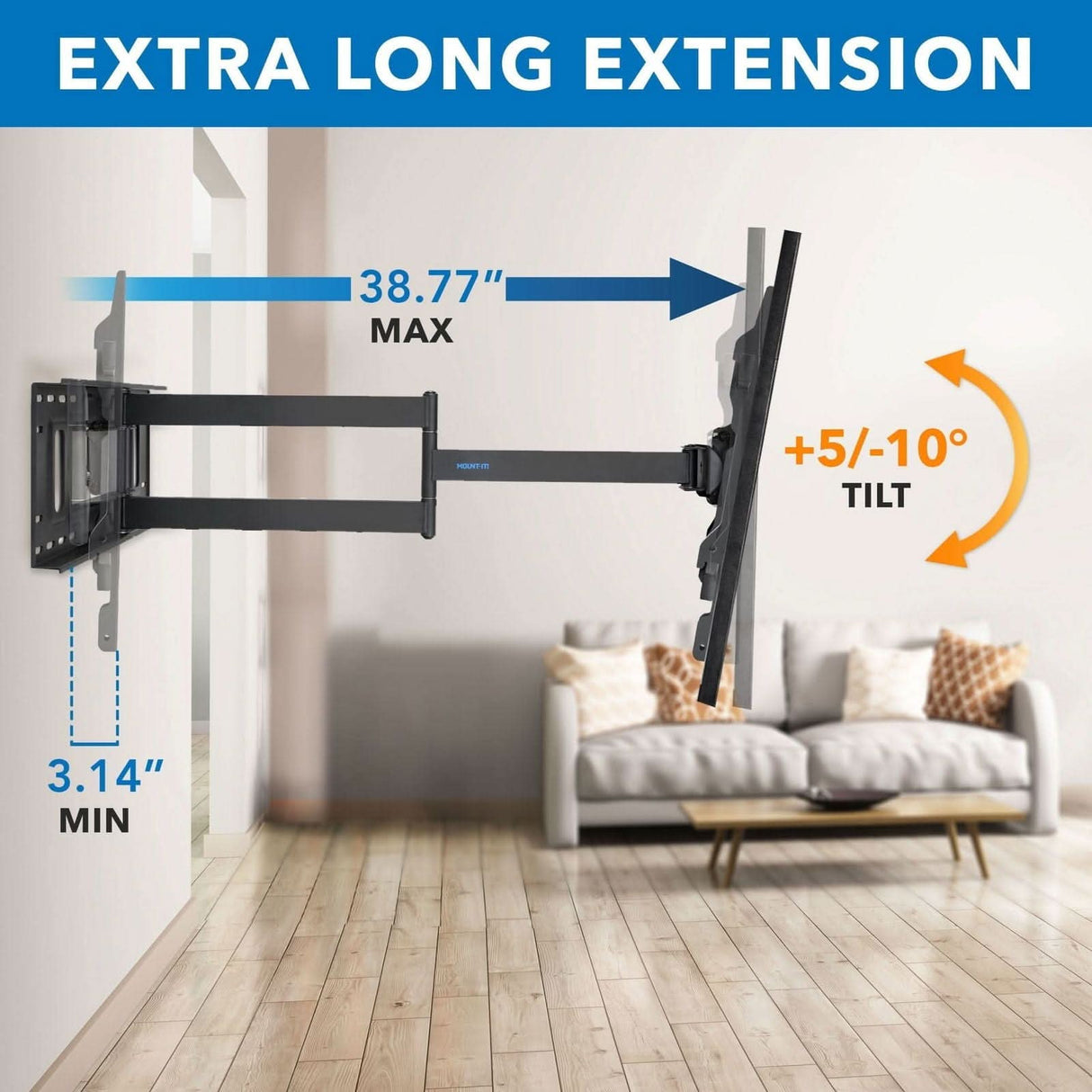

Extends 3.14 to 38.77 in from the wall for flexible positioning

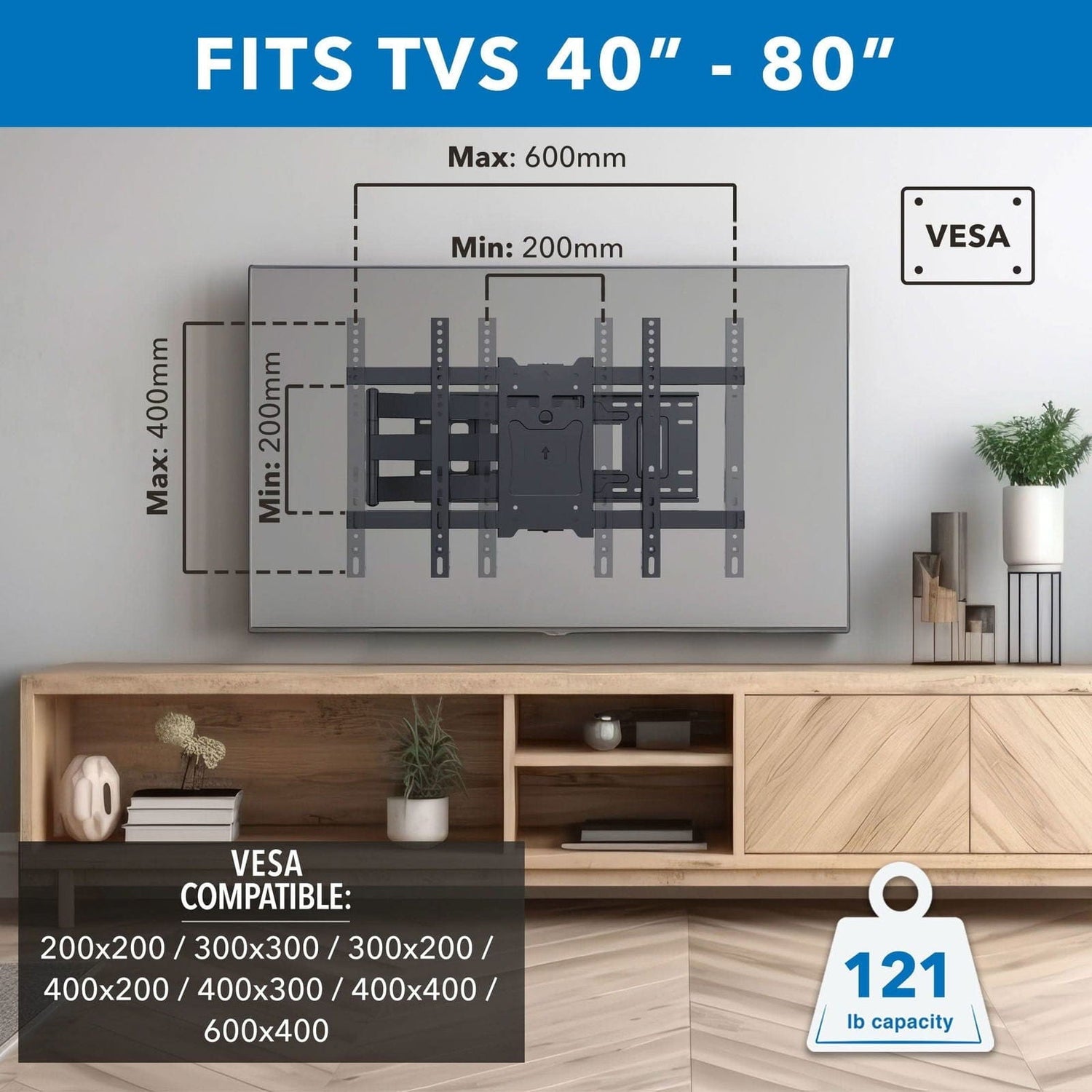

VESA 200×200 to 600×400 mm - fits most flat panel TV brands

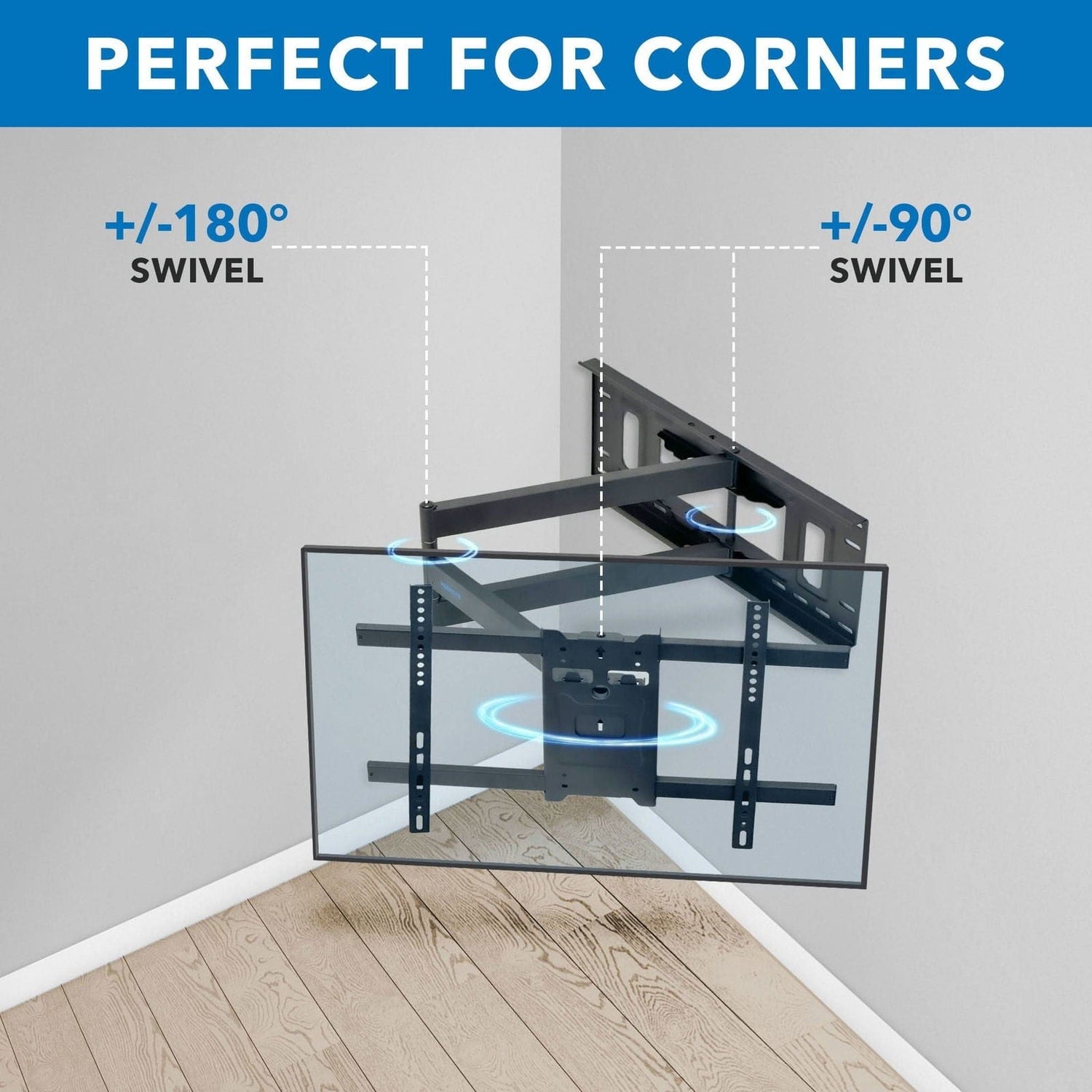

Supports corner wall installations
Overview

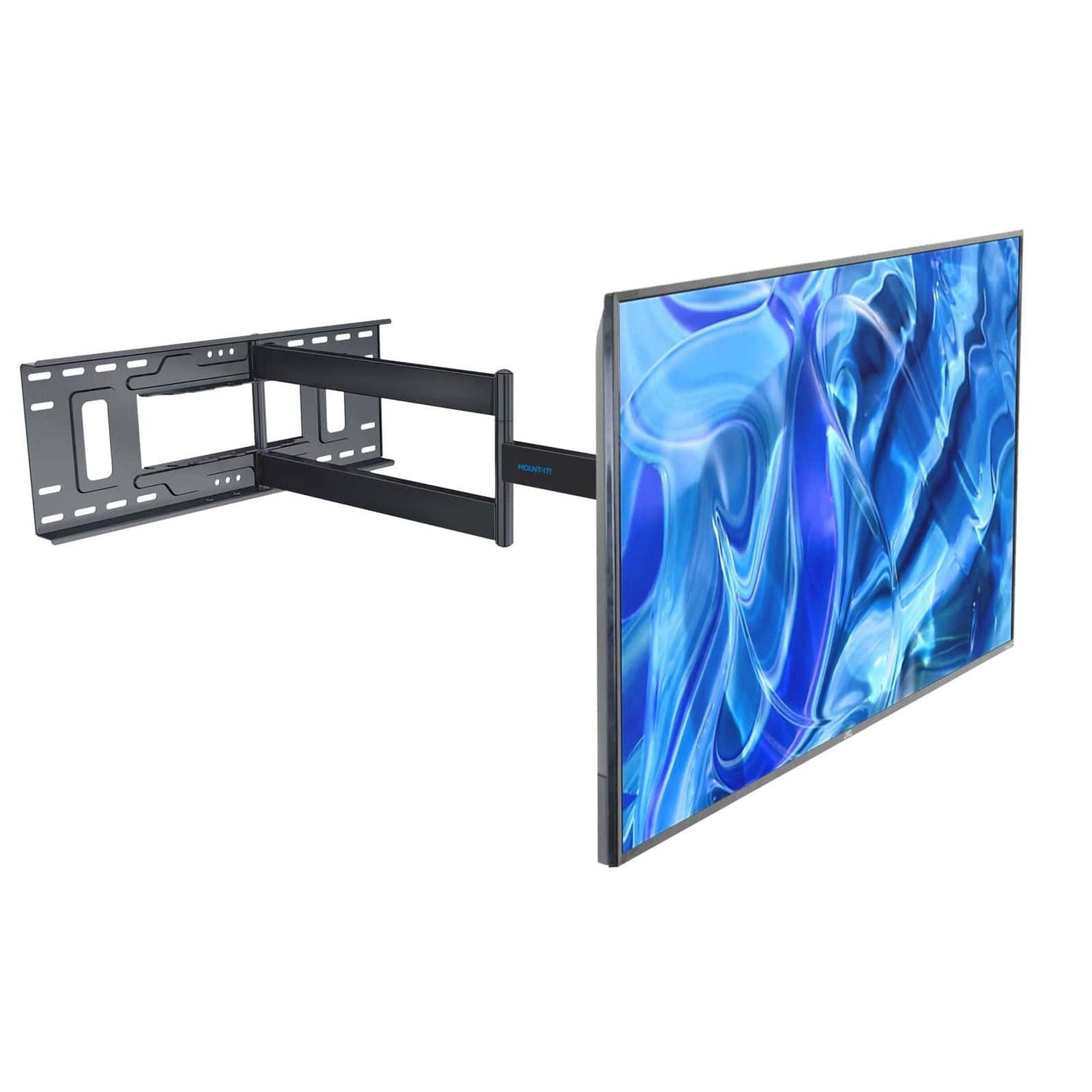

The Full Motion TV Wall Mount with Extra Long Extension is a full motion (articulating) corner TV wall mount compatible with 40 to 80-inch televisions and rated to hold up to 121 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.
Swivels 180° (90° left and 90° right), tilt +5°/−10°, and extends 3.14 to 38.77 in from the wall. The long extension arm pulls the screen away from the wall far enough to clear furniture, fireplace surrounds, or room corners.
Compatible with VESA mounting patterns from 200×200 to 600×400 mm. Also supports corner wall installations for rooms where flat wall space is limited.
A practical choice for corner wall installations where seating spans multiple angles. The articulating arm pulls the screen out of the corner and aims it at the room.
Ideally used for
Specifications
- SKU: MI-397
- Product type: Corner TV Mount

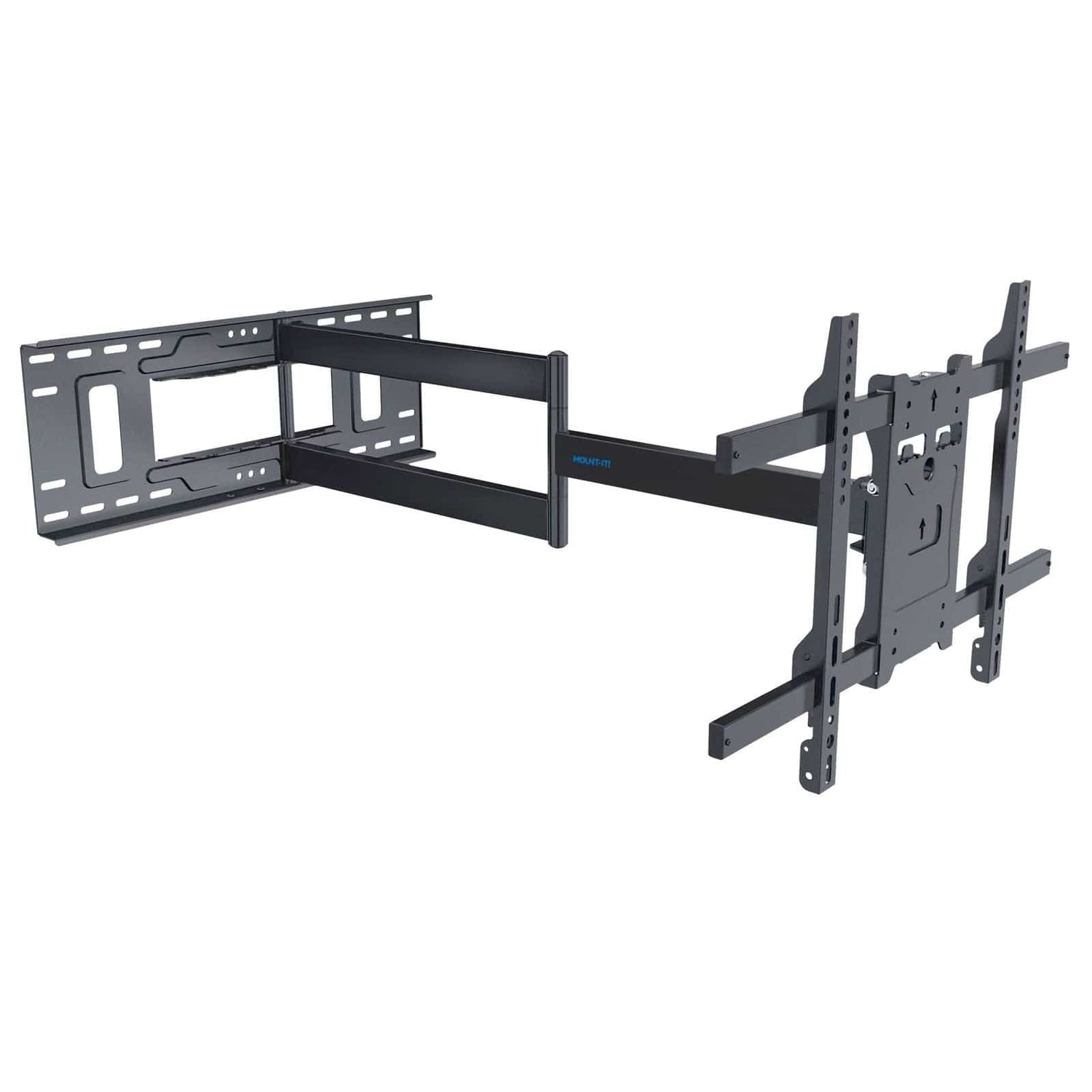

- Mount type: Full motion (articulating)
- Product weight: 26.85 lb

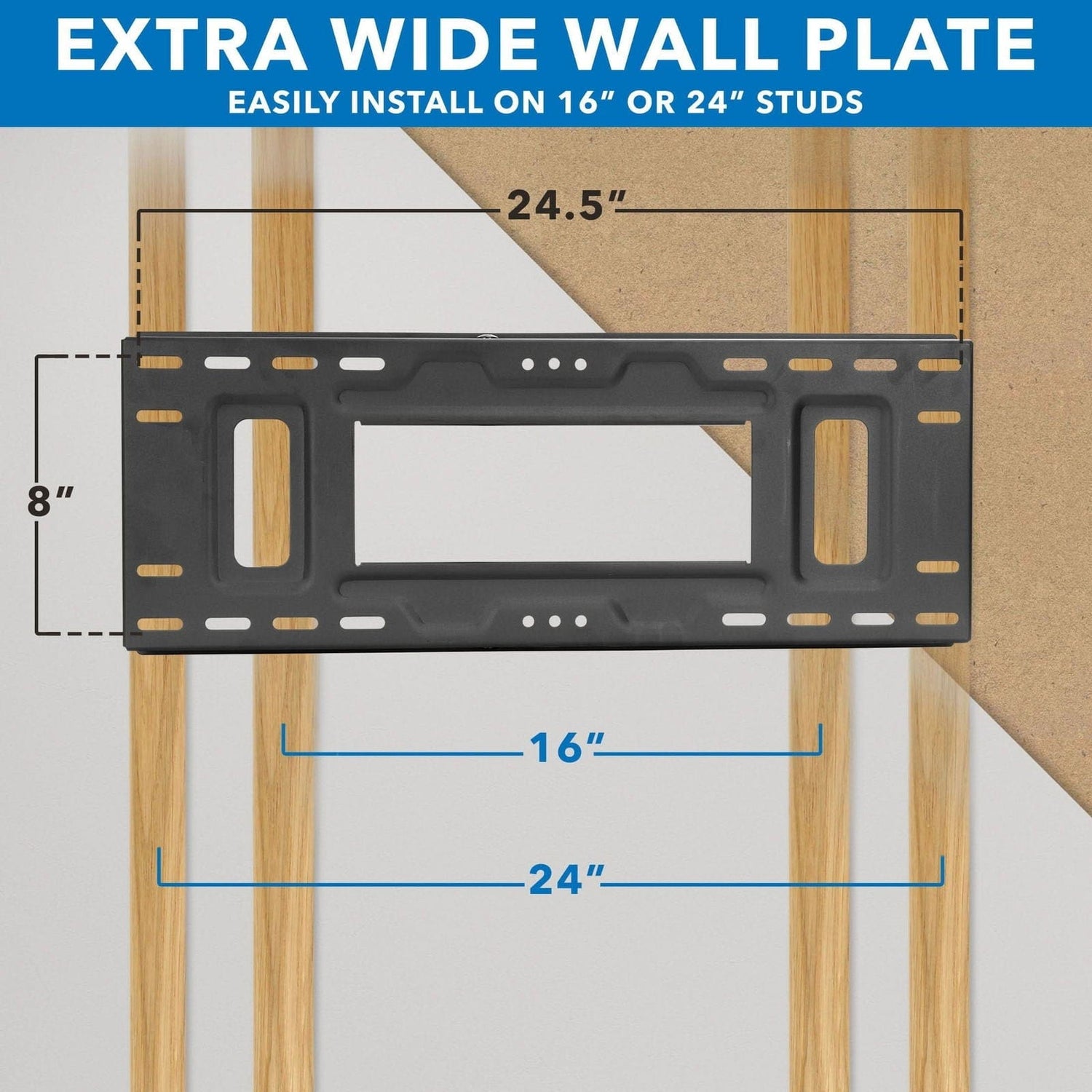

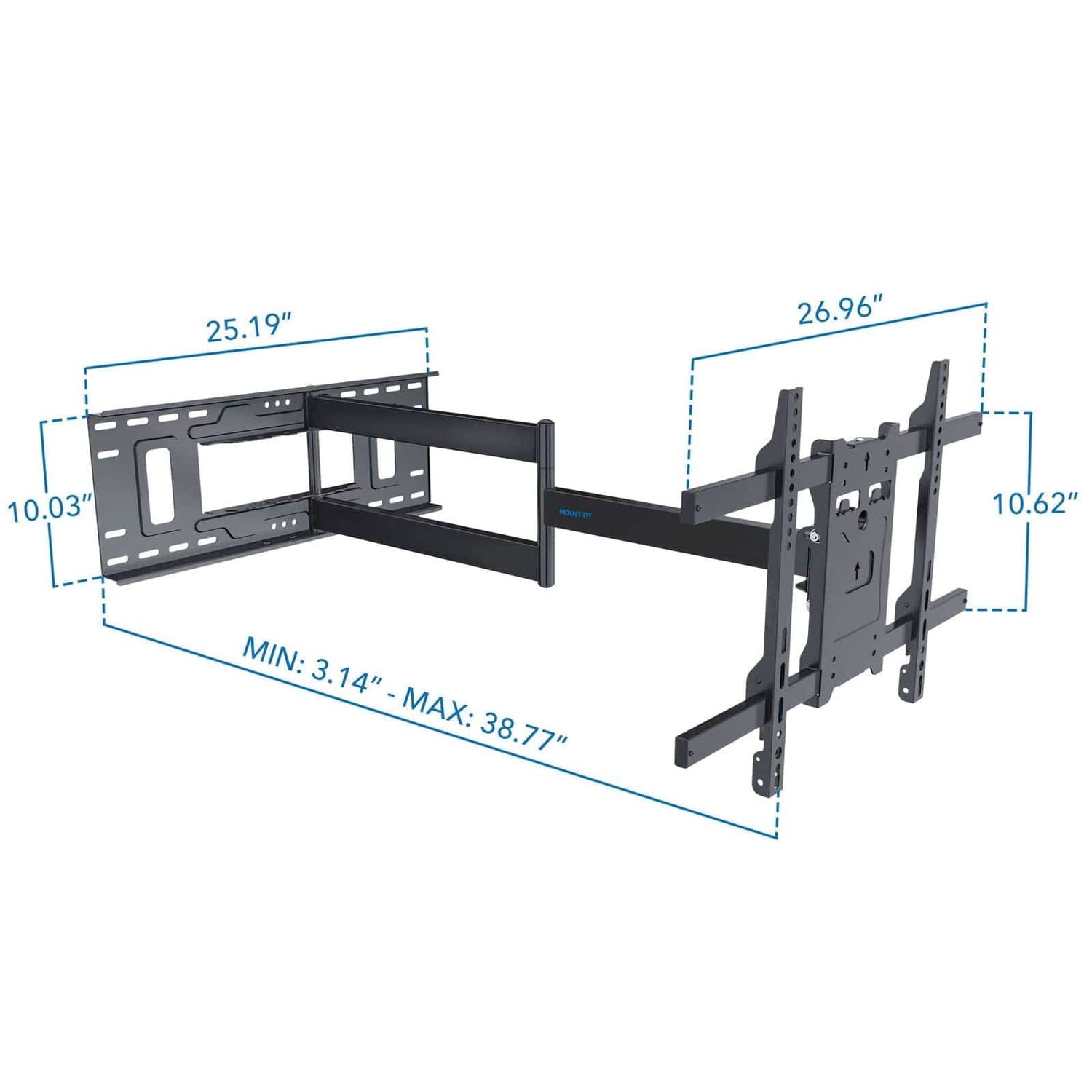

- Wall plate dimensions: 25.19×10.03 in
Holds screens
- Screen size range: 40 to 80 in
- VESA range: 200×200 to 600×400 mm
- Weight capacity: 121 lb
Movement
- Swivel: 180° (90° left and 90° right)
- Tilt:+5°and−10°

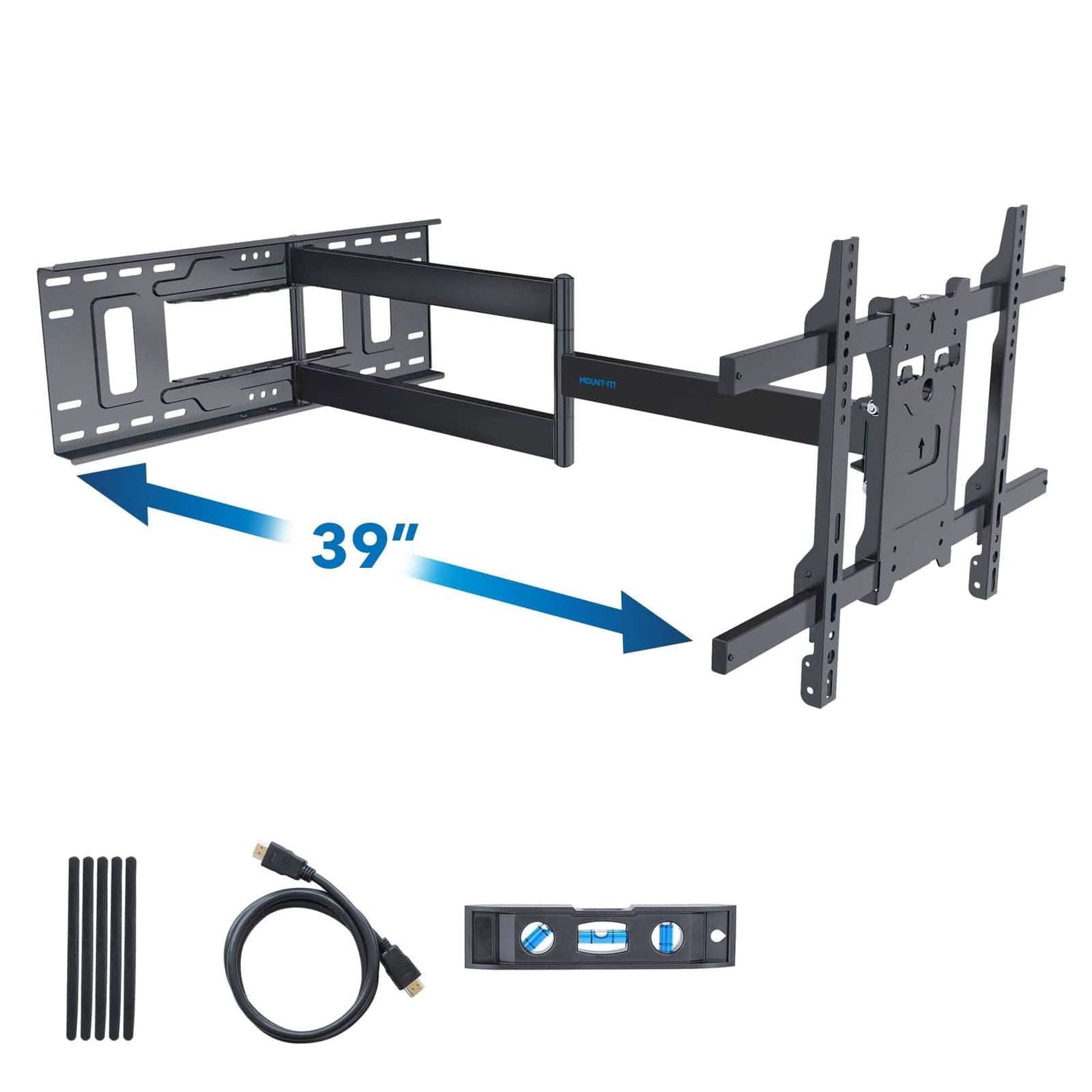

- Extension depth: 3.14 to 38.77 in
- Corner compatible: Yes
Installation

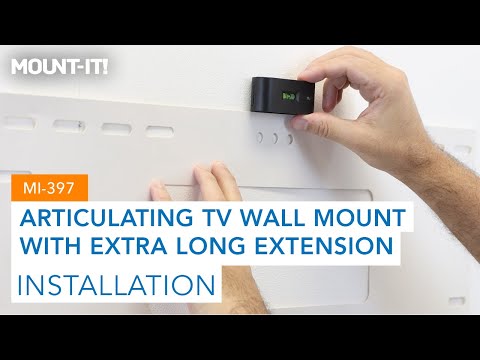

The Full Motion TV Wall Mount with Extra Long Extension is designed for quick and frustration free installation.
Installation is typically completed in about 45 minutes.
Estimated install time: 45 minutes
Stud installation type: Dual stud
Stud spacing supported: 16, 24 inch stud spacing
Corner installations: Supported
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
