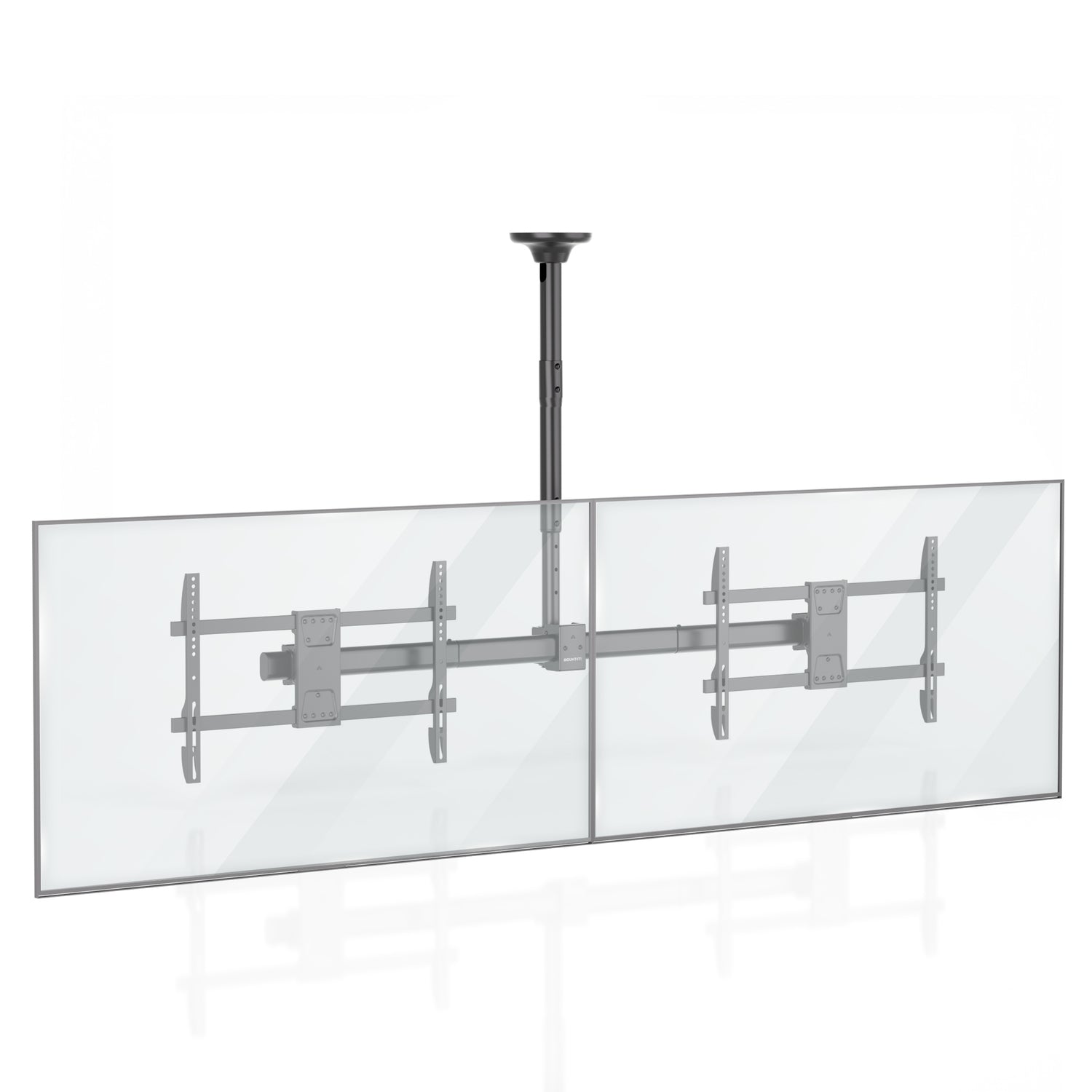

Dual TV Ceiling Mount with Short Pole for 35" to 60" TVs

Full Motion Ceiling TV Mount

Articulating · Swivel, Tilt & Drop

$149⁹⁹

An articulating full motion TV ceiling mount for 34 to 60-inch flat screen TVs, swivel and tilt the screen and drop it to exactly where you need it, rated up to 88 lb with VESA 200×200 to 600×400 mm.

Swivels 360.0° and tilts −25.0° to aim the screen at any seat and reduce glare.

Will it fit your TV? Save your TV and we’ll confirm fit.

Free Shipping to Contiguous US | Lifetime Warranty | 60-day Risk Free Returns

Features

Fits 34 to 60 inch flat screen TVs

Weight rated up to 88 lb

Swivels 360.0° (180.0° left and 180.0° right), aim the screen at any seat

Adjustable tilt down to −25.0° - reduce glare from above

Drops 18.1 to 35.4 in below the ceiling for adjustable viewing height

VESA 200×200 to 600×400 mm - fits most flat panel TV brands

Overview

The Dual TV Ceiling Mount with Short Pole is a full motion (articulating) TV ceiling mount compatible with 34 to 60-inch televisions and rated to hold up to 88 lb per display. Designed for advertising, showcasing, displaying, or presenting important information on screens that drop from above.

Swivels 360° (180° left and 180° right), tilt −25°, and drops 18.1 to 35.4 in below the ceiling. The drop column lowers the screen far enough below the ceiling to reach a comfortable viewing height.

Compatible with VESA mounting patterns from 200×200 to 600×400 mm.

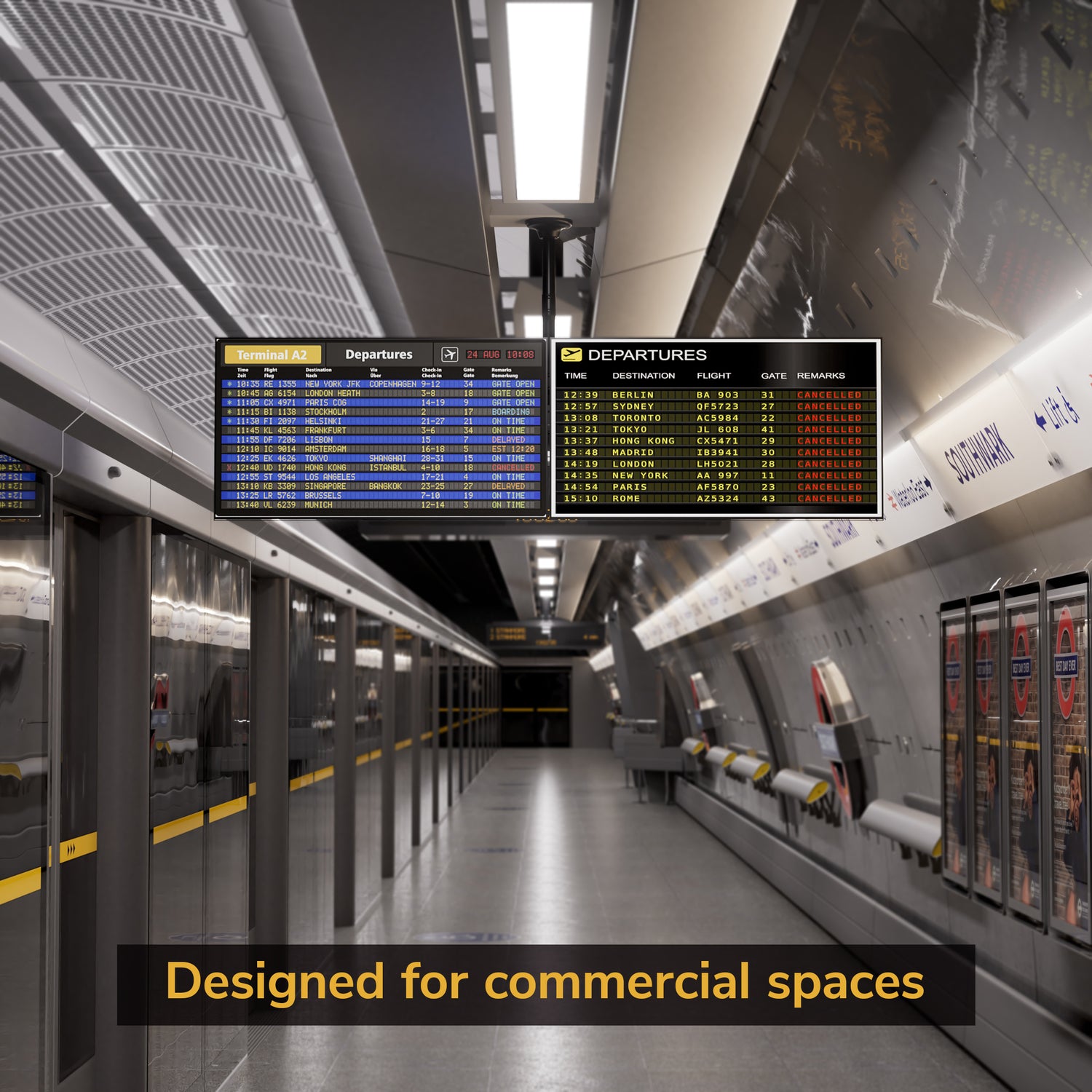

A practical choice for retail floors, tranportation hubs, corporate offices, and commercial venues where the ceiling is the ideal mounting surface.

Ideally used for

Standard-height living rooms and home theaters requiring dual-screen setups
Conference rooms and boardrooms with side-by-side display configurations
Classrooms, training rooms, and meeting spaces needing wide viewing coverage
Commercial spaces and retail environments with standard ceiling heights
Any installation where wall mounting isn’t practical and two screens are needed at a lower drop height

Specifications

SKU: MI-522S
Product type: Ceiling TV Mount
Mount type: Full motion (articulating)
Product weight: 26.7 lb
Ceiling plate dimensions: 7.1×7.1 in

Holds screens

Screen size range: 34 to 60 in
VESA range: 200×200 to 600×400 mm
Weight capacity: 88 lb

Movement

Swivel: 360° (180° left and 180° right)
Tilt:−25°
Drop range: 18.1 to 35.4 in

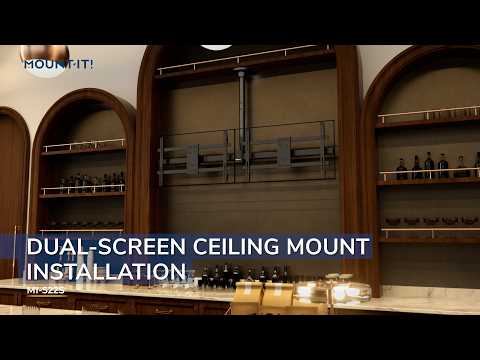

Installation

The Dual TV Ceiling Mount with Short Pole is designed for quick and frustration free installation.

Installation is typically completed in about 60 minutes.

Estimated install time: 60 minutes

Stud installation type: Single stud

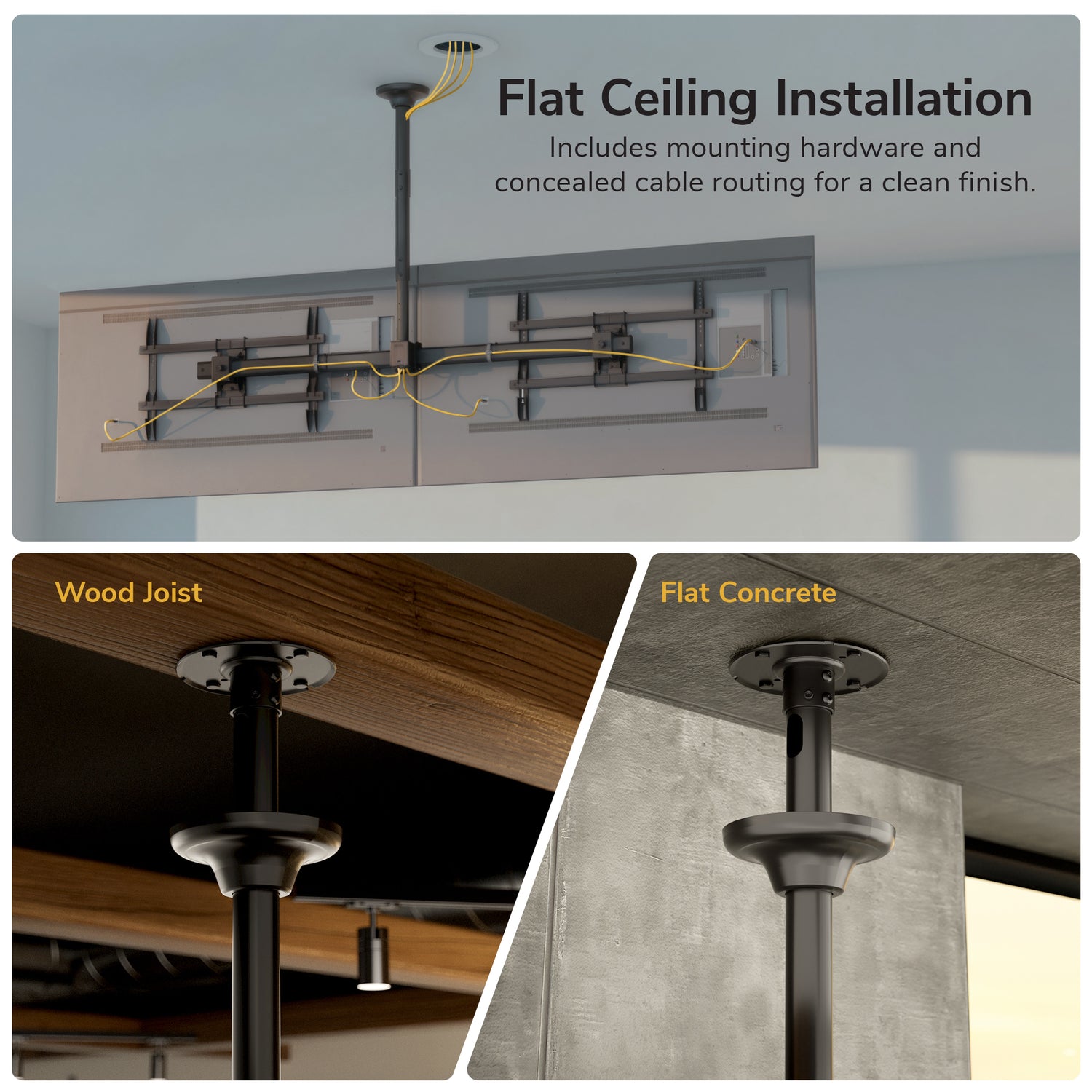

Safely install on these types of surfaces:

Truss
Steel I-beam
Exposed wood beam
Drop ceiling (T-bar, requires structural anchor above)
Concrete ceiling (poured slab)
Metal/steel ceiling joist
Wood ceiling joist

Tools you'll typically need:

Screwdrivers or socket wrench
Measuring tape
Level
Drill bits (wood bits for studs or masonry bits for concrete and brick)
Power drill
Stud finder

Manuals & Downloads

Product Manual PDF · Installation guide Spec Sheet PDF · Specifications & dimensions

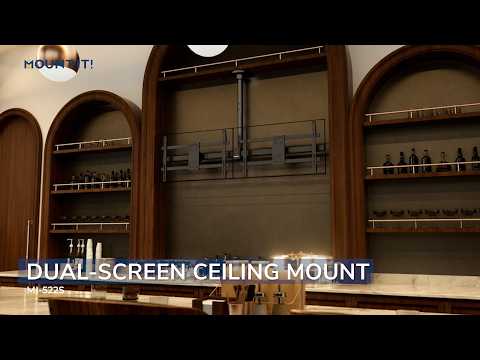

The Mount-It! Dual TV Ceiling Mount with Short Pole in black securely holds two large flat screens side by side, offering adjustable arms and full-motion flexibility—perfect for commercial spaces needing dynamic viewing angles.

Dual TV Ceiling Mount with Short Pole

$149⁹⁹

Color

Overview

Our dual TV ceiling mount for side-by-side installations is engineered for environments with moderate ceiling heights where secure mounting, flexible viewing, and a clean professional appearance are essential. Designed to support dual flat-screen TVs ranging from 34" to 60", this mount accommodates a wide range of commercial and residential displays while delivering dependable performance. Each side supports screens up to 88 lbs, and the mount is safety-tested to four times its rated weight capacity, providing added confidence in demanding installations. The adjustable pole allows the screens to be positioned between 18.1" and 35.4" from the ceiling and the mount's full-motion articulation enables +/-180° rotation around the pole while each display can tilt downward up to 25° to reduce glare. This flexibility makes MI-522S well suited for sports broadcasting, menu boards, event coverage, and all digital signage needs. Compatibility is simplified thanks to broad VESA support from 200×200 through 600×400, allowing the mount to work with most modern TVs without additional adapters. After installation, ±3° of screen leveling allows fine adjustments to achieve perfectly aligned displays. To maintain a clean, professional look, the ceiling mount includes two Velcro cable management straps, helping organize power and signal cables. Constructed from durable steel, it delivers long-term stability suited for both commercial and residential use.

Description

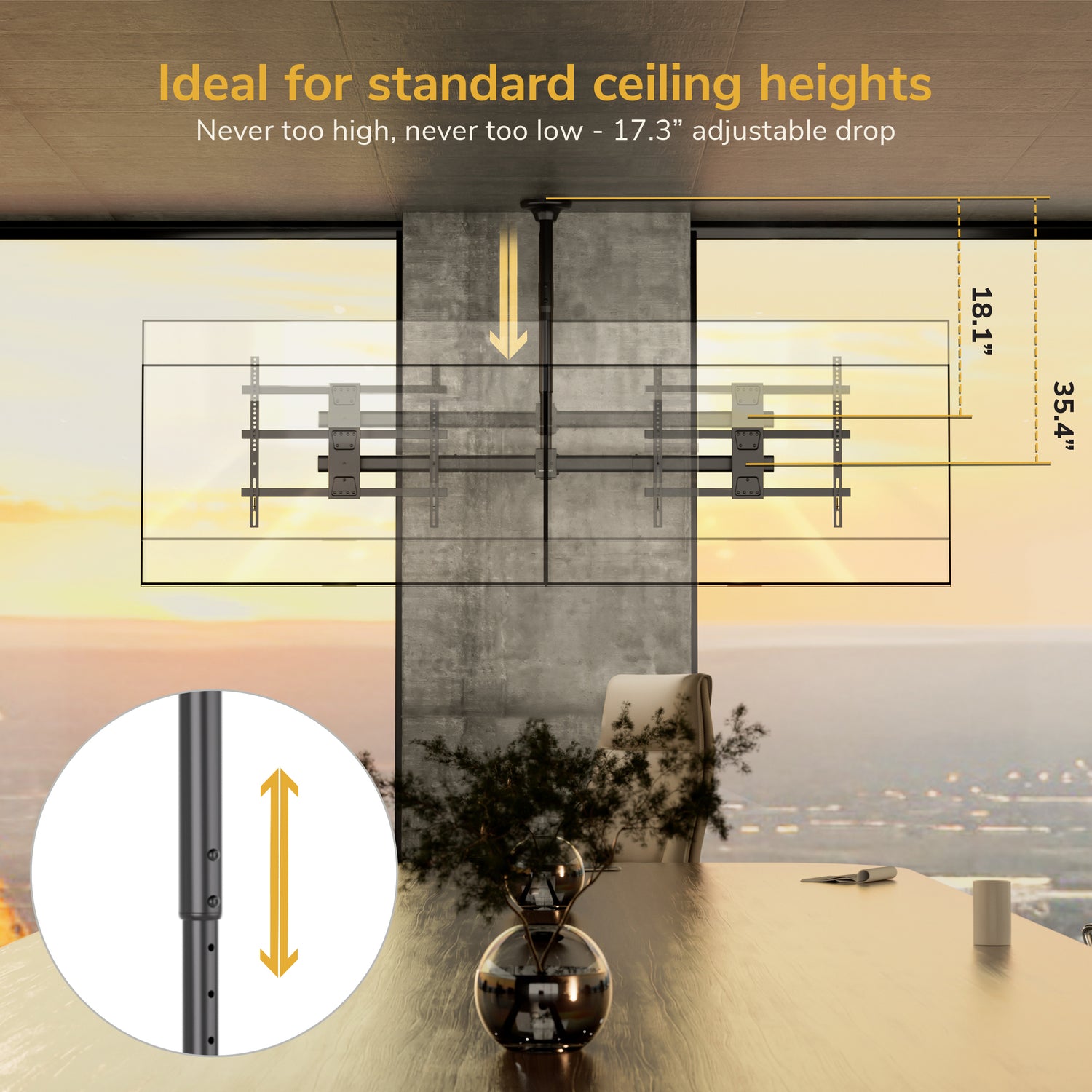

Ideal for moderate ceiling heights - Adjustable drop range from 18.1" to 35.4" helps position screens at comfortable viewing level

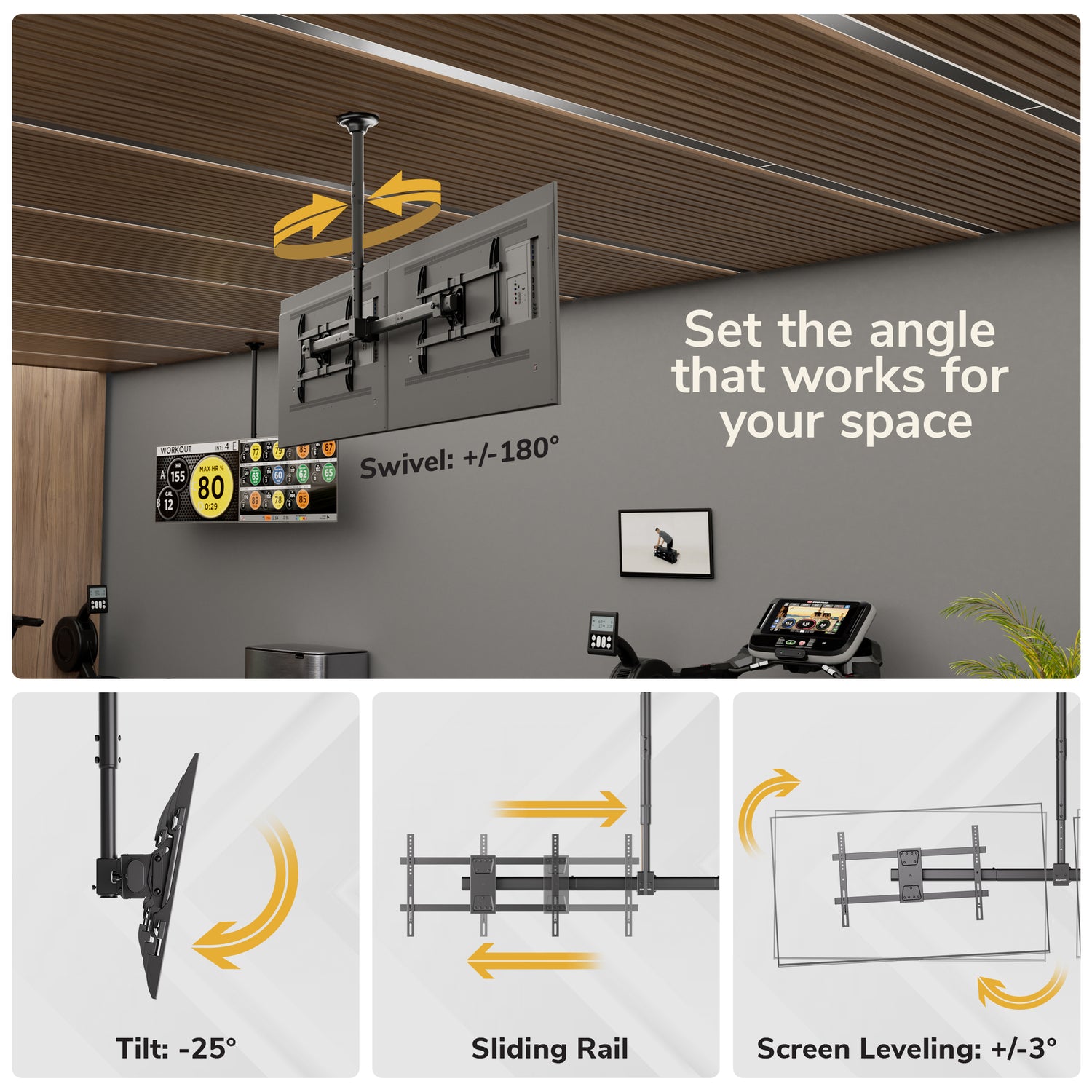

Full-motion flexibility - Tilt and 360° swivel allow for easy adjustment for optimal viewing from multiple angles
Built for strength and safety - Supports TVs up to 88 lbs per screen, safety-tested to 4x the rated weight capacity for long-term reliability
Easy installation - Screen leveling feature and cable management straps help achieve a polished installation

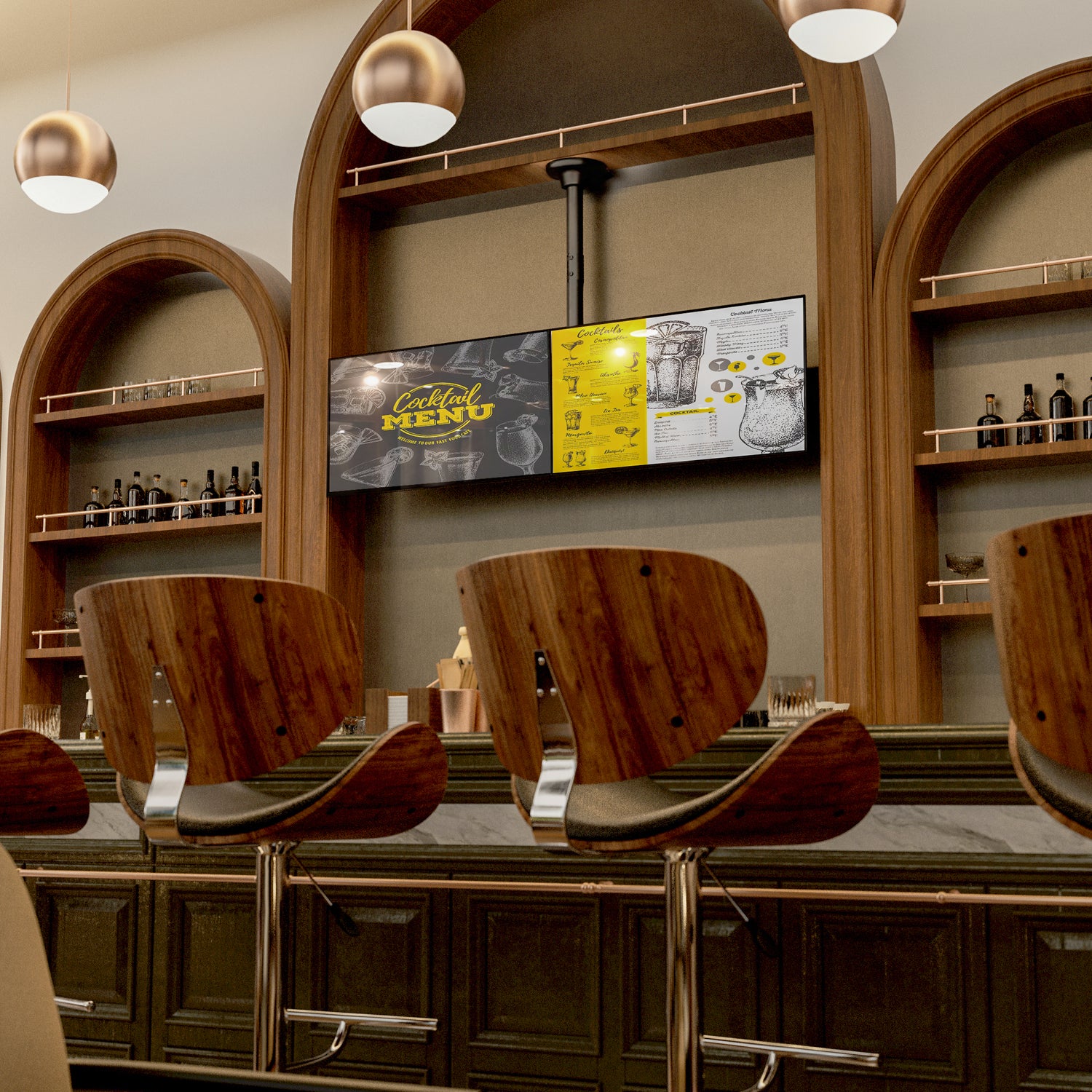

Designed for commercial installations - Ideal for sports bars, conference rooms, retail environments, lounges, and home entertainment areas

Specifications

Recommended TV Size: 34" - 60"
Weight Capacity: 88 lbs (per screen). Safety-tested to 4x the rated weight capacity

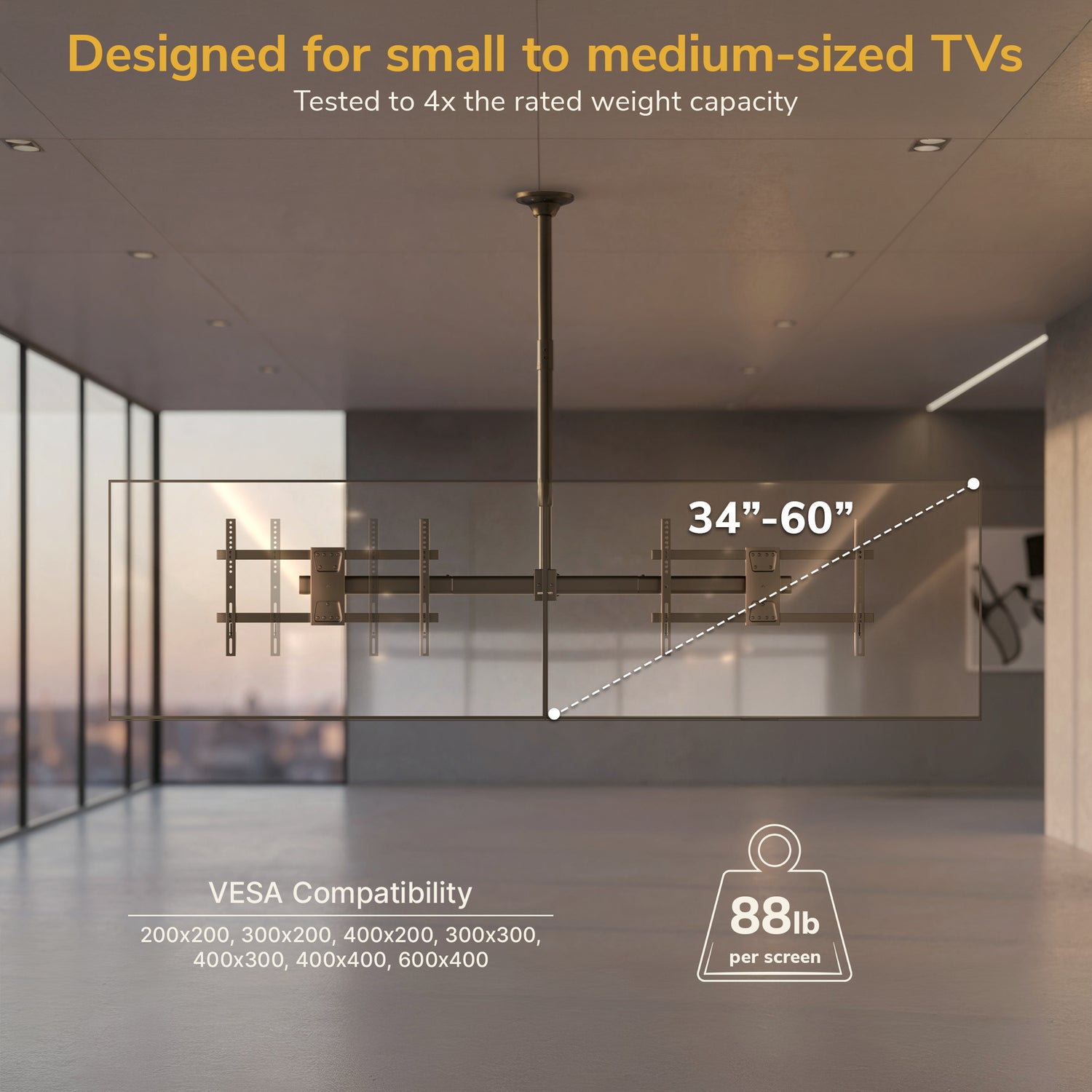

VESA Compatibility: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400

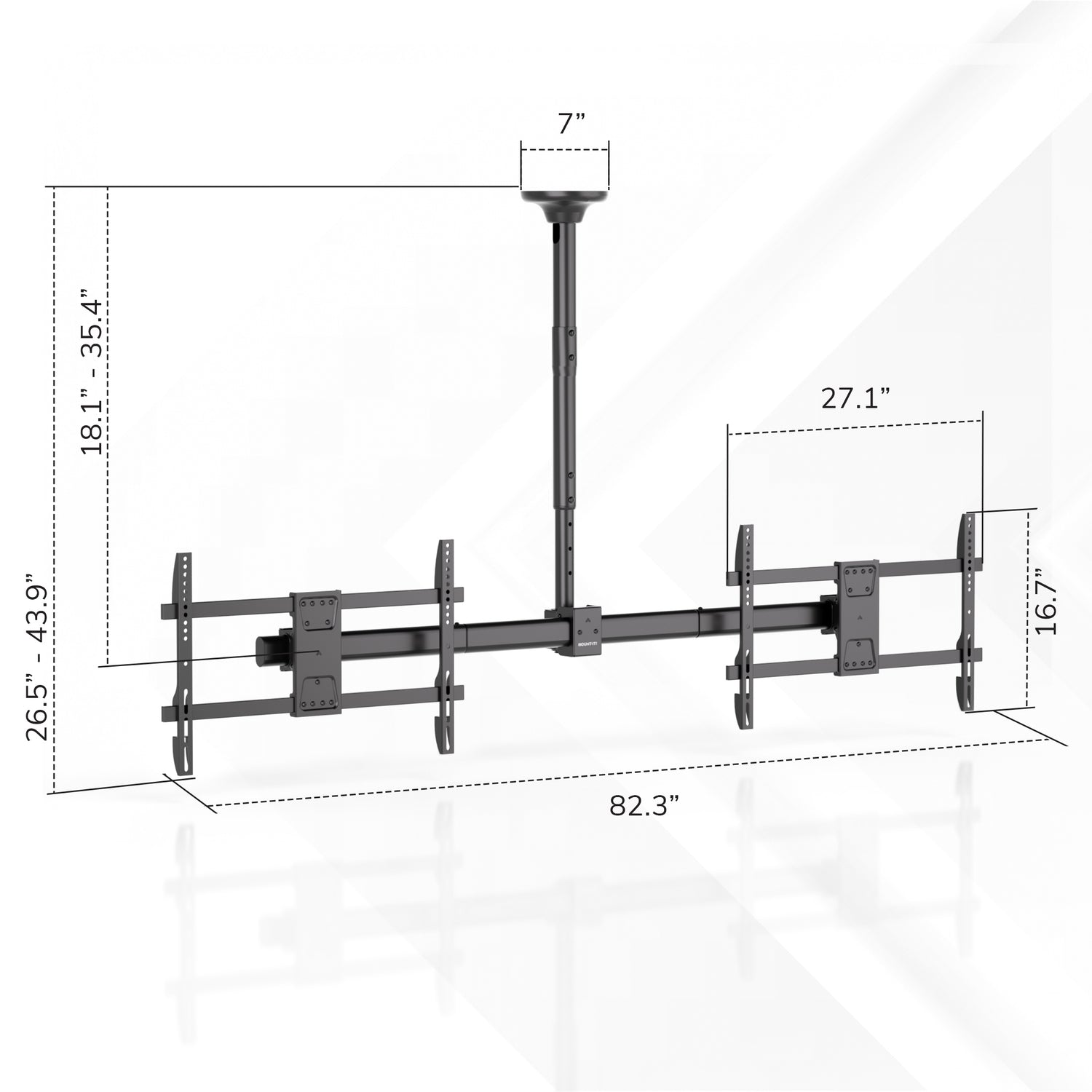

Height Range: 18.1" - 35.4"
Tilt Range: up to -25°
Swivel Range: +/-180°
Screen Leveling: +/-3°
Cable Management: Velco straps included (x2)
