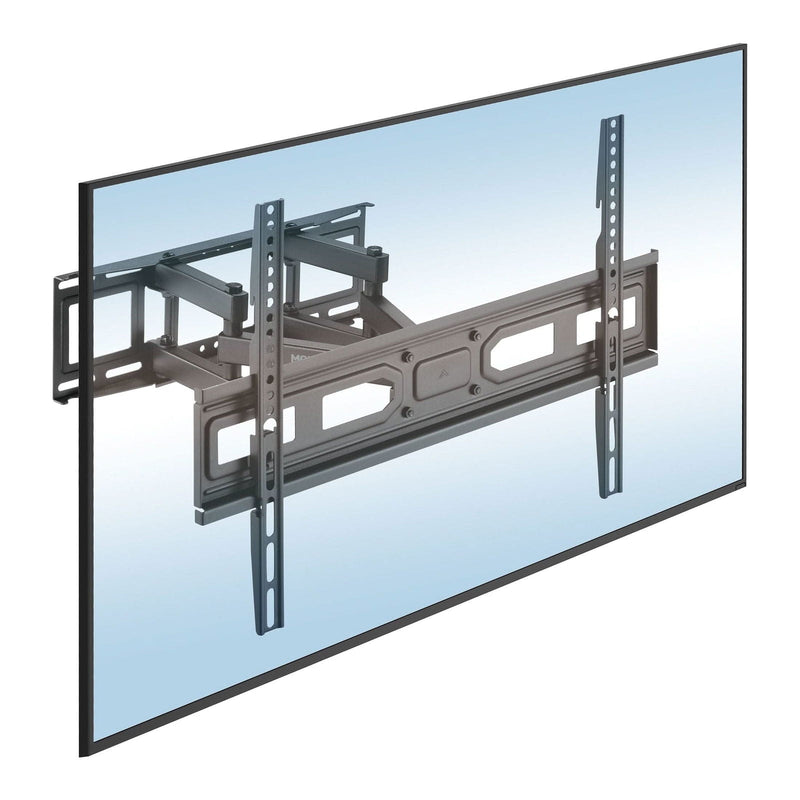

Full Motion TV Wall Mount for 37" to 80" TVs
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend

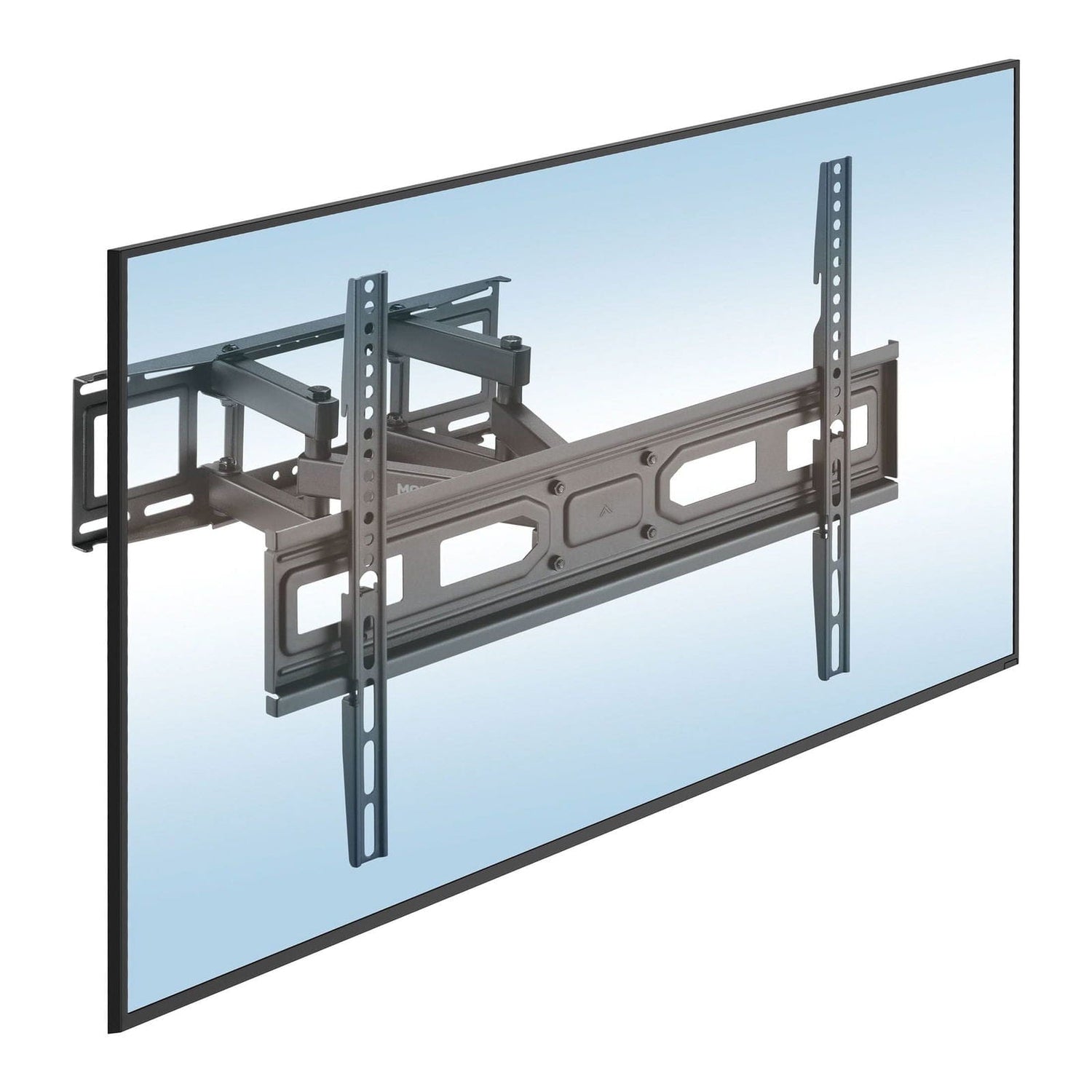

An articulating full motion TV wall mount for 37 to 80-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 88 lb with VESA 100×100 to 900×400 mm.

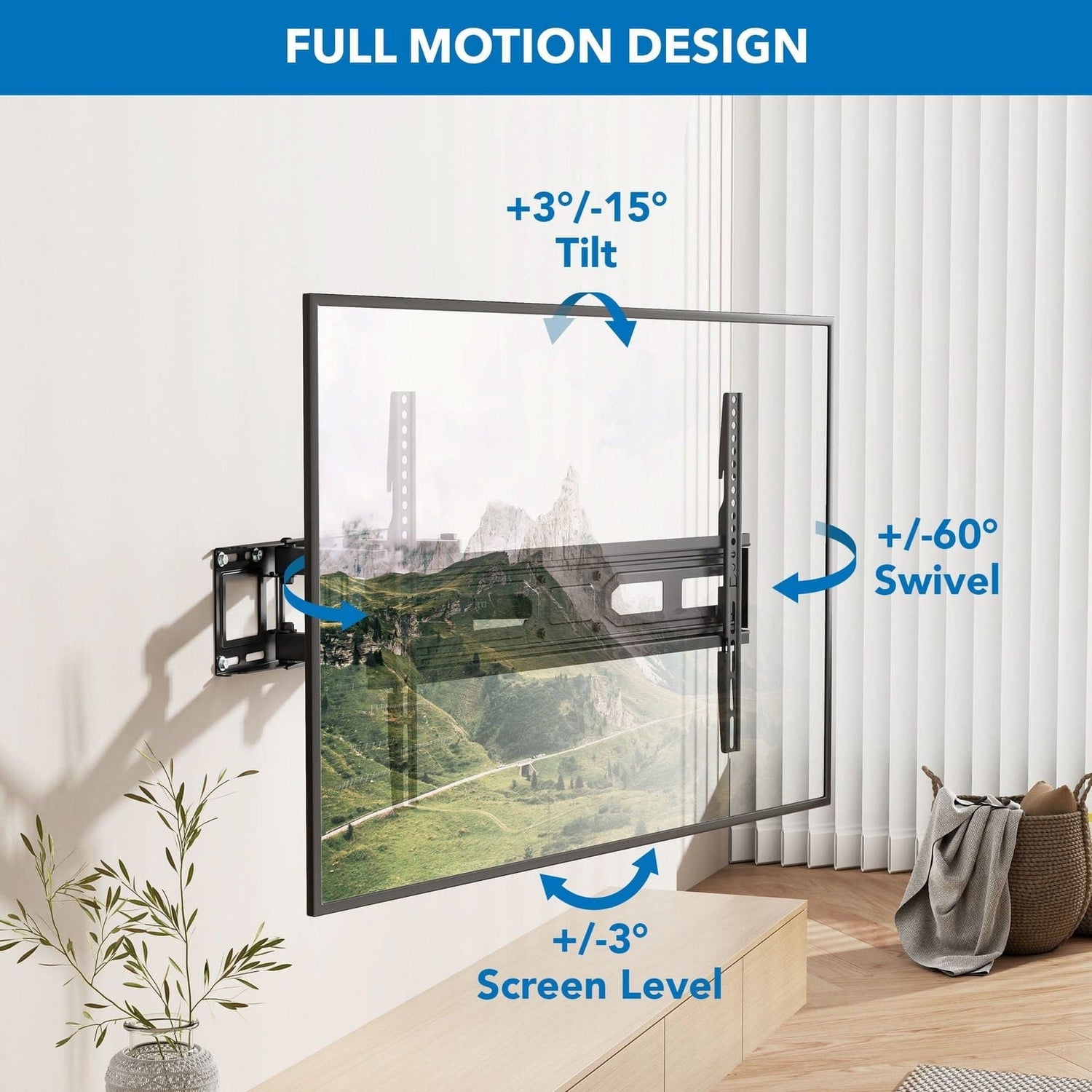

Swivels 120.0°, tilts +3.0°/−15.0°, and extends 2.6 to 14.0 inches. Aim the screen at any seat and reach the right depth.
Features
Fits 37 to 80 inch flat screen TVs
Weight rated up to 88 lb
Swivels 120.0° (60.0° left and 60.0° right), aim the screen at any seat
Adjustable tilt +3.0° up / −15.0° down - reduce glare, improve your view
±3° leveling after installation - straighten the screen without taking it down

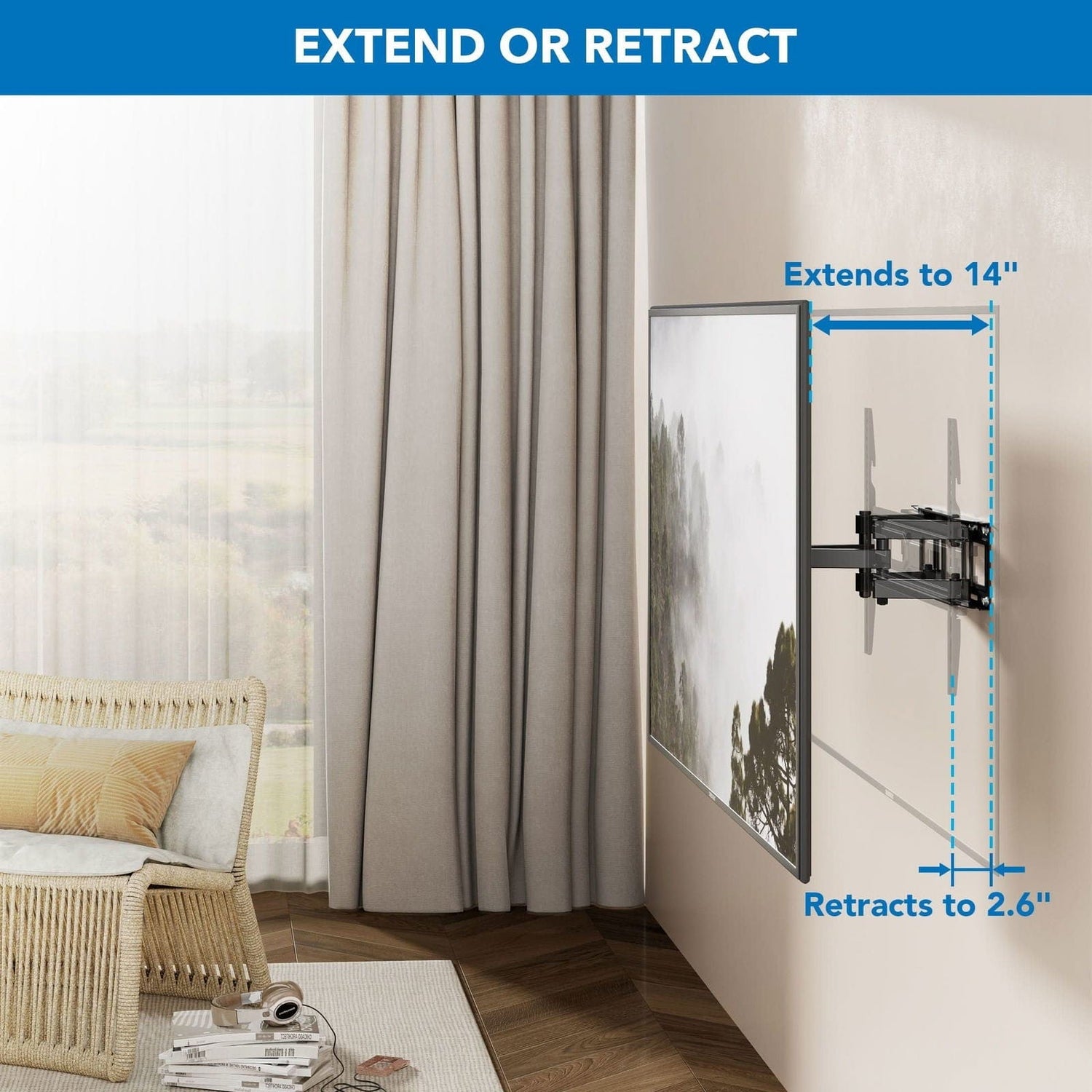

Extends 2.6 to 14.0 in from the wall for flexible positioning
VESA 100×100 to 900×400 mm - fits most flat panel TV brands
Overview
Ideally used for
Specifications
- SKU: MI-4112
- Product type: Wall TV Mount
- Mount type: Full motion (articulating)
- Product weight: 12.8 lb

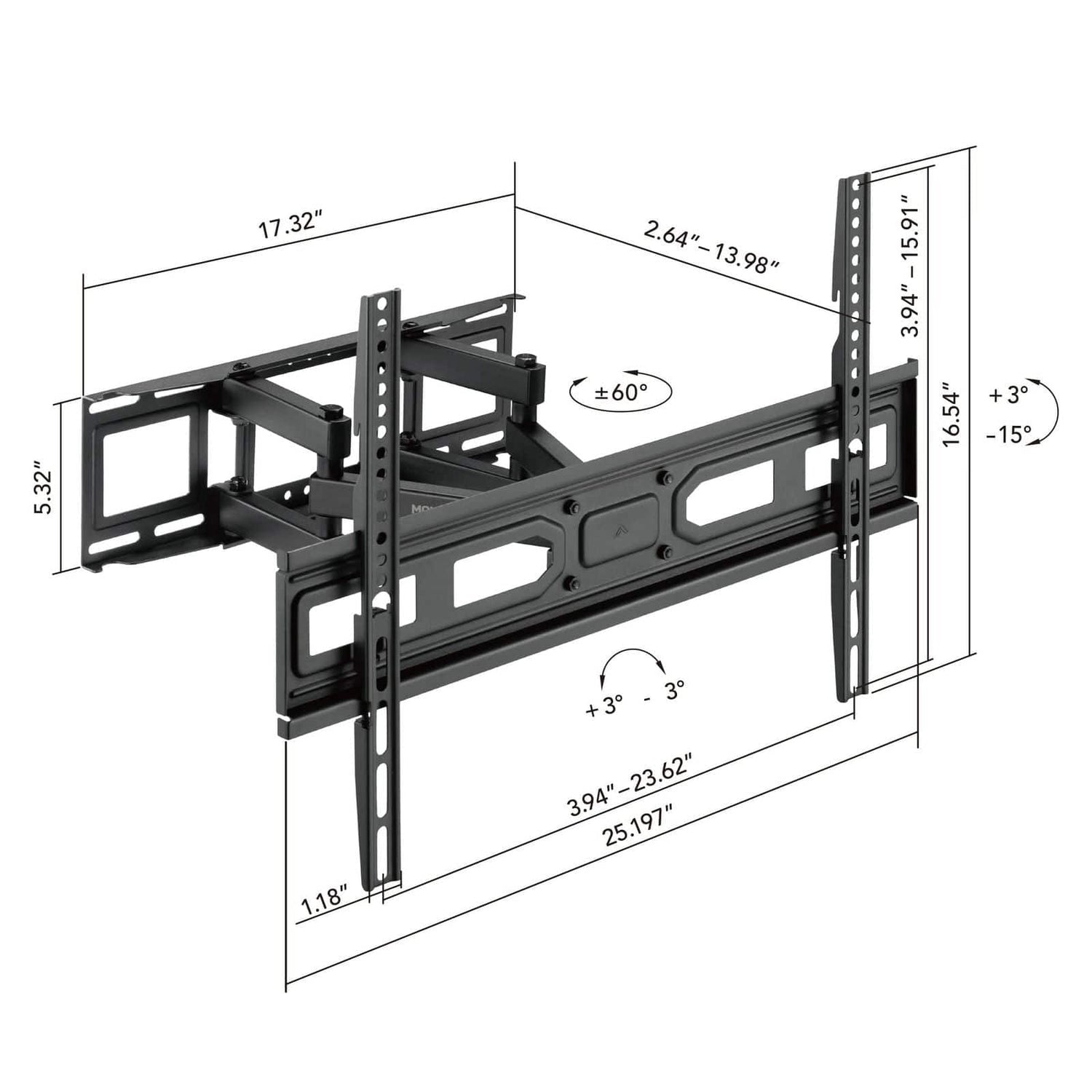

- Wall plate dimensions: 17.32×5.32 in
Holds screens
- Screen size range: 37 to 80 in
- VESA range: 100×100 to 900×400 mm
- Weight capacity: 88 lb
Movement
- Swivel: 120° (60° left and 60° right)
- Tilt:+3°and−15°
- Leveling: ±3° after installation
- Extension depth: 2.6 to 14.0 in
Installation
The Full Motion TV Wall Mount is designed for quick and frustration free installation.
Installation is typically completed in about 45 minutes.
Estimated install time: 45 minutes
Stud installation type: Dual stud
Stud spacing supported: 16 inch stud spacing
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
Customer reviews
9 verified reviews from people who bought this product.

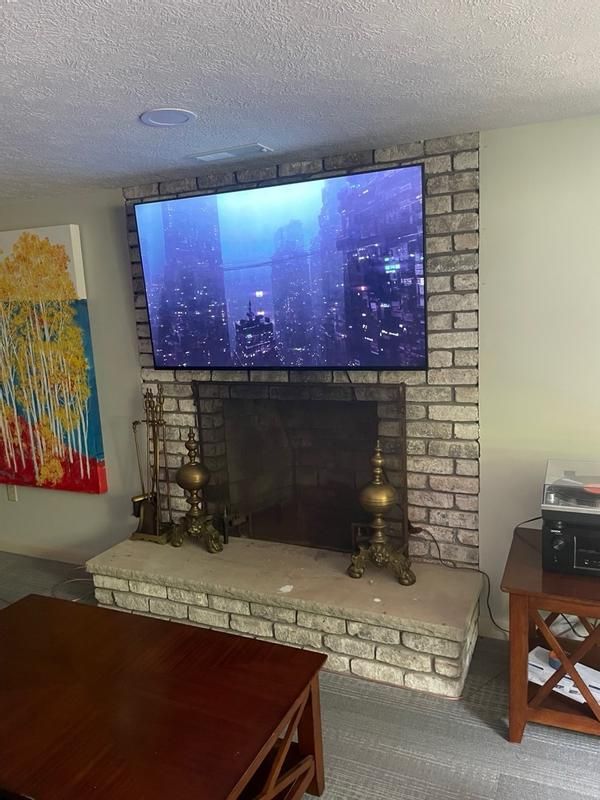

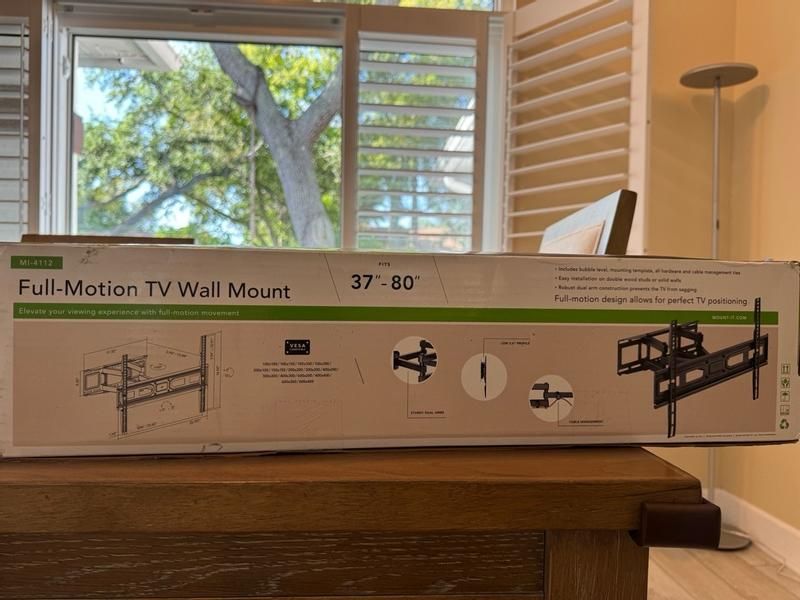

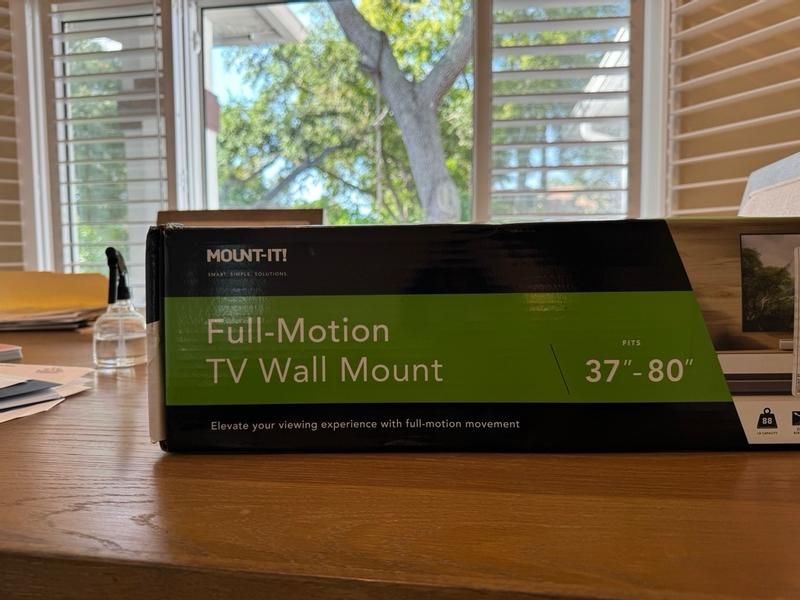

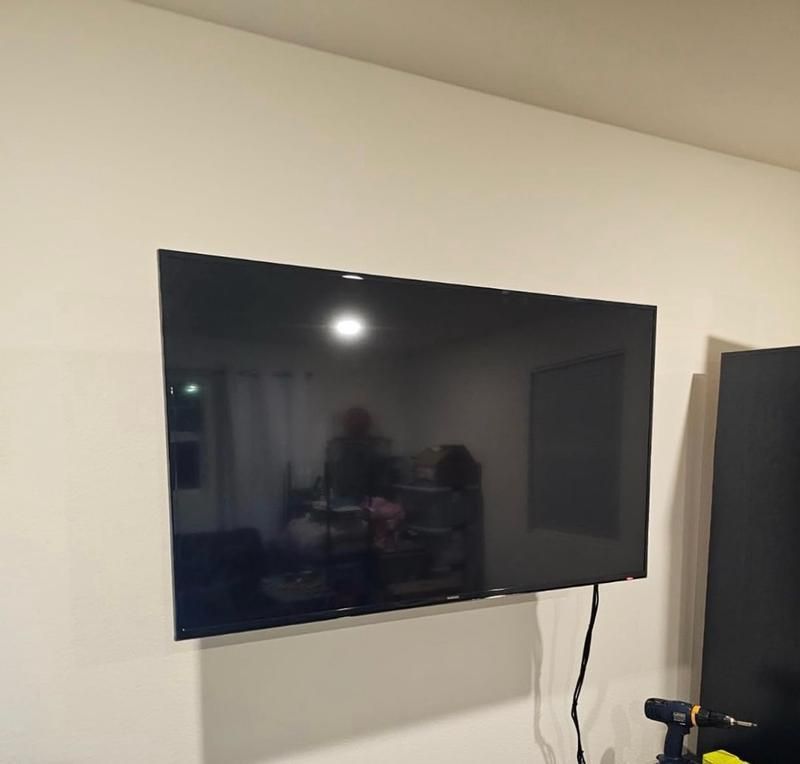

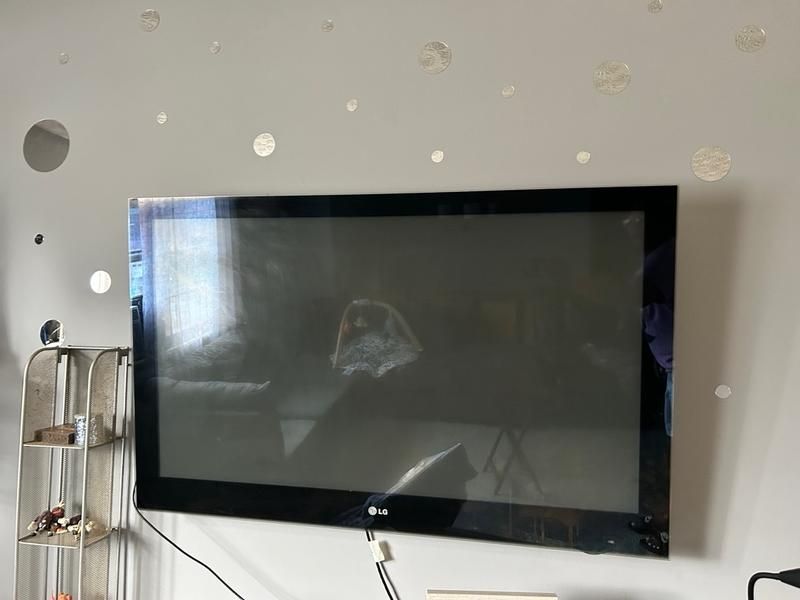

Photos from customers 5
-
Great product

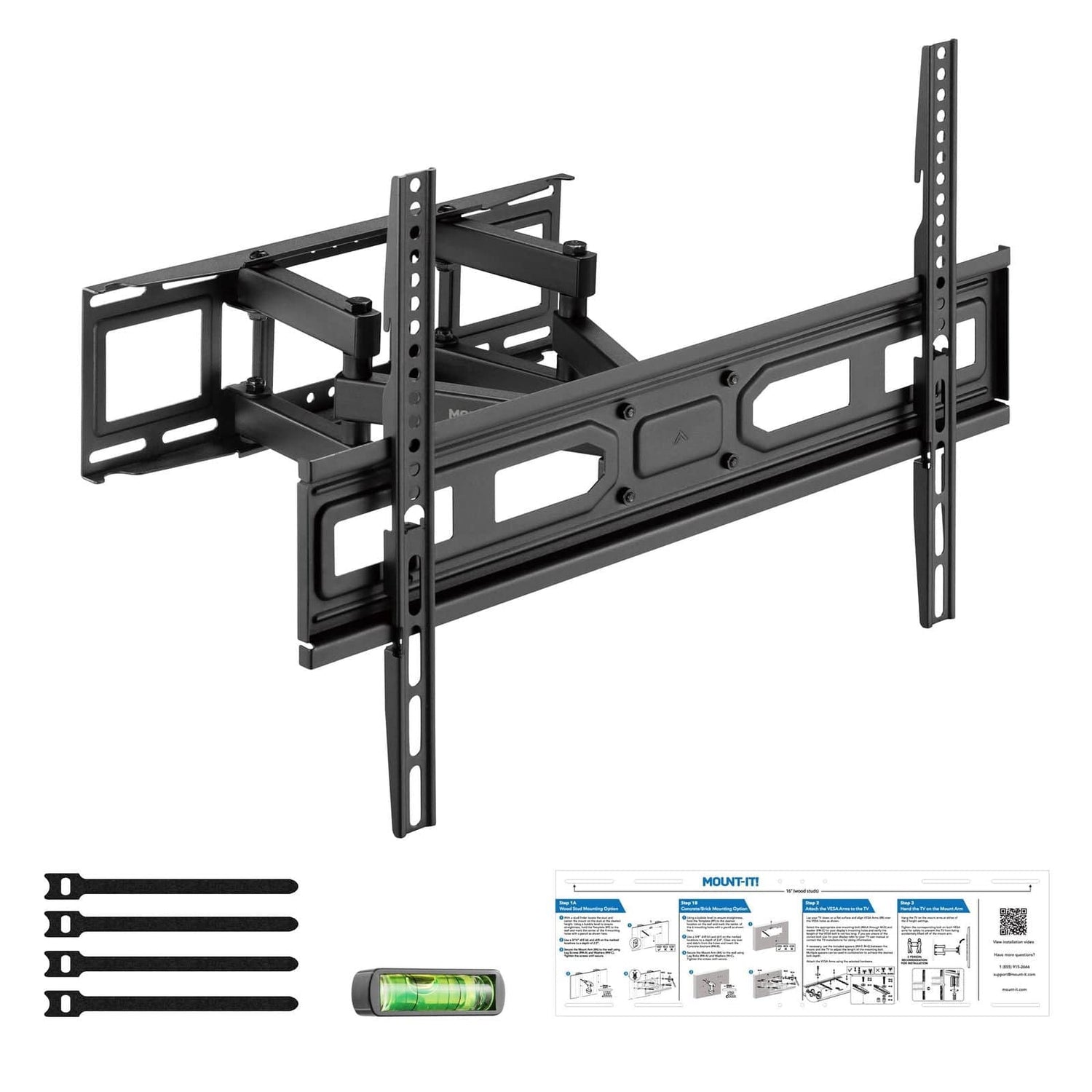

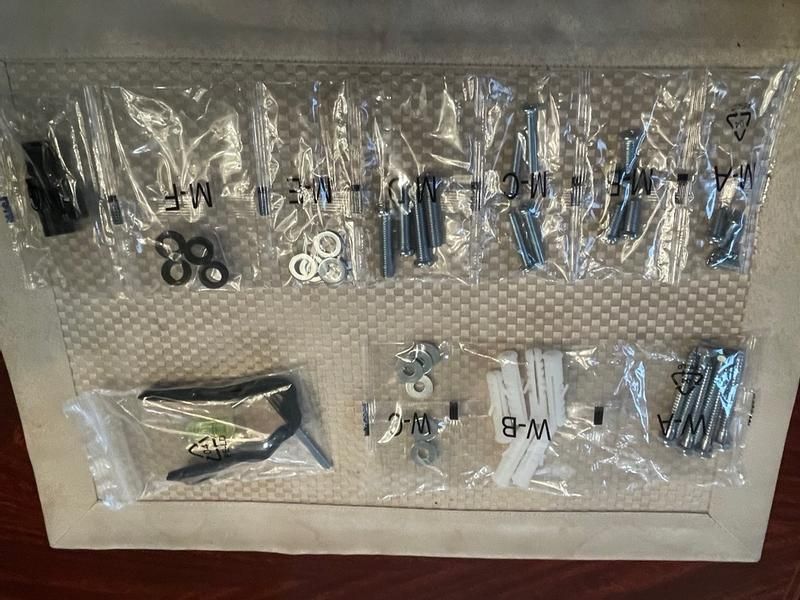

Very easy to install and very sturdy. It comes with all the spacers bolts and screws required for almost all TVs. Even comes with a template to help the installation. Great product very well made.
-
-
Easy to use
So easy to install and perfect for what I needed. I love this brand and would recommend for anyone that wants to elevate their room by hanging their tv
-
Durable TV Mount
I was always scared to mount my tv because it’s so heavy. Me and my son were able to do this ourselves. Easy installation and instructions. I love the way my living room looks now!! You can pull it out and turn side to side. It’s really nice next is my room.
-
-
Works great!!
Overall this TV mount is a great product. Its ease of installation combined with its excellent articulation and tilt features makes it ideal for our setup. With the addition of a cable management solution it would be nearly perfect. We highly recommend it for anyone looking to mount their TV securely and conveniently.
-
-
Worth it!
Have you ever had a wall mount TV that once installed only had an inch or two of clearance to install cables? That's frustrating!The thing I like most about the MOUNT-IT! wall mount is that it allows the TV to be pulled away from the wall about 15 and swivel out further to have easy access to all of the TV inputs and outputs. That makes wiring a breeze!The wall-mounted unit is very solidly built with large hinge-pins and all steel construction - fully assembled. All you have to do is bolt it to the wall. A drill template is provided so all you have to do is tape it to the wall and mark the holes.There are 2 versa arms that bolt to the back of the TV and are height adjustable. The TV can then clip onto the wall unit to hang it securely. Each arm has a screw to lock the arms in place.Versa arms can also slide left and right to adjust centering if needed.A universal hardware kit has bolts and spacers to secure the versa arms to any TV hole size and pattern. All parts are packaged in a plastic pack with part numbers. Hardware is good for wall studs as well as brick.Assembly instructions are correct and compete. Very easy to follow. They have a help line should you need assistance.The full motion features permit you to tilt up and down swivel to the left or right and adjust the levelling. I drilled holes in brick and the masonry bit wobbled off-center so that the TV was about ¼ inch off-level and I was able to adjust it back to level (they include a very small bubble level).
-
-
Tv wall mount
I received the full motion tv wall mount from influencer and mount it for my honest review. It’s for 32 inch to 80 inch tvs has tilt and swivel so you can move the screen to almost any direction. Holds up to 88 lbs too.
-
-
Full motion
Easy to mount. Our tv in the living room is between dining room and kitchen so it is nice to be able to move the tv to which ever room we are in. I definitely suggest!
-
Solid tv mount
Installation was relatively easy I’m not a handy person and was able to figure it out pretty quickly. The quality of the mount is great so happy to have this new addition to our living room! Makes it super easy to adjust the direction of the show.
-

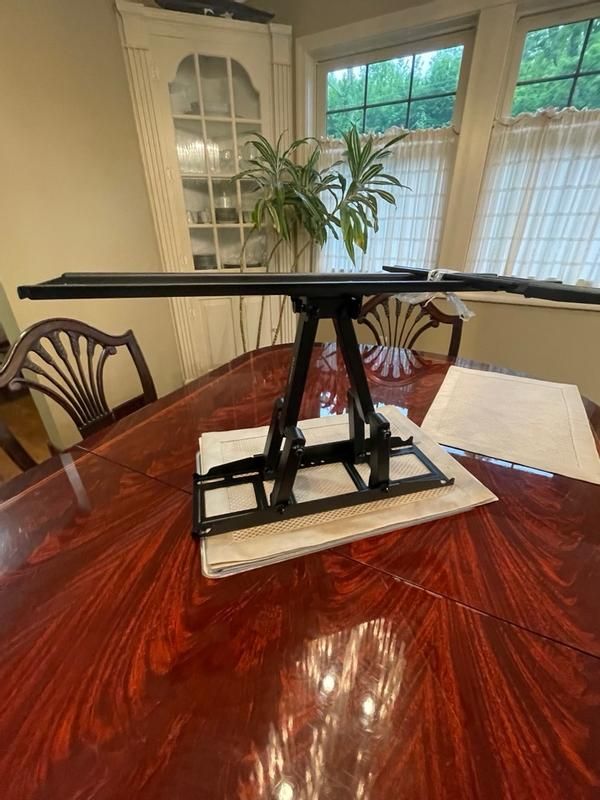

Comes pre assembled

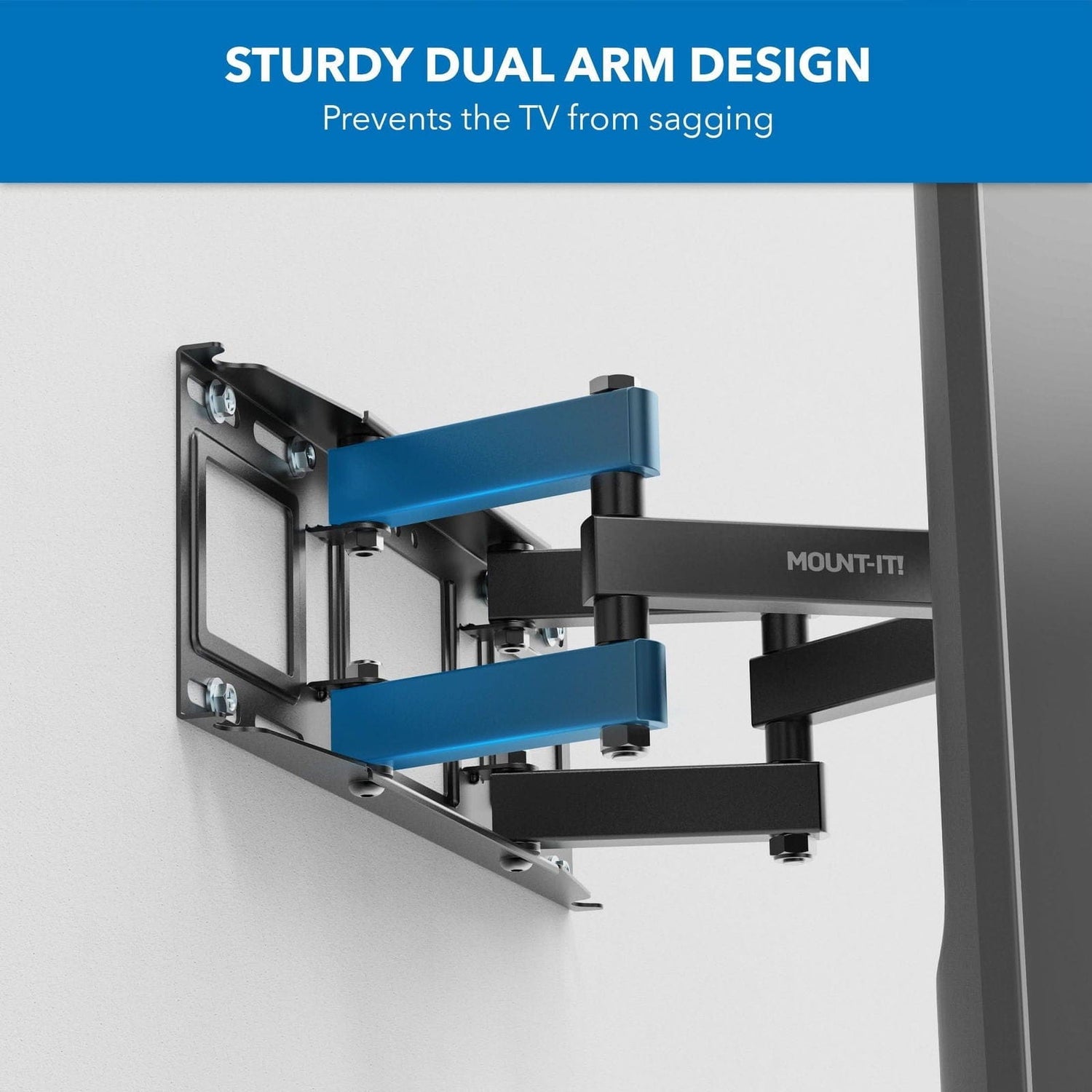

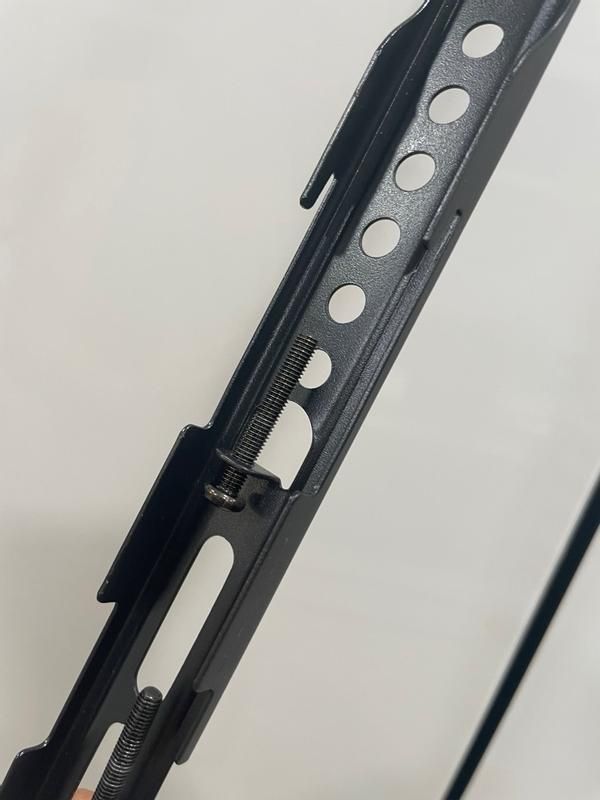

The mount is the standard two arm style with the hook-and-rest TV hanging system. Both the upper and lower brackets on the TV mounts have securing screws unlike the one found only on the lower bracket on most others. The instructions are clear and it comes with a cardboard stencil for drilling holes in the wall. It comes with all the hardware you need for mounting in both wood studs and masonry. While it does include the needed allen key it does not include a phillips head which you will need. While it says it tilts it tilts at the wall instead of at the tv mount. The mount comes pre-assembled in the box unlike many others.
