Mount-It! Full Motion TV Wall Mount for 32" to 70" TVs | MI-345
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
An articulating full motion TV wall mount for 32 to 70-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 100 lb with VESA 100×100 to 600×400 mm.
Swivels 180.0° to aim the screen at different seating positions.
Will this fit my TV
Status unknown
Enter your TV weight and VESA pattern to confirm fit
Will this fit my TV
Status unknownEnter your TV weight and select your TV VESA pattern to confirm fit.
Use the TV weight without the stand when possible.
If your pattern is not listed, choose Custom VESA.
Enter the VESA spacing in millimeters.
Full Motion TV Wall Mount is backordered and will ship as soon as it is back in stock.
Full Motion TV Wall Mount
Features
Fits 32 to 70 inch flat screen TVs
Weight rated up to 100 lb
Swivels 90.0° left and right — aim the screen at any seat

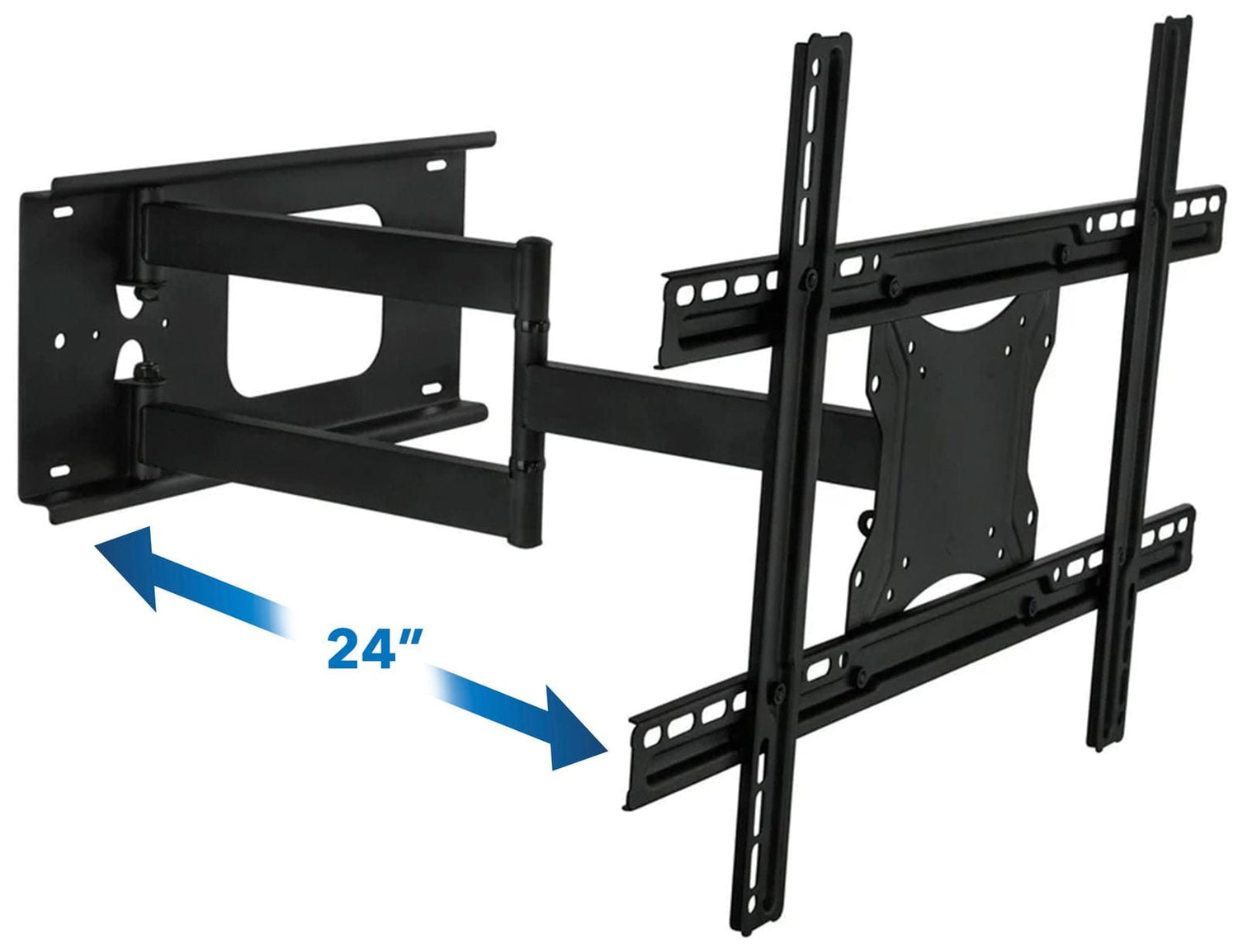

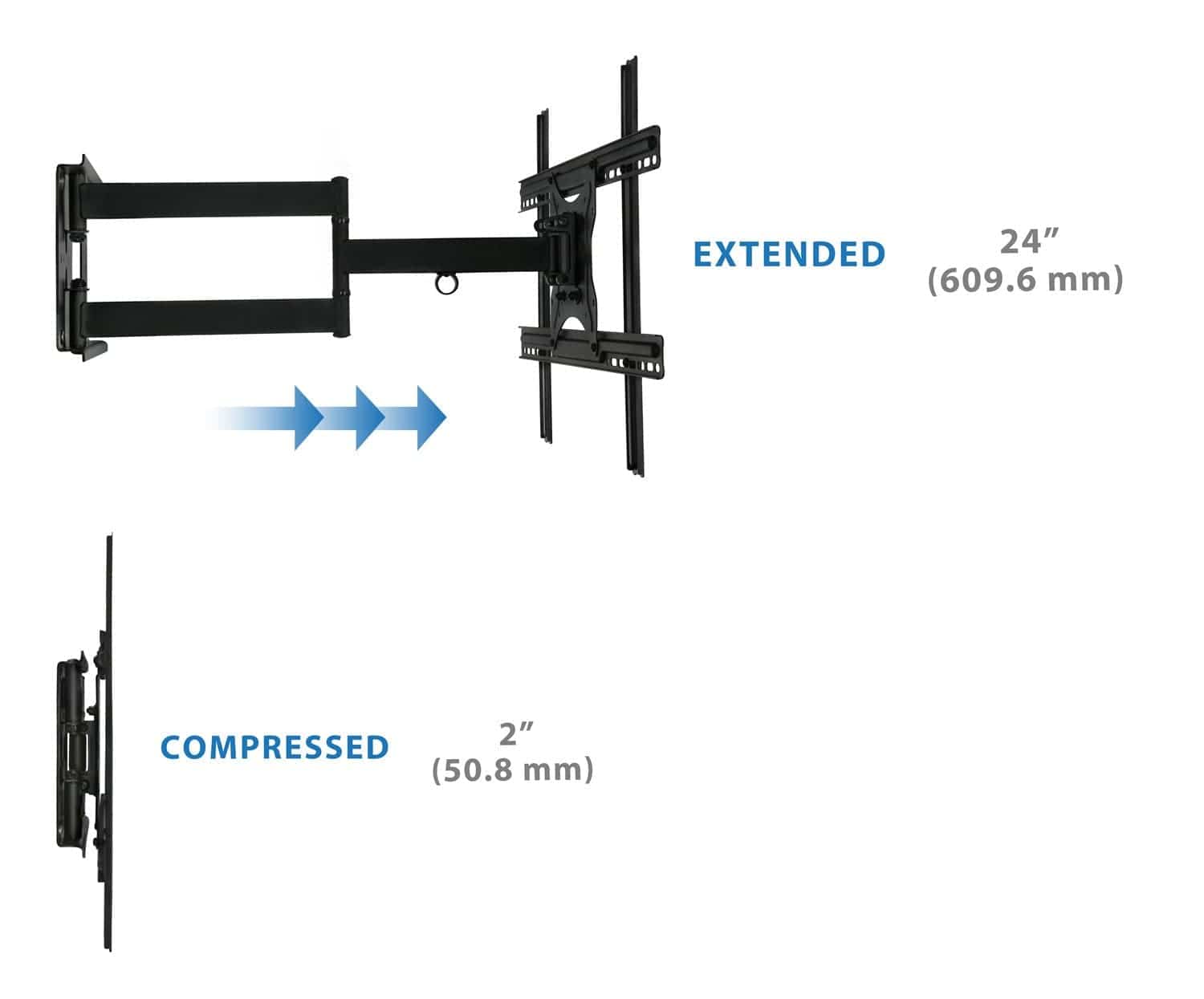

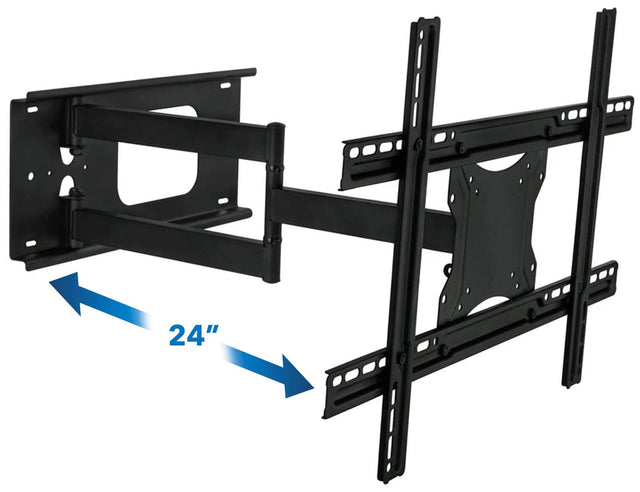

Extends 2.0–24.0 in from the wall for flexible positioning
VESA 100×100 to 600×400 mm - fits most flat panel TV brands
Supports corner wall installations
Overview
The Full Motion TV Wall Mount is a full motion (articulating) TV wall mount compatible with 32 to 70-inch televisions and rated to hold up to 100 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.
Swivels up to 180° and extends 2.0 to 24.0 in from the wall.
Compatible with VESA mounting patterns from 100×100 to 600×400 mm. Also supports corner wall installations for rooms where flat wall space is limited.
A practical choice for large living rooms, corner installs, or any setup where the screen needs to pull far from the wall to reach the optimal viewing angle.

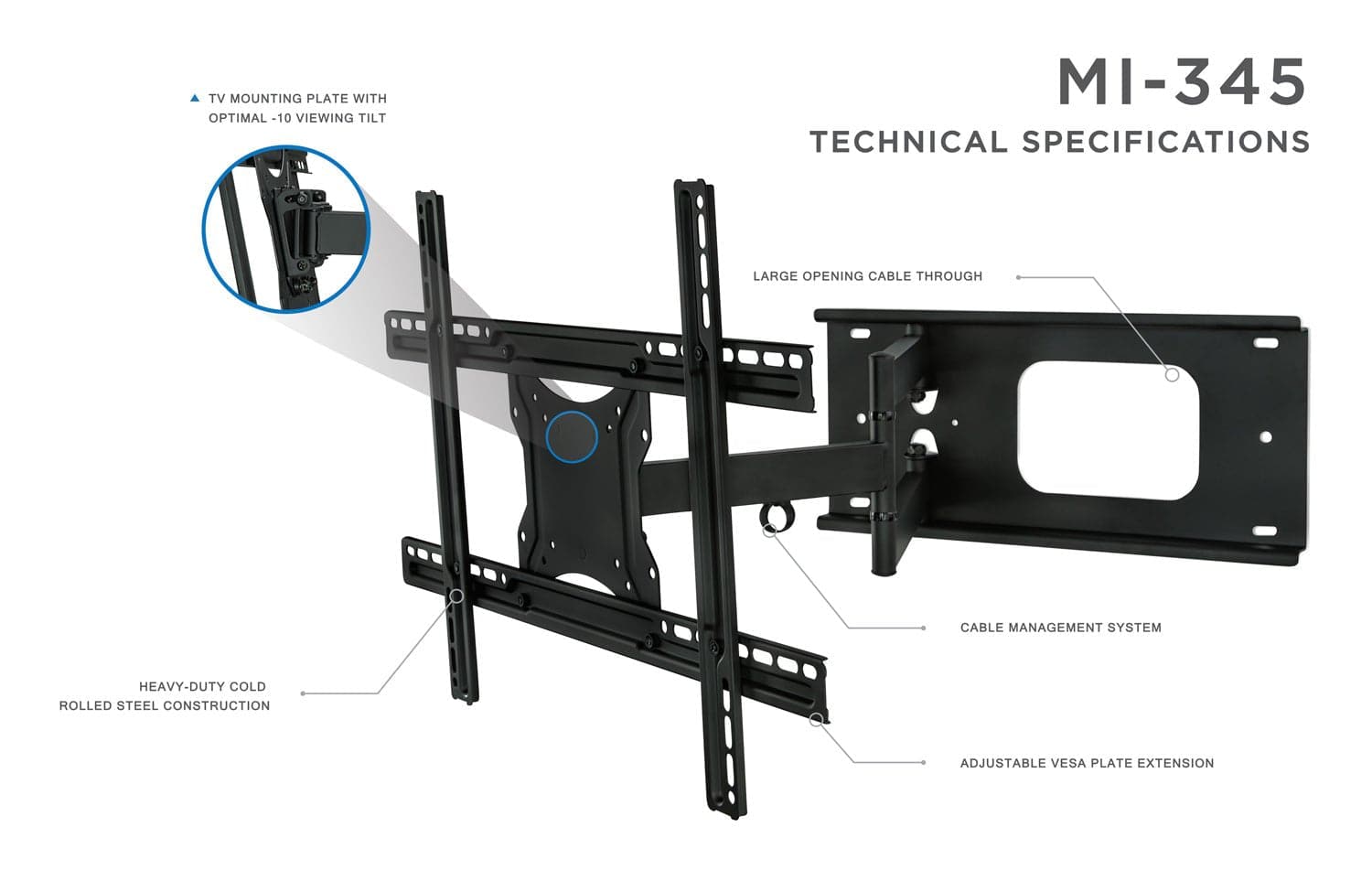

Specifications
- Product type: TV mount
- Mount type:Full motion (articulating)
- Product weight: 16.01 lb

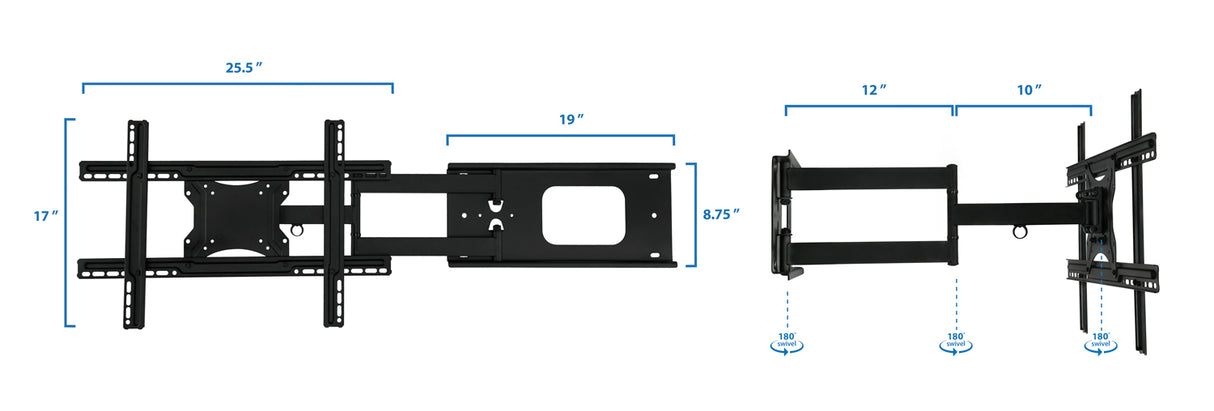

- Wall plate dimensions: 19.0×8.75 in
Holds screens
- Screen size range: 32 to 70 in
- VESA range: 100×100 to 600×400 mm
- Weight capacity: 100 lb
Movement
- Swivel: up to 180°
- Extension depth: 2.0 to 24.0 in
- Corner compatible: Yes
Installation
The Full Motion TV Wall Mount is designed for quick and frustration free installation.
Easy installation is typically done in about 30 minutes.
Estimated install time: 30 minutes
Stud installation type: Dual stud
Stud spacing supported: 16 inch stud spacing
Corner installations: Supported
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonary bits for concrete and brick)
- Power drill
- Stud finder
