Large Full Motion Ceiling TV Mount for 32" to 77" TVs

Full Motion Ceiling TV Mount

Articulating · Swivel, Tilt & Drop

$13799

An articulating full motion TV ceiling mount for 32 to 77-inch flat screen TVs, swivel and tilt the screen and drop it to exactly where you need it, rated up to 110 lb with VESA 200×200 to 600×400 mm.

Swivels 360.0° and tilts +8.0°/−18.0° to aim the screen at any seat and reduce glare.

Will it fit your TV? Save your TV and we’ll confirm fit.
Free Shipping to Contiguous US  |  Lifetime Warranty  |  60-day Risk Free Returns

Features

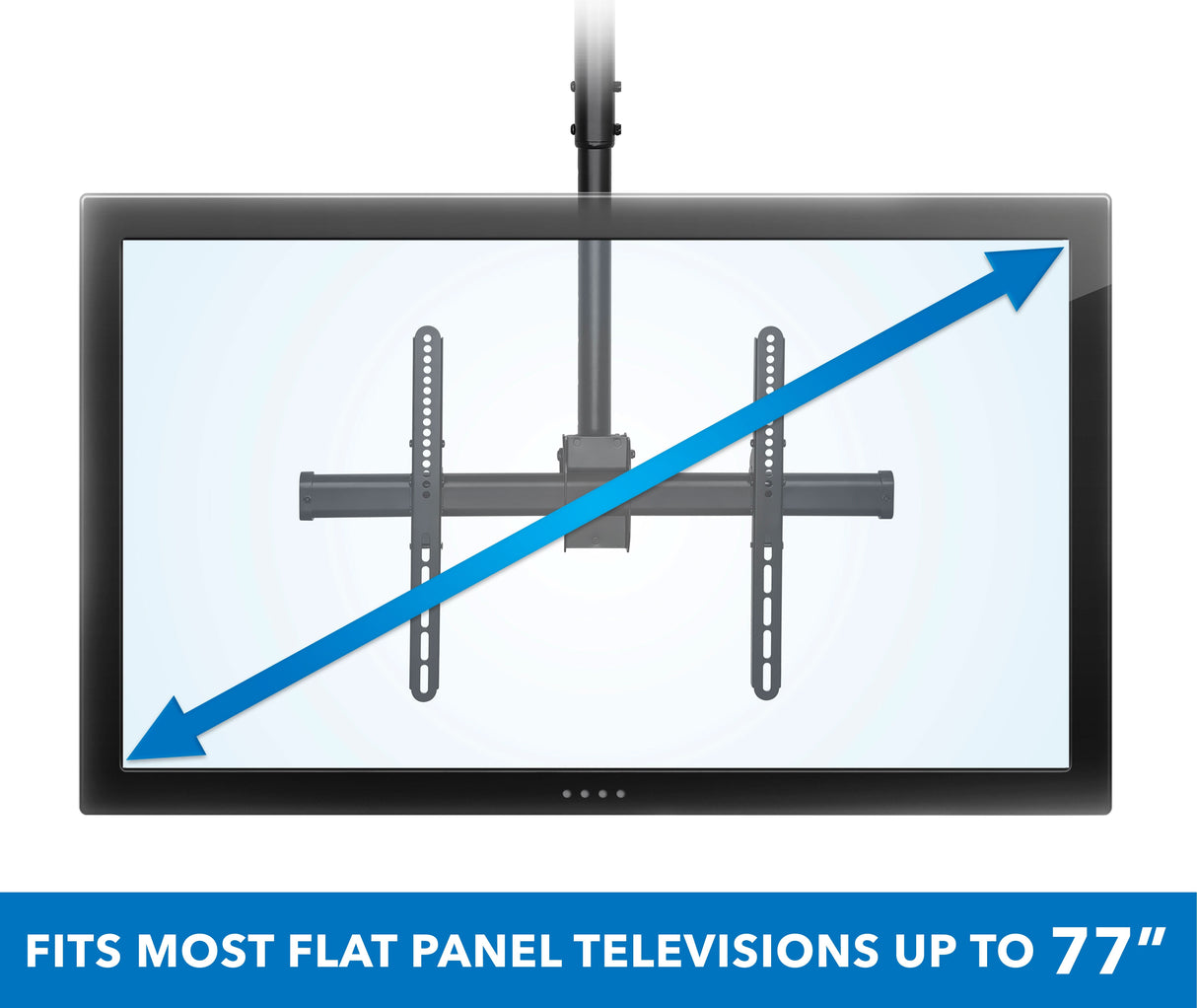

Fits 32 to 77 inch flat screen TVs

Weight rated up to 110 lb

Swivels 360.0° (180.0° left and 180.0° right), aim the screen at any seat

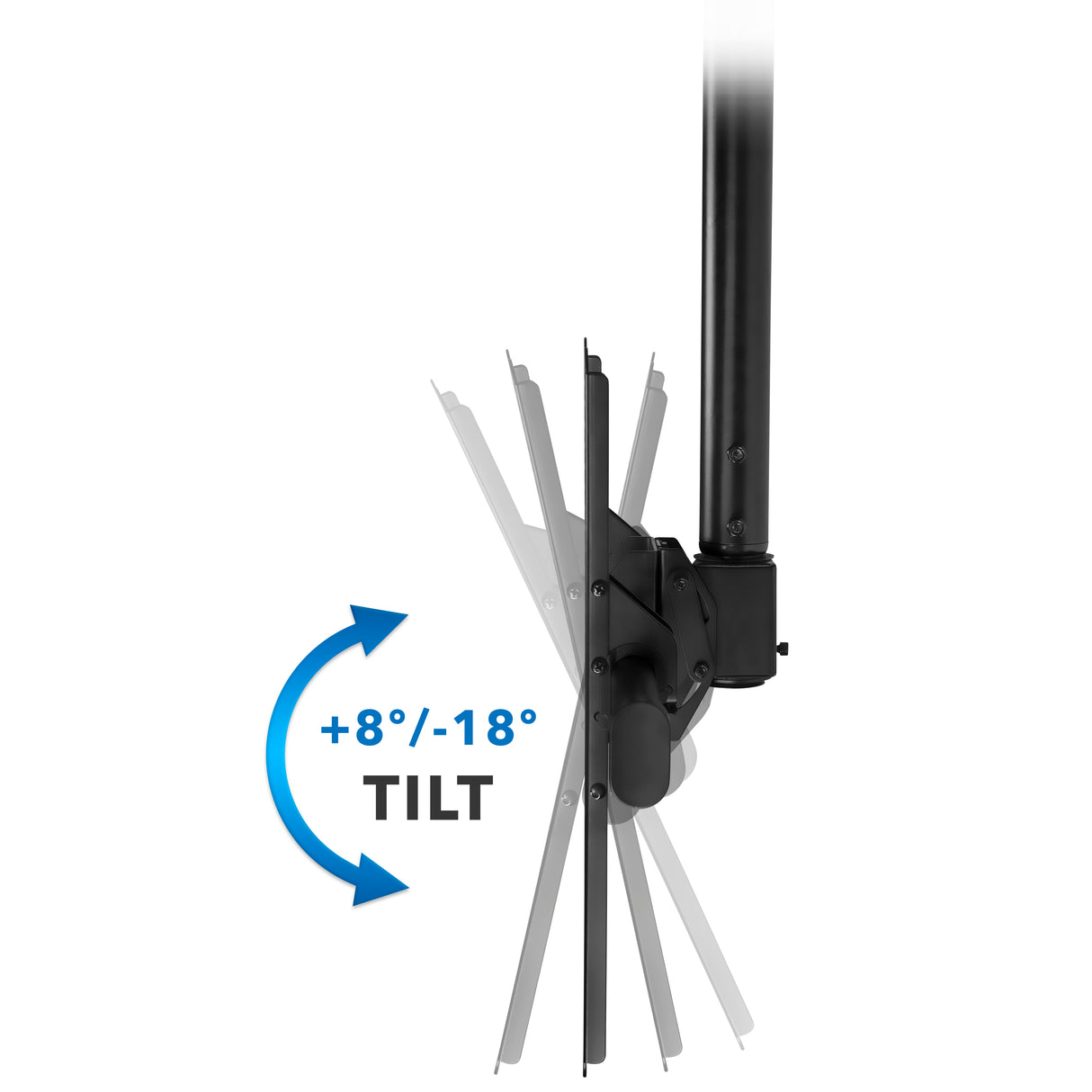

Adjustable tilt +8.0° up / −18.0° down - reduce glare, improve your view

Drops 96.5 to 118.1 in below the ceiling for adjustable viewing height

VESA 200×200 to 600×400 mm - fits most flat panel TV brands

Overview

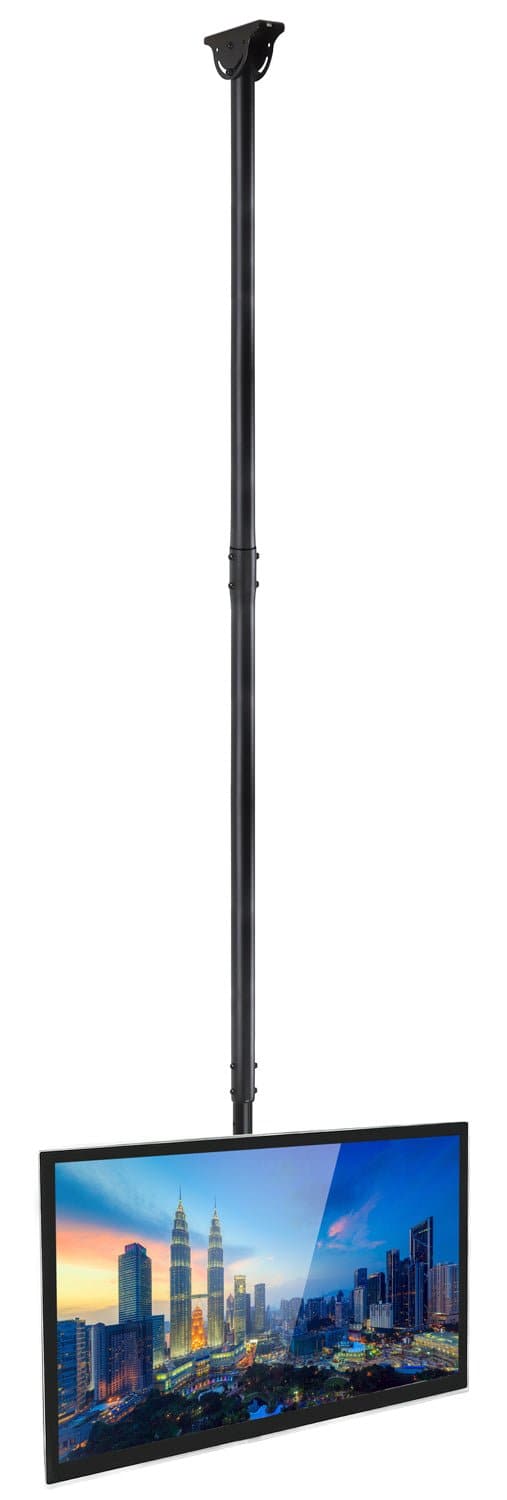

The Large Full Motion Ceiling TV Mount is a full motion (articulating) TV ceiling mount compatible with 32 to 77-inch televisions and rated to hold up to 110 lb. Designed for rooms where wall space is limited or the screen needs to drop from above. Works well in open-plan spaces, retail floors, commercial buildings and any space where the ceiling is the only fixed surface to mount from.

Swivels 360° (180° left and 180° right), tilt +8°/−18°, and drops 96.5 to 118.1 in below the ceiling. The drop column lowers the screen far enough below the ceiling to reach a comfortable viewing height.

Compatible with VESA mounting patterns from 200×200 to 600×400 mm.

A practical choice for retail floors, commercial installations, transportation hubs and other locations where the ceiling is the only available mounting surface and the screen needs to follow the viewer.

Specifications

  • SKU: MI-509XL
  • Product type: Ceiling TV Mount
  • Mount type: Full motion (articulating)
  • Product weight: 23.0 lb

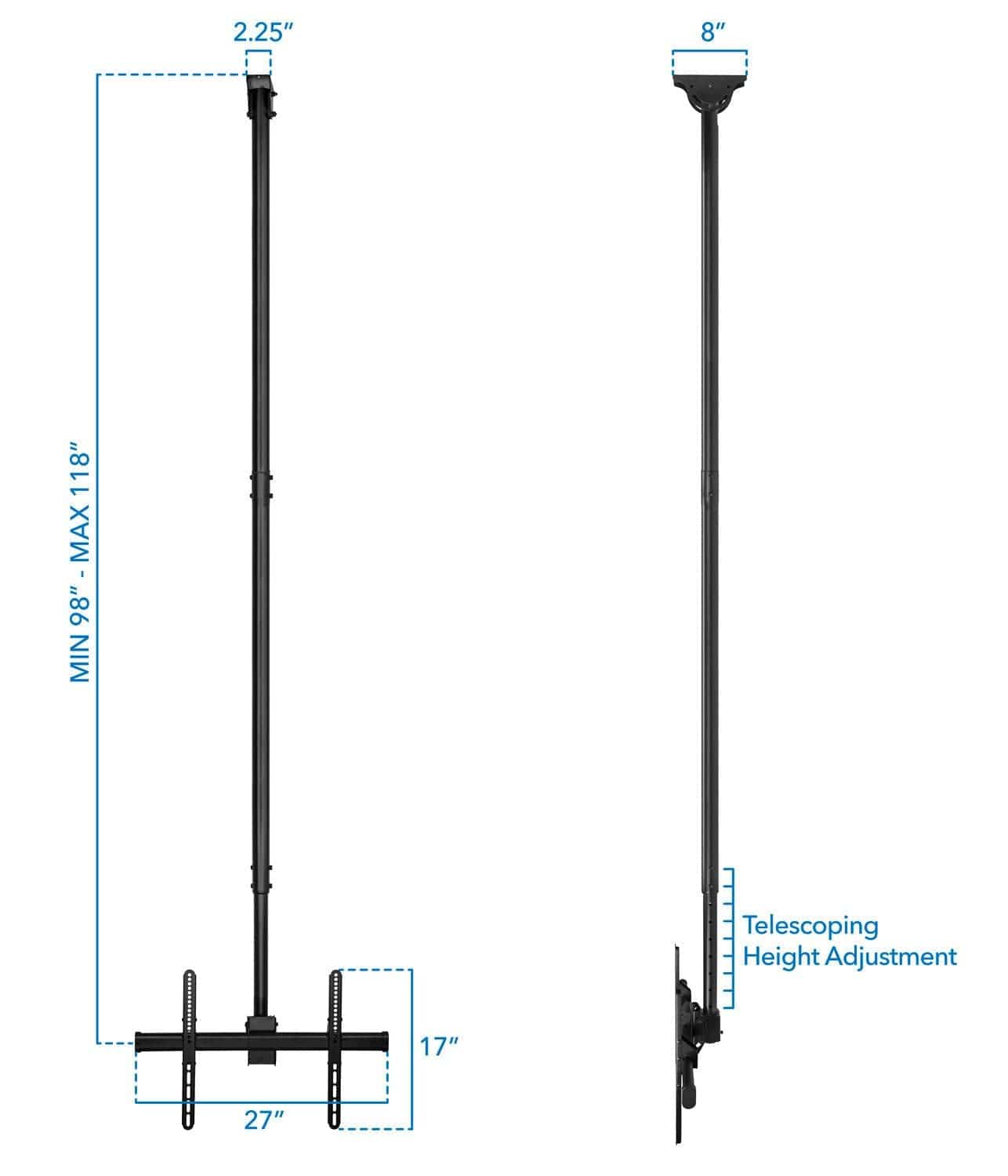

  • Ceiling plate dimensions: 2.25×8.0 in

Holds screens

  • Screen size range: 32 to 77 in
  • VESA range: 200×200 to 600×400 mm
  • Weight capacity: 110 lb

Movement

  • Swivel: 360° (180° left and 180° right)
  • Tilt:+8°and−18°
  • Drop range: 96.5 to 118.1 in
  • Corner compatible: Yes

Installation

The Large Full Motion Ceiling TV Mount is designed for quick and frustration free installation.

Installation is typically completed in about 45 minutes.

Estimated install time: 45 minutes

Stud installation type: Single stud

Corner installations: Supported

Safely install on these types of surfaces:

  • Truss
  • Steel I-beam
  • Exposed wood beam
  • Drop ceiling (T-bar, requires structural anchor above)
  • Concrete ceiling (poured slab)
  • Metal/steel ceiling joist
  • Wood ceiling joist

Tools you'll typically need:

  • Screwdrivers or socket wrench
  • Measuring tape
  • Level
  • Drill bits (wood bits for studs or masonry bits for concrete and brick)
  • Power drill
  • Stud finder

Manuals & Downloads

PDF Product Manual PDF · Installation guide

Customer reviews

1 verified review from people who bought this product.

5.0 out of 5
1 verified review 100% would recommend

  1. Best ceiling mount on the market

    Anonymous Verified buyer

    This is the best mount i have purchased shipped quick and holds a 70 in tv above our fireplace very easy to install.

Bought this product?

Tell other customers how it worked out — it takes a minute.

Write a review
Black TV Mount - Large Full Motion Ceiling TV Mount - Mount-It! - MI-509XL

Large Full Motion Ceiling TV Mount

(1)
$13799

Color

Overview

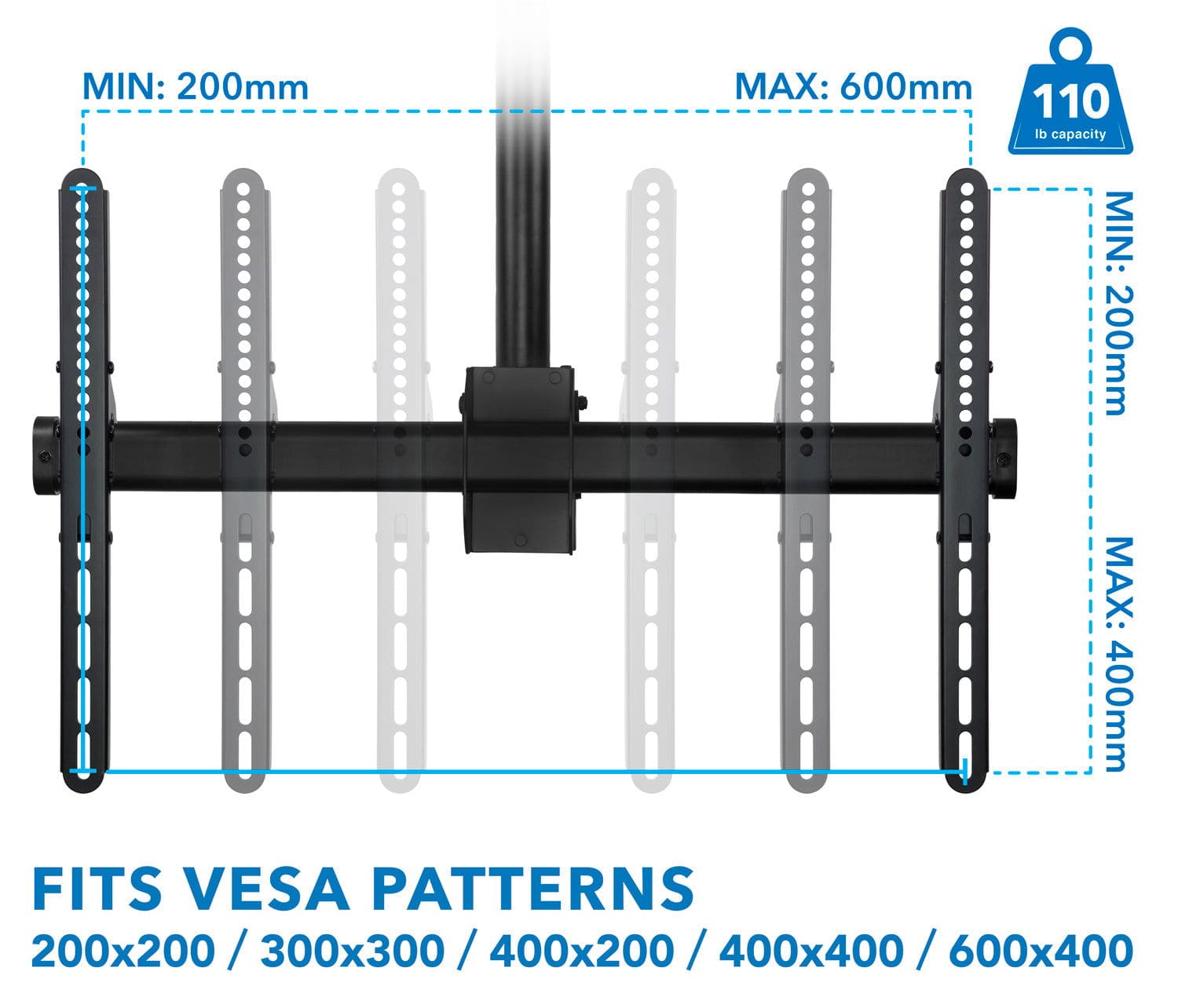

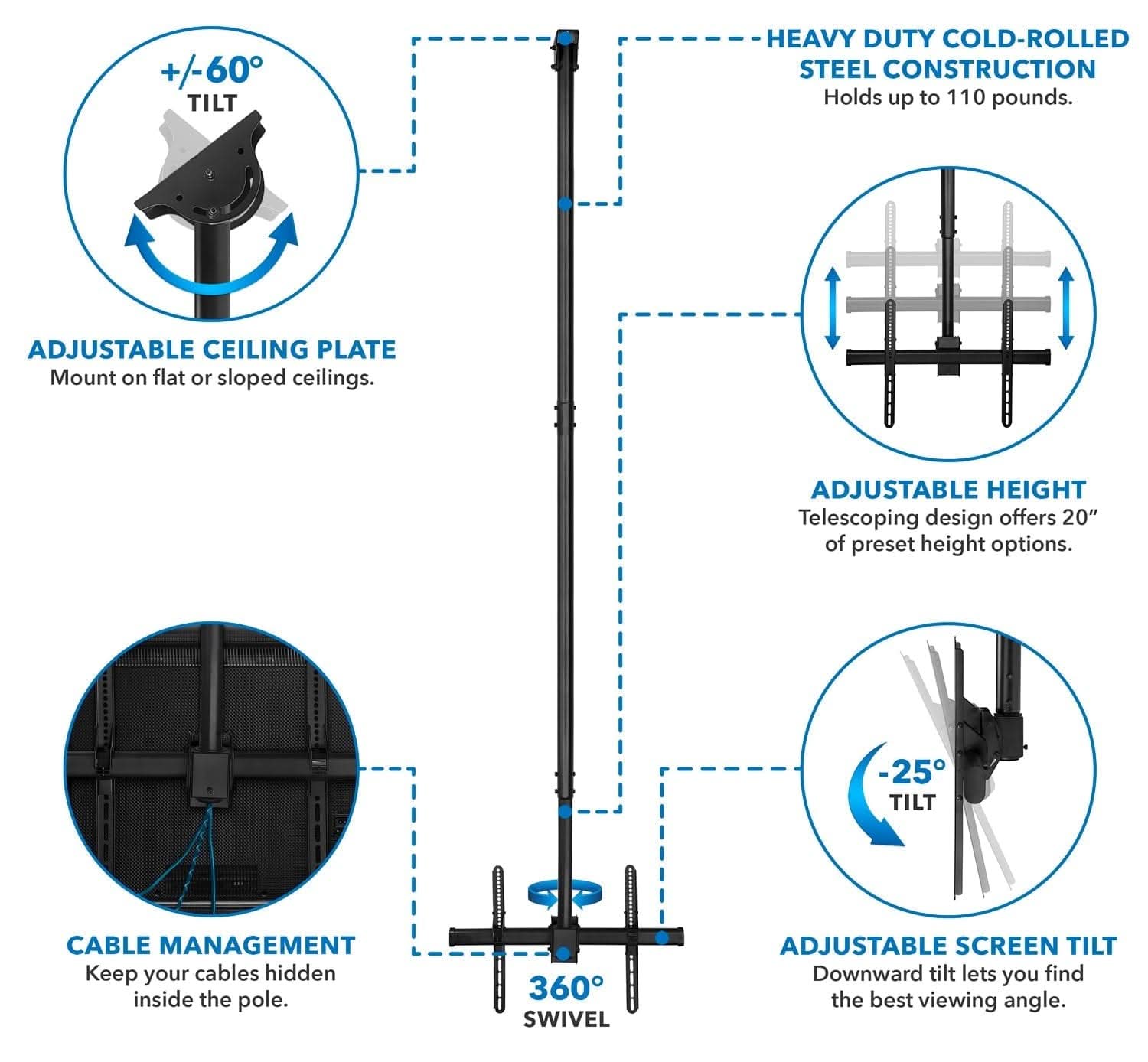

This mount is made from high-quality alloy steel that can maintain and support up to 110 lbs. and screens as large as 77 inches. The VESA bracket is nearly universal, covering 200x200, 300x300 400x200, 400x400, 600x400 mm configurations. Simply slide the VESA arms along the plate to adjust. The universal compatibility ensures that this enduring design will last throughout multiple screen upgrades or replacements so you will not ever have to buy another mount. This package comes with all the hardware and instructions that you need to get set up.

Description

  • MI-509XL can support up to 110 lbs., most screens up to 77", and is compatible with VESA patterns between 200mm x 200mm and 600mm x 400mm
  • This premium ceiling TV mount can be mounted to flat or slanted ceilings
  • Height adjustable (96.5" to 118.1"), tilts +8/-18 degrees, 360 degree full rotation/swivel, and up to 60 degrees of swivel at the base
  • Ideal for use in bars, theaters, businesses, schools, hospitals, lobbies, hotels, manufacturing plants, production lines, and many other environments

Specifications

  • Compatibility: Most 32" to 77" screens, VESA patterns from 200mm x 200mm to 600mm x 400mm, and up to 110 lbs.
  • Movement: 360 degree rotation, +8°/-18° degree tilt and height adjustment from 96.5" to 118.1"
  • Base Angle: Up to +/-60 Degrees (base angle fixable at 90 degrees)
  • Color: Black
