Mount-It! Full Motion Dual Arm TV Wall Mount for 32" to 55" TVs | MI-3990
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
An articulating full motion TV wall mount for 32 to 55-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 88 lb with VESA 200×200 to 400×400 mm.
Swivels 120.0°, tilts +5.0°/−15.0°, and extends 2.1–19.0 inches. Aim the screen at any seat and reach the right depth.
Features
Fits 32 to 55 inch flat screen TVs
Weight rated up to 88 lb
Swivels 60.0° left and right — aim the screen at any seat
Adjustable tilt +5.0° up / −15.0° down - reduce glare, improve your view

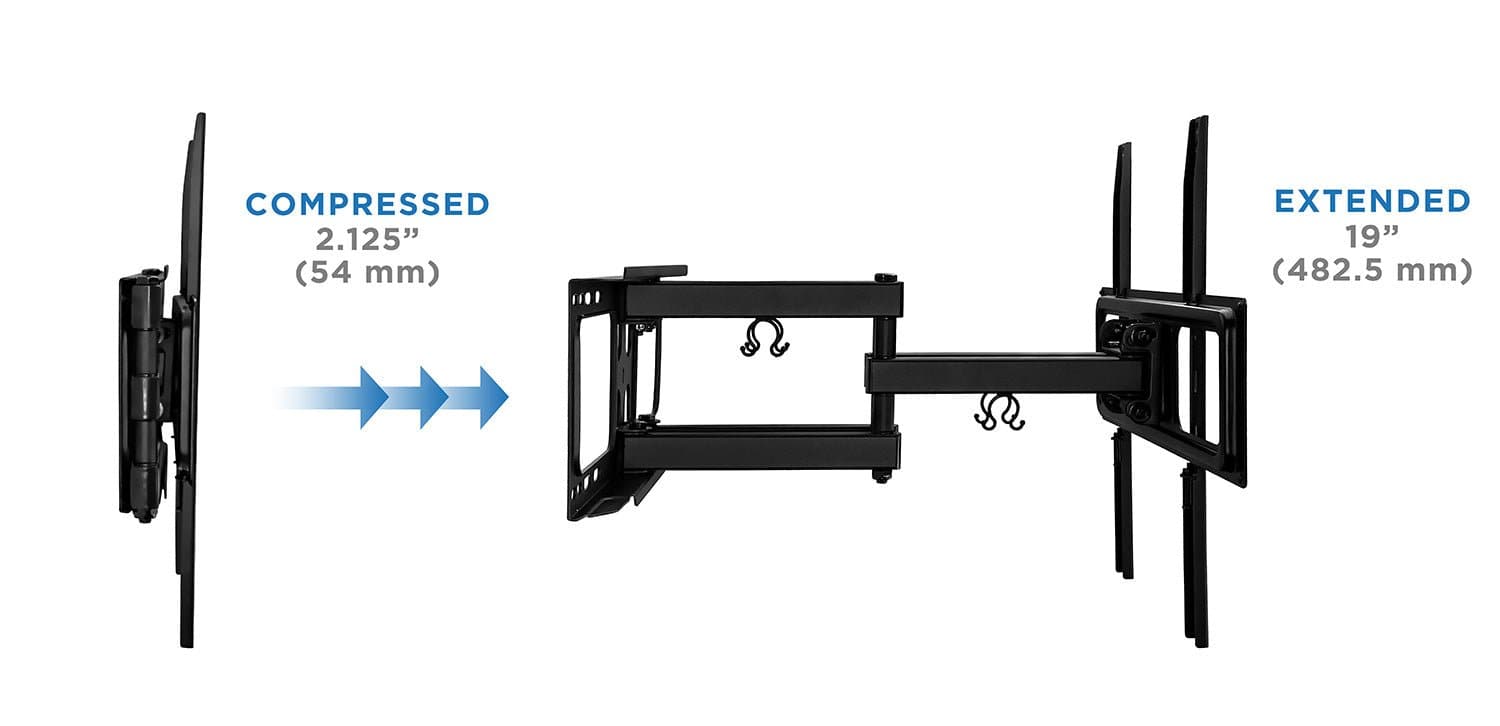

Extends 2.1–19.0 in from the wall for flexible positioning
VESA 200×200 to 400×400 mm - fits most flat panel TV brands
Overview

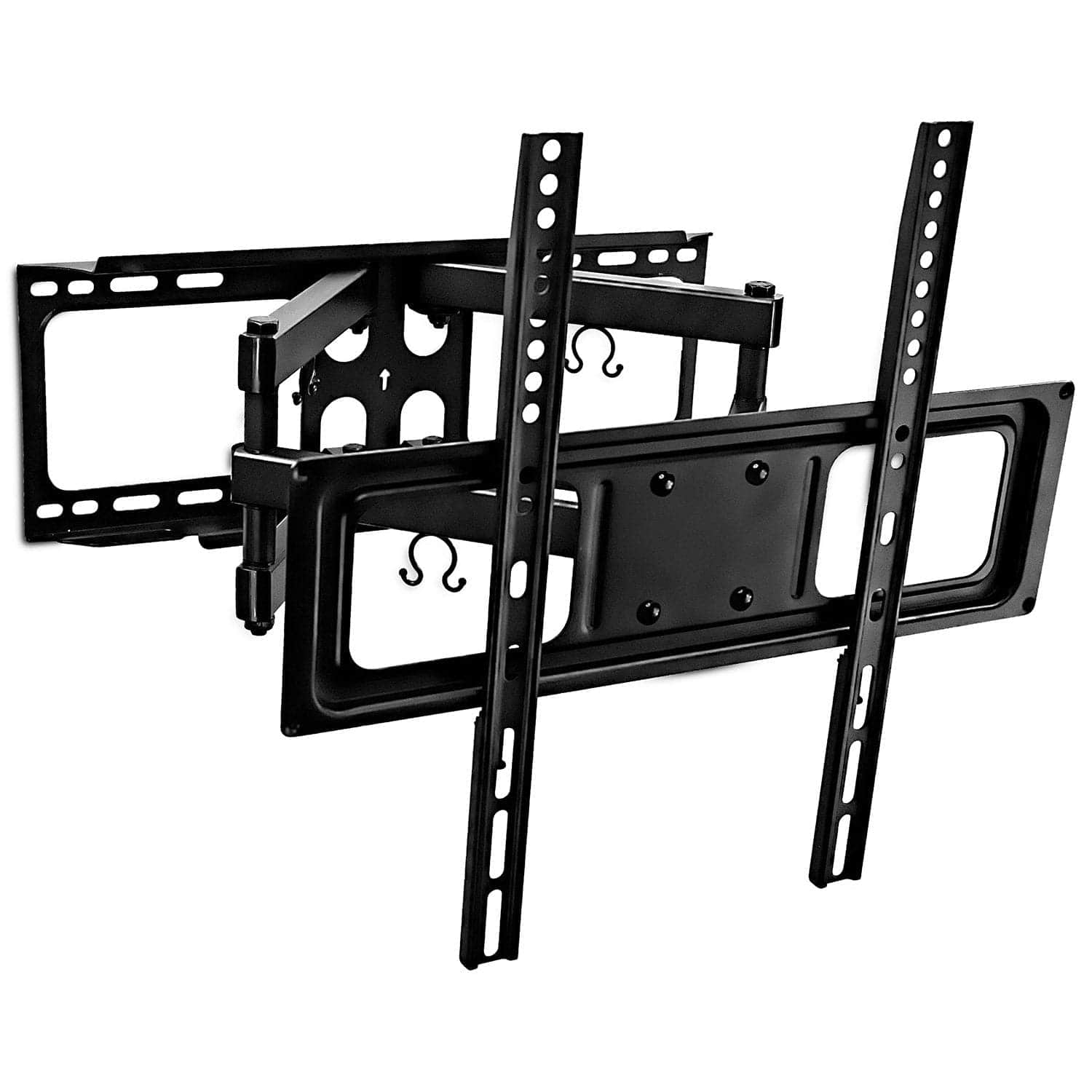

The Full Motion Dual Arm TV Wall Mount is a full motion (articulating) TV wall mount compatible with 32 to 55-inch televisions and rated to hold up to 88 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.
Swivels 60° left and right, tilt +5°/−15°, and extends 2.1 to 19.0 in from the wall. The long extension arm pulls the screen far enough from the wall to swing past furniture, fireplace surrounds, or room corners without obstruction.

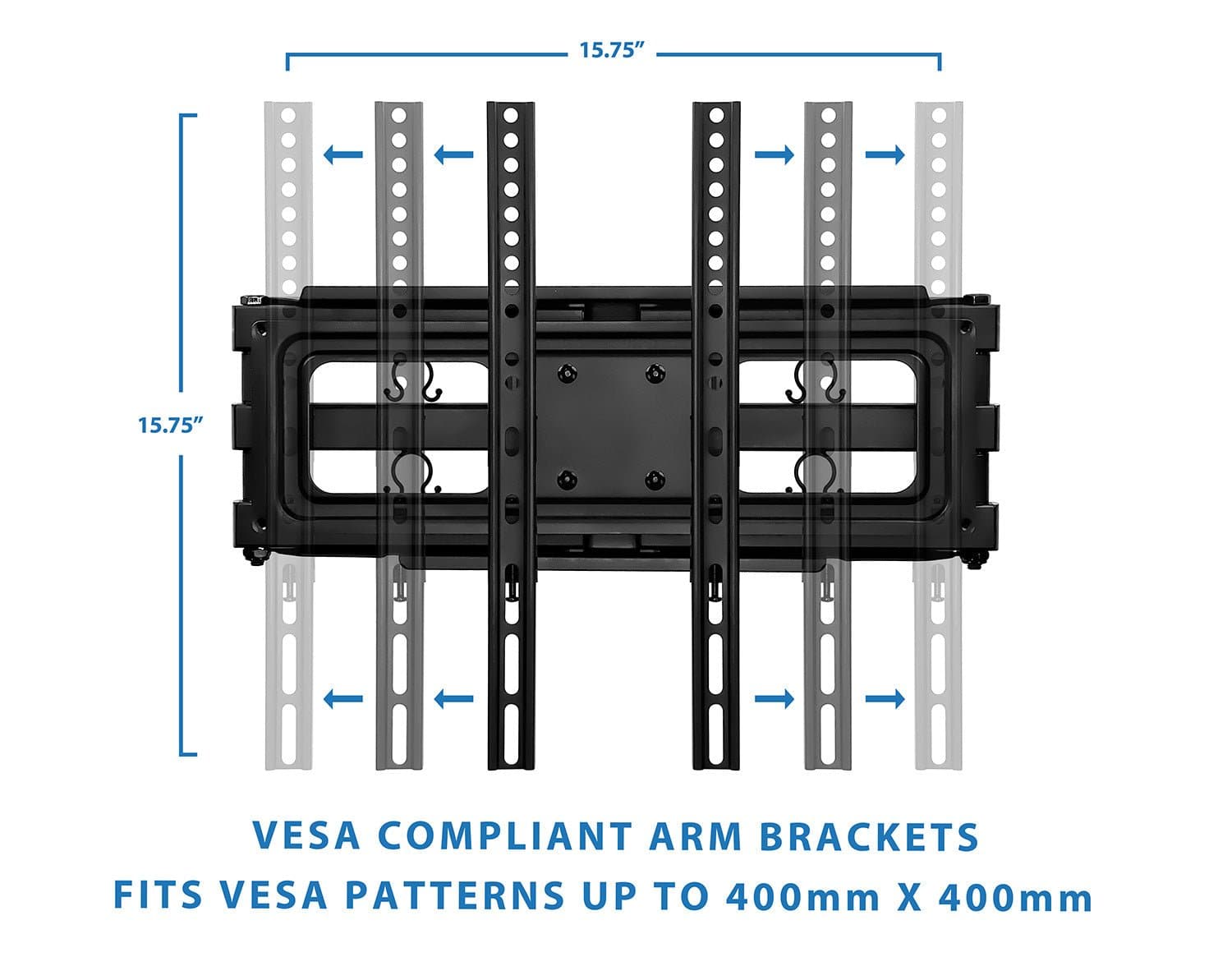

Compatible with VESA mounting patterns from 200×200 to 400×400 mm.
A practical choice for large living rooms or any setup where the optimal viewing position isn't directly in front of the wall.

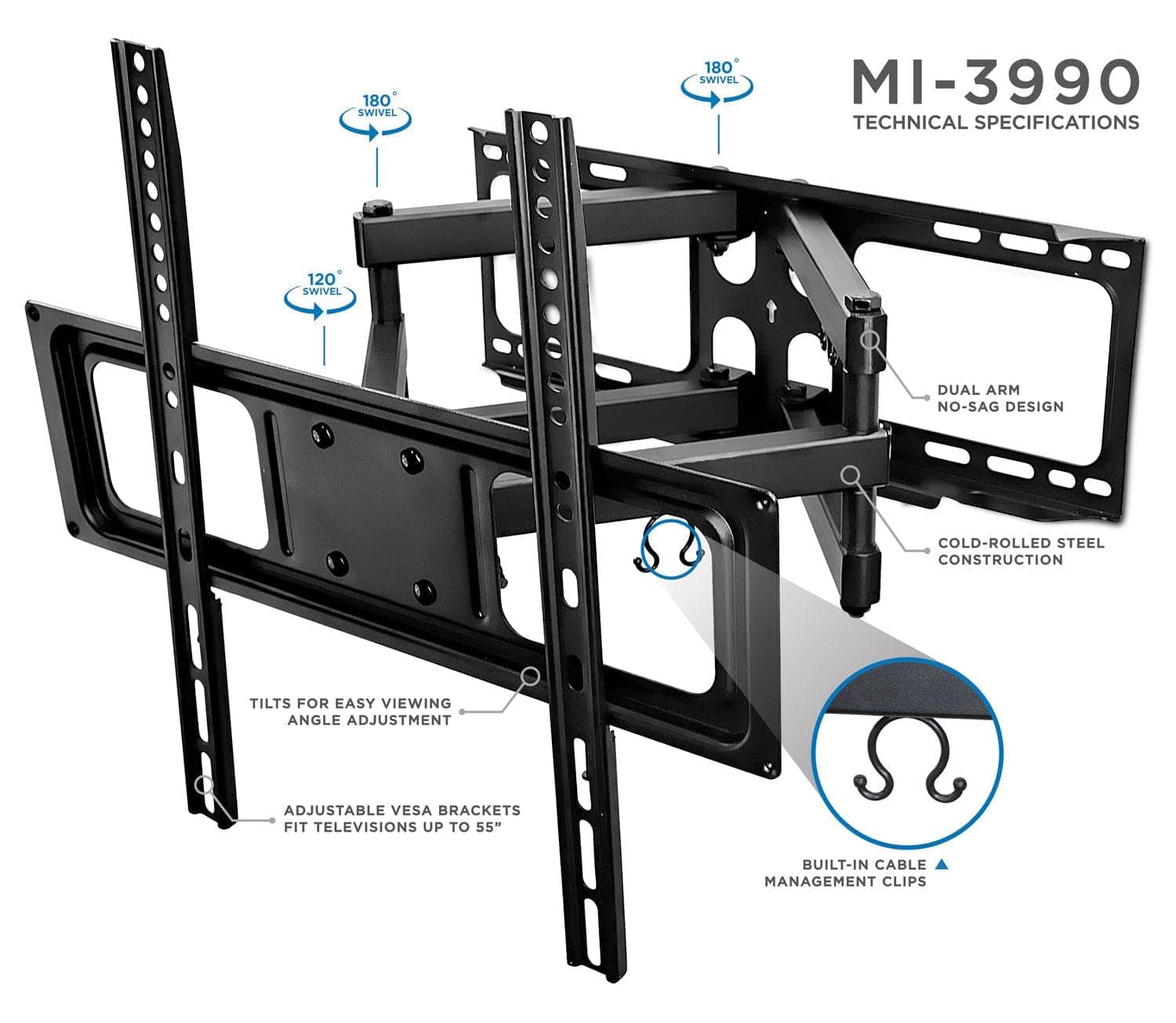

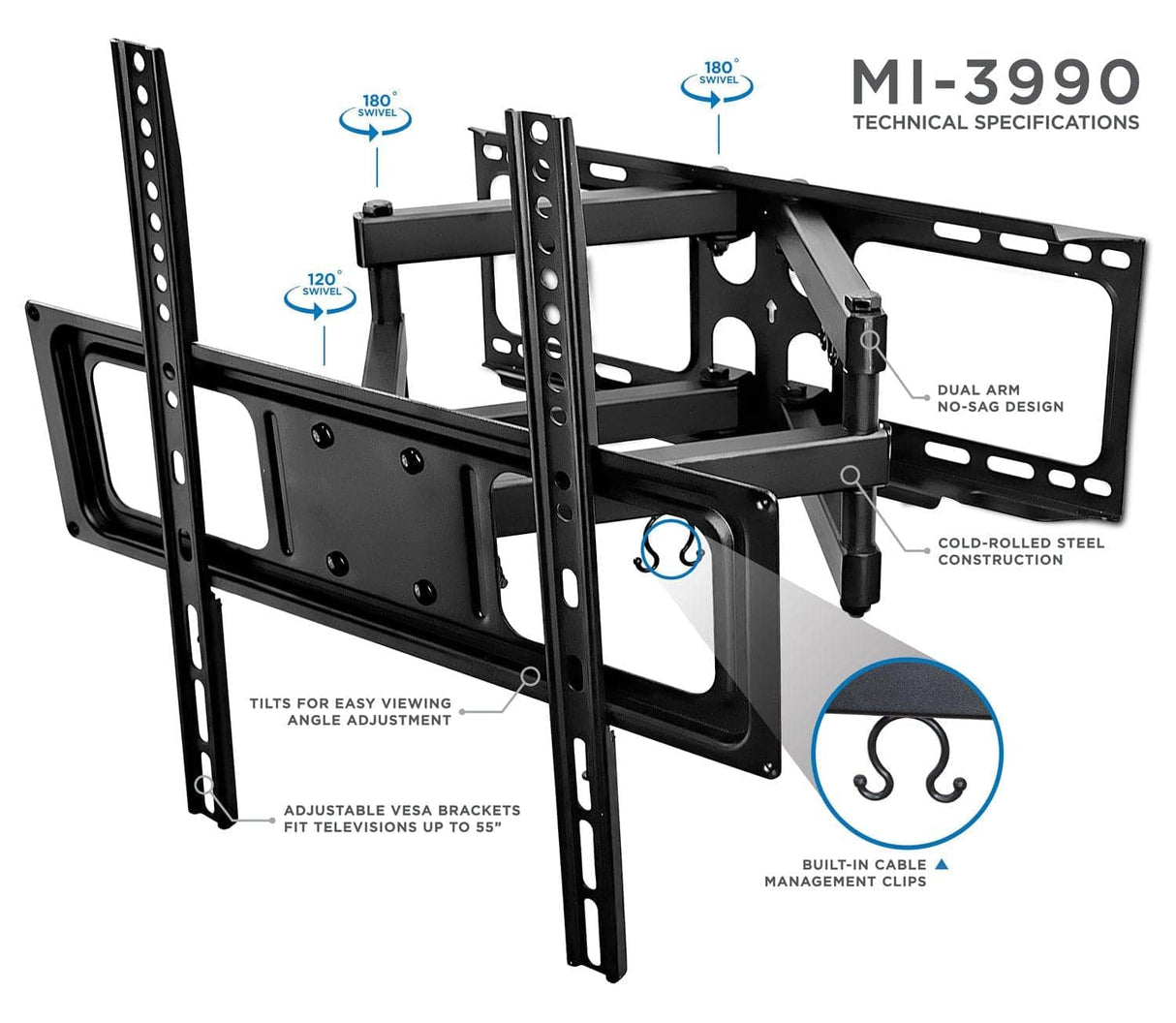

Specifications
- Product type: TV mount
- Mount type:Full motion (articulating)
- Product weight: 11.21 lb

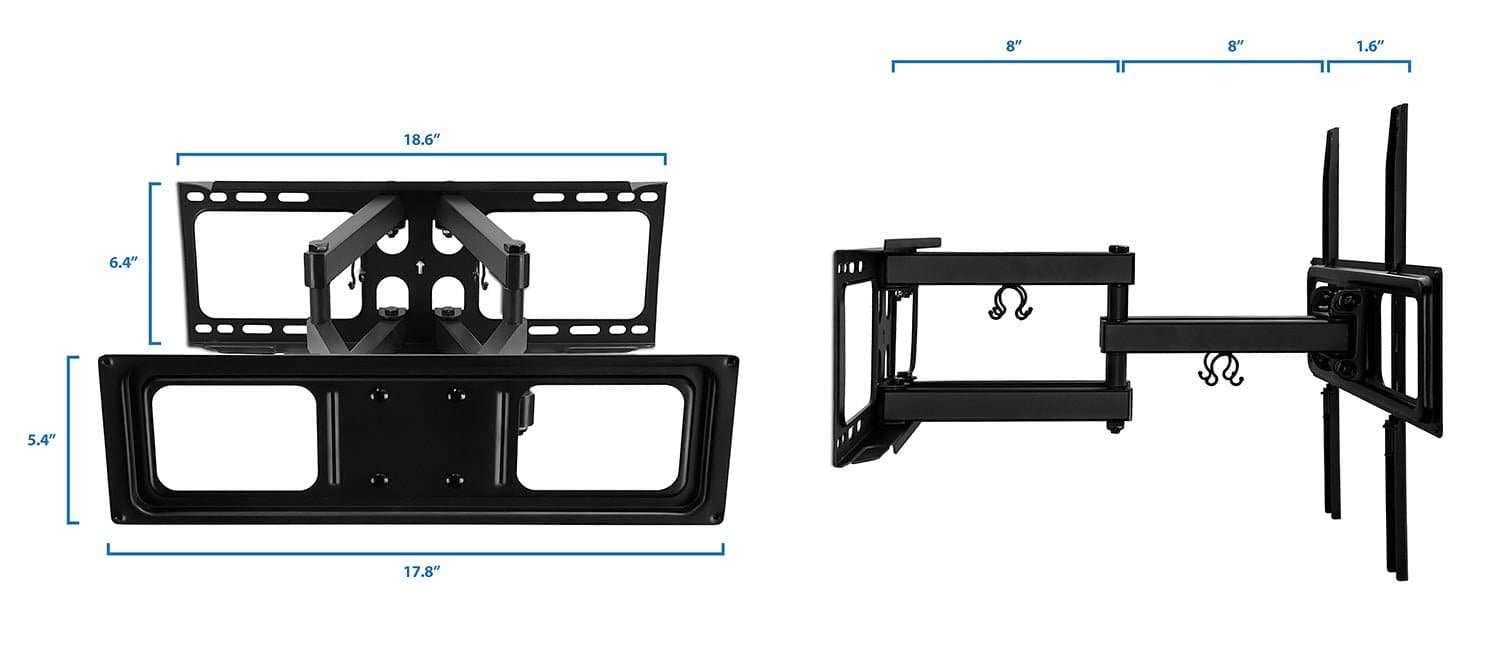

- Wall plate dimensions: 18.6×6.4 in
Holds screens
- Screen size range: 32 to 55 in
- VESA range: 200×200 to 400×400 mm
- Weight capacity: 88 lb
Movement
- Swivel: up to 120°
- Tilt:+5°and−15°
- Extension depth: 2.1 to 19.0 in
Installation
The Full Motion Dual Arm TV Wall Mount is designed for quick and frustration free installation.
Easy installation is typically done in about 30 minutes.
Estimated install time: 30 minutes
Stud installation type: Dual stud
Stud spacing supported: 16 inch stud spacing
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonary bits for concrete and brick)
- Power drill
- Stud finder
