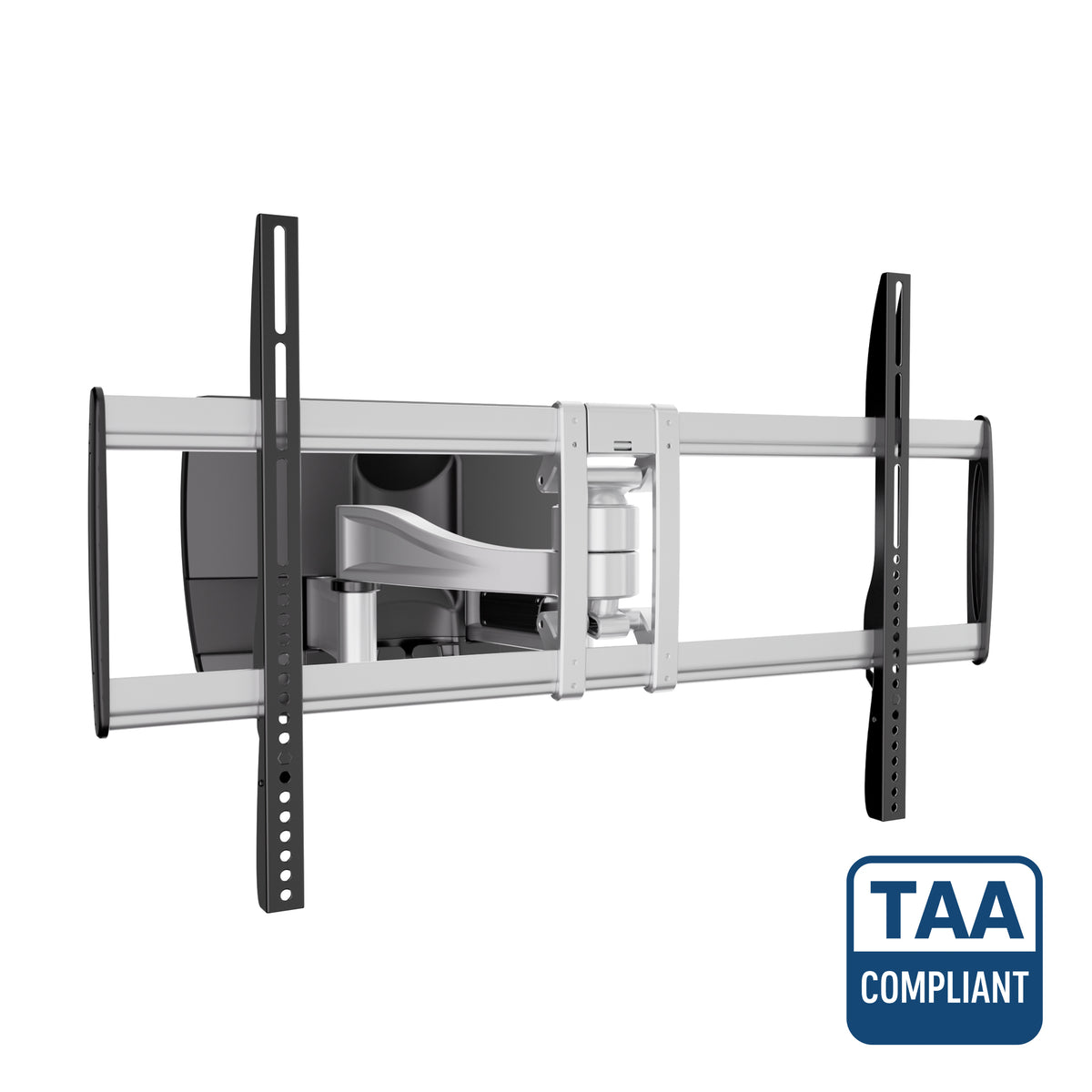

TAA-Compliant Heavy-Duty Full-Motion TV Wall Mount
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
An articulating full motion TV wall mount for 50 to 86-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 187 lb with VESA 200×200 to 800×500 mm.
Swivels 120.0°, tilts +15.0°/−15.0°, and extends 4.1 to 21.65 inches. Aim the screen at any seat and reach the right depth.
TAA-Compliant Heavy-Duty Full-Motion TV Wall Mount
Features
Fits 50 to 86 inch flat screen TVs
Weight rated up to 187 lb

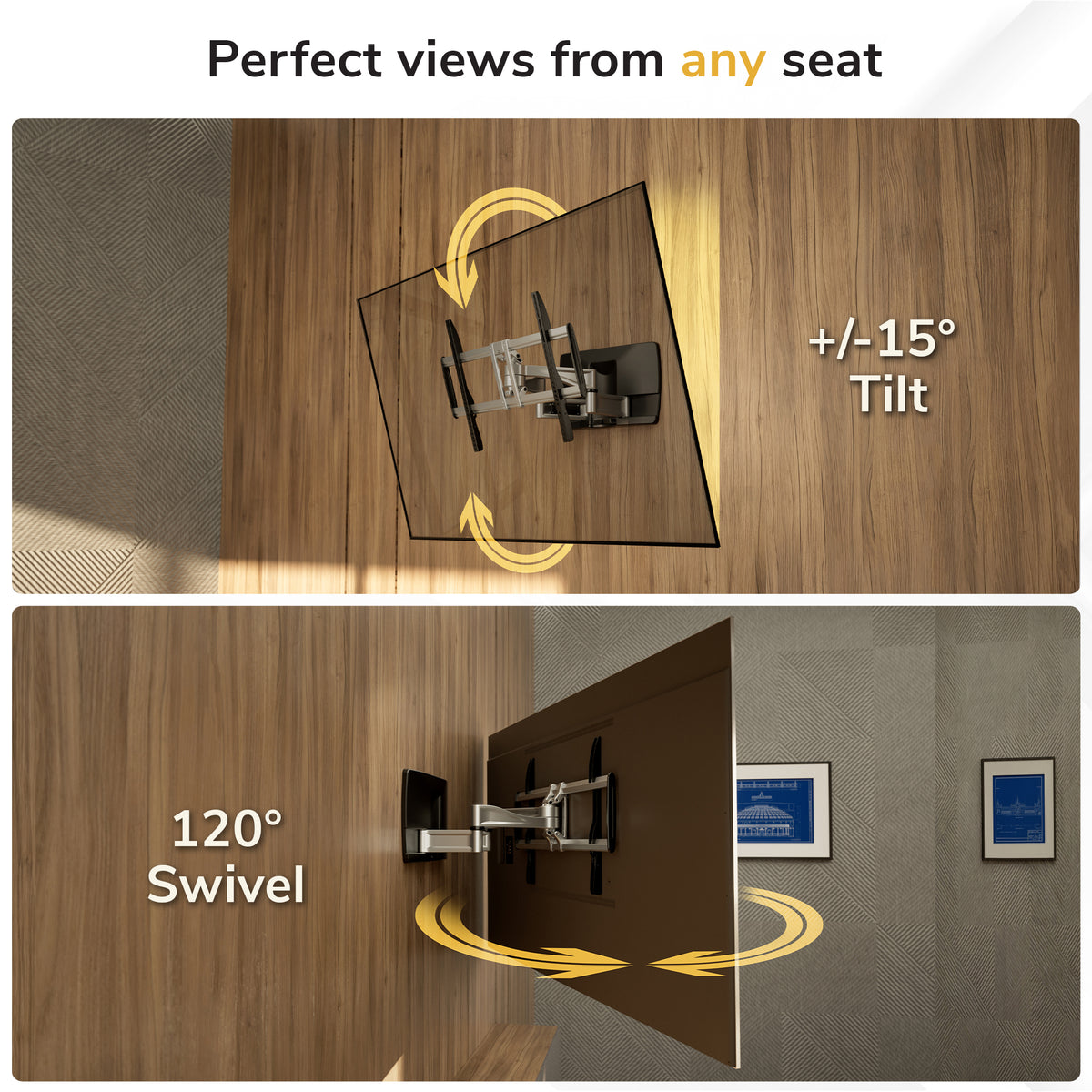

Swivels 120.0° (60.0° left and 60.0° right), aim the screen at any seat
Adjustable tilt +15.0° up / −15.0° down - reduce glare, improve your view

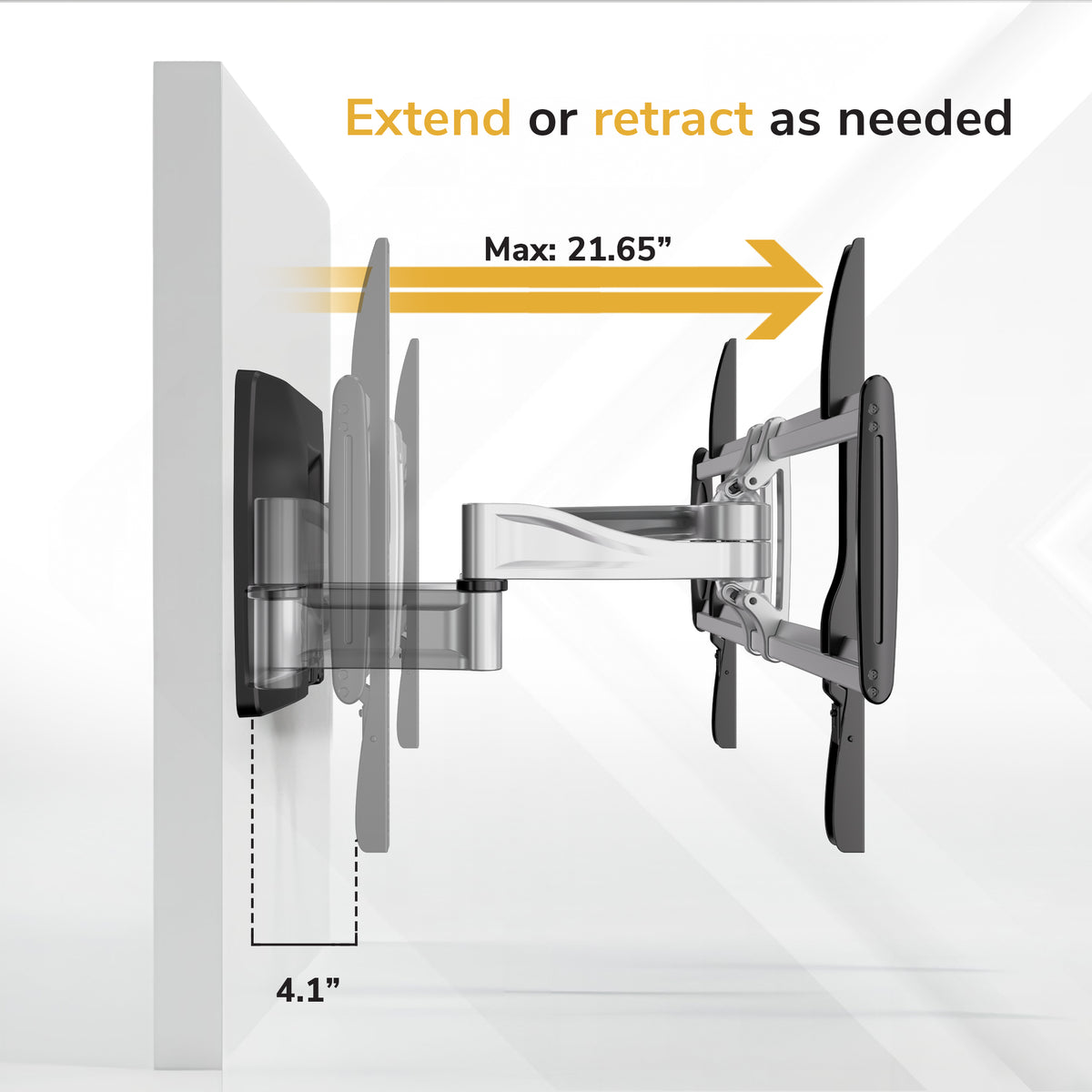

Extends 4.1 to 21.65 in from the wall for flexible positioning
VESA 200×200 to 800×500 mm - fits most flat panel TV brands
Overview

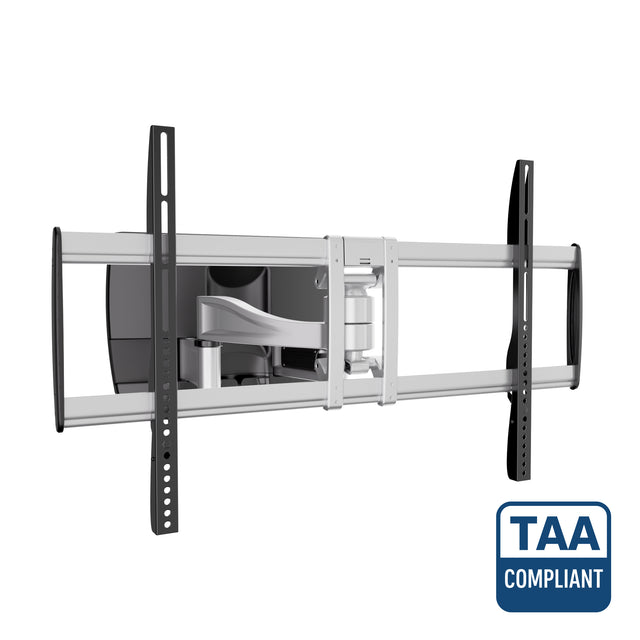

The TAA-Compliant Heavy-Duty Full-Motion TV Wall Mount is a full motion (articulating) TV wall mount compatible with 50 to 86-inch televisions and rated to hold up to 187 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.
Swivels 120° (60° left and 60° right), tilt +15°/−15°, and extends 4.1 to 21.65 in from the wall. The long extension arm pulls the screen away from the wall far enough to clear furniture, fireplace surrounds, or room corners.
Compatible with VESA mounting patterns from 200×200 to 800×500 mm.
A practical choice for large living rooms or any setup where the screen needs to pull far from the wall to reach the optimal viewing angle.
Ideally used for
Specifications
- SKU: MI-20216
- Product type: Wall TV Mount
- Mount type: Full motion (articulating)
- Product weight: 34.5 lb

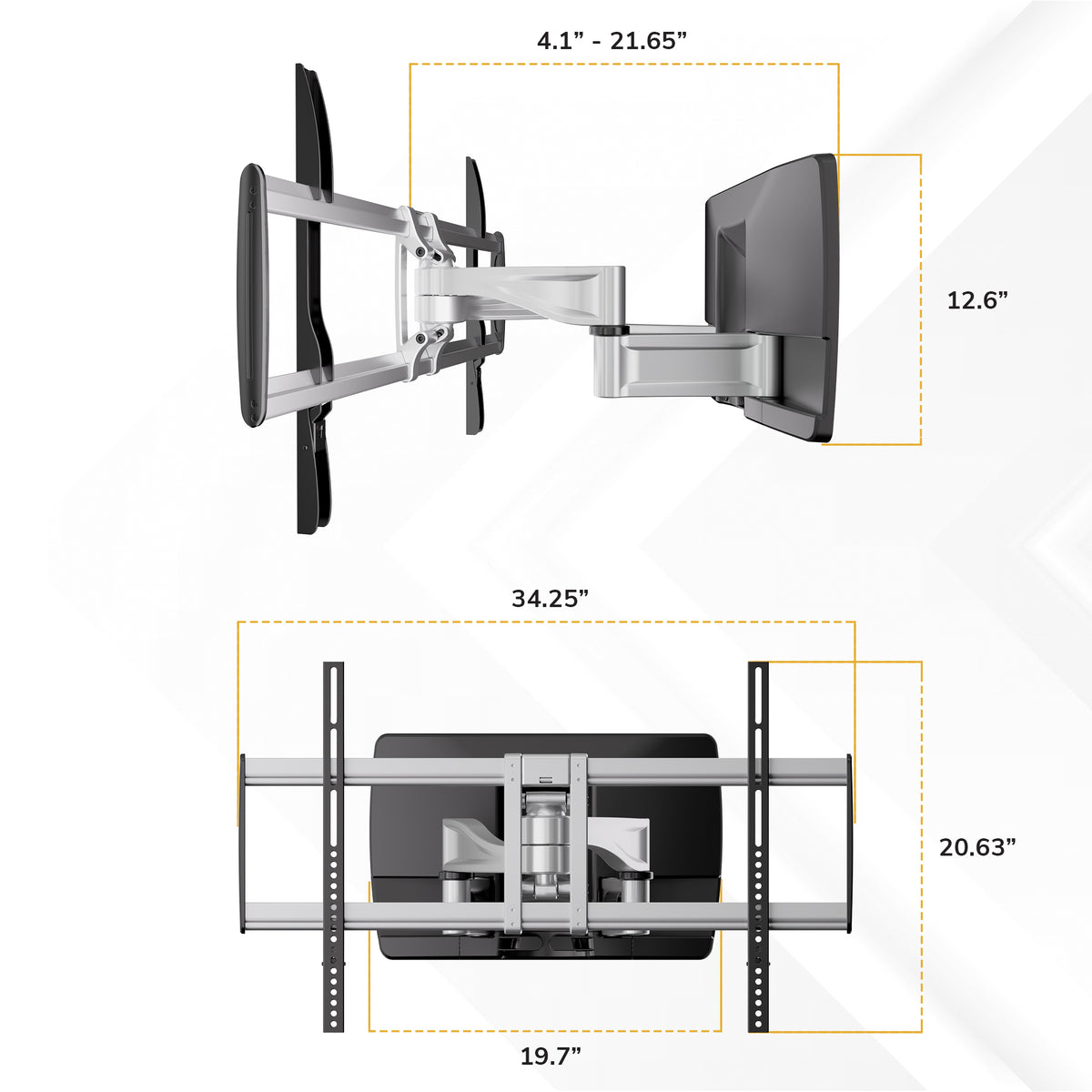

- Wall plate dimensions: 34.25×12.6 in
Holds screens
- Screen size range: 50 to 86 in

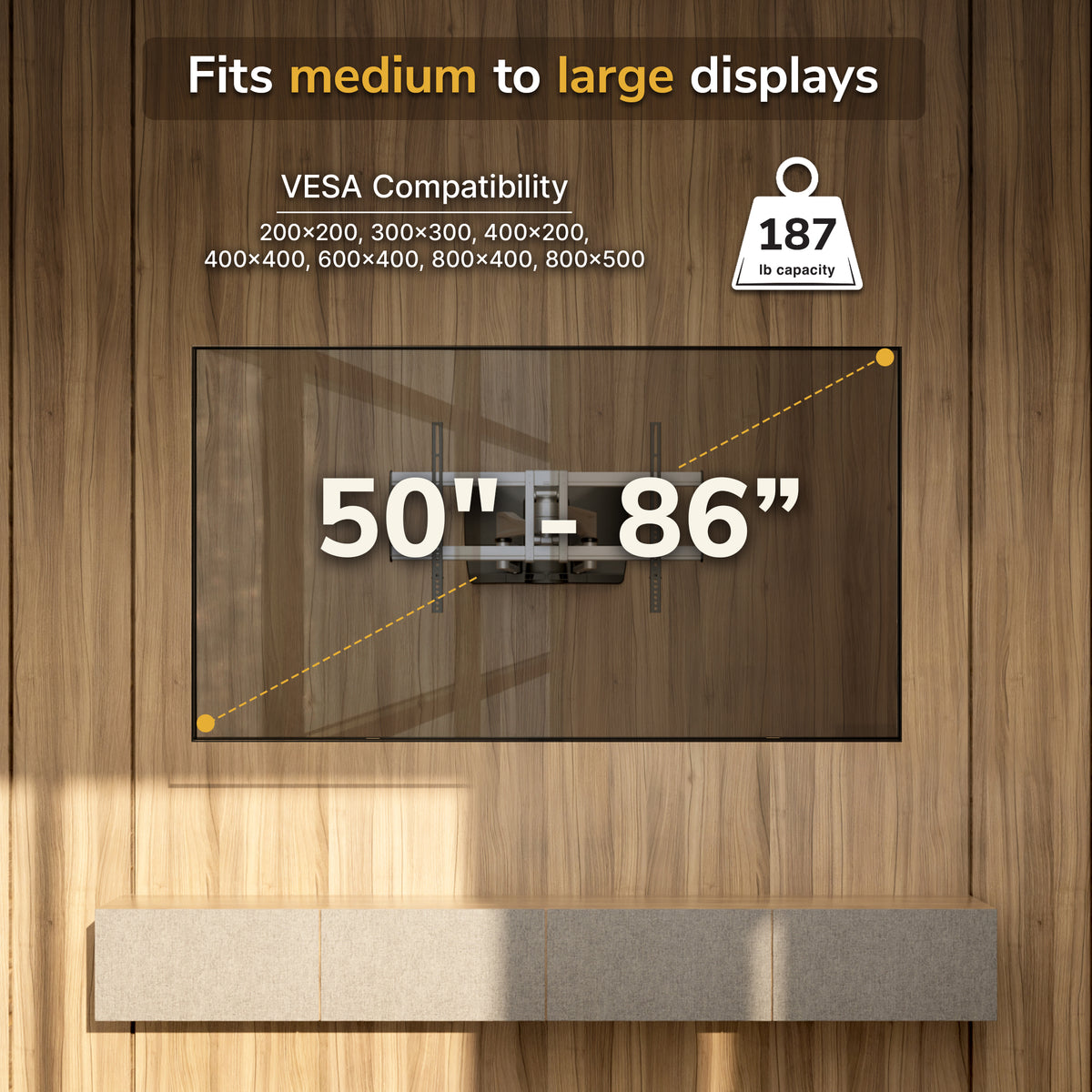

- VESA range: 200×200 to 800×500 mm
- Weight capacity: 187 lb
Movement
- Swivel: 120° (60° left and 60° right)
- Tilt:+15°and−15°
- Extension depth: 4.1 to 21.65 in
Installation
The TAA-Compliant Heavy-Duty Full-Motion TV Wall Mount is designed for quick and frustration free installation.
Installation is typically completed in about 45 minutes.
Estimated install time: 45 minutes

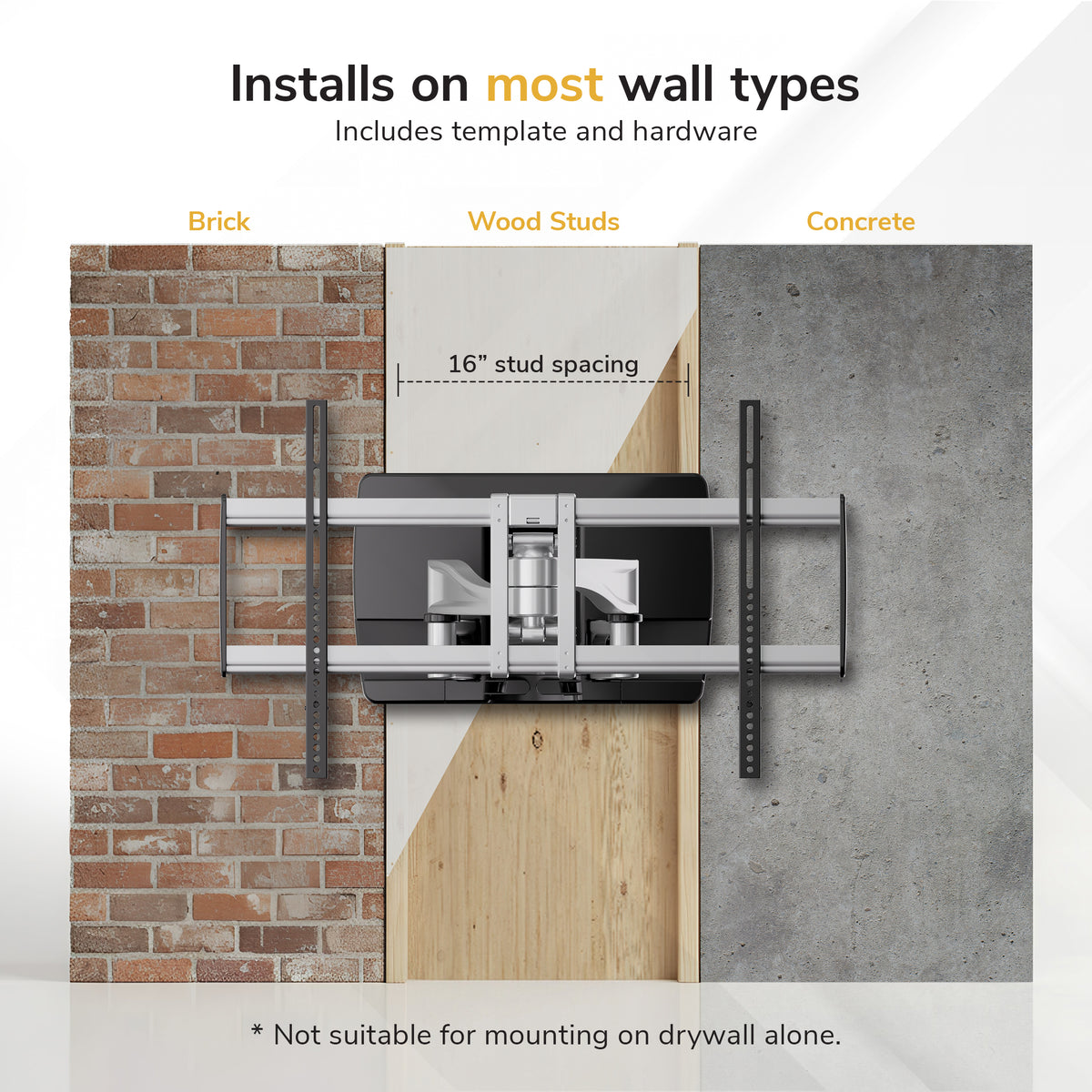

Safely install on these types of surfaces:
- Wood studs (drywall over studs)
- Metal studs (drywall over metal studs)
- Concrete (poured concrete)
- Concrete block (CMU/cinder block)
- Brick (solid brick)
- Brick veneer
- Solid wood wall (planks, beams, timber)
- Tile over masonry (tile on concrete or block)
- Tile over studs (tile on backer board over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
