Triple TV Display Ceiling Mount for 32" to 65" TVs
Tilting Ceiling TV Mount
Low Profile · Adjustable Viewing Angle
A tilting TV ceiling mount for 32 to 65-inch flat screen TVs that drops from the ceiling and lets you angle the screen for the best view, rated (up to 198 lb with VESA 200×200 to 600×400 mm).
Tilt −15.0° to eliminate glare and get the right viewing angle from your seat.

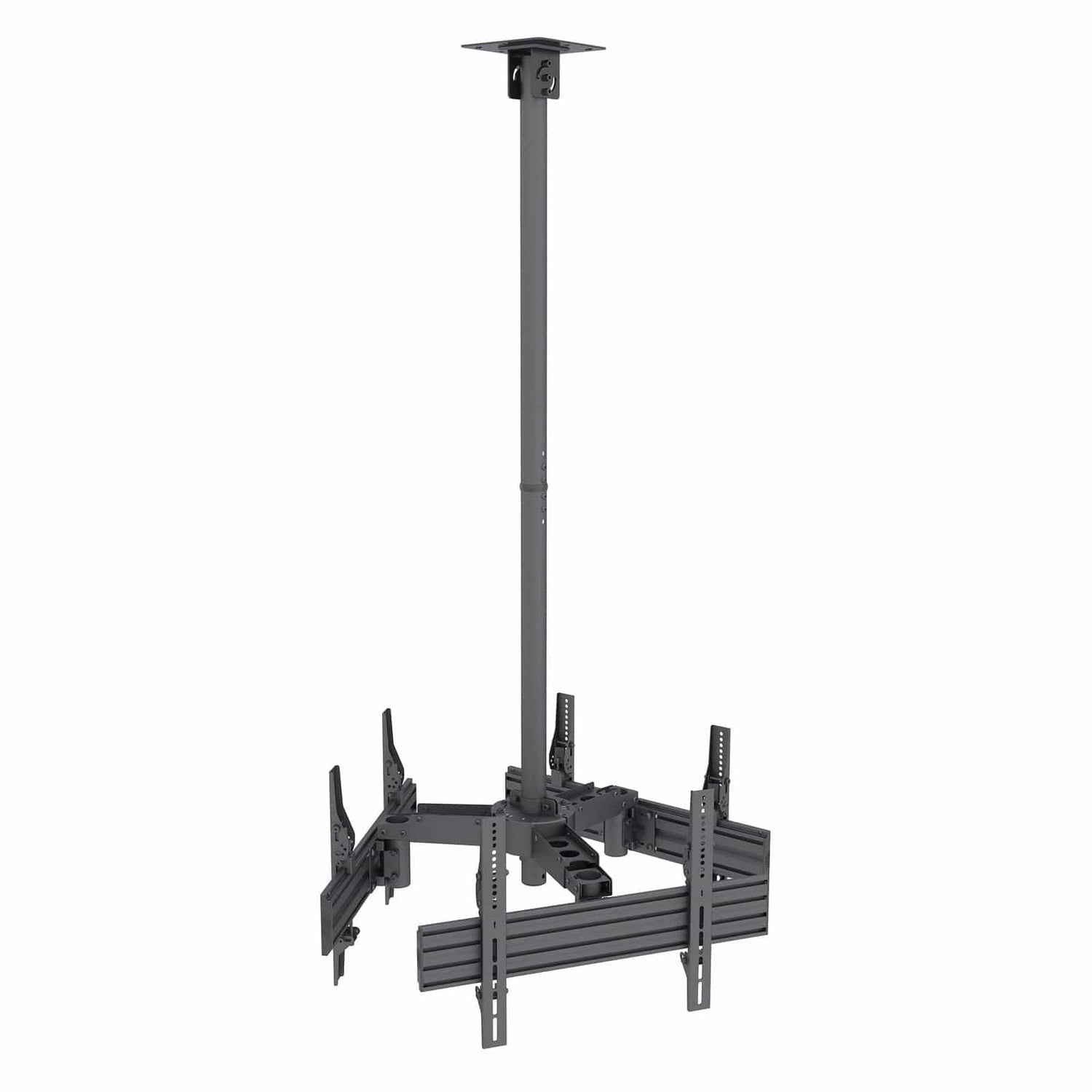

Triple TV Display Ceiling Mount
Features
Fits 32 to 65 inch flat screen TVs
Weight rated up to 198 lb

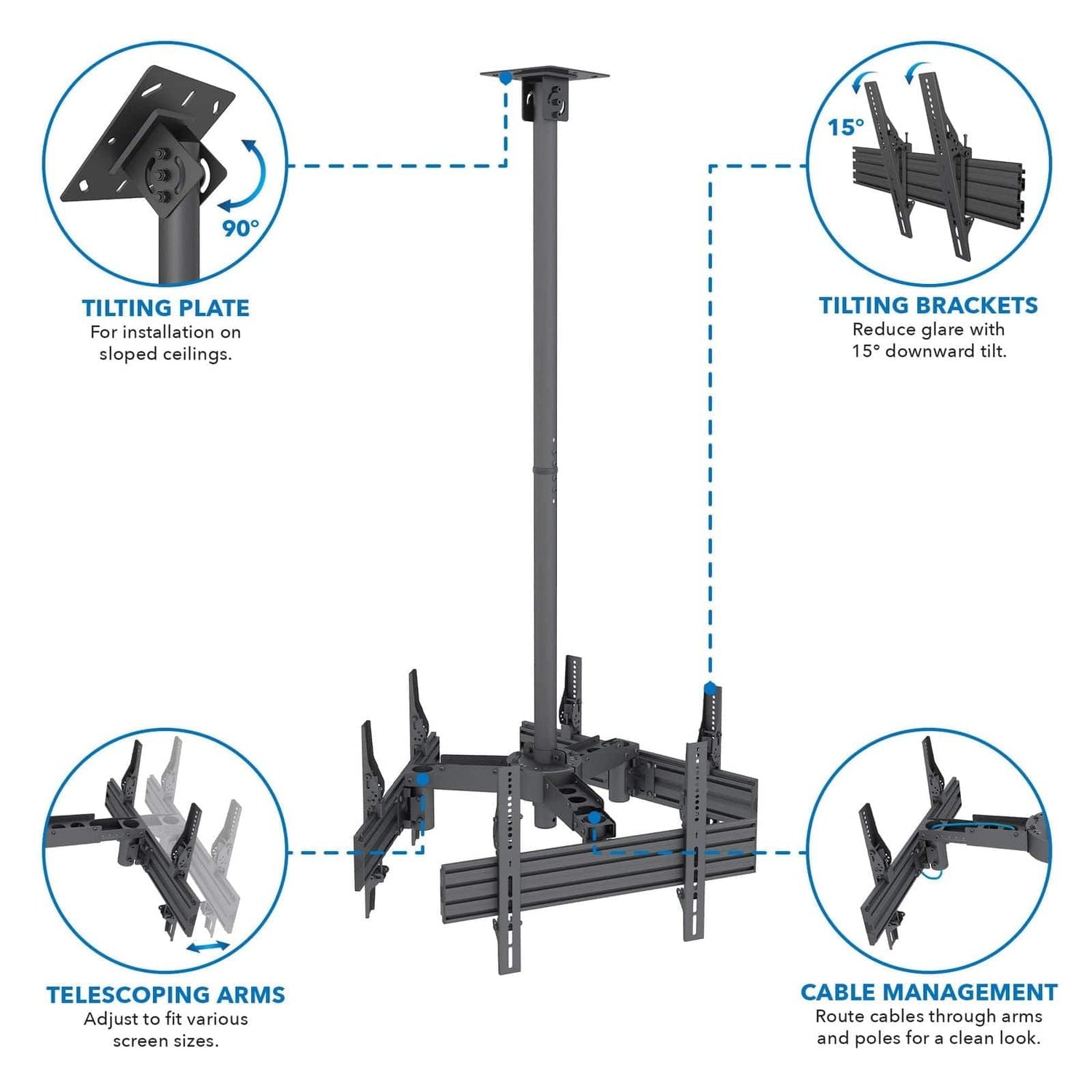

Adjustable tilt down to −15.0° - reduce glare from above

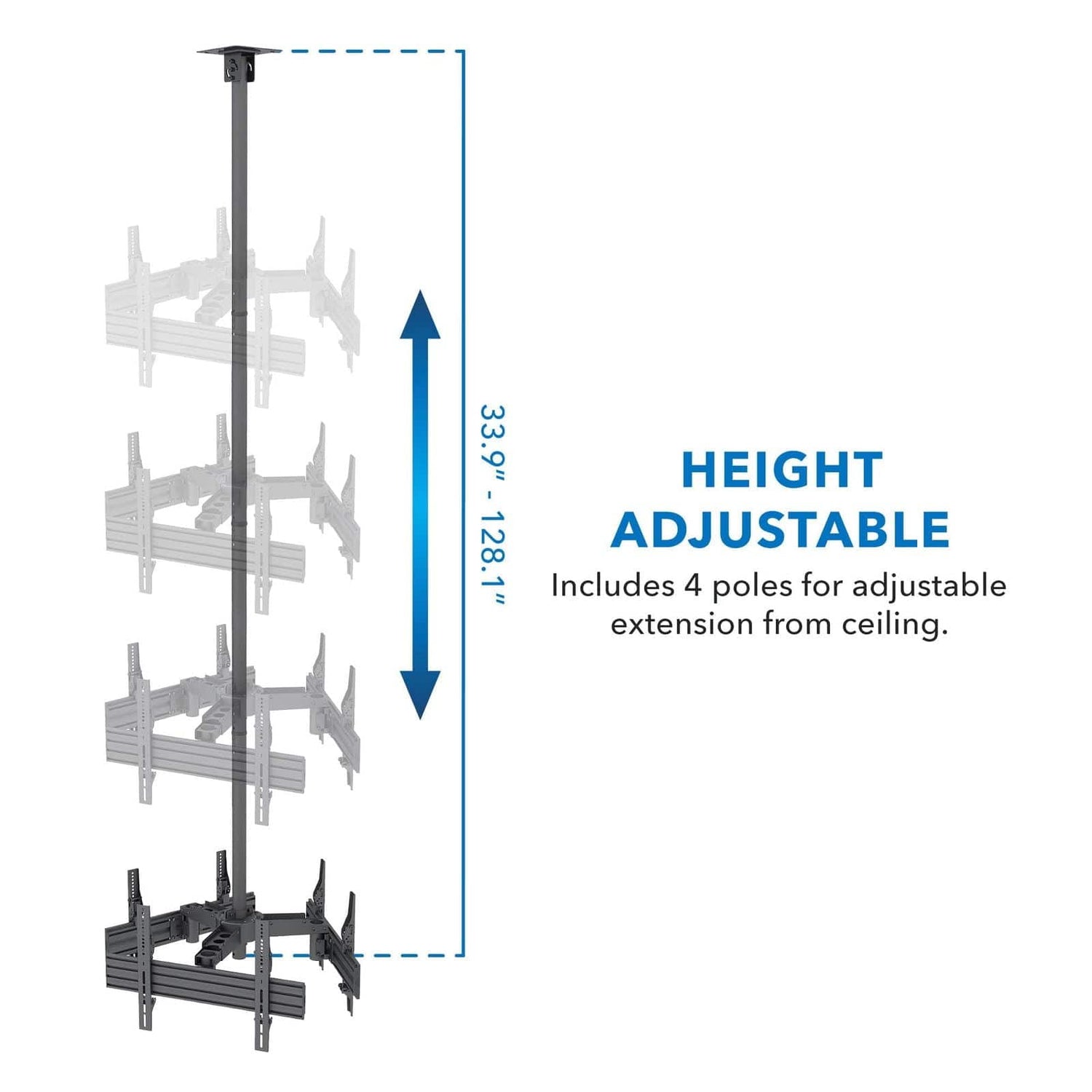

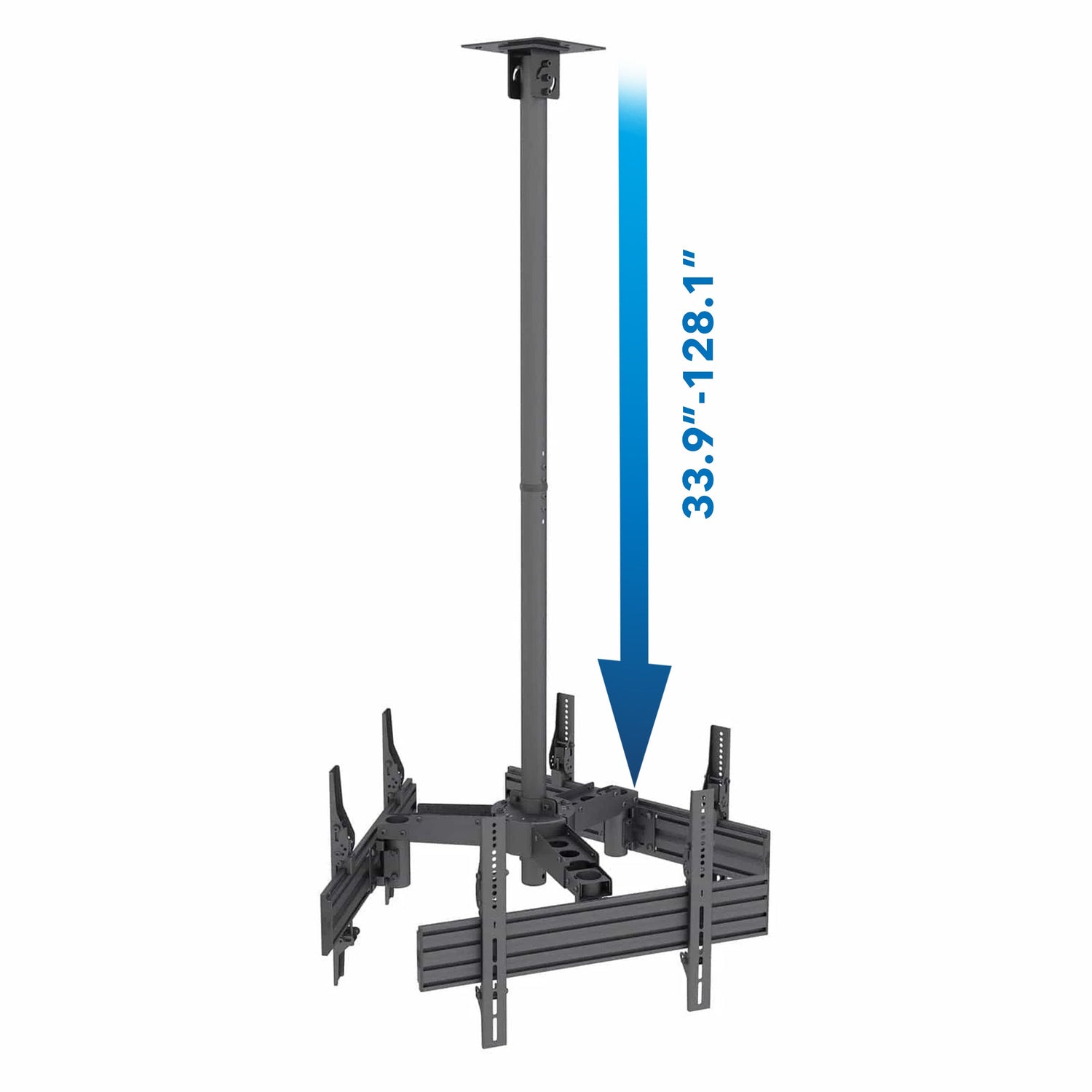

Drops 33.9 to 128.1 in below the ceiling for adjustable viewing height

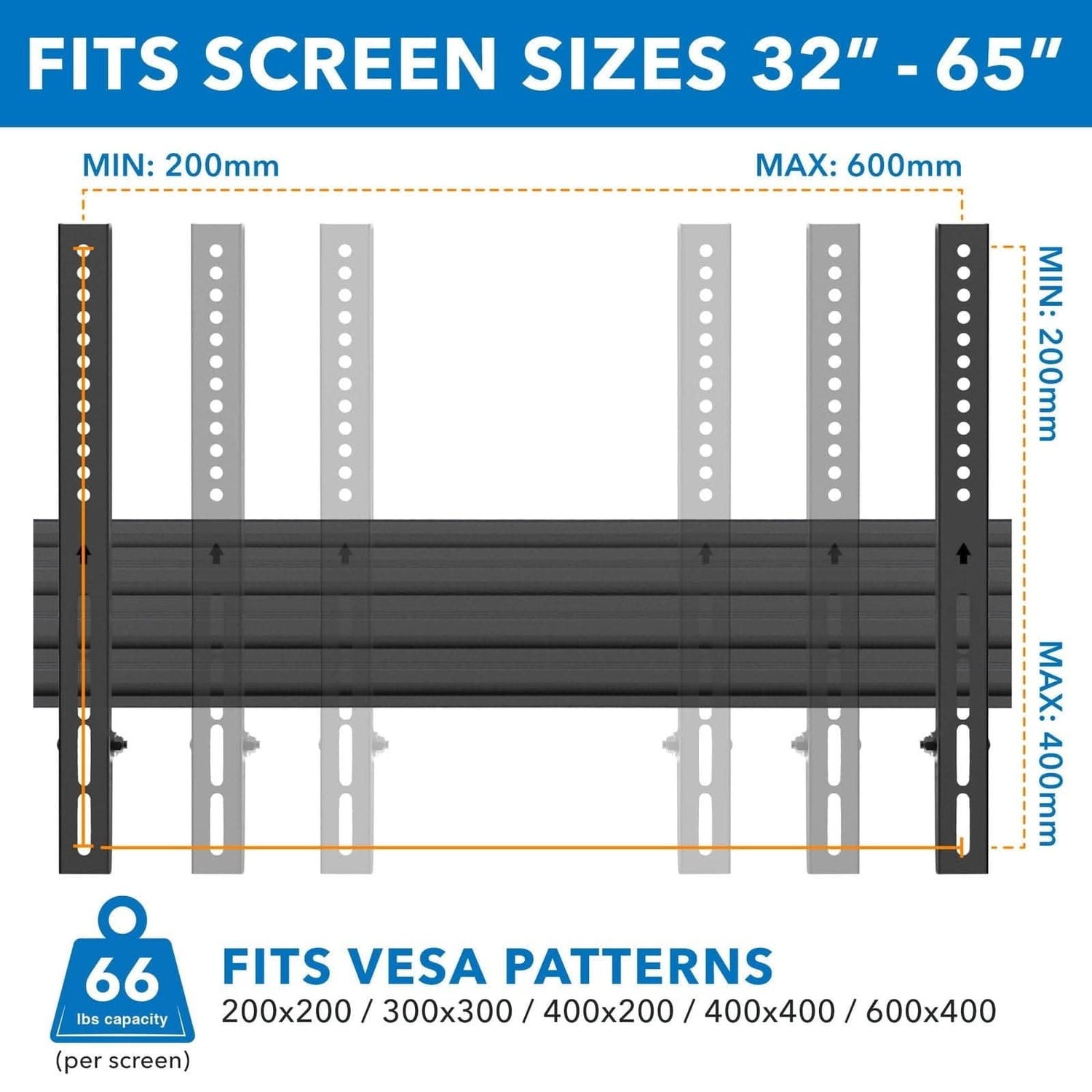

VESA 200×200 to 600×400 mm - fits most flat panel TV brands
Overview
The Triple TV Display Ceiling Mount is a tilting TV ceiling mount for 32 to 65-inch televisions that drops cleanly from the ceiling and lets you angle the screen to a comfortable viewing position from below. Rated for TVs up to 198 lb.
Adjustable tilt −15° to reduce reflections and find the right viewing angle from your seat. Profile depth 33.9 in. Sits close to the ceiling for a neat, minimal installation.
Compatible with VESA mounting patterns from 200×200 to 600×400 mm.

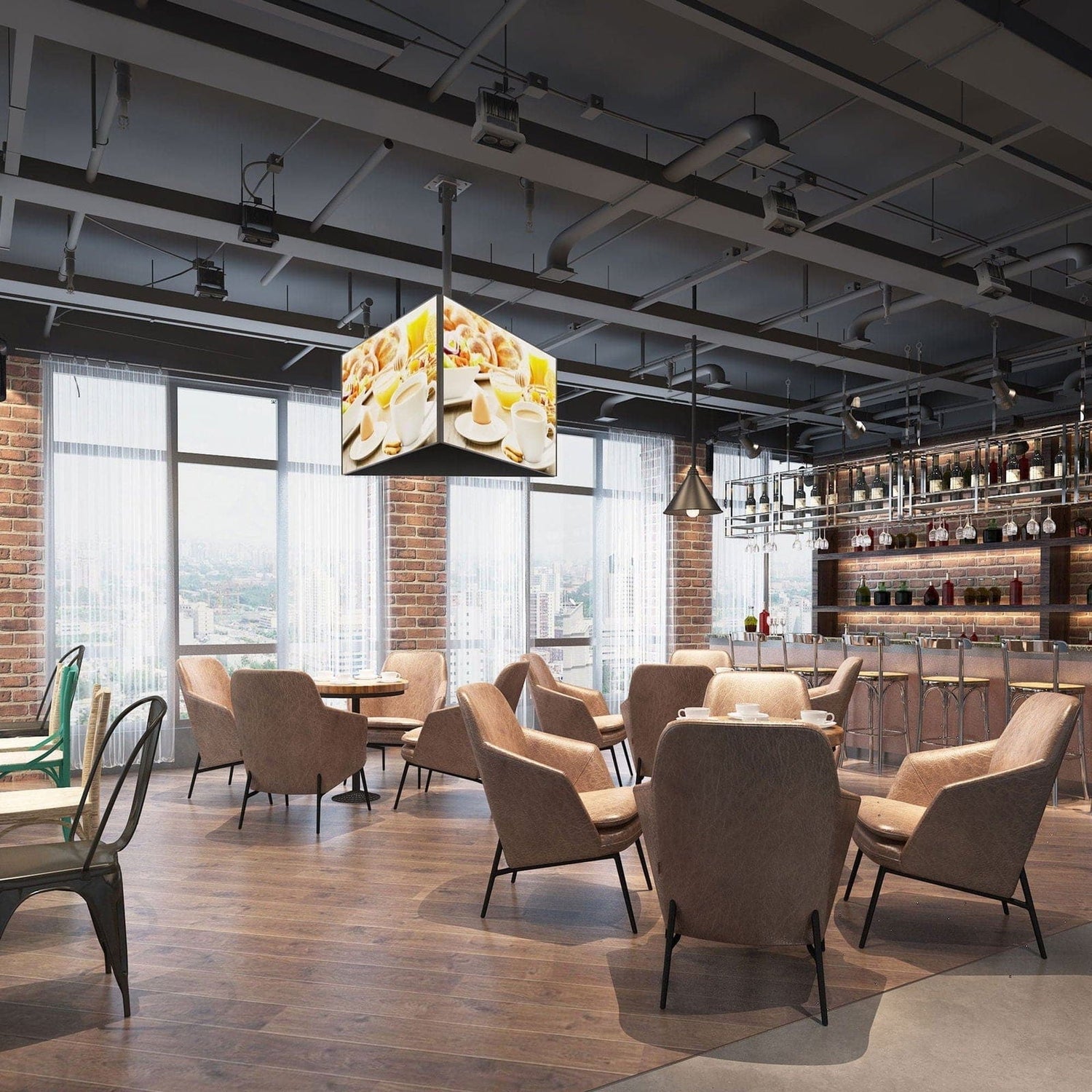

A practical choice for bedrooms, basements, retail floors, and other spaces where wall mounting isn't an option but the viewing angle stays fixed.
Specifications
- SKU: MI-515
- Product type: Ceiling TV Mount
- Mount type: Tilting
- Product weight: 64.2 lb

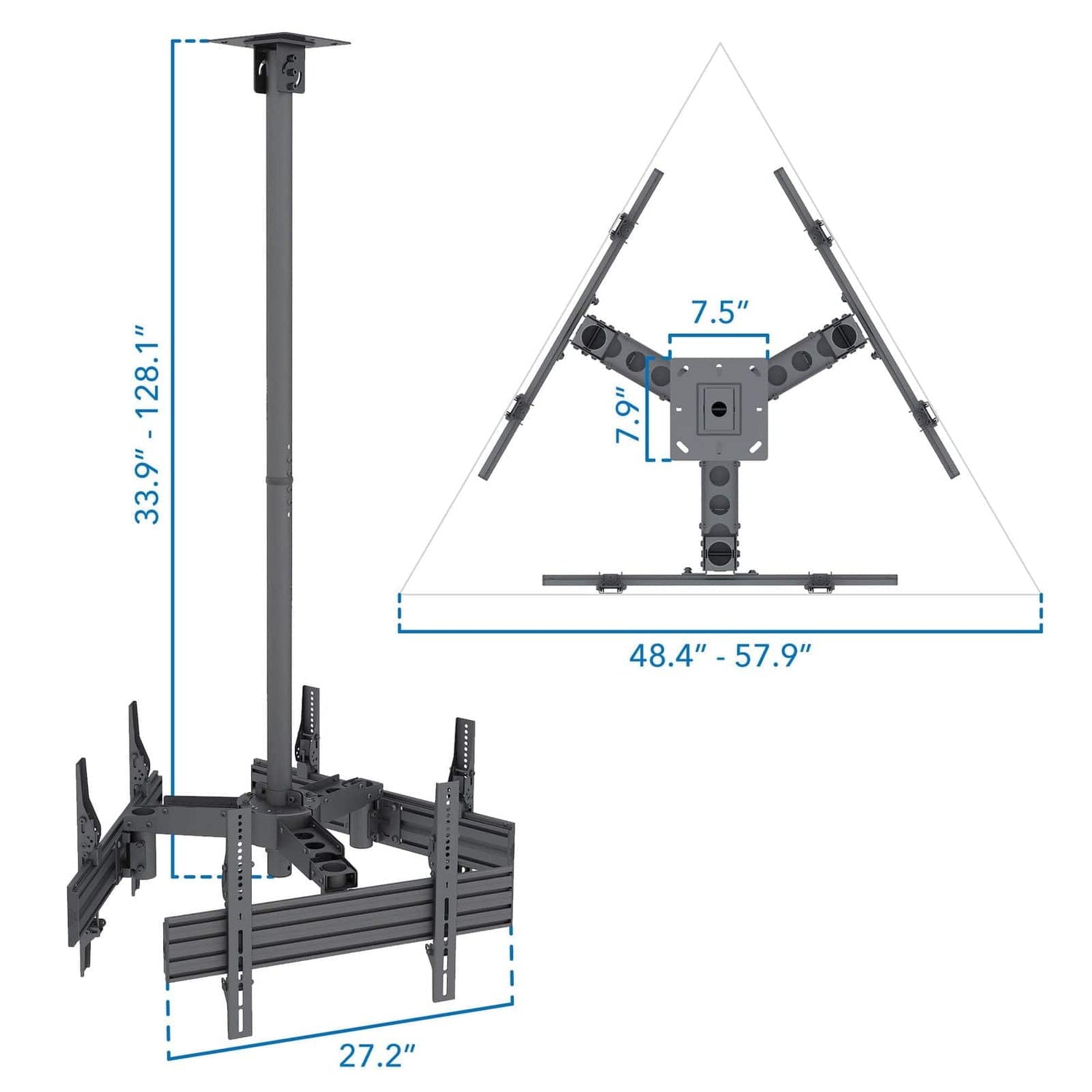

- Ceiling plate dimensions: 7.5×7.9 in
Holds screens
- Screen size range: 32 to 65 in
- VESA range: 200×200 to 600×400 mm
- Weight capacity: 198 lb
Movement
- Tilt:−15°
- Drop range: 33.9 to 128.1 in
Installation
Stud installation type: Single stud
Safely install on these types of surfaces:
- Truss
- Steel I-beam
- Exposed wood beam
- Drop ceiling (T-bar, requires structural anchor above)
- Concrete ceiling (poured slab)
- Metal/steel ceiling joist
- Wood ceiling joist
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
